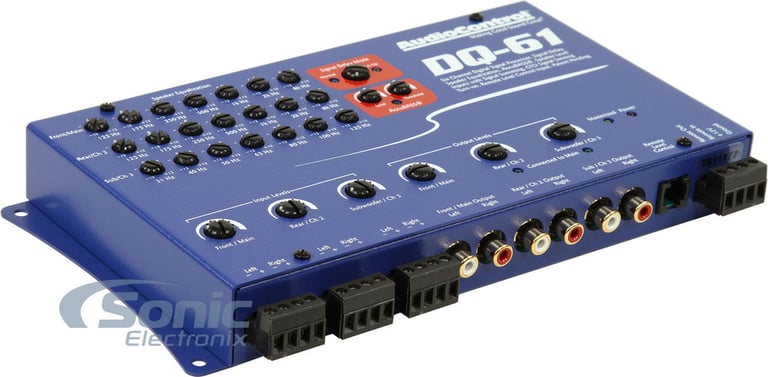

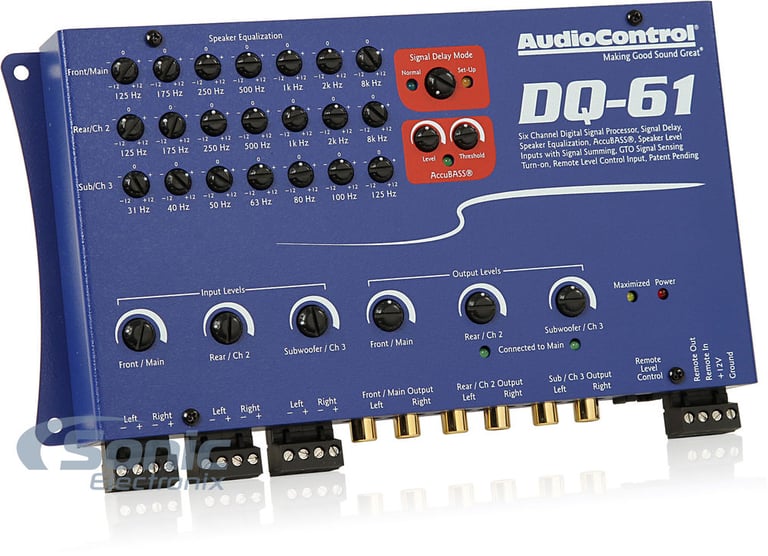

AudioControl DQ-61 BLUE Open Box Complete

6 Channel Line Out Converter with Signal Delay AccuBass and EQ with 5-year warranty*!

AudioControl
Shop all AudioControl
highlight-star-icon

• Item Condition: Open Box Compete
• Accurately Tune Your OEM and Aftermarket System
• 14 EQ Bands
• User Friendly Signal Delay
• Patent Pending AccuBASS Corrects for Bass Roll-Off
• Truly Take Control of Your Car Audio Sound

Learn more about the ls-dq61-blue-obc6

We apologize

This item has been discontinued

Description


AudioControl brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

  • A part that is fully functional but shows no sign of use outside of installation.

General Features:

  • 6-channel Line Out Converter
  • Designed to bring ultimate control and great sound
  • Includes 6 speaker-level inputs
  • AudioControl Signal Delay
  • Creates new level of audio performance
  • Dramatically improves in-car entertainment experience
  • Designed to simplify the overall installation and calibration process
  • Equalization Control
  • Includes 21 discreet EQ knobs (14 Total Bands)
  • 7-band graphic EQ on front, rear and subwoofer channels
  • Provides simple and precise system tuning
  • AccuBASS
  • Discreet input and output level controls
    • Input level controls with maximization indicator LED
    • Output level controls match amp inputs
  • AutoMode creates subwoofer channel when needed

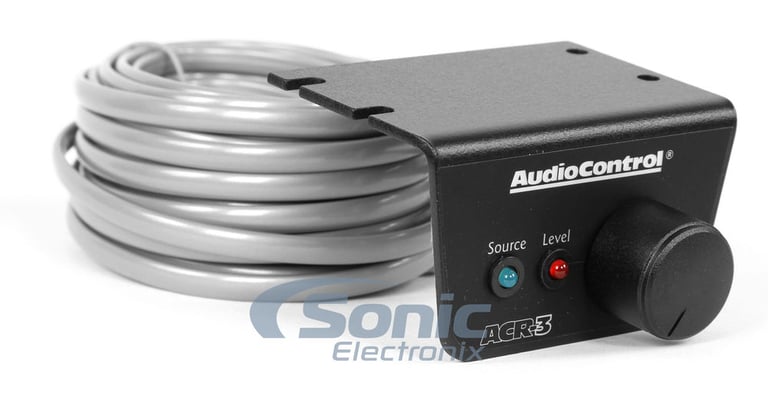

  • ACR-3 dash-mount subwoofer remote included
  • Internal channel summing
  • GTA (Great Turn-On)
    • Powers the processor up when it detects a signal on the main speaker level input
  • Color: Blue
  • Also available in Black
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

Product Specifications:

  • Total Harmonic Distortion: 0.01%
  • Frequency Response: 10Hz-22kHz
  • Equalizer Frequencies (front/rear): 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
  • Equalizer Frequencies (sub): 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100HZ, 125Hz
  • PFM Frequency: 20Hz or 30Hz selectable
  • Signal Delay Max (Left/Right): 10ms
  • Signal Delay Max (Front/Sub): 35ms
  • Speaker Level Inputs Inputs: 3 (6 channels)
  • Maximum Input (Speaker Level): 400w per channel at 4Ω
  • Input Impedance: 20kΩ
  • Preamp Outputs: 3 (6 channels)
  • Maximum Output Level: 7.5Vrms
  • Output Gain: ±12dB
  • Output Impedance: 150Ω
  • Power Supply: High Headroom PWM Switching
  • Current Draw: 350mA
  • Recommended Fuse Rating: 2A
  • Weight: 3.0lbs (1.4kg)
  • Dimensions: 5.00"W x 8.60"D x 1.25"H
Check out the AudioControl DQ-61 Owner's Manual

Specifications & Details


General Specifications
Equalizer Bands
14 band
Built-in Bass Reconstruction
Yes
Line Driver
Yes
Speaker Level Inputs
Yes
Total Number of Inputs
6
Total Number of Outputs
6
Equalizer Frequencies
31.5 - 8000 Hz
Max Output Level
7.5 volts
Frequency Response
10 - 22000 Hz
THD (Total Harmonic Distortion)
0.01%
Width
8.60"
Height
1.25"
Depth
5.00"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DQ-61 BLUE Open Box Complete

Weight:

3.20lbs

Internal SKU:

ls-dq61-blue-obc6

Internal Product ID:

130271
