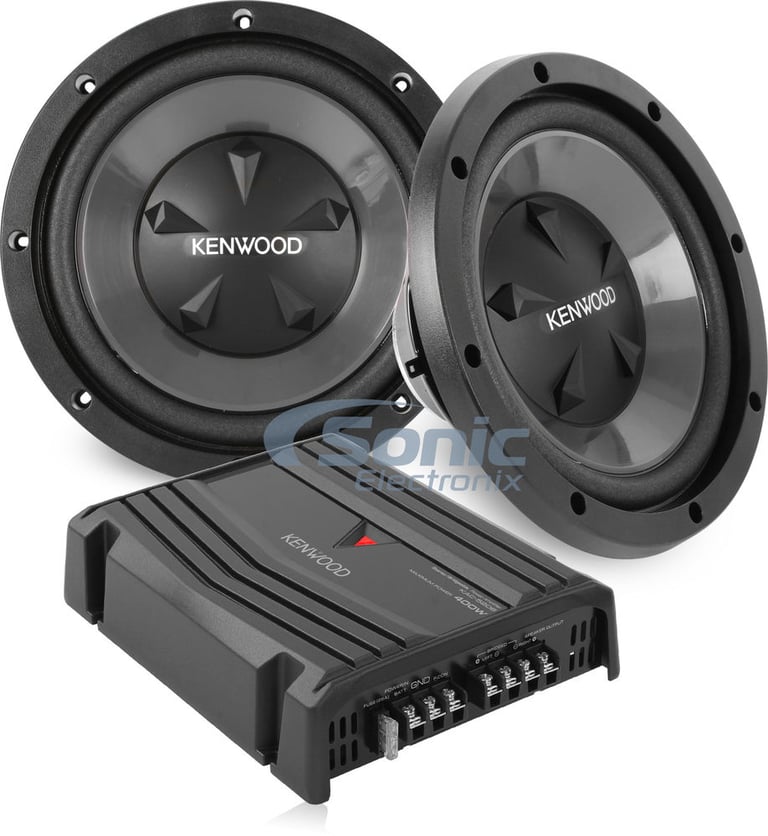

Kenwood P-W1220 Subwoofers and Amplifier Bass Bundle

Pair of 12" Kenwood KFC-W112S KFC Series Subwoofers + Kenwood KAC-5206 2-Channel Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• Kenwood Performance Series Bass Package
Pair of 12" Single 8-Ohm KFC Series Subwoofers • 1600W Max • 400W RMS • Kenwood 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Low-High Level Inputs • Fixed Low-Pass Filter • CEA-2006 Compliant Amplifier

Learn more about the pw1220

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• Kenwood Performance Series Bass Package
Pair of 12" Single 8-Ohm KFC Series Subwoofers • 1600W Max • 400W RMS • Kenwood 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Low-High Level Inputs • Fixed Low-Pass Filter • CEA-2006 Compliant Amplifier

Description


Kenwood brand icon

Authorized dealer

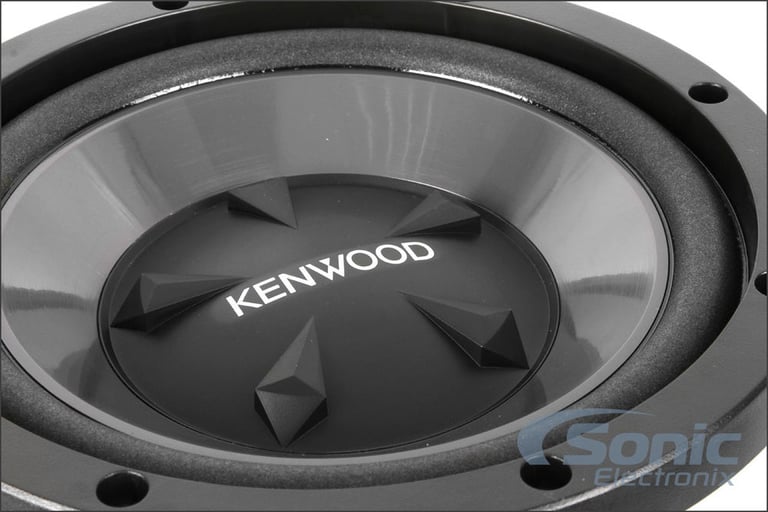

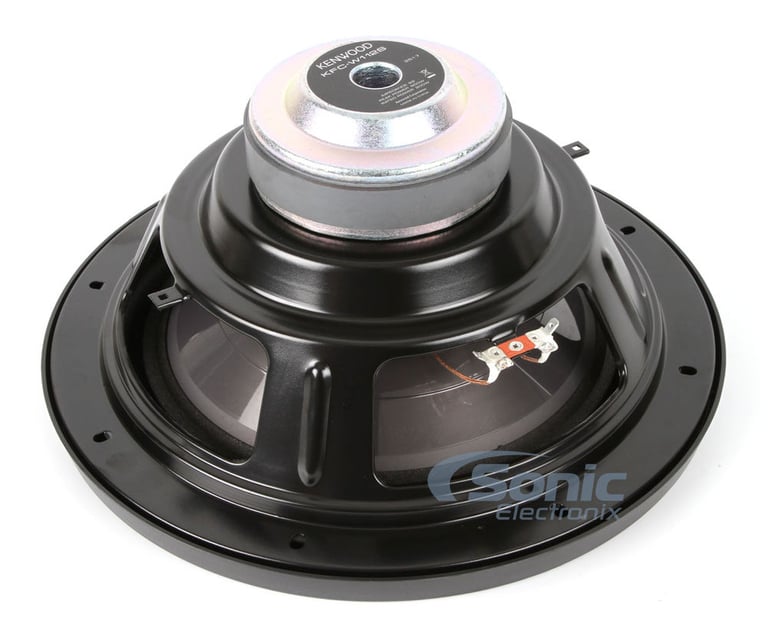

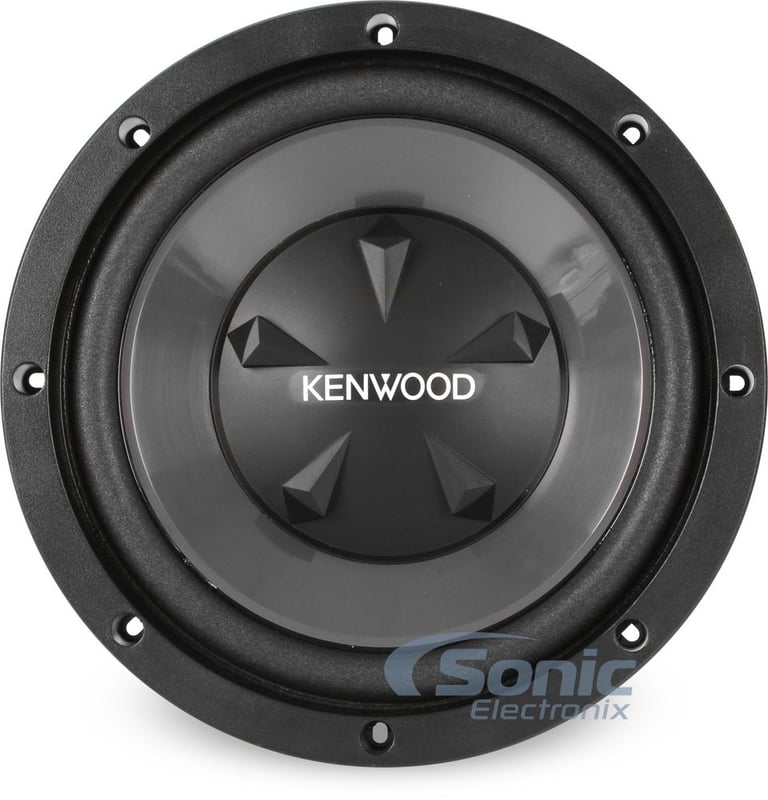

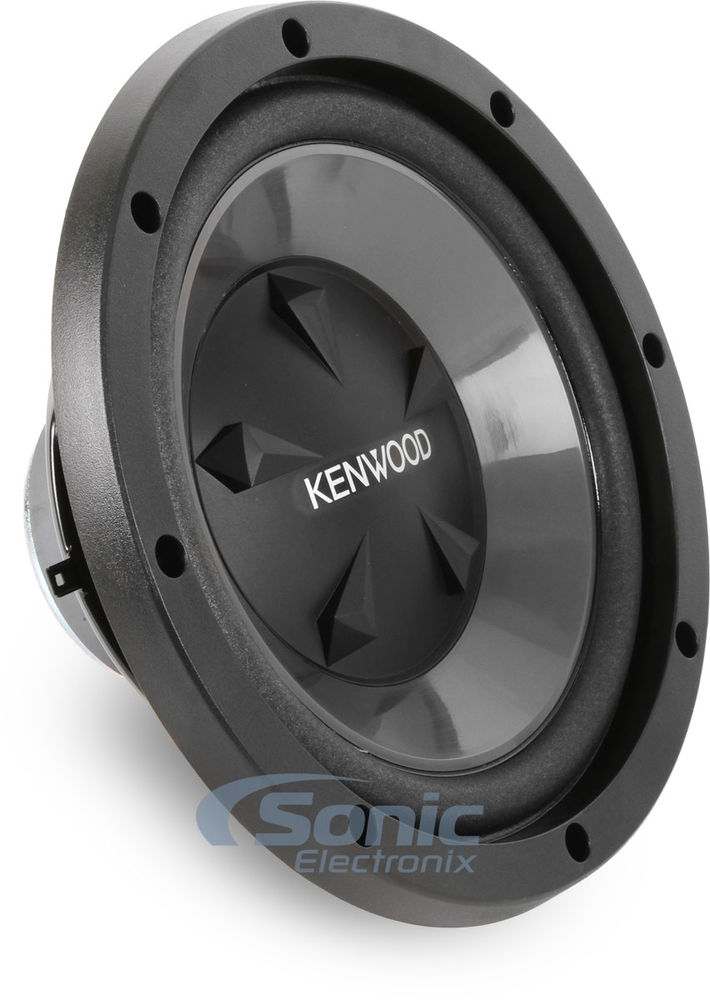

Kenwood KFC-W112S

200W 12" Performance Series Single 8 ohm Subwoofer
Quantity: 2 Subwoofers

General Features:

  • 12" Single 8-Ohm KFC Series Subwoofers
  • Power Handling:
    • Peak: 1600 watts total / 800 watts each
    • RMS: 400 watts total / 200 watts each
  • Impedance: Single 8-Ohm
  • Polypropylene injection-molded woofer cone
  • High-roll urethane surround
  • Silver-plated terminals
  • Steel frame basket
  • 2" high temperature voice coil
  • 28.9 oz. ferrite magnet structure
  • Frequency response: 28-800 Hz
  • Sensitivity: 90 dB
  • Mounting depth: 5-9/16"
  • Cutout dimensions: 10-13/16"
  • 1-year SonicElectronix.com warranty

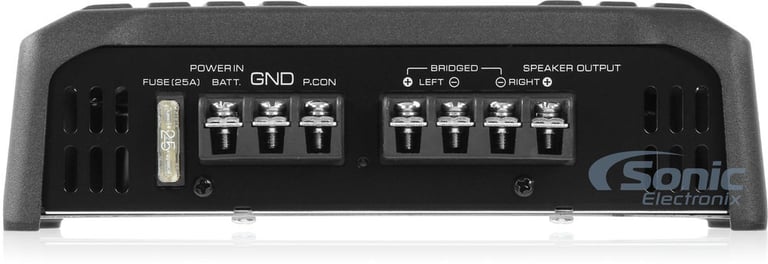

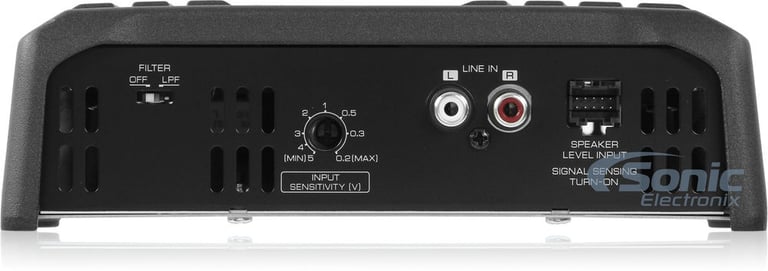

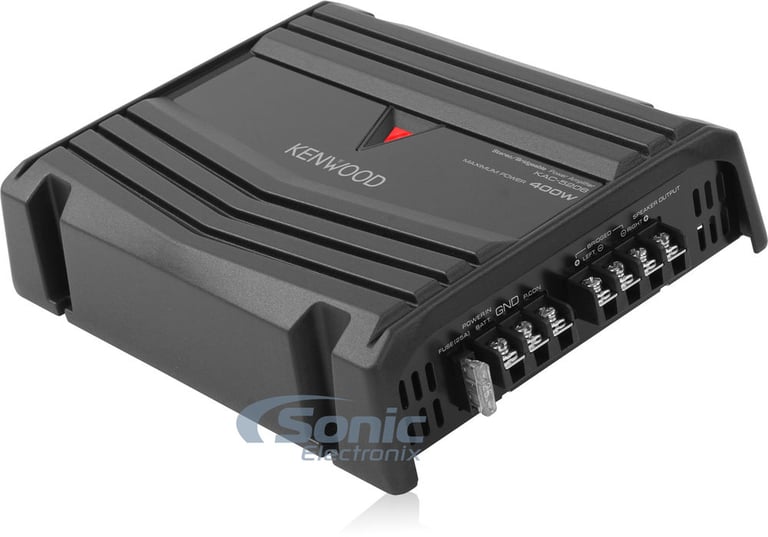

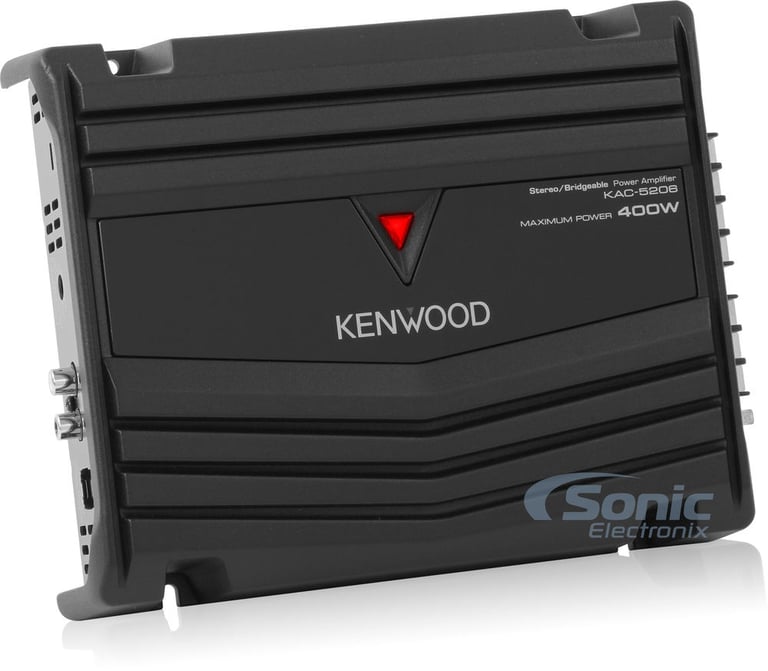

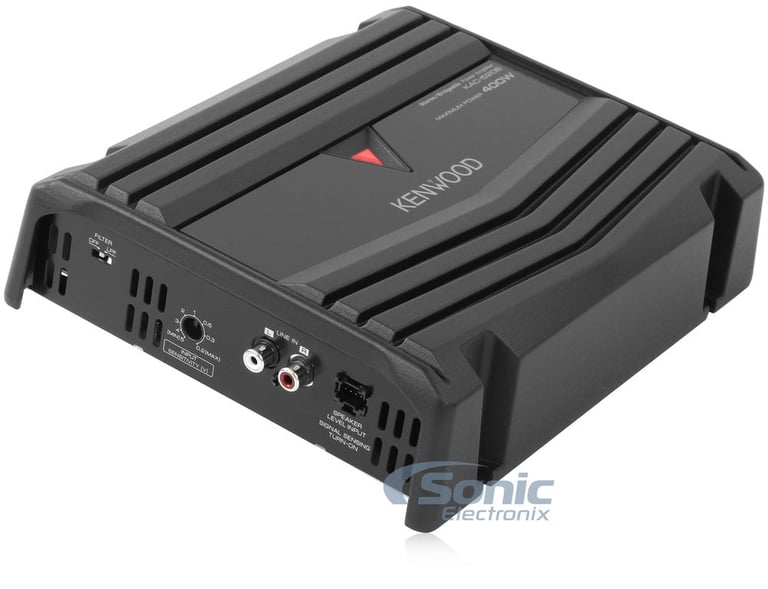

Kenwood KAC-5206

400W Max 2-Channel Class AB Performance Series Car Amplifier
Quantity: 1 Amplifier

General Features:

  • Performance Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 75 watts x 2 chan.
    • Bridged, 4 ohm: 150 watts x 1 chan.
  • Max power output: 400 watts
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Variable low-pass filter (80 Hz, 18 dB/octave)
  • CEA-2006 Compliant
  • 10 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 8-7/8"W x 7-1/16"D x 2-3/16"H
  • 1-year Sonic Electronix Warranty

Product history:

Kenwood P-W1220 thumbnail
(newest, current model)
Kenwood P-W1210 thumbnail
(previous model, replaced by Kenwood P-W1220 Subwoofers and Amplifier Bass Bundle)

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
Bridged RMS Power
150 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
150 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
Performance Series
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
RMS Power Handling
200 watts
Peak Power Handling
800 watts
Woofer Surround
Urethane
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Sensitivity
90 dB
Frequency Response
28 - 800 Hz
Xmax (millimeters)
7.7 mm
Top-Mount Depth (Mounting Depth)
5-9/16"
Cutout Diameter
10-13/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P-W1220

Weight:

24.31lbs

Internal SKU:

pw1220

Internal Product ID:

76453

Product and How-to Videos


Customer Ratings & Reviews


Kenwood P-W1220 Subwoofers and Amplifier Bass Bundle thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
4.5
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Great subs for the price

I have these subwoofers in my truck and they beat really hard for the low price! I would recommend these subs to anyone who wants to add a good bit of bass to their vehicle but are limited on space.

By Alex on February 1, 2015

22 found this helpful


800 watt max not 1600

Great subs. Amazing sound and quality but the subs are 800watt max and 400 watt rms

By Dylan on June 1, 2015 Checkmark Icon Verified purchase

15 found this helpful




VM25BKC small

Victor Fitness VM25BKC Black & Dark Gray Camo Cloth Reusable Face Mask

Washable! Includes PM2.5 Carbon Activated Filter and Embroidered Logo

(3)

$0.99

List price $19.99

SRX300.4, BAK84 small

Memphis SRX300.4 + Belva BAK84 8 Gauge Amp Wiring Kit

300W RMS SRX Series Class AB 4-Channel Amplifier with Bass Remote

(37)

$219.95

List price $349.94

M51500X5_XKIT46 small

Rockford Fosgate M5-1500X5 with NVX 4 Gauge Amp Kit

1400W RMS M5-Series Class AD/BD 5-Channel Marine Amplifier

(45)

$999.99

List price $1179.98

No picture

Rockford Fosgate Power T1D415 (Open Box, Great)

2000W Peak (1000W RMS) 15" Power Series Dual 4-ohm Car Subwoofer

(9)

$722.49

List price $849.99

CMCS7.1 small

Clarion CMCS7.1

7" 2-way Marine Component Speakers System

(1)

$99.99

List price $229.99

HA-600.2-GRAY small

Hitron HA-600.2 (GRAY)

600W Max, 2-Channel Amplifier with Bass Remote

(1)

$69.99

List price $129.99

010-00822-00 small

Garmin nüvi 1690

4.3" Touchscreen GPS Navigation Receiver with Free 2-year Subscription to Garmin nüLink (010-00822-00)

$334.99

List price $524.98

09AFS40 small

Kicker AFS40

40 Amp AFS Fuses with Color Coded Casing (2-Pack)

$5.99

List price $9.99

17361 small

Shoptek Tools 17361

Rubber Mallet, 16-Oz

$5.00

List price $9.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1981 Dodge D50

2008 Mercury Mariner

2012 MINI Clubman

2018 Lexus ES300h

2011 Hyundai Sonata

1970 Mazda 1500

2017 Mazda MX-5 Miata

1998 Lexus LX470

2005 Chevrolet Aveo

2018 Ram 1500

Vehicle
Store
Delete

2007 Harley Davidson FLHTCSE Screamin Eagle Electra Glide

2007 Harley Davidson FXSTSSE Screamin Eagle Softail Springer

Vehicle
Store
Delete

2014 Can-Am Commander DPS 800R

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
