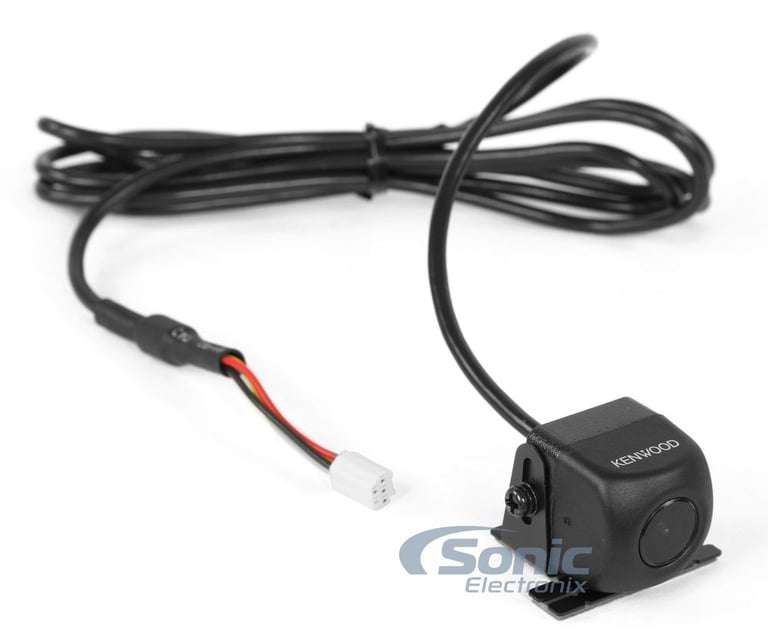

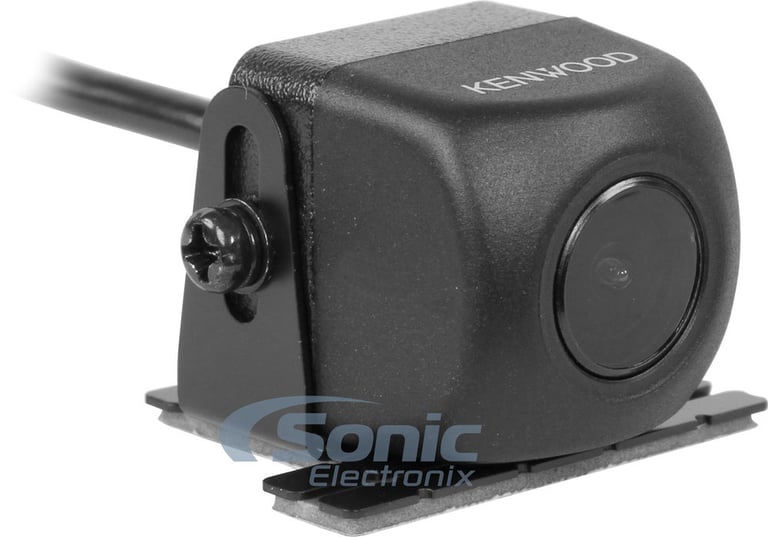

Kenwood CMOS-220

Universal Rear View Camera w/ Electronic Iris System & Waterproof Chassis

Kenwood
Shop all Kenwood
highlight-star-icon

• Remote Mount Rearview Back Up Camera
• Water Proof
• Uses CMOS Optics
• Vertical Viewing Angle: 103°
• Horizontal Viewing Angle: 128°

Learn more about the cmos220

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Kenwood brand icon

Authorized dealer

Why You Need This:

  • To see things behind you!
  • No one wants to mess their paint job up by backing into a pole
  • It's a hassle looking over your shoulder when backing up
  • Over 50 children are injured and 2 children die every week by people backing out of their very own driveway - You don't want to be one of the people responsible for that
  • It's Kenwood so you know it's good!

General Features

  • High Resolution Universal Rear View Camera with Multi-Viewing Modes
  • Mounting Style: Remote Mount
  • Viewing Angle:
    • Vertical: 103°
    • Horizontal: 128°
  • Designed specifically for Kenwood and eXcelon in-dash video units

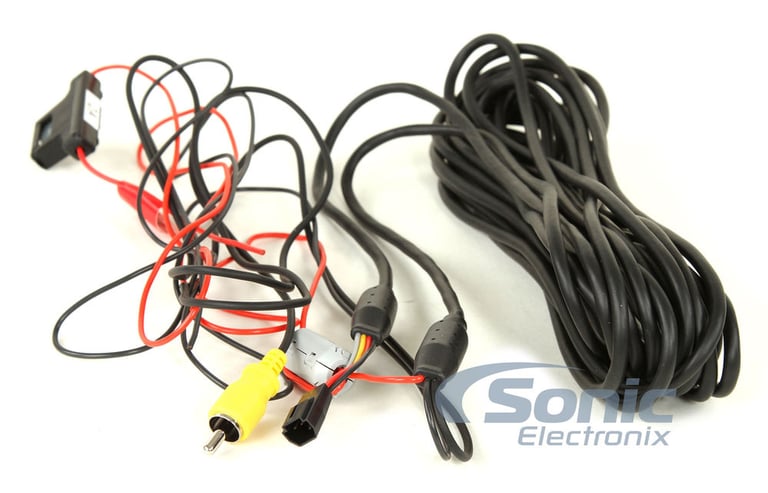

    • Standard composite video output extension cable allows for use with virtually any in-dash video monitor
  • Uses CMOS optics for greater clarity
    • 1/3.6" color sensor has approximately 330,000 pixels to deliver a high quality picture
  • Integrates a smaller on-board chip with faster operating speeds
  • Does not receive as much light distortion from near-by light sources
  • Approximately 330,000 visible pixels
  • Waterproof chassis perfect for all vehicles
  • Flexible mounting base
  • Reverse line switching
  • Illumination Range: Approx 0.9 to 100,000 lux
  • Focal Length: f=1.12 mm, F value 2.2
  • Operating Voltage: 14.4V (9.0 - 16 V allowable)
  • Iris System: Electronic iris
  • Scanning System: Interlace
  • Synchronizing System: Internal synchronization
  • Max. Current Consumption: 50mA

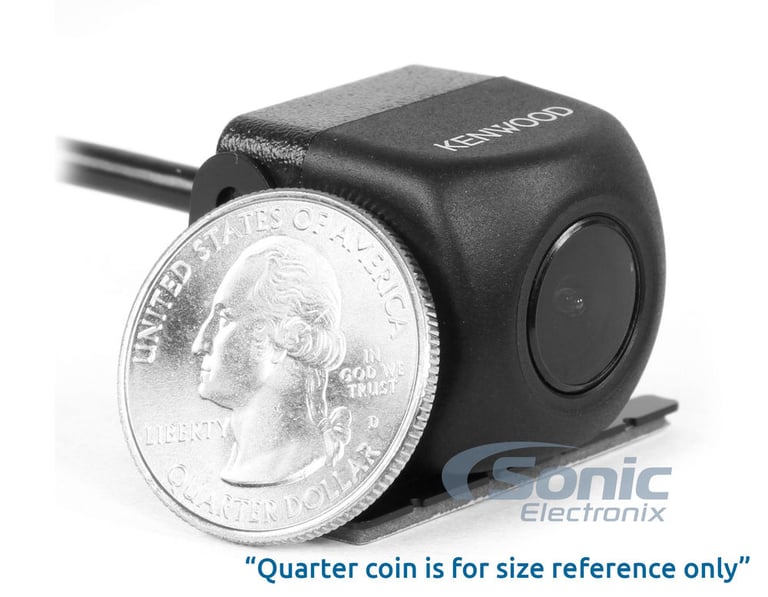

  • Dimensions (Camera): 1"D x 0.9"W x 0.9"H
  • 1-year Sonic Electronix warranty
