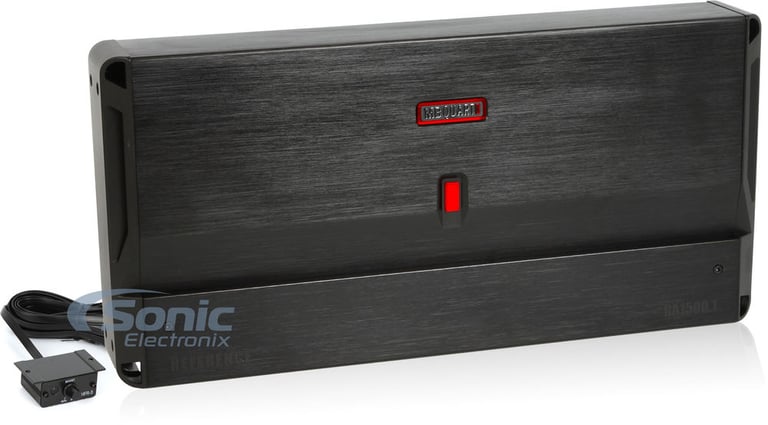

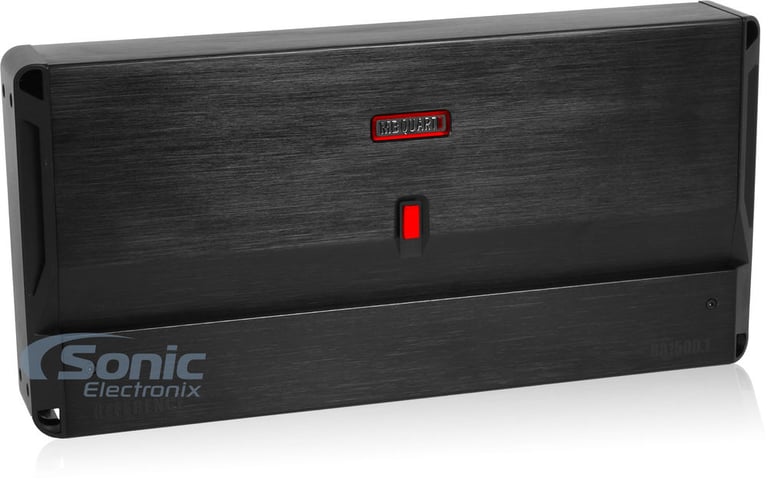

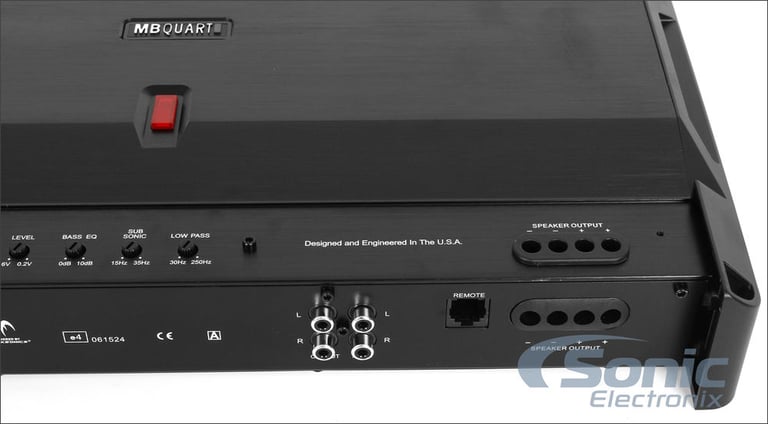

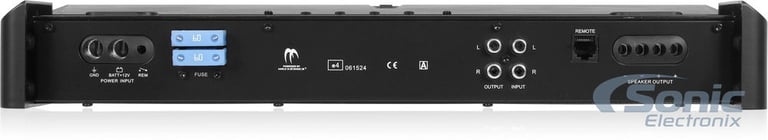

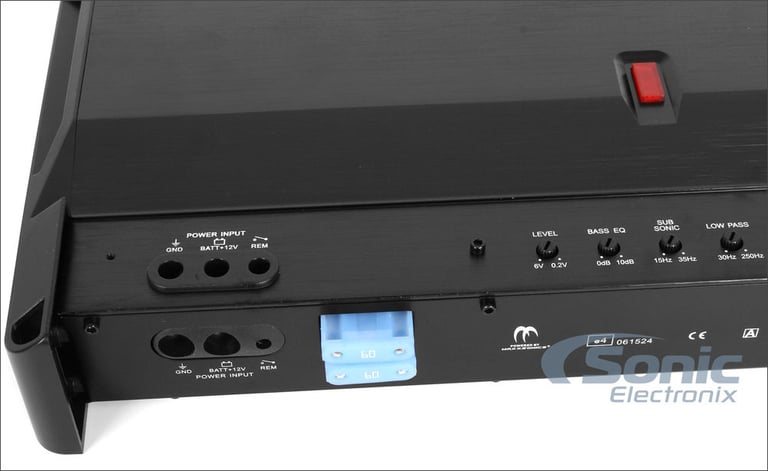

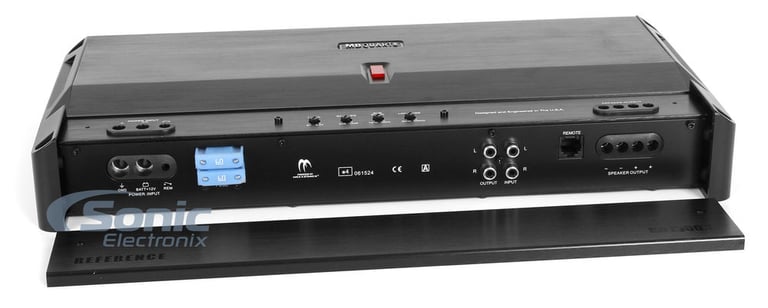

MB Quart RA1500.1

1500W Class D 1-Channel Monoblock Reference Series Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• Peak: 500W x 1 @ 4 ohm, 1000W x 1 @ 2 ohm, 1500W x 1 @ 1 ohm
• Total Peak Power: 1500W
• Built-In System Diagnostics
• Variable Bass EQ: 0 to +10 dB at 45 Hz
• Class D Circuitry
• Dimensions: 8-5/16"W x 15-3/4"D x 2-3/8"H

Learn more about the ra15001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-8161S main

Metra 99-8161S Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2002-2010 SC430 (Silver)

1
-45.37%

$52.99

List price $96.99

MVA-12L main

Beat-Sonic MVA-12L

Install a New Car Stereo and Retain Climate Controls and Other Factory Features in select 2002-2004 SC430 with Mark Levinson Sound System and Factory Navigation

1
-6.98%

$399.99

List price $430.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

Limited time!
Stage3 527 main

JBL Stage3 527 (STAGE3527AM)

400W Peak (80W RMS) 5.25” Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-36.38%

$69.95

List price $109.95

MAS.524 main

Precision Power (PPI) MAS.524

150W RMS 5.25" MAS Series 2 Way Coaxial 4-ohm Motorcycle Speakers

1
-22.86%

$269.99

List price $349.99

TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Product Highlights


• Peak: 500W x 1 @ 4 ohm, 1000W x 1 @ 2 ohm, 1500W x 1 @ 1 ohm
• Total Peak Power: 1500W
• Built-In System Diagnostics
• Variable Bass EQ: 0 to +10 dB at 45 Hz
• Class D Circuitry
• Dimensions: 8-5/16"W x 15-3/4"D x 2-3/8"H

Description


MB Quart brand icon

Authorized dealer

General Features:

  • Reference Series 1-Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 1500 watts x 1 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • 1 Ohm stable
  • LED power (green) and protect (red) indicators
  • Variable BassEQ Boost (0 to +10 dB bass boost fixed at 45 Hz)
  • Built-in system diagnostics
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty Black Onyx aluminum alloy heat-sink with illuminated MB Quart design
  • Variable high-pass filter (10-1,200) Hz
  • Variable low-pass filter (30-150 Hz)
  • Frequency response: 15-250 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 8-5/16"W x 15-3/4"D x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
1500 watts x 1 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.10%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 10 dB

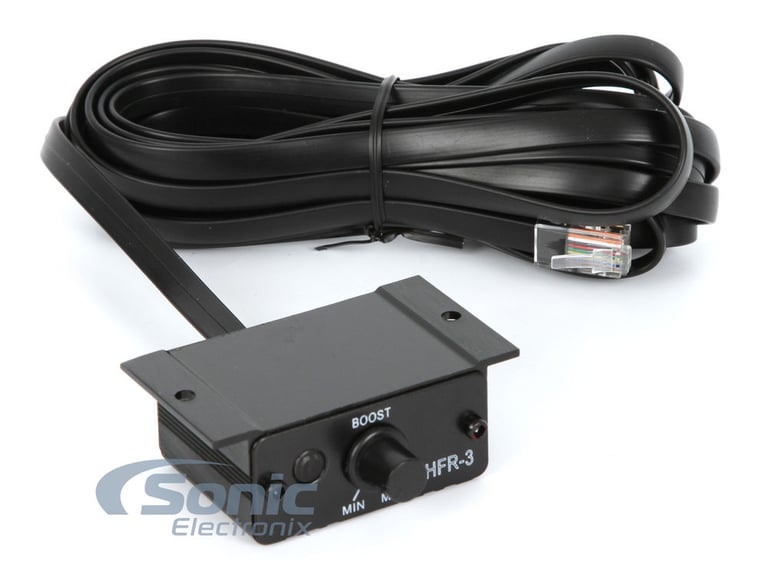

Remote bass/level controller
Yes
Fuse Rating
60A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RA1500.1

Weight:

11.50lbs

Internal SKU:

ra15001

Internal Product ID:

67868

Product and How-to Videos


Customer Ratings & Reviews


MB Quart RA1500.1 thumbnail image

5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
5
Design
4.6
Usability
4.9

Customer Reviews

Sort by:

Loading...

Skar zvx12 v2

I'm using this with my skar audio zvx 12 at 1ohm and for the value its great. It's very clean and loud.

By linton on October 18, 2014

39 found this helpful


Nice Amp!

Not the most powerful. But has accurate, clean, rich sound. And doesn't get hot running at 1 ohm. Good buy for sound quality. Not so much am spl amp.

By Kilbaine on September 19, 2014

38 found this helpful


Great amp

I have this amp powering 2 RE Audio SEX 15's in a sealed box wired down to one ohm. The amp doesn't get hot, even during the summers in Arizona. I set the gains, filters, and haven't really messed with it since. Most of the time, I have the volume set at a moderate level, but it does push those subs pretty good when you want it to. If you're all about about SPL and getting loud, there are better amps suited for your needs. If you want a reasonably priced amp that puts out clean power for a daily driver type setup, then I'd highly recommend this amp. My only complaint is that I had to trim some of the copper from my 0 gauge wires in order to fit it into the terminals. Other than that, great amp.

By Jonathan on February 4, 2015

33 found this helpful


great buy

Had this amp for a short while and couldn't be happier. very clean

By Todd on September 23, 2013

25 found this helpful


Great amp...packs a mean punch

Great amp. I have it pushing a 12" GTO sub and it never gets hot. More amp then I need. Quality amp and plenty of adjustments.

By Jay on May 3, 2015

24 found this helpful


This Amp is a Monster

bought this beast for my soundqubed hds312 woofer ad its pushing around 1100 watts right now until i get another batter and let me tell you phenomenal amp

By ToneDeaf audio on September 7, 2015

15 found this helpful


Great product/service

Originally I ordered and received the 1200.1 version which had to be returned. With product authorization, Sonic Electronics did me a huge solid by replacing the out-of-production model with the next model up, the 1500.1.

This amp is working great and I would recommend it to folks looking for good clean power in a small package.

Sonic electronics' fantastic service will keep me coming back.

By chris on July 17, 2015 Checkmark Icon Verified purchase

15 found this helpful


By Joey on February 1, 2025 Checkmark Icon Verified purchase




1000GEN3 small

EdenPURE 1000GEN3

Generation 3 Quartz Infrared Element Portable Heater

$329.99

List price $399.99

RNGR18RC-STG6 small

Rockford Fosgate Stage 6 RNGR18RC-STG6

Stage 6 Audio System Upgrade Kit for select 2018-2025 Ranger Crew XP and Ranger XP with Ride Command (Gen-2) Includes Loaded 6.5" Speaker Pods, Loaded Single 10" Enclosure, and a Marine Amplifier

$2749.99

List price $2749.99

SGJ76 small

Stinger SGJ76

6" Cross Flow Cooling Fan

(4)

$49.99

List price $119.00

ICBM-9.2J TAN small

Performance Teknique ICBM-9.2J TAN

9.2" High Grade Wide Screen Headrest Monitor w/ Dual Channel IR Transmitter

$149.99

List price $289.99

NSM-6209T small

NESA Vision NSM-6209T

Touchscreen 6.2" Widescreen TFT-LCD Headrest Monitor

$144.99

List price $249.99

KDL-40S4100 small

Sony KDL-40S4100 (KDL40S4100)

40" LCD HDTV 1080p Bravia S-Series Television with Built-in Stereo Speakers and Remote

$859.99

List price $1299.99

APTT559 small

Toastess Delfino DLCG559

Coffee and Spice Grinder, Stainless Steel

$38.99

List price $70.00

TS3 SATELLITE BLACK small

DLS TS3 Satellite (Black)

Pair of T Series TS3 Bookshelf Speakers in Black Finish (10-11005B)

$790.00

List price $790.00

CXXD3800 small

Boss CXXD3800

3800W MAX Class D Single Channel Monoblock Chaos Exxtreme Series Amplifier

(8)

$119.99

List price $499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Lexus SC430

2014 Ford Escape

2008 Ford Expedition

2015 Ford Escape

1993 Dodge Caravan

1998 Mercury Sable

2015 Ram 2500

2022 Ford Edge

2016 Chevrolet Volt

2011 Audi A4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
