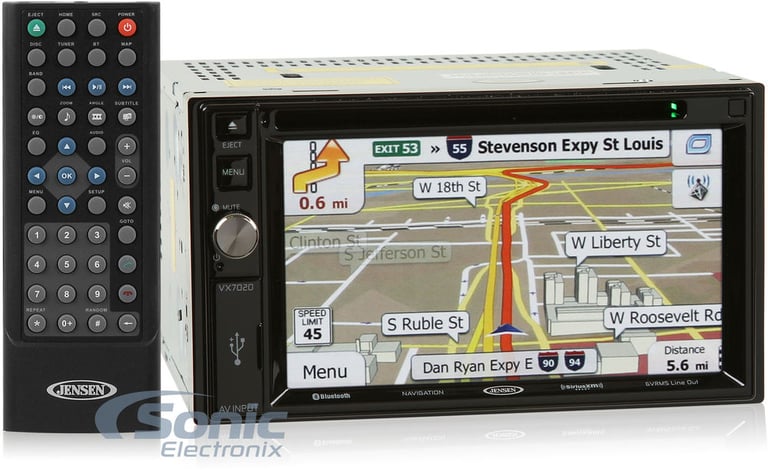

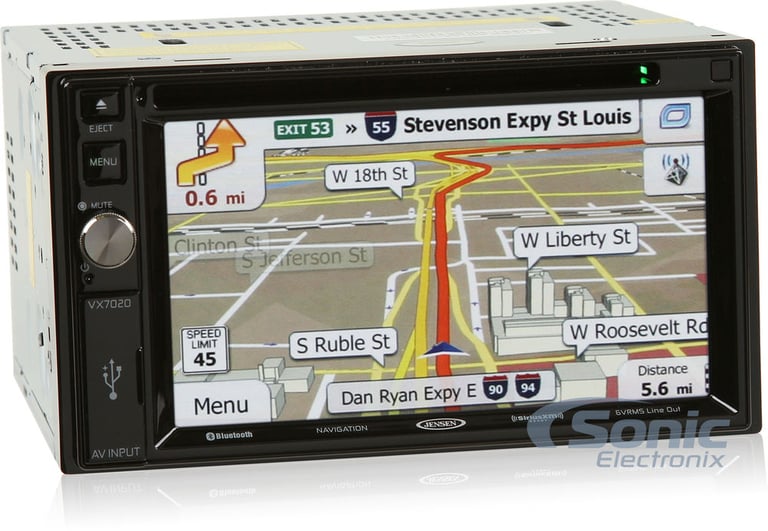

Jensen VX7020

Double DIN In-Dash DVD Car Stereo w/ Bluetooth, GPS Navigation & 6.2" LCD Touchscreen Display

Jensen
Shop all Jensen
Product videos
highlight-star-icon

• Built-In Navigation
• Integrated Control for iOS Devices
• 10-Band Equalizer
• 3 Sets of 6V Preamp Outputs
• 40W x 4 Chan. MAX, 13W x 4 Chan. RMS

Learn more about the vx7020

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

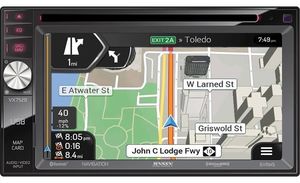

vx7528 thumbnail

Jensen VX7528

OUR PRICE: $199.95

View item

Product Highlights


• Built-In Navigation
• Integrated Control for iOS Devices
• 10-Band Equalizer
• 3 Sets of 6V Preamp Outputs
• 40W x 4 Chan. MAX, 13W x 4 Chan. RMS

Description


Jensen brand icon

Authorized dealer
















General Features:

  • Jensen VX7020 In-Dash Receiver
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 40 watts x 4 channels
    • RMS: 13 watts x 4 channels
  • 6.2" TFT LCD screen
    • Resolution: 800 x 480
    • Aspect Ratio: 16:9

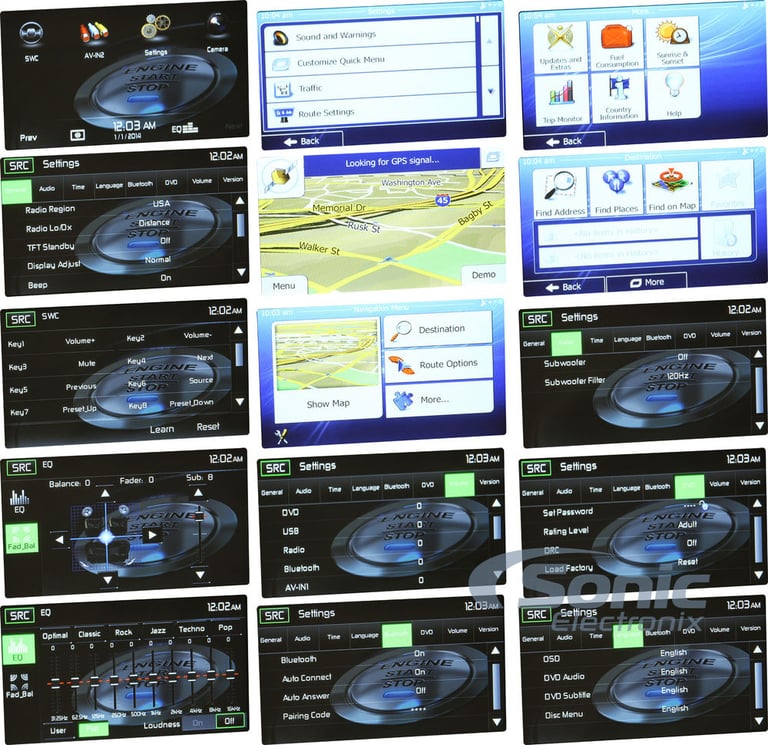

  • 5 selectable UI color themes and wallpapers

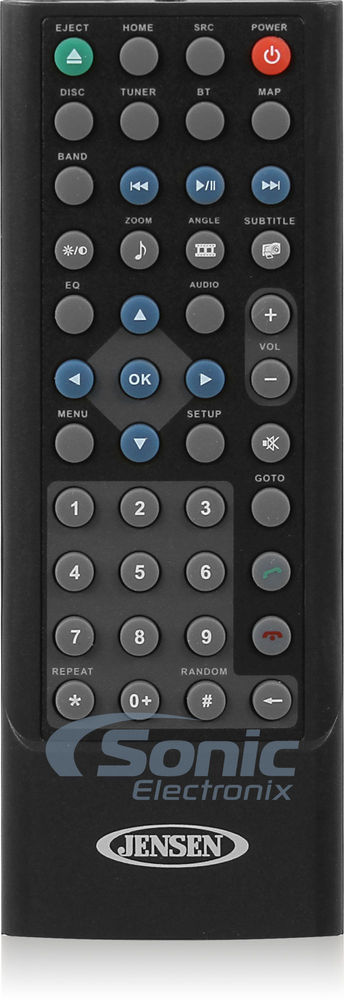

  • Remote control included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • CD/CD-R/RW, DVD/DVD-R/RW, MP3/WMA/VCD/SVCD/Xvid/AVI/MPEG1/2
  • AM/FM tuner with 18FM/12AM presets
  • Direct iPod and iPhone Control: Control your iPod/iPhone device with the Jensen 30-Pin Cable (Required)
  • Pandora Link allows for total control of Pandora Internet radio
    • Connect iOS devices via USB cable
    • Connect Android device through Bluetooth
  • 10-band parametric equalizer with 8 preset tone curves
  • 3.5mm Front A/V Auxiliary Input
  • Rear RCA A/V Inputs
  • Front USB Input
  • Front SD card input
    • Used to update navigation software only
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Supports A2DP audio streaming
  • Works with most Bluetooth enabled cell phones

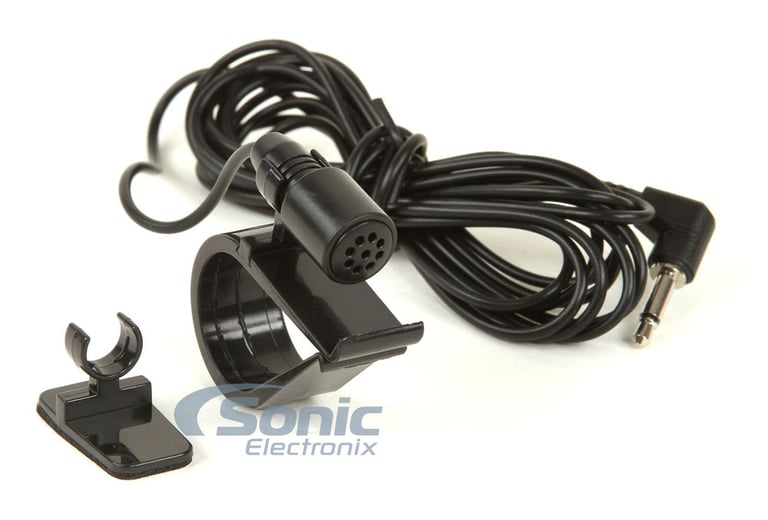

  • Includes a external wired microphone for clear, convenient talking

Navigation Features

  • iGO Primo navigation software
  • Tele Atlas Map Data
  • Detailed maps of the United States, Puerto Rico, and the U.S. Virgin Islands
  • Lane guidance and junction view
  • Provides 3D graphics for buildings and landmarks
  • Naviextras Web Support
    • Download other countries, POI and value features

Expandability Options:

  • 3 Sets of 6V preamp outputs (front, rear and mono subwoofer)
  • SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
  • Bluetooth enabled
  • Built-in navigation
  • Integrated Steering Wheel Controls
    • SWC Interface compatible with most vehicles equipped with resistive type OEM steering wheels
    • Program up to 16 steering wheel control functions
  • Backup Camera Input: Universal Backup Camera recommended and sold separately

Product history:

Jensen VX7528 thumbnail
(newest, current model)
Jensen VX7021-RB thumbnail
(previous model, replaced by Jensen VX7528)
Jensen VX7020 thumbnail
(previous model, replaced by Jensen VX7021 (Remanufactured))

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Wireless Remote
Yes
Peak Power Output
40 watts x 4 channel
RMS Power Output
13 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
6 volts
Built-In Equalizer
10-Band
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
6.2"
Display Adjustment
Brightness
Contrast
Hue
Saturation
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
Pandora Control
Android Control
Pandora Control
Expandability Features
Inputs
Audio/Video (Rear)
Audio/Video (Rear)
Backup Camera
USB (Front)
Memory Card Slot
SD
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Navigation Features
Map Database
iGo Primo
Maps
Complete 50 USA
Map Dimensional Display
3D
Points of Interest
11 Million
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VX7020

Weight:

6.60lbs

Internal SKU:

vx7020

Internal Product ID:

77219

Product and How-to Videos


  • Jensen Double DIN + Single DIN Car Stereos | CES 2015
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews



5 star
56%
4 star
34%
3 star
6%
2 star
3%
1 star
1%



Durability
4.3
Value
4.7
Features
4.6
Design
4.7
Usability
4.5

Customer Reviews

Sort by:

Loading...

Jensen VX7020

Get all the installation kit and you wouldn't have a problem. I install this on a 2010 Chrysler Sebring. Installation was very easy. The deck is not bad: 1. Easy to operate. 2. touchscreen is very responsive. 3. The picture quality on the DVD is beautiful. Here's what's lacking. 1. There is a lag when you activate the GPS and it's always late when it announce your turn 2. There is also a lag when activating the rear view camera. 3. Remote control quit.

Overall, for the price, I will recommend this one.

By denis on August 6, 2014

146

found this helpful.

Great unit

I got this unit for a second vehicle because I wanted a backup camera and Bluetooth. I have a Kenwood from 2011 in my truck and did not want to pay the Kenwood price again. For the money, you can't beat this unit. I know it is newer but it is tons faster than my Kenwood unit. The only thing I don't like about it so far is the USB port is in front. I bought a relay mini USB for music. It still sticks out a bit but is OK. I put in 03 expedition Eddie Bauer with factory subwoofer. I did get the steering wheel controls to work with out an external swc but it was intermittent so I got an external swc and it works flawless now. I put a pyle camera with it and it works nice. It took me about an hour to put it in(but I have done it before.) I have considered replacing my Kenwood with one of these just because it is so much faster. Nav unit works nice. Pulls in way more fm stations than the factory radio did. For the money I would definitely buy again. I received the wrong harness with my order initially - apparently Ford used 2 different plugs for my year. Sonicelectonix immediately sent out the correct one.

By Me on October 30, 2014

138

found this helpful.

Great value

I've had this unit installed in my Acura RSX for over a month now, and so far I'm pleased overall with it. The number of features you get for the price is unbeatable. I've used: AM/FM radio, Sirius XM, USB thumb drive, navigation, CD/DVD, backup camera, and Bluetooth. Have not used the aux input or Pandora. Everything I've used seems to work well, especially the navigation. After some customization (like getting rid of the annoying speed warnings) the routes are easy to set up and follow. The installation went pretty well -- the instructions could have been a bit more elaborate.

The only negatives I have is that I cannot get the remote control to work, even after a replacement was sent by Sonix. Also, it takes a few seconds for the backup camera to come on once the car is put into reverse, which is a bit annoying. The stereo sounds great connected to the built-in Acura Bose system.

By Daniel on January 1, 2015

136

found this helpful.

Fanastic head unit for the price

I bought this unit along with the AWSC-1 SWC to install in my GF's 2010 SX4. The price was right for this head unit and was a reputable brand name and overall I am very happy with how the install went (did it myself) and how the unit functions.

Shipping was very quick to Canada and I sat on it examining all the items to make sure it was all good and it was. The internet was useful for me to find the wiring diagram so I could wire it into the car properly (also showed me how to remove the OE unit also).

I took my time and did the install over 2 months. I was re & re'ing her OE head unit tons of times and installing the Jensen to check and double check the fit and how it would fit inside the dash. I had to take the stock radio brkt. and modify it so it would work with the Scosche radio bezel and also to properly support the back of the radio in the car.

As for the wiring plug I read and reread the instructions tons of times before making my harness up to fit perfectly from the stock radio plug in the car to the Jensen. I did move 2 wires from the Scosche radio plug as it was not needed to a different position on the plug so I could wire in the AWSC-1 interface.

The final install was to be done in the spring (warmer) but I did do a test run of the unit in the car once the wiring harness was all done. I powered up the Jensen, did the head unit update and also the Nav update and made sure all the general stuff was working right (it was) and put the unit away.

This past weekend we had a warm day so I went out and properly installed it.....................fits like a glove in her dash and all functions working as it should.

No real negatives for me other than the free nav update was only for the USA. Since I live in Canada I paid the extra cost to get the Canada map and updated both maps to 3D content and everything. Personally I feel the updates should include US and Canada (we are neighbours after all LOL).

Just getting used to the Nav functions but everything works as it should......................very happy with how this project turned out for me and would definitely purchase another one to install in a future car down the road. Recommended buy for sure.

By AnC on December 7, 2014

128

found this helpful.

Overall good, but there is a bug.

Works great except while using bluetooth, navigation is totally shut down.

By 4mger on November 25, 2014

128

found this helpful.

VX7020 is Awesome!!!

This unit is friggin awesome! I bought a Pyle backup camera and tied it in to my reverse lights, then ran a wire from my reverse lights to the VX7020 reverse wire on the back of the Jensen. It worked great! The screen resolution is beautiful and the operator interface is very intuitive and easy to use. The hands free sounds amazing. I can't even tell when my wife is in the car using the hands free while we are talking. The DVD player clarity is perfect. I couldn't be happier with the purchase and would def purchase again. I'm probably going to get another one for my other vehicle!

By Cory on January 18, 2015

123

found this helpful.

Awesome product!

Really had a great experience with this company. Customer service was very helpful. Stereo came exactly on time and is better than what I imagined. Price was way cheaper than Best Buy. It even came with a free install kit and a free wiring harness! Definitely a repeat customer!

Stereo is easy to install myself. Took about an hour for a 2005 Expetion. Works perfect. GPS is spot on. DVD is crystal and sound is awesome!

By james on January 3, 2015

124

found this helpful.

Jenson vx7020

I have not installed this unit yet. But I will say that it is well built and really nice features. I don't believe you can purchase a head unit with these features for less anywhere. I will give an update in the near future.

By TheRoman on January 19, 2015

122

found this helpful.

Excellent Value

Hands down you can't beat the price for a head unit with GPS. The features are very nice, but could use some refinements.

Pros:
- The Price
- Rich in Features
- Ease of Use

Cons:
- Mounting Hardware is NOT Included (instructions indicate to use the ones that come with the mounting kit or on the old head unit.)
- The interface could use some refinement
- The harness adapter Sonic Electronix included for the 2002 Mercury Mountaineer lacked connections for the factory sub.
- The built in steering wheel interface does not work with fords or is just too complicated for me to get working.

Given all that I now know about the unit I would recommend the unit for lower budgets.

By Tony on December 15, 2014

114

found this helpful.

Good for the price

Better priced than similar products and has great sound and the Bluetooth works well

By Grant on December 15, 2014

114

found this helpful.
