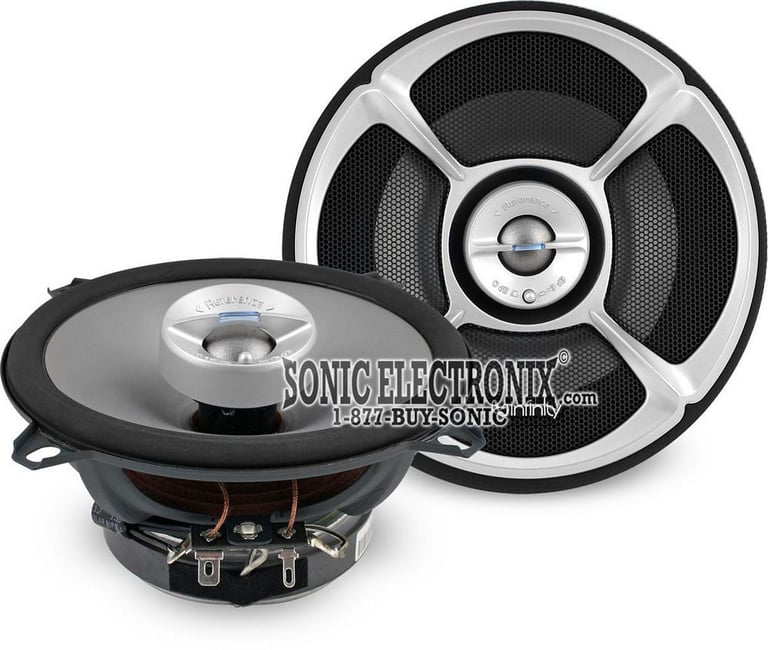

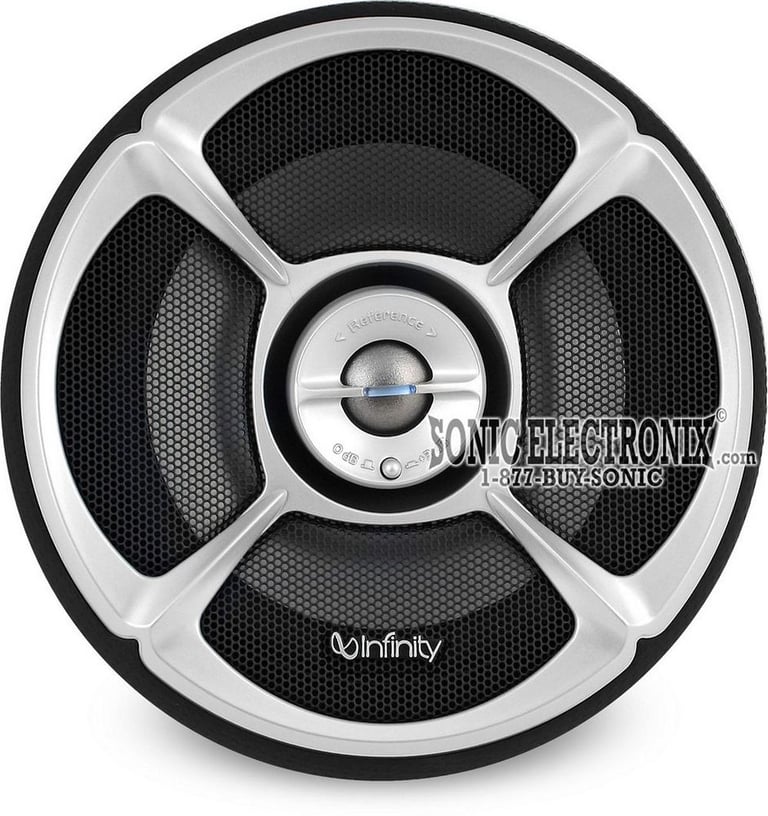

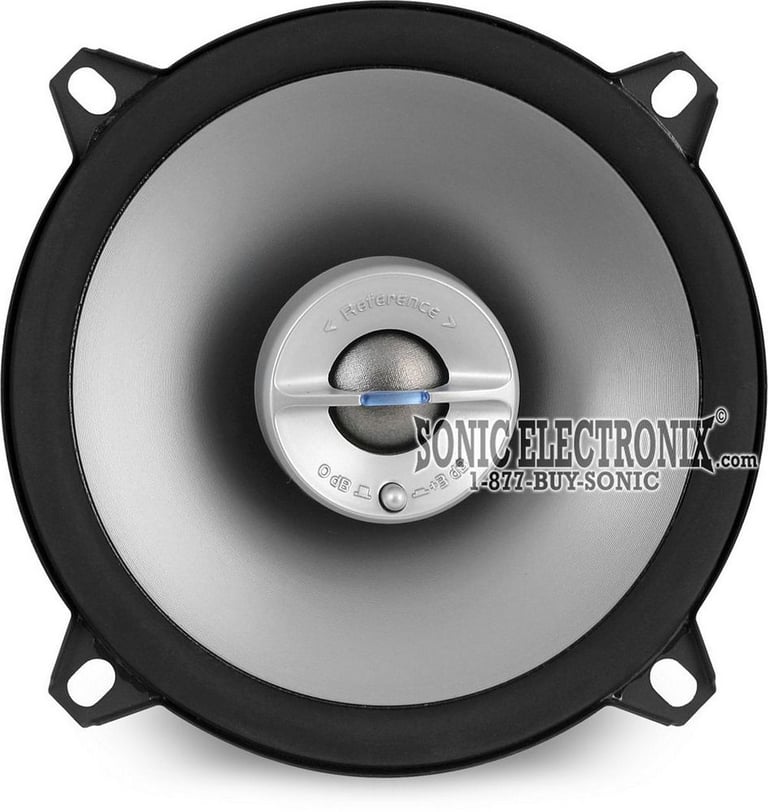

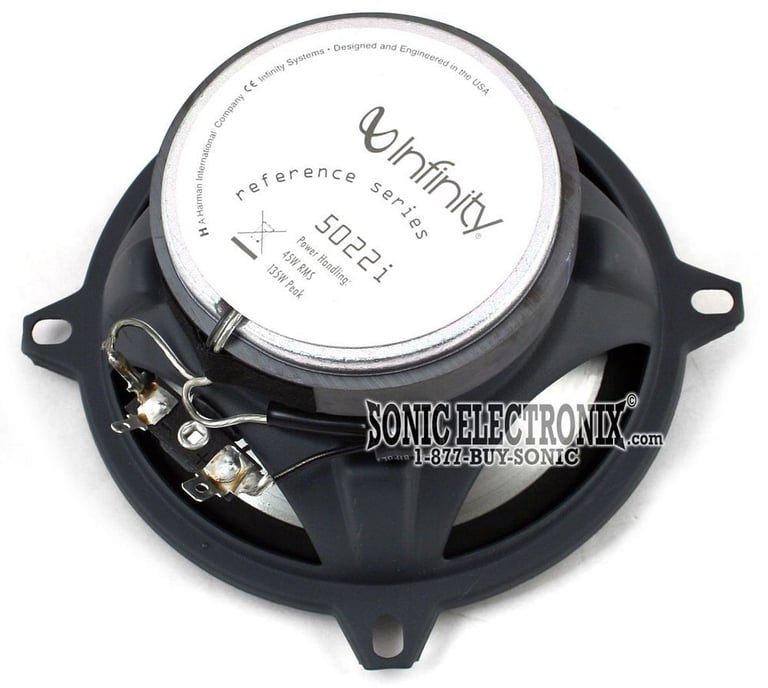

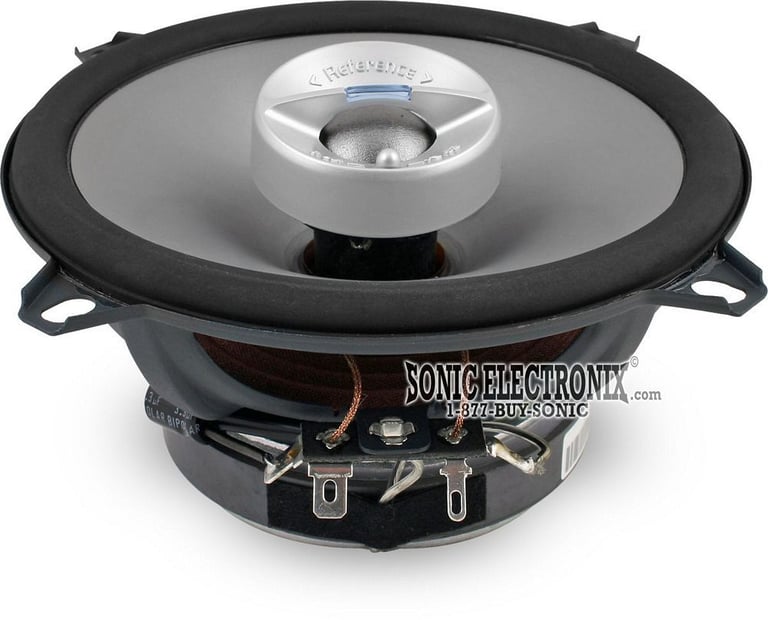

Infinity Reference 5022i

5-1/4" 2-way Car Speakers (REF5022I)

Infinity
Shop all Infinity
Product videos
highlight-star-icon

5.25" Reference Series 2-way Speakers • 135W Max • 45W RMS • Injection molded polypropylene woofer • 1-3/4" Edge-driven textile dome tweeters • 4 ohm impedance

Learn more about the 5022i

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

5032cf thumbnail

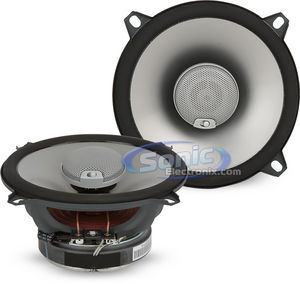

Infinity Reference 5032cf

OUR PRICE: $84.95

View item

Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
95-8264HG main

Metra 95-8264HG

Single DIN Stereo Dash Kit for select 2016-2020 Prius and Prius Prime

-43.60%

$21.99

List price $38.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

DX2 main

DS18 DX2

800W Peak (400W RMS) 6.5” DX Series 2-way 4-ohm Component Speaker System

1
-25.00%

$299.95

List price $399.95

V465C main

Cerwin-Vega V465C

800W Peak (200W RMS) 6.5" Vega Series 2-Way 4-ohm Component Speaker System

11
-16.67%

$179.99

List price $215.99

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

JBL Stage3 627F (STAGE3627FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 2-way Coaxial 3-ohm Speakers

3
-20.01%

$79.95

List price $99.95

Product Highlights


5.25" Reference Series 2-way Speakers • 135W Max • 45W RMS • Injection molded polypropylene woofer • 1-3/4" Edge-driven textile dome tweeters • 4 ohm impedance

Description


Infinity brand icon

Authorized dealer

  • 5-1/4" Reference Series 2-way Speakers
  • Power Handling:
    • Peak: 270 watts per pair / 135 watts each
    • RMS: 90 watts per pair / 45 watts each
  • Injection molded polypropylene woofer
  • Plus One woofer cones - This patent pending technology deliver a cone with more surface area than competing models of the same size. The result is increased bass output and higher efficiency
  • 1-3/4" Edge-driven textile dome tweeters
  • Unipivot allows the tweeter to be pointed at the listeners location even when the speaker is mounted off axis. This optimizes the stereo image and ensures a more uniform response
  • Tweeter level adjustment (0 dB, 3 dB)
  • 4 ohm impedance
  • Top-mount depth: 2-1/4"
  • 1-year SonicElectronix.com warranty

Priced Per Pair

Product history:

Infinity 5032cf thumbnail
(newest, current model)
Infinity 5022i thumbnail
(previous model, replaced by Infinity Reference 5032cf)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

$74.99

List price $129.95

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(5)

$79.96

List price $119.99

43DSC504 small

Kicker DSC50 (43DSC504)

• 200 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(17)

$74.99

List price $84.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Textile
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Peak Power Handling
135 watts
RMS Power Handling
45 watts
Sensitivity
92 dB
Frequency Response
67 - 21000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
3-7/8" x 3-7/8"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

5022i

Weight:

5.00lbs

Internal SKU:

5022i

Internal Product ID:

7767

Product and How-to Videos


Customer Ratings & Reviews


Infinity Reference 5022i thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
5
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Awesome!!

Installed these in the doors of my 97 Intrepid along with the Infinity 6X9's in the back. I'm pushing them with a 200W JVC deck. These speakers sound awesome! Every time i leave my car my ears are ringing. Great Value... almost half off from anywhere else i've seen

By Matt on January 25, 2009

5 found this helpful


Unbelievable!

Got them in with some 6 1/2s on my rear kick panels and they are great for highs... great product and great price!

By Ryan on June 11, 2009

4 found this helpful


Nice Speakers!

Installed them in my 96' Lumina, in the doors. Very loud and clear highs. Powered by my Alpine 9815. Another set of nice speakers by Infinity! Recommended!

By Brian on August 8, 2007

4 found this helpful
