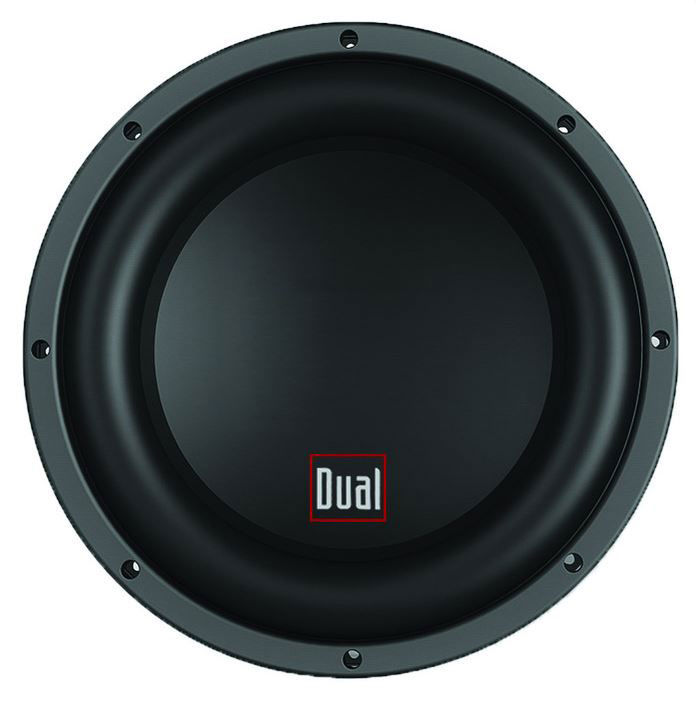

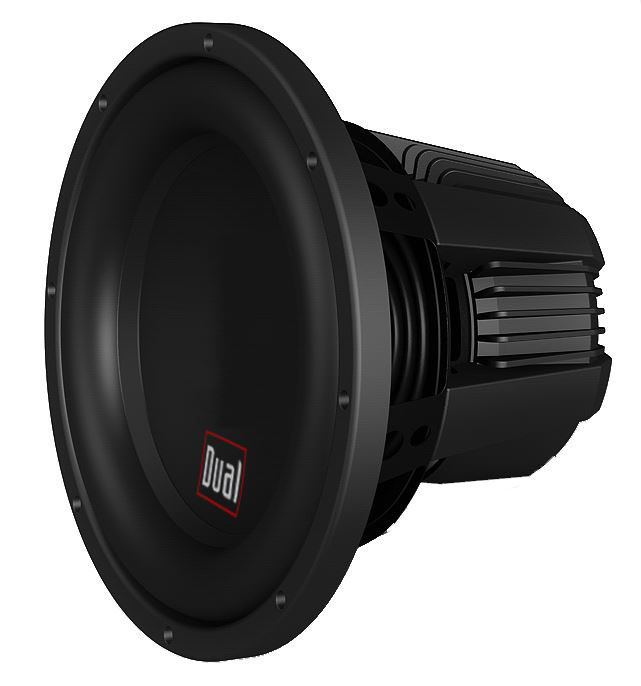

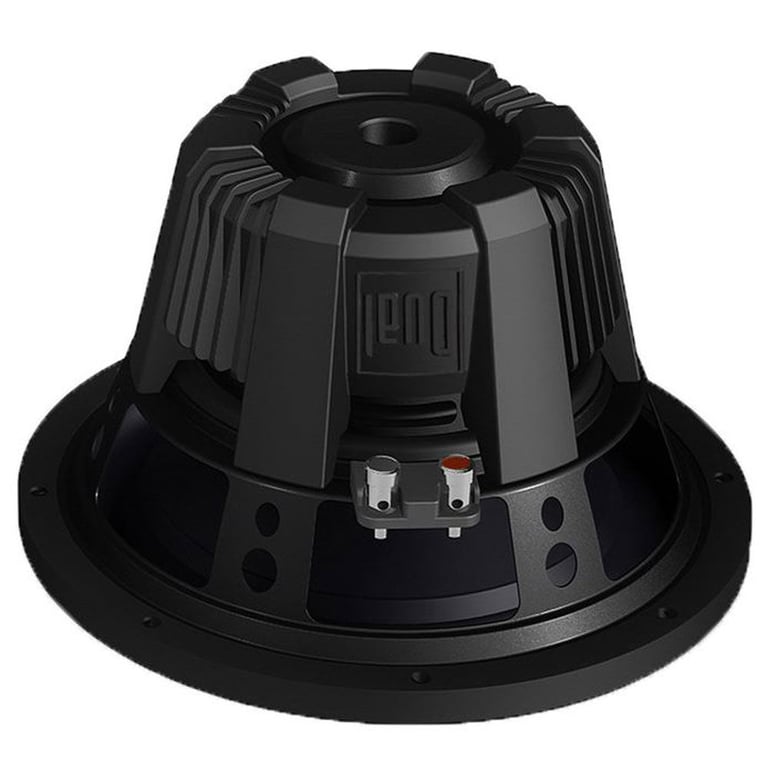

Dual DSW121D

800W Max (400W RMS) 12" DS Series Single 4 ohm Car Subwoofer

Dual
Shop all Dual
Product videos
highlight-star-icon

• 800W Max
• 400W RMS
• Pressed Paper Cone
• Stictched Rubber Surround
• Spring-Loaded Terminals
• Extended Pole Piece
• Sensitivity: 87.3dB

Learn more about the dsw121d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Product Highlights


• 800W Max
• 400W RMS
• Pressed Paper Cone
• Stictched Rubber Surround
• Spring-Loaded Terminals
• Extended Pole Piece
• Sensitivity: 87.3dB

Description


Dual brand icon

Authorized dealer

General Features:

  • 12" 4 Ohm DS Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Pressed paper cone
  • Stitched rubber surround
  • Extended pole piece
  • Bumped, vented back plate
  • Spring-loaded terminals
  • 2" 4-layer copper voice coil on aluminum former
  • Top-mount depth: 6.11"
  • Cutout diameter: 10.95"
  • Frequency Response: 30 - 500Hz
  • Sensitivity: 87.3dB
  • Resonance Frequency (Fs): 32.07
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the DSW121D Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Dual DSW121D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Dual DSW121D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Dual DSW121D Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Dual DSW121D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 500 Hz
Sensitivity
87.3 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Rubber
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Optimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
2 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2 cubic feet
Top-Mount Depth (Mounting Depth)
6.11"
Cutout Diameter
10.95"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.07 Hz
Equivalent Compliance (Vas)
175.55 liters
Total Speaker Q Value (Qts)
.51
Electrical Q Value (Qes)
.58
Electrical Resistance of Voice Coil (Re)
4.09 ohm
Mechanical Q Value (Qms)
3.93
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DSW121D

Weight:

14.00lbs

Internal SKU:

dsw121d

Internal Product ID:

78013
