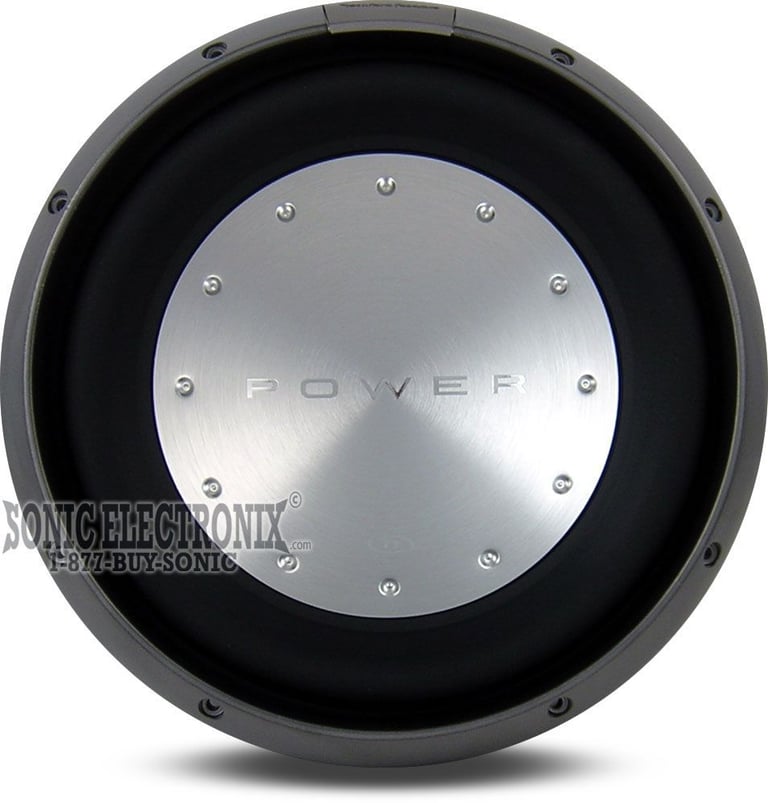

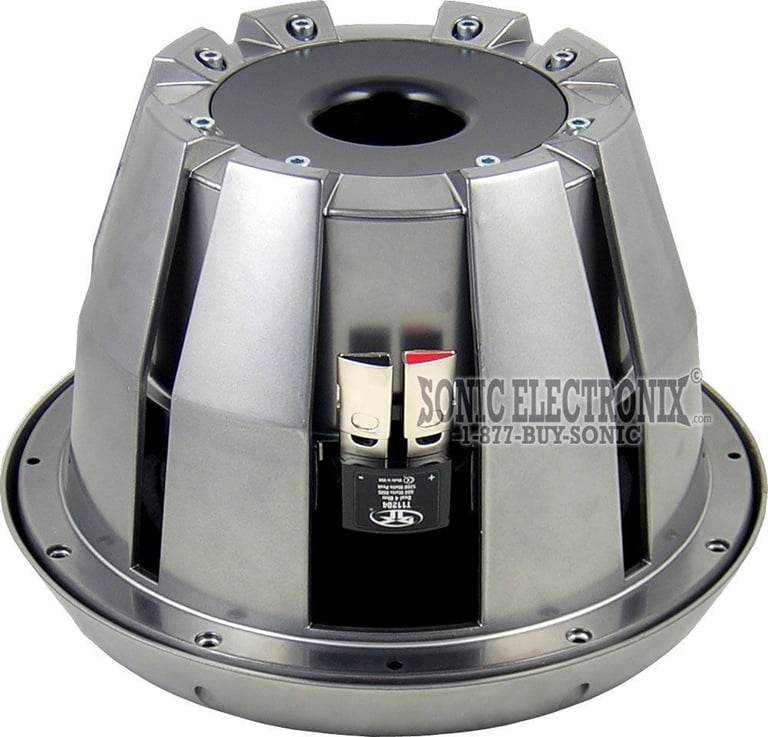

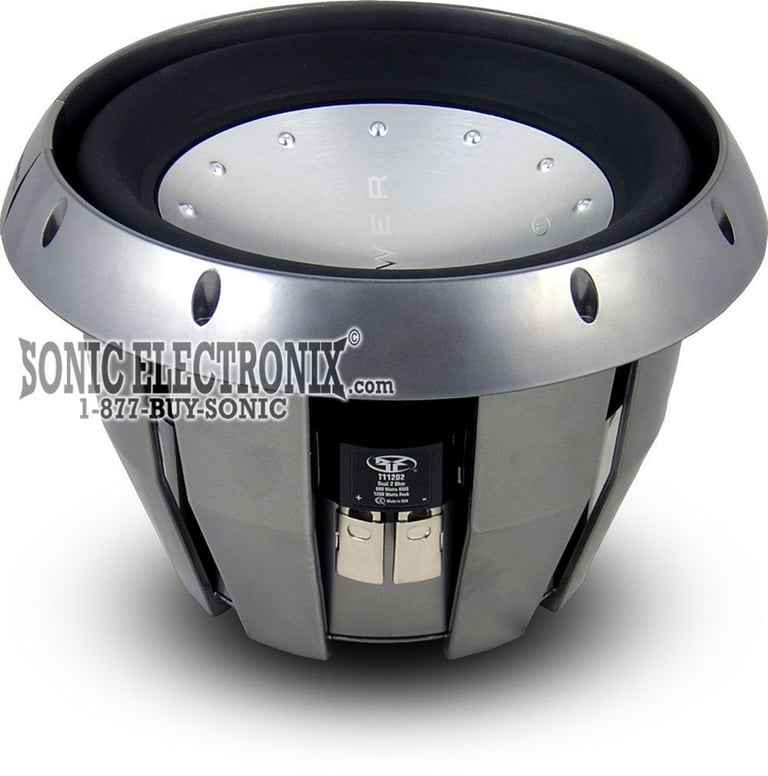

Rockford Fosgate Power T112D2

12" Dual 2 ohm Power Stage 1 Subwoofer

Product videos
highlight-star-icon

12" Dual 2 Ohm Power Stage 1 Subwoofer • 1200W Max • 600W RMS • Aluminum parabolic cone woofer • Rubber surround • sensitivity 86 dB

Learn more about the t112d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

t1d212 thumbnail

Rockford Fosgate Power T1D212

OUR PRICE: $449.99

View item

Product Highlights


12" Dual 2 Ohm Power Stage 1 Subwoofer • 1200W Max • 600W RMS • Aluminum parabolic cone woofer • Rubber surround • sensitivity 86 dB

Description


Rockford Fosgate

Authorized dealer

  • 12" Dual 2 Ohm Power Stage 1 Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 2 ohm
  • Aluminum parabolic cone woofer
  • Rubber surround
  • Frequency response: 20-200 Hz
  • Sensitivity: 86 dB
  • 1-year SonicElectronix.com warranty

Product history:

Rockford Fosgate T1D212 thumbnail
(newest, current model)
Rockford Fosgate T112D2 thumbnail
(previous model, replaced by Rockford Fosgate Power T1D212)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Power T112D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Power T112D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Power T112D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Power T112D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Material
Voice Coil Diameter
Frequency Response
20 - 200 Hz
Sensitivity
86 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Aluminum
Woofer Surround
Rubber
Magnet Structure
Magnet weight
Magnet Type
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Optimum Sealed Box Volume
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Optimum Ported Box Volume
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-11/16"
Cutout Diameter
10-13/16"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
Equivalent Compliance (Vas)
Total Speaker Q Value (Qts)
Electrical Q Value (Qes)
Electrical Resistance of Voice Coil (Re)
Mechanical Q Value (Qms)
Efficiency Bandwidth Product (EBP)
What is in the box?
Paperwork
WITB: Subwoofers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

T112D2

Weight:

32.00lbs

Internal SKU:

t112d2

Internal Product ID:

7879

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.9
Design
4.9
Usability
5
Sort by:

Loading...

The best bang for your buck on the market

I owned this sub for over 2 years run off of a bridged RF 601s at 600rms 1800 peak and I must say it is the best sound money can buy. I have owned all different brands, JL, Kicker, Sony, Pioneer, you name it, there is no beating Rockford Fosgate in sound clarity and tone. This is the cleanest sounding sub i have ever heard in my life. I highly recommend, you buy this sub. If you think JL audio, MTX, or Memphis sound great, don't buy this, it doesn't deserve an owner that doesn't know what good sound is.

By Camo on February 11, 2010

3

found this helpful.

Great Sub

I had one of these in a q-logic box with a sony 1200 watt amp pushing it....it is really loud but i did expect it 2 be louder but it did have the cleanest bass i have ever heard really nice sound if you want pretty good bass get this one or get 2 of them....i really recommend this sub...and if you ask me rockford is the only way to go for the best sounding bass....

By Robert on April 23, 2008

3

found this helpful.

damn

I have 2 of these running off of a bd1500 in a ford f-150 extended cab and it absolutely pounds. i only have my amp half way turned up and they still beat hard. the first pair of subs ive owned and i don't think ill ever buy anything but fosgate

By Joseph on March 17, 2010

2

found this helpful.

kick a**

i had two of these hooked up to a rockford fosgate t2000 amp and they were absolutely insane, if i would have had them in a good box with correct tuning they would have destroyed my car, they took everything i threw at them and more, i then sold to my friend who had a small car and you couldn't hardly stay in his car they were so loud, well worth the money

By cody on January 5, 2010

2

found this helpful.

Nice Subs

I have two of these hooked up to the Kenwood eXcelon X1200 mono D amp. These things destroy my car. The bass hits real low and crisp! It beats almost all of the systems in my town! I recommend this to anyone who wants a killer setup for a decent price !

By Spencer on June 28, 2009

1

found this helpful.

Amazing Sub

Got this last week and dropped it in a custom box in the back of my 07 Ford Ranger and this thing destroys!

By Michael on July 10, 2008

1

found this helpful.

Banging!

I have 4 of them with 2 Cadence amps pushing them. They are continuous and unrelentlous! They will leave you with a banging headache of clear and shear power and sound!

By Dennis on November 5, 2010
