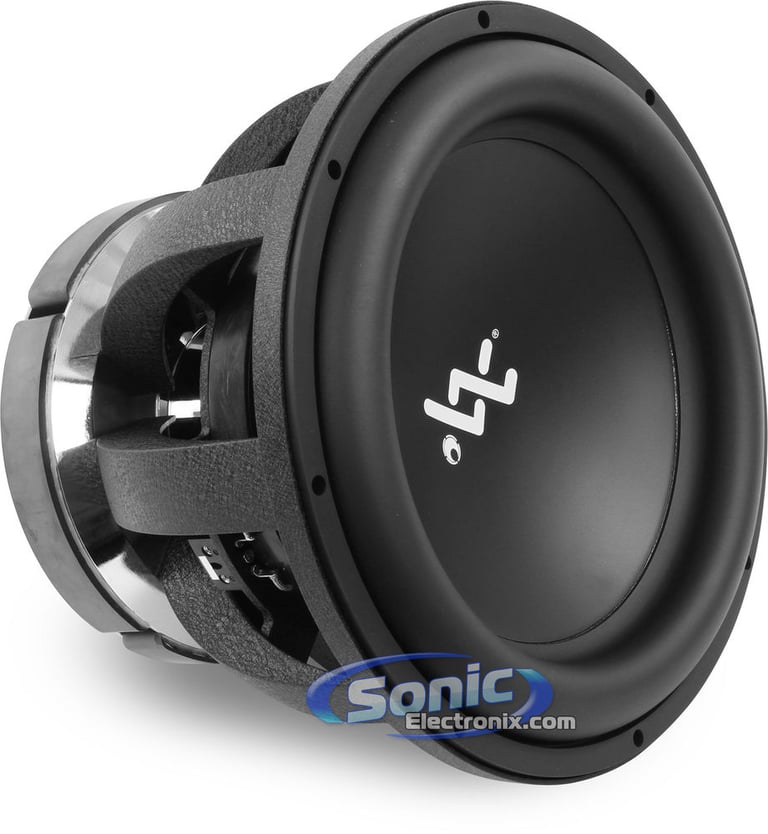

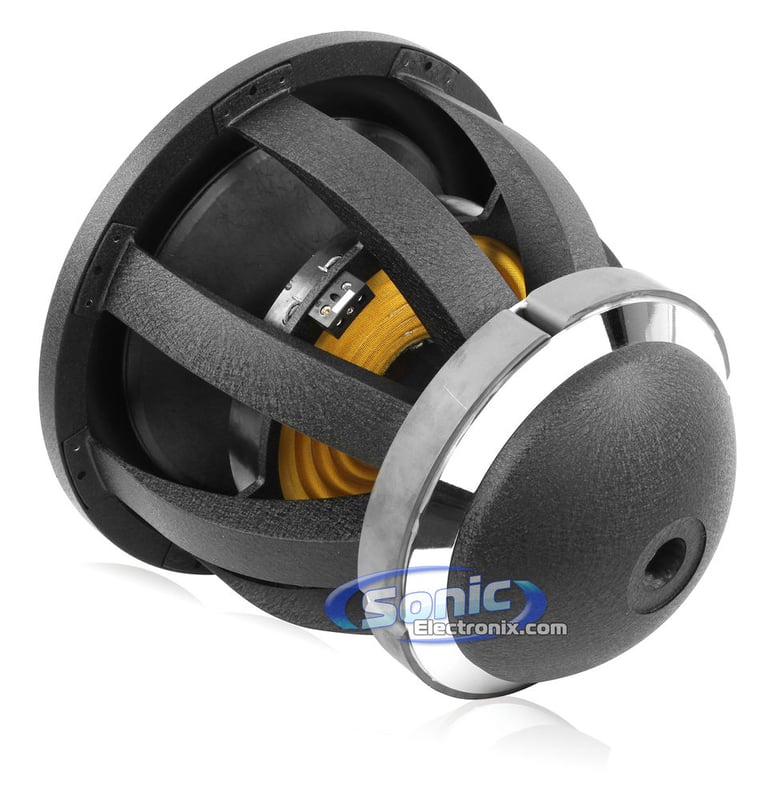

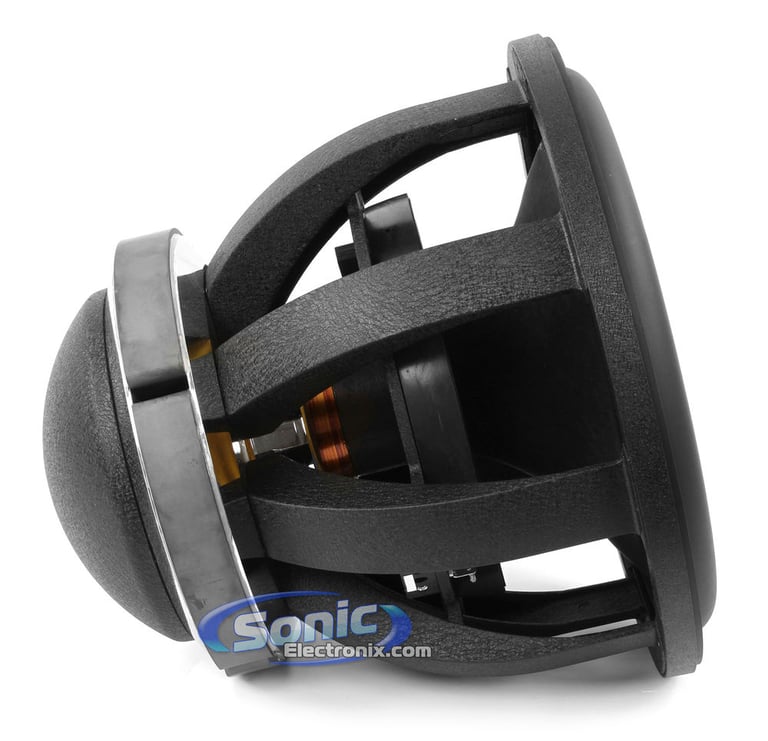

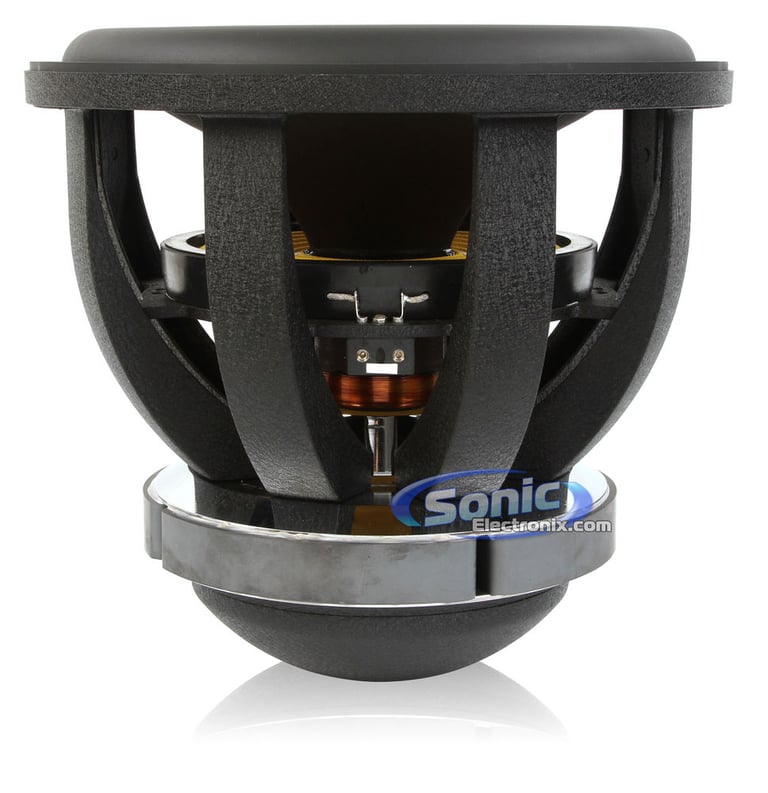

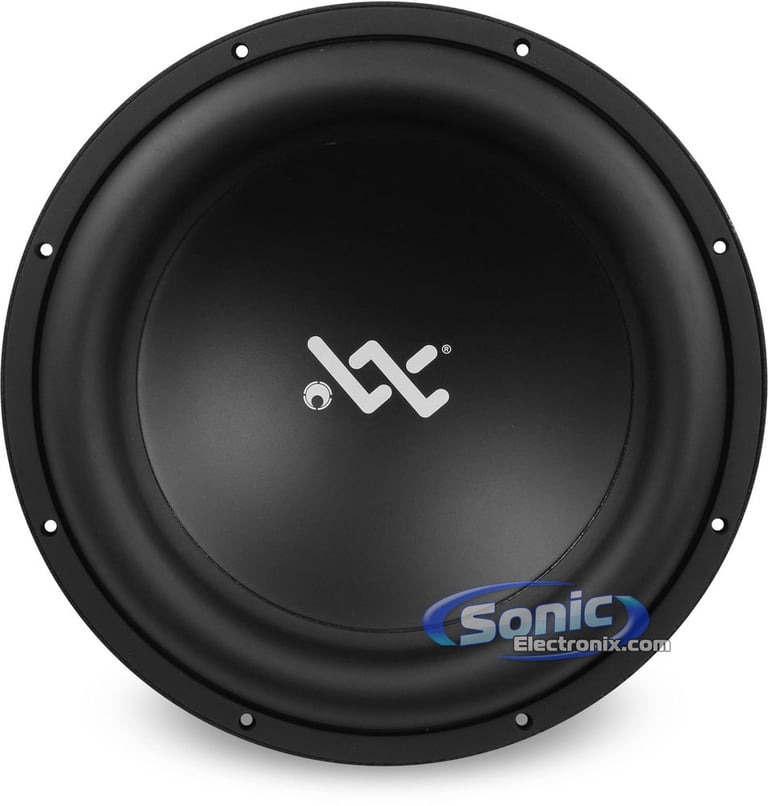

RE Audio XXX-15D2 v2 (XXX15v2D2)

2000W 15" XXX Series Dual 2 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 2000W
• Dual Composite 2-Piece Cone
• Rubber Surround
• Dual Progressive Spiders
• FEA-Optimized Motor Structure

Learn more about the xxx15v2d2

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


• RMS Power: 2000W
• Dual Composite 2-Piece Cone
• Rubber Surround
• Dual Progressive Spiders
• FEA-Optimized Motor Structure

Description


RE Audio brand icon

Authorized dealer

General Features:

  • 15" Dual 2 ohm XXX Series Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Dual composite 2-piece cone
  • Rubber surround
  • 3" 8 layer aluminum flat wire voice coil
  • Integrated gasket
  • Tork-Tite terminal
  • FEA-optimized motor structure
  • Vented magnet system
  • Dual progressive spiders
  • Integrated tinsel lead
  • Sensitivity: 85.81dB
  • Top-mount depth: 13.5"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

T/S Parameters:

  • FS (Free Air Resonance): 19.1 Hz
  • RE (DC Resistance): 4.2 ohm
  • QMS (Mechanical Q Value): 3.62
  • QES (Electrical Q Value): 0.58
  • QTS (Total Speaker Q Value): 0.501
  • VAS (Equivalent Compliance): 207 L (7.61 cu ft.)
  • Xmax (One-Way Linear Excursion): 54 mm

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio XXX15V2D2 Subwoofer Enclosure Guide

Product history:

RE Audio XXX15D2 V2 thumbnail
(newest, current model)
RE Audio XXX15D2 thumbnail
(previous model, replaced by RE Audio XXX-15D2 v2 (XXX15v2D2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio XXX-15D2 v2 (XXX15v2D2) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio XXX-15D2 v2 (XXX15v2D2) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio XXX-15D2 v2 (XXX15v2D2) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio XXX-15D2 v2 (XXX15v2D2) Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

SW-XV315D2 small

Sundown Audio X-15 v.3 D2 15" (X12V3D2)

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Mega Roll V2 Surround
• Mount depth: 11.6"
• Sensitivity: 85.9 dB

(1)

$749.99

List price $983.99

Specifications & Details


Subwoofer Specifications
Series
XXX Series
Subwoofer Size
15"
RMS Power Handling
2000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
85.81 dB
Xmax (millimeters)
54 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece
Woofer Surround
Rubber
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.1 cubic feet
Optimum Ported Box Volume
4 cubic feet
Top-Mount Depth (Mounting Depth)
13.5"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
19.1 Hz
Equivalent Compliance (Vas)
207 liters
Total Speaker Q Value (Qts)
.501
Electrical Q Value (Qes)
.58
Electrical Resistance of Voice Coil (Re)
4.2 ohm
Mechanical Q Value (Qms)
3.62
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XXX15D2 V2

Weight:

100.00lbs

Internal SKU:

xxx15v2d2

Internal Product ID:

79497

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio XXX-15D2 v2 (XXX15v2D2) thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4
Features
4.5
Design
4.8
Usability
3.3

Customer Reviews

Sort by:

Loading...

beast mode!

Hard low level bass, takes punishment throughout the day. Recone kits available. My first one I had for a solid year abusing it every day. Purchased second one while awaiting recone kit. Excited to see what two can do!

By Mont-Dogg on June 24, 2014

37 found this helpful


Massive subwoofer!!!

HUGE subwoofer. Hits deep and hard. Slightly larger hole needed to be cut in my box since this sub is a little bigger in circumference than regular subs. Currently using it for competition. This thing was built as tough as I've ever seen.. Highly recommend!!!

By Massive Flex on August 20, 2015

16 found this helpful


Low end monster

This sub crunches lows with the best of them. We put it in a 30hz box and it sounded great on music and was awesome on the lows and it metered at 144.7 but i dont remember what frequency that was at. Then we put it in a 26hz box just fur fun and the lows are insane. From 20 to 25 hertz just shakes the doors off the car! It metered at 137db at 20hz which is incredible. The negatives of the sub are it's power handling and terminals. It got smelly pretty quickly on 2500 watts but its been taking 1000 with no problems. I'll put it back on 2500 soon once it's broken in more and see if it takes it. Also the terminals are pretty small for such a beefy sub so if you want to run 8 or 10 gauge you have to run seperate sets from each coil as you can not fit 2 fatties in one terminal. Overall this is a good sub and I'd recommend it.

By Josh on May 5, 2016

11 found this helpful


One hard hithing sub!

Very happy with the sound and the suprisingly small enclosure specs. Was able to expand my system even further worth the free space.... great price when on sale. Ease of use is lower because this beast is heavy!!!

By Gerald on October 30, 2015 Checkmark Icon Verified purchase

10 found this helpful
