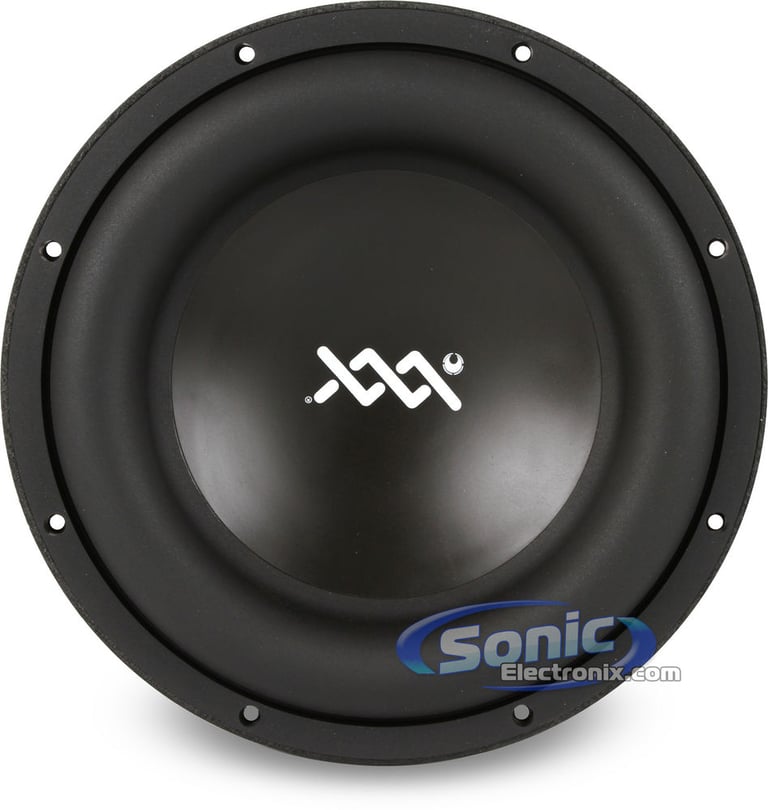

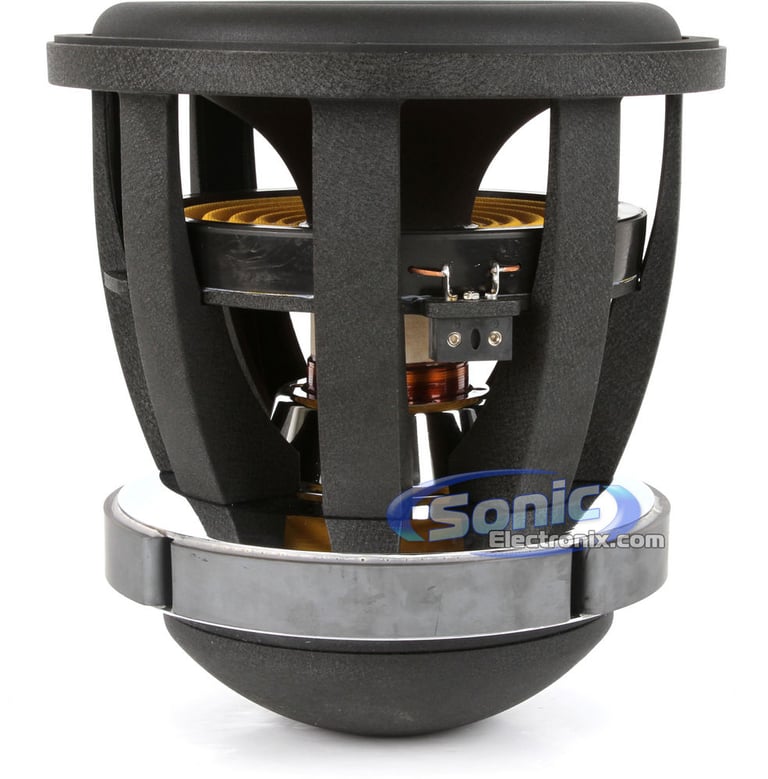

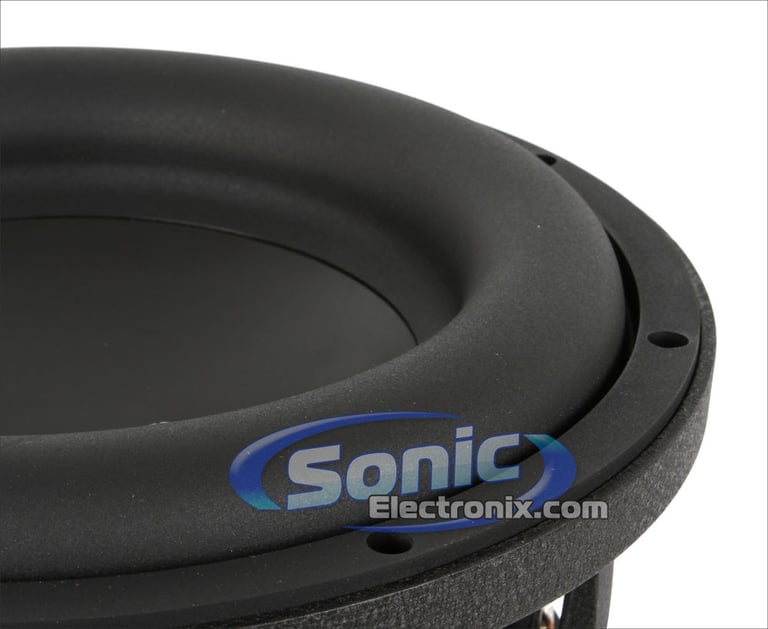

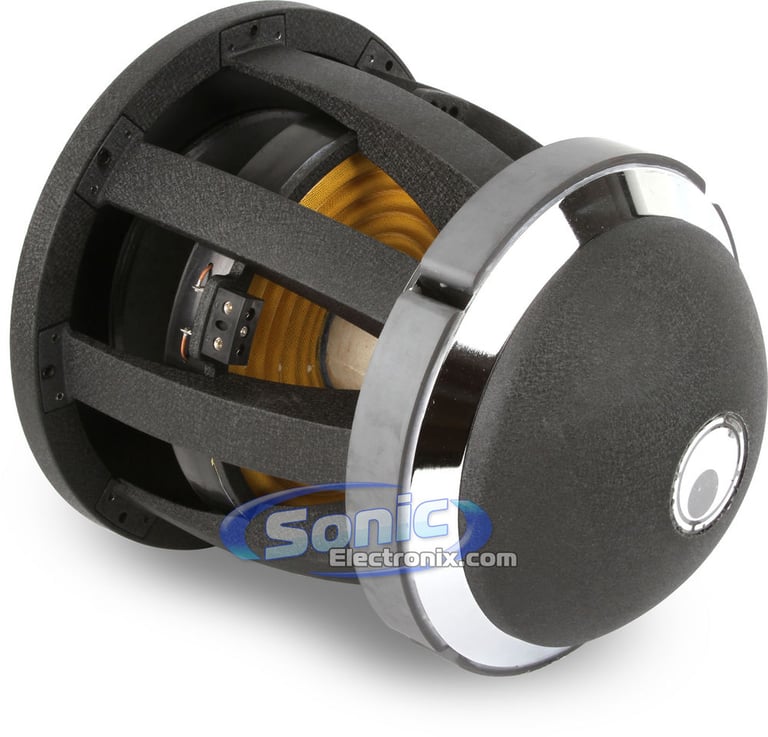

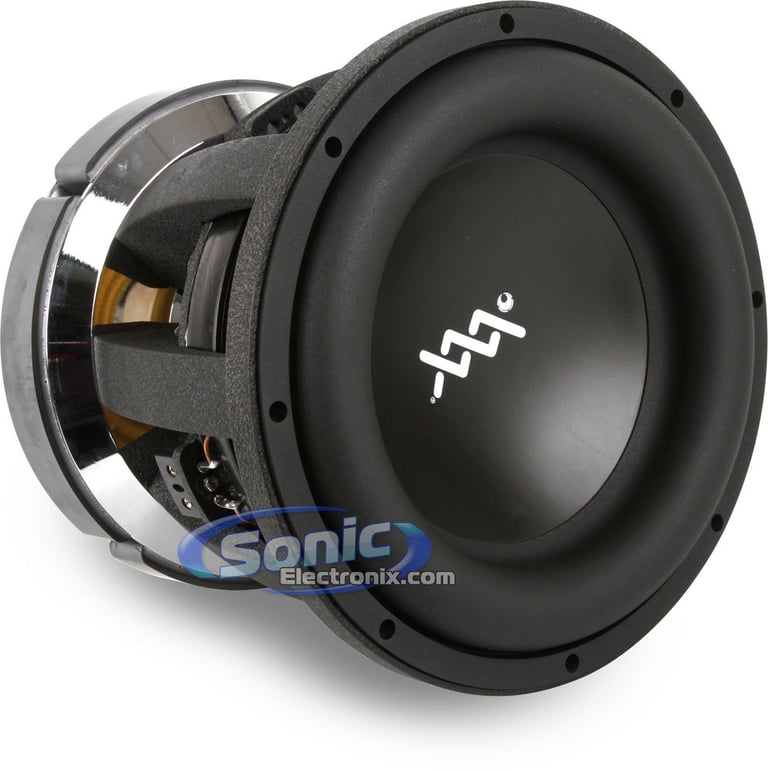

RE Audio XXX15

15" Dual 2 ohm XXX Series Car Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 2000W
• Dual 2 ohm
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Triple Stacked Magnets
• Flat Wire Voice Coil
• Venting System

Learn more about the xxx15d2

We apologize

This item has been discontinued


Loading...
AP4-GM61 main

PAC AmpPRO 4 AP4-GM61

AmpPro for Select GM Vehicles with 20-pin and 8-pin Connectors (MOST50) Audio Output Interface

1
-12.75%

$479.00

List price $549.00

XQS3 main

NVX XQS3

200W Peak (100W RMS) 3.5" X-Series Midrange Speakers with Carbon Fiber Cones

7
-30.56%

$99.99

List price $143.99

Product Highlights


• RMS Power: 2000W
• Dual 2 ohm
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Triple Stacked Magnets
• Flat Wire Voice Coil
• Venting System

Description


RE Audio brand icon

Authorized dealer

Built for Brutality

You’ve stumbled upon RE Audio’s XXX Subwoofer. Don’t be afraid. This subwoofer is built for brutality, but capable of so much more. This subwoofer competes with any high output SPL based subwoofer, but is capable of outputting amazing sound quality as well.

RE Audio knew this subwoofer was meant for those serious about the bass in their vehicles, and manufactured this subwoofer accordingly. With such a gigantic magnet, a new venting system had to be engineered; this Vented Magnet System (or VMS) allows the subwoofer to output amazing levels of power without getting too hot.

RE Audio’s XXX Subwoofer may intimidate some, however after getting to know the XXX Subwoofer, it has a kind side as well. One part of the RE Audio XXX Subwoofer completely boasts pure, unrivaled power handling, engineered primarily for excess. Another side of the XXX may surprise some, the subwoofer also sounds extremely clean and tightly responsive. RE Audio XXX Subwoofers are proudly manufactured in the USA, RE Audio truly cares about fine crafting their flagship subwoofers.

Subwoofer Features:
  • 15" Dual 2 ohm XXX Series Car Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Impedance: Dual 2 ohm
  • Kevlar reinforced kraft pulp, dual composite 2-piece cone
  • Rubber surround
  • Integrated tinsel leads
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Integrated gasket
  • Tork-Tite terminals
  • 3" 4-Layer aluminum flat wire voice coil
  • Split coil design
  • VMS Vented magnet system
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for sealed or ported enclosures
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
XXX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.58
  • Mechanical Q Value (Qms): 3.62
  • Total Speaker Q Value (Qts): 0.501
  • Free Air Resonance (Fs): 19.10 Hz
  • Equivalent Compliance (Vas): 207 liters
  • One-Way, Linear Excursion (Xmax): 54 mm
  • Efficiency (SPL 1W/1m): 85.81 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 4.2 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 2000 W
  • Force Factor (Bl): 18.16

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio XXX15D2 Subwoofer Enclosure Guide

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

(newest, current model)
RE Audio XXX15D2 thumbnail
(previous model, replaced by RE Audio XXX 152)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio XXX15 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio XXX15 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio XXX15 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio XXX15 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
XXX Series
Subwoofer Size
15"
RMS Power Handling
2000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
85.8 dB
Xmax (millimeters)
54 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar reinforced kraft pulp, dual composite 2-piece cone
Woofer Surround
Rubber
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.6 cubic feet
Maximum Sealed Box Volume
2.1 cubic feet
Minimum Ported Box Volume
3.2 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
13-1/2"
Cutout Diameter
14-1/2"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
19.1 Hz
Equivalent Compliance (Vas)
207 liters
Total Speaker Q Value (Qts)
0.501
Electrical Q Value (Qes)
0.58
Electrical Resistance of Voice Coil (Re)
4.2 ohm
Mechanical Q Value (Qms)
3.62
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XXX15D2

Weight:

100.00lbs

Internal SKU:

xxx15d2

Internal Product ID:

27332

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio XXX15 thumbnail image

5 star
70%
4 star
30%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
3.9
Features
4.3
Design
4.8
Usability
3.6

Customer Reviews

Sort by:

Loading...

beast mode!

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

Hard low level bass, takes punishment throughout the day. Recone kits available. My first one I had for a solid year abusing it every day. Purchased second one while awaiting recone kit. Excited to see what two can do!

By Mont-Dogg on June 24, 2014

37 found this helpful


Massive subwoofer!!!

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

HUGE subwoofer. Hits deep and hard. Slightly larger hole needed to be cut in my box since this sub is a little bigger in circumference than regular subs. Currently using it for competition. This thing was built as tough as I've ever seen.. Highly recommend!!!

By Massive Flex on August 20, 2015

16 found this helpful


Wow

Why didn't I buy this sub sooner this sub has the best sound quality I've ever heard and it's pretty loud. If you buy this baby you will never buy another subwoofer ever again it's not even broken in yet and it hits the lows so hard and accurately. My wife and father in law love how it sounds and neither one of them are very big on car systems. My wife says she wants a 12 xxx in her car now. Just make sure you have the trunk space to fit the massive box you will have to put it in and an amp with 2000 watts + rms.

By ramel on February 25, 2012

16 found this helpful


Loud!!!

If you want a ground pounder that will crush the lows, you will love this sub. The MSRP/Retail price is a joke though. Don't bother trying to compare this to a W7 or MTX 9500, they are not even on the same planet. The only drawback is the basket is so freakin big, unless you have room for the correct size box, you might be straped for space.

By Big G.I.B. on January 18, 2011

15 found this helpful


Low end monster

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

This sub crunches lows with the best of them. We put it in a 30hz box and it sounded great on music and was awesome on the lows and it metered at 144.7 but i dont remember what frequency that was at. Then we put it in a 26hz box just fur fun and the lows are insane. From 20 to 25 hertz just shakes the doors off the car! It metered at 137db at 20hz which is incredible. The negatives of the sub are it's power handling and terminals. It got smelly pretty quickly on 2500 watts but its been taking 1000 with no problems. I'll put it back on 2500 soon once it's broken in more and see if it takes it. Also the terminals are pretty small for such a beefy sub so if you want to run 8 or 10 gauge you have to run seperate sets from each coil as you can not fit 2 fatties in one terminal. Overall this is a good sub and I'd recommend it.

By Josh on May 5, 2016

11 found this helpful


my eyelids are flapping

Holy cow never heard this much bass what am i going to do with my laundry with all of this bass? How about eat it cause thats about all there is left to do. Brb eating laundry.

By ALEXANDER on June 19, 2012

15 found this helpful


Good sub

I got this sub in June for my 18th birthday. This sub pounds hard and has great quality. The only thing is the glue they used to glue a price down will come apart once it gets cold over night and detach an then the sub won't work until u send it back to get new one or they fix it. Mine broke bout month and half ago and I have been trying to send it back to Re audio but they won't help on shipping and handling at all and it's 100+ to send it back when u has already spent a lot on the sub. The sub is great till it stopped working.

By Baseballkid on January 10, 2013

13 found this helpful


If you want spl

I have heard a 12w7 and this RE audio sub. The RE can give you lots of sloppy spl but the W7 does the same except cleaner. If you just want bigtime spl and have room this is for you. If you want SQ and SPL get a W7AE. I got 1 in my tahoe and it slams on 600watts. Im going to do 2 12W7AE with a RF 1500watt amp (actually around 1900rms). Its a pricey setup but you will be happier than the RE Audios. NEED new altenator and good battery with these subs and want to give each minimum of 1000watts rms. Your heart may skip a beat but the bass isnt as accurate to MY TASTE, everyone is different though. The real $$$ in ANY setup is the power you give your subs and keeping volts high. Also make sure you have multiple 0guage grounds and ground the battery with 0guage too. Should be ridiculously sick if you do all that!

By Stewy on February 28, 2012

13 found this helpful


One hard hithing sub!

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

Very happy with the sound and the suprisingly small enclosure specs. Was able to expand my system even further worth the free space.... great price when on sale. Ease of use is lower because this beast is heavy!!!

By Gerald on October 30, 2015 Checkmark Icon Verified purchase

10 found this helpful


Pound your brain!!!

Just bought this sub from Sonic Electronix. They were great to deal with! I own a JL 13 W7 which is a great sub but I was ready to take it to the next level. RE Audio xxx did just that, and then some! This sub will pound you into submission! Make sure you have it in the optimal sq ft box(4.0 net air space vented) with lots of clean power. I use it in home theater, powered by a Crown XTI 4000(3200 watts). I have a huge sound room, and it will shake the house like there's an earthquake(probably more!)! If you buy this sub it will be the baddest sub you will ever own!

By T man on May 21, 2011

12 found this helpful




PT426 small

NVX PT426 Earphones/Earbuds Case

Universal Thermoformed EVA Ballistic Nylon Shell Case for Earbuds/Earphones with Soft Inner Lining

$4.99

List price $9.99

BX-22i small

Soundstream BX-22i LIKE NEW DAMAGED PACKAGING

Digital Bass Reconstruction Processor with Parametric Bass Control Remote

$44.95

List price $129.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2019 Cadillac Escalade

2012 Ford Fusion

2025 Genesis G70

2025 Audi SQ7

2005 Smart Fortwo

2023 Lexus IS300

1986 Chrysler LeBaron

2022 Cadillac CT4

2011 Ford Fusion

2005 Volvo XC90

Vehicle
Store
Delete

2014 Can-Am Commander DPS 800R

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
