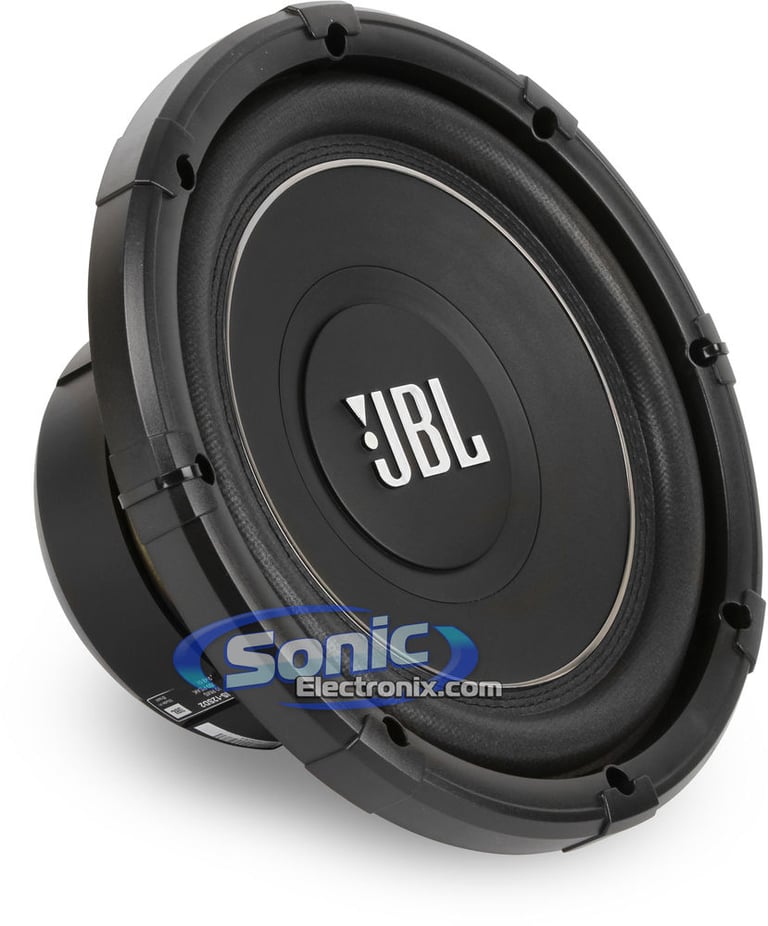

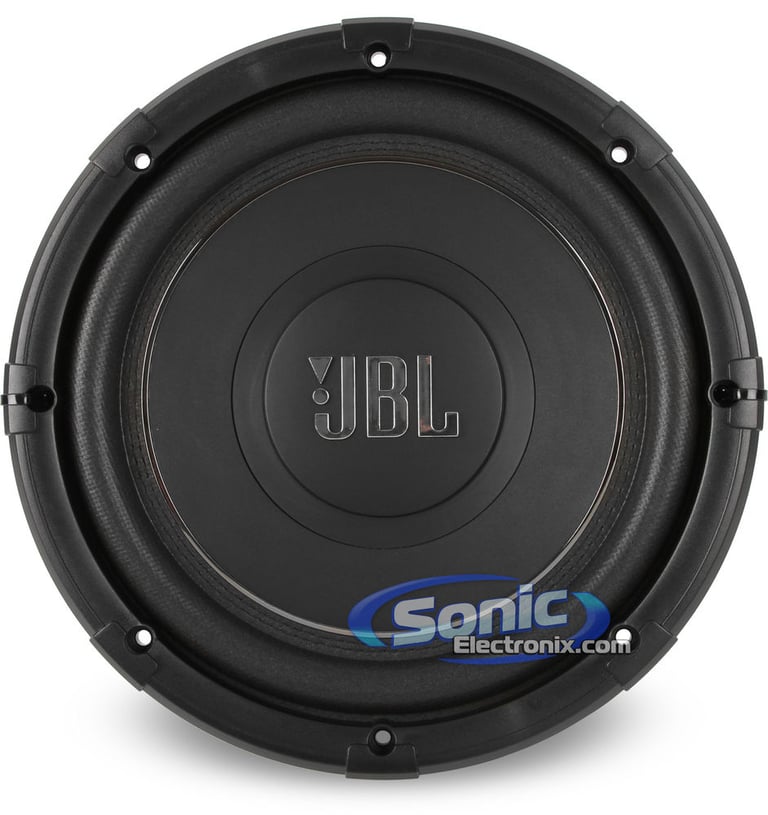

JBL MS-12SD2 (Open Box)

900W RMS 12" MS Series Dual 2 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 1800W Peak
• 900W RMS
• Polypropylene Cone
• Polyurethane/Fabric Surround
• Sealed and Vented Enclosures
• Aluminum Frame
• 56 oz. Barium Ferrit Magnet

Learn more about the LS-ms12sd2-OB

We apologize

This item has been discontinued

Product Highlights


• 1800W Peak
• 900W RMS
• Polypropylene Cone
• Polyurethane/Fabric Surround
• Sealed and Vented Enclosures
• Aluminum Frame
• 56 oz. Barium Ferrit Magnet

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Save BIG With This Open Box Model!

Limited Time Offer While Supplies Last!


The New Sound of JBL: MS Series Subwoofers

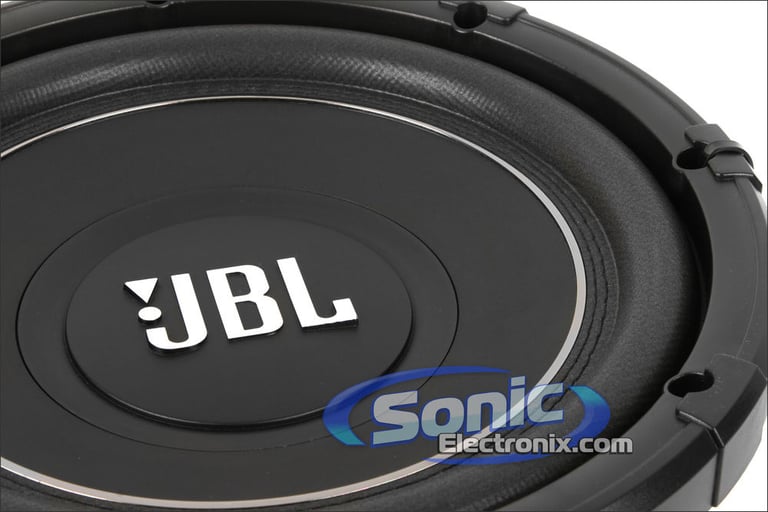

JBL MS-12SD2 Subwoofer JBL MS-12SD2 Subwoofer Cone

The Cone

No sound system is complete without some seriously deep bass. The hard hitting 12" JBL MS-12SD2 subwoofer provides just that. The dual voice coils allow for greater flexibility and more wiring options.

  • Lightweight polypropylene cone
  • Double stitched laminated polyurethane and fabric surround
  • Peak power handling: 1800 watts
  • RMS power handing: 900 watts

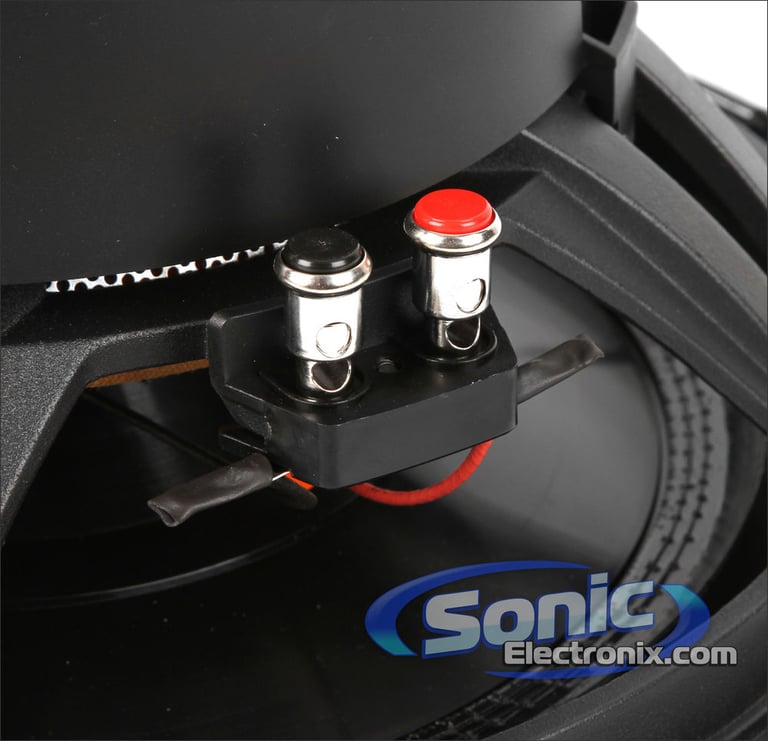

  • JBL MS-12SD2 Subwoofer Connections

    The Details Matter

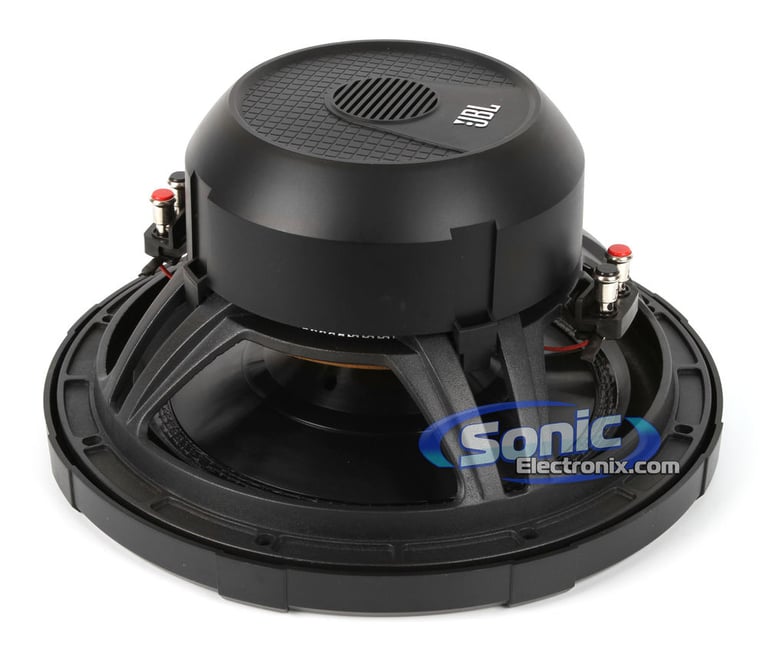

    JBL has carefully engineered and constructed the MS-12DS2 from the ground up to ensure use for years to come. The durable, light weight aluminum basket is nonferrous, which dedicates more magnetic power to the motor assembly.

  • 56 oz. Barium ferrit magnet structure
  • Silver-plated push terminals
  • Stitched tensil weaves
  • Vented pole piece
  • The Sound of quality

    Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


    BOX DAMAGED

    General Features

    • 12" Dual 2 ohm MS Series Subwoofer
    • Power Handling:
      • Peak: 1800 watts
      • RMS: 900 watts
    • Impedance: Dual 2 ohm
    • Polypropylene cone material
    • Laminated polyurethane and fabric surround
    • Vented pole piece
    • Designed for both sealed and vented enclosures
    • Aluminum frame with black epoxy coating
    • 2-1/2" Copper voice coil with Kapton former
    • 56 oz. Barium ferrit magnet structure
    • Silver-plated push terminals
    • Frequency response: 30-400 Hz
    • Sensitivity: 87 dB
    • Authorized Internet Dealer
    • 1-year Manufacturer's warranty

    Subwoofer Wiring Guide


    Wiring Guide to Wire 1 JBL MS-12SD2 (Open Box) Subwoofer

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 JBL MS-12SD2 (Open Box) Subwoofers

    Mono Amp

    2 Channel Amp

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 JBL MS-12SD2 (Open Box) Subwoofers

    Mono Amp

    Mono Amp - Option 1

    4 Channel Amp

    Wiring Guide to Wire 4 JBL MS-12SD2 (Open Box) Subwoofers

    2 Channel Amp

    4 Channel Amp

    Specifications & Details


    Subwoofer Specifications
    Series
    MS Series
    Subwoofer Size
    12"
    Peak Power Handling
    1800 watts
    RMS Power Handling
    450 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    2 ohm
    Voice Coil Diameter
    2"
    Frequency Response
    30 - 400 Hz
    Sensitivity
    87 dB
    Xmax (millimeters)
    6.5 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Polypropylene
    Woofer Surround
    Poly Coated Cloth
    Magnet Structure
    Single Stacked
    Subwoofer Grille
    No
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    0.95 cubic feet
    Maximum Sealed Box Volume
    0.95 cubic feet
    Minimum Ported Box Volume
    1.7 cubic feet
    Maximum Ported Box Volume
    1.7 cubic feet
    Top-Mount Depth (Mounting Depth)
    6-3/4"
    Cutout Diameter
    10-15/16"
    Shallow Mount Installation
    No
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    35 Hz
    Equivalent Compliance (Vas)
    49 liters
    Total Speaker Q Value (Qts)
    0.73
    Electrical Q Value (Qes)
    0.78
    Electrical Resistance of Voice Coil (Re)
    3.7 ohm
    Mechanical Q Value (Qms)
    10.08
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    JBL

    Model Number:

    MS-12SD2-2

    Weight:

    15.00lbs

    Internal SKU:

    LS-ms12sd2-OB

    Internal Product ID:

    80445
