Infinity REF-075tx (Open Box)

3/4" Reference X Series Car Tweeters

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 135W Max
• 45W RMS
• Textile Dome Tweeter
• 3 ohm Impedance
• Passive In-Line Crossovers
• High-Temperature Voice Coil
• Surface and Flush Mountable

Learn more about the LS-ref-075tx-OB

We apologize

This item has been discontinued

Product Highlights


• 135W Max
• 45W RMS
• Textile Dome Tweeter
• 3 ohm Impedance
• Passive In-Line Crossovers
• High-Temperature Voice Coil
• Surface and Flush Mountable

Description


Infinity brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Save BIG With This Open Box Model! Limited Time Offer While Supplies Last!

True 4 Ohm Impedance

These speakers are specially designed with true 4ohm technology. The impedance of these speakers are 3ohms, but when you pair them with thin factory wiring, the impedance will naturally rise up to a true 4ohms resulting in a maximum amount of power draw from your 4ohm rated factory receiver, aftermarket deck, or external amplifier. What it comes down to is efficiency. If you need a speaker that will get the most out of your current sound system, the Reference X series is for you.

Plus One Cone Technology

Each of the Reference X speakers features plus one woofer cone technology. This means the cone has been designed to be slightly larger than comparable tweeters, giving you even more output on the same amount of power. This drastically increases the efficiency of the speaker, and also extends the frequency response.

The Reference of Audio

Want an easy upgrade for your factory tweeters without going over your budget? The Infinity Reference X Series is for you. Its engineered to bring your factory audio system to life, or to add clarity and depth to an aftermarket system. With innovative, patented technologies, and the kind of premium quality and construction that you would expect from the worlds top-selling premium car speaker brand, Infinity Reference X tweeters will transform your listening experience into something amazing.


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 3/4" Reference X Series Car Tweeters
  • Power Handling:
    • Peak: 270 watts per pair / 135 watts each
    • RMS: 90 watts per pair / 45 watts each
  • Edge-driven, Textile Soft Dome tweeter construction
  • 3 ohm impedance
  • Low-impedance voice coils make the most of the power they receive
  • High-temperature voice coil

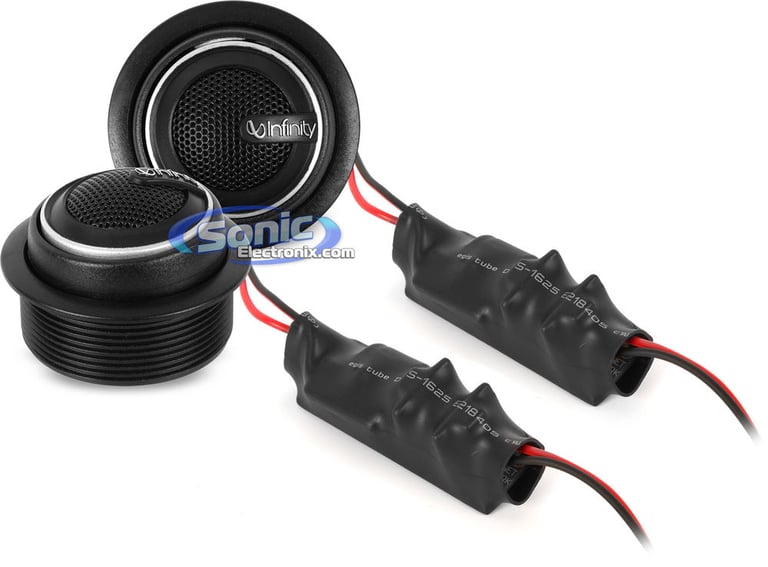

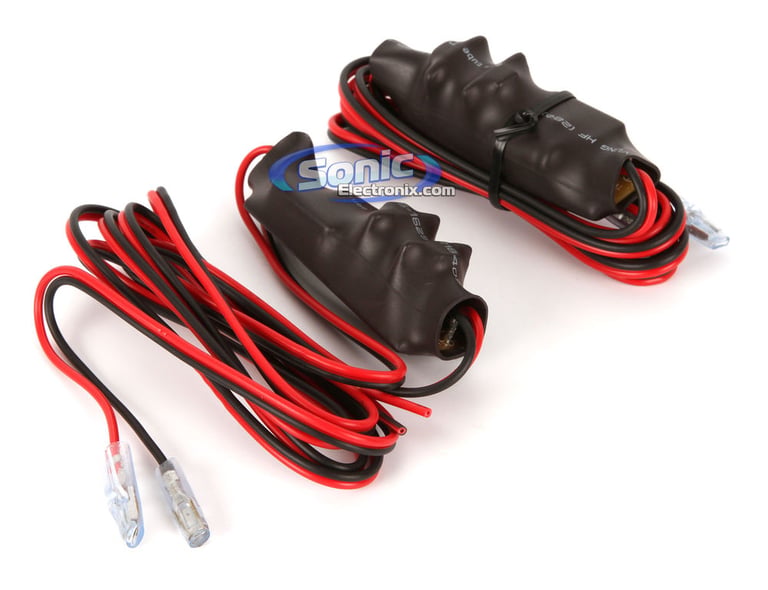

  • 2,500 Hz passive in-line high-pass crossovers

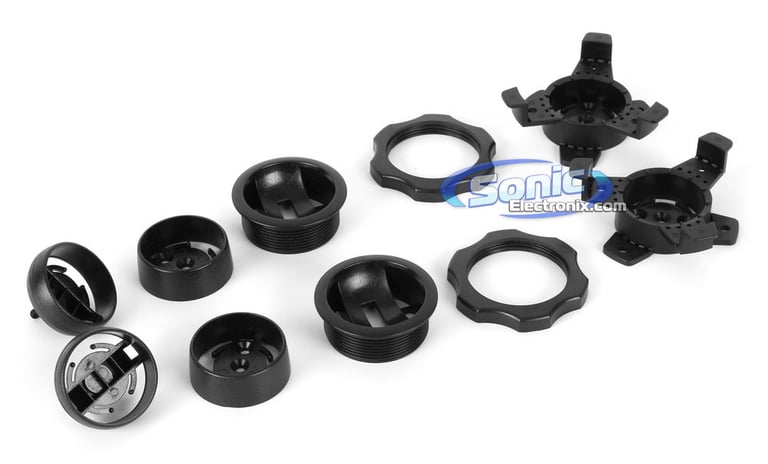

  • Surface and Flush mountable with included brackets
  • Starfish bracket included for mounting in factory locations
  • Sensitivity: 93dB
  • Frequency response: 2,500-21,000 Hz
  • Top-mount depth: 13/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair

Specifications & Details


Tweeter Specifications
Tweeter Size
3/4"
Tweeter Design
Dome
Tweeter Composition
Textile
Flush Mount
Yes
Surface Mount
Yes
Angled Mount
No
Peak Power Handling
135 watts
RMS Power Handling
45 watts
Sensitivity
93 dB
Frequency Response
2500 - 21000 Hz
Impedance (Per Voice Coil)
3 ohm
Top-Mount Depth (Mounting Depth)
13/16"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REF-075tx-OB

Weight:

0.90lbs

Internal SKU:

LS-ref-075tx-OB

Internal Product ID:

80773
