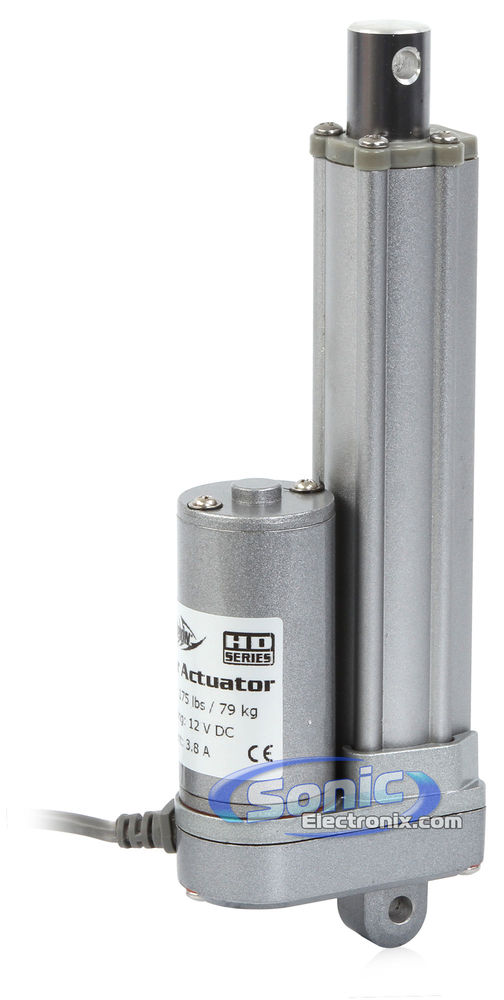

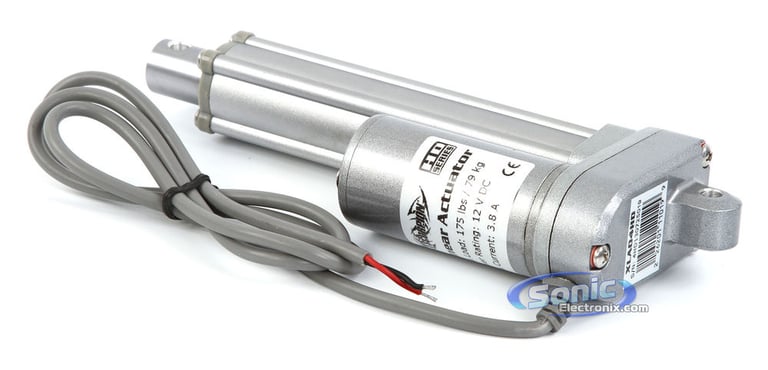

Xscorpion XLA04HD

4" Heavy Duty 12 Volt Linear Actuator

Xscorpion
Shop all Xscorpion
highlight-star-icon

• 4" Extension
• 175 lb Lifting Force
• Heavy Duty Permanently Sealed and Lubricated Actuator Shaft
• Lightweight Aluminum Actuator Case

Learn more about the xla04hd

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
99-6506 main

Metra 99-6506 Dash Kit

Install a new Single-DIN car stereo in select 2004-2008 Pacifica

1
-12.12%

$28.99

List price $32.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
ZS35CX main

Hifonics ZS35CX

250W Peak (50W RMS) 3.5” Zeus Series 2-way 4-ohm Coaxial Car Speakers

10
FKB113 main

MB Quart FKB113

180W Peak (90W RMS) 5.25" Formula Series 2-Way 4-ohm Coaxial Car Speakers

4
-57.15%

$29.99

List price $69.99

Description


Xscorpion brand icon

Authorized dealer

Perfect for adding power operated Amp Racks, Trunk Lids or Tonneau Covers. HD series linear actuators are super quiet with an incredible 750 pound static force and built-in Fixed Limit Switches. HD series linear actuators are waterproof and meet the highest industry standard in total Dust Protection.

General Features:

  • 4" Extension
  • Static Force: 750 lbs
  • Lifting Force: 175 lbs
  • Long life durable drive assembly
  • Lightweight aluminum actuator case
  • Heavy duty permanently sealed and lubricated actuator shaft
  • Built-in limit switches
  • 3.8 amps at 12V maximum current draw
  • Extremely compact design
  • Water resistant
  • Dimensions: 1-5/8"W x 3"D x 9"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
