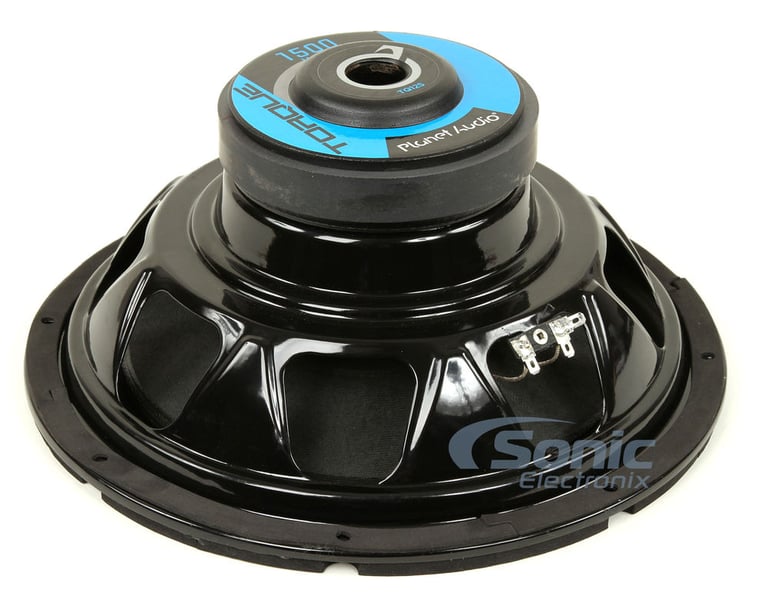

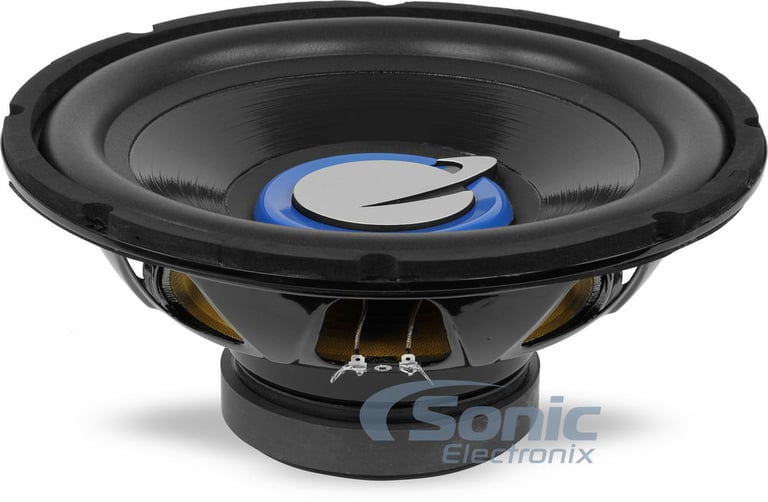

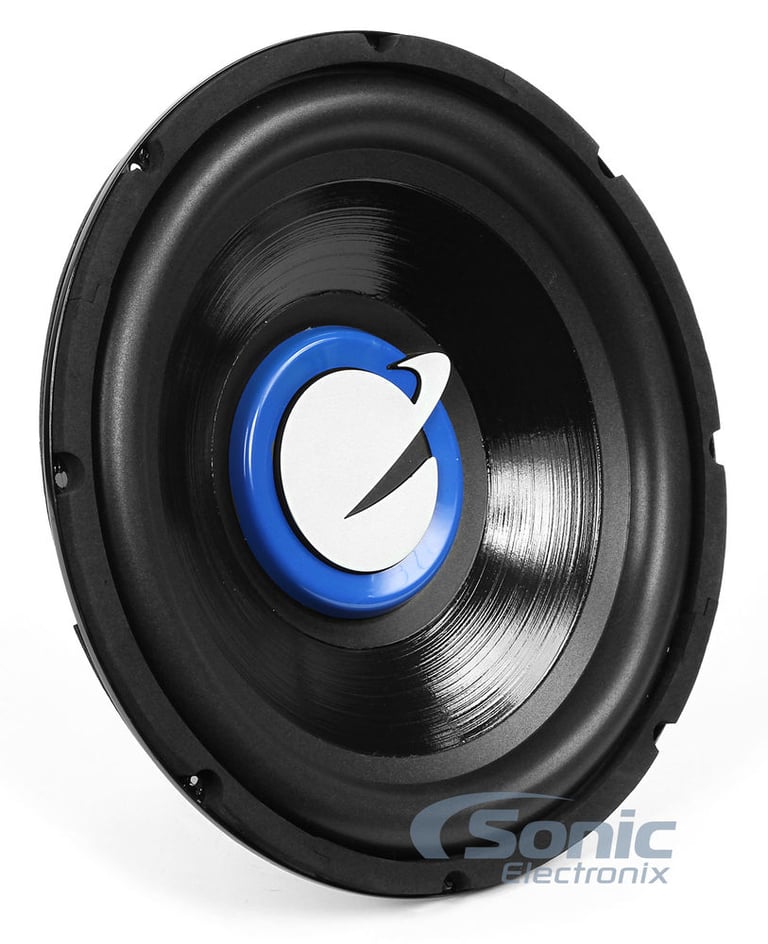

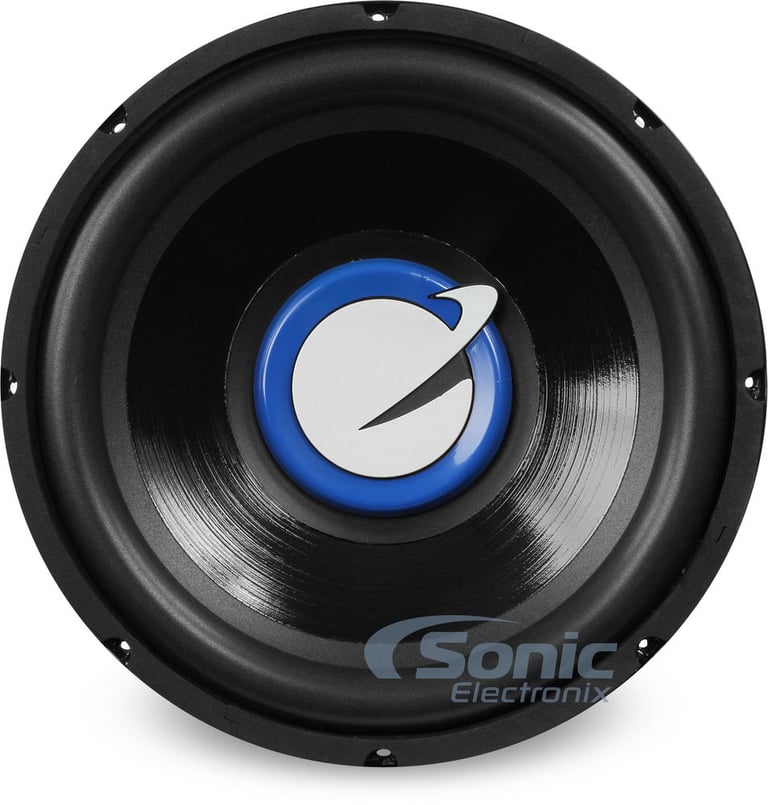

Planet Audio TQ12S

750W RMS 12" TQ Series Single 4 ohm Subwoofer

Product videos
highlight-star-icon

• Peak Power: 1600W
• RMS Power: 750W
• Paper Cone
• Large Foam Surround

Learn more about the tq12s

We apologize

This item has been discontinued


Loading...
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Product Highlights


• Peak Power: 1600W
• RMS Power: 750W
• Paper Cone
• Large Foam Surround

Description


Planet Audio brand icon

Authorized dealer



Planet Audio Authorized Dealer


General Features:

  • 12" Single 4 ohm TQ Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Recommended power range: 200 - 750 watts RMS
    Preferably from a Planet Audio Amplifier
  • Treated paper cone
  • Large foam surround
  • High temperature voice coil
  • Top-mount depth: 5-3/16"
  • Sensitivity: 87dB
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 2 years Manufacturer's warranty

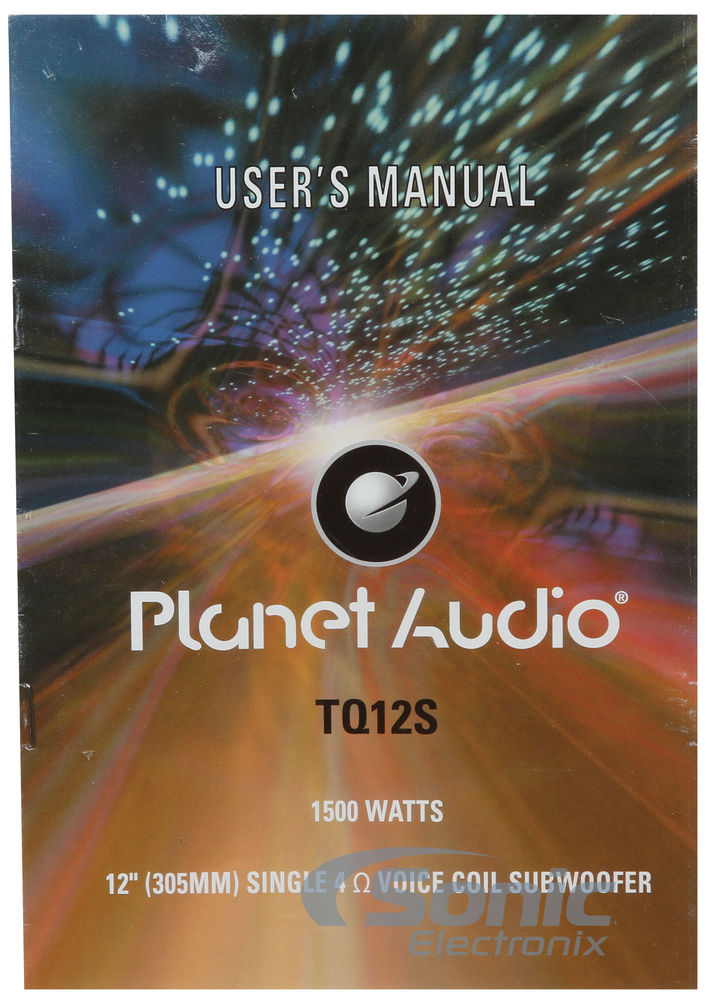

Planet Audio TQ12S owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Planet Audio TQ12S Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Planet Audio TQ12S Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Planet Audio TQ12S Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Planet Audio TQ12S Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
TQ
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
5-3/16"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35 Hz
Equivalent Compliance (Vas)
87.3 liters
Total Speaker Q Value (Qts)
.61
Electrical Q Value (Qes)
.66
Mechanical Q Value (Qms)
9.52
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TQ12S

Weight:

9.20lbs

Internal SKU:

tq12s

Internal Product ID:

81587

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio TQ12S thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.7
Design
5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Cool speaker..

They are ok I guess. They look BETTER than they sound. But nice price.

By Frederick on August 28, 2018 Checkmark Icon Verified purchase

6 found this helpful


Planet audio tq 12

For a $35 sub this thing rocks. I have it hooked to a planet audio torque 1500.1 amp an I am very happy. It doesn't like anything under about 35 Hz but I listen to rock and country so not a problem. I have it in a ported truck box in my reg cab S10.

By Big Ben on March 10, 2016

5 found this helpful


Great value

I have a 1000 watt Kenwood pushing it the speaker pounds I would recommend it if u want some good sound but nothing too much can’t complain it’s worth its price.

By Edward on April 11, 2020 Checkmark Icon Verified purchase

4 found this helpful
