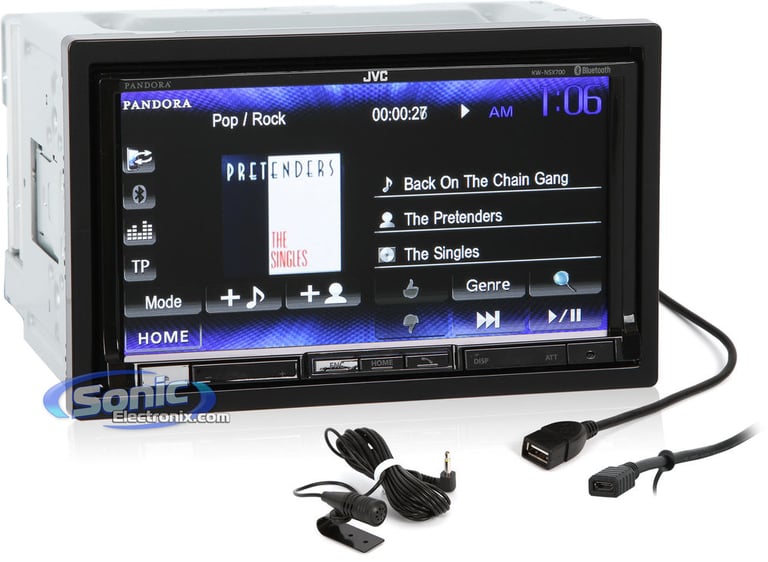

JVC KWNSX700 (Factory Refurbished)

Double Din DVD Receiver w/ Bluetooth, MirrorLink and Variable Color Illumination

JVC
Shop all JVC
Product videos
highlight-star-icon

• Bluetooth Technology
• 7" LCD Touchscreen Display
• 3 Sets of 4V Preamp Outputs
• 3-Band Parametric Equalizer
• 24-bit Digital Analog Converter
• iPod and iPhone Support
• 50W x 4 Chan. Max, 20W x 4 Chan. RMS

Learn more about the LS-kwnsx700-RB

We apologize

This item has been discontinued

Product Highlights


• Bluetooth Technology
• 7" LCD Touchscreen Display
• 3 Sets of 4V Preamp Outputs
• 3-Band Parametric Equalizer
• 24-bit Digital Analog Converter
• iPod and iPhone Support
• 50W x 4 Chan. Max, 20W x 4 Chan. RMS

Description


JVC brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

JVC Headunit Perfection

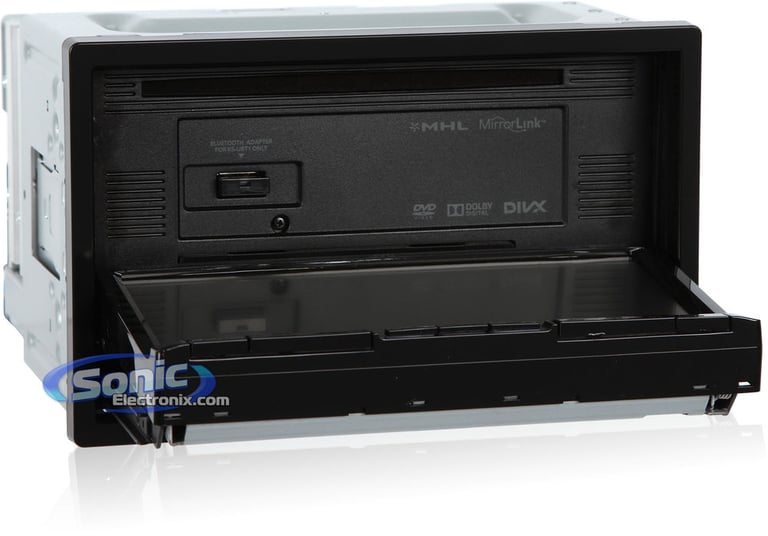

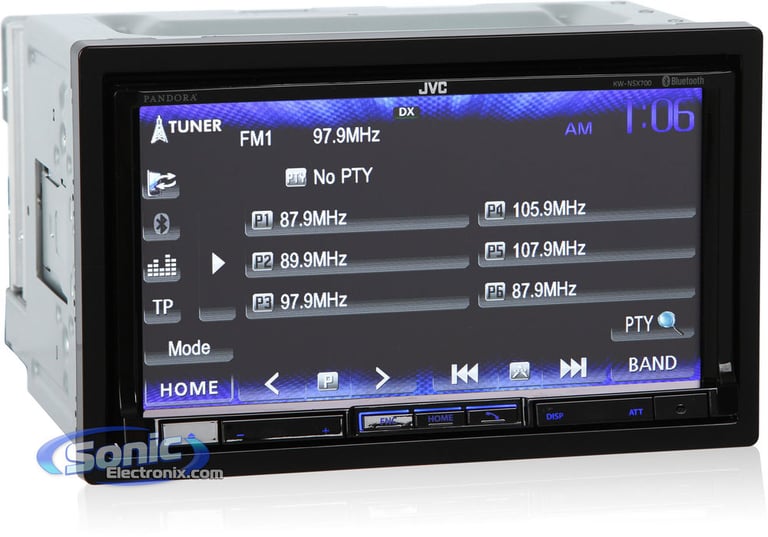

JVC KW-NSX700

The MirrorLink-enabled unit displays a synced operation with Samsung GALAXY S III Android/Nokia Symbian phone on the 7-inch WVGA LCD for navigation, music, and phone apps. HD videos can be enjoyed via MHL input, while the 1A USB port can play and charge mass storage devices. iPod Out* provides easy control with enlarged iPod/iPhone screen, while App Link Mode* (for supported apps) similarly enables iPod/iPhone app control on the headunit. Control for Pandora Radio is also available on the unit, via Bluetooth for Android and USB for iPhone. Bluetooth Wireless Technology offers hands-free calling and audio streaming/control, as well as the latest Siri Eyes-Free-Mode for safe driving. Other advantages include Variable-Color Illumination and front AUX input. The unit is also rear-view camera ready.

MirrorLink Mode for Android and Symbian OS

Smartphone integration is made possible by MirrorLink to allow totally synced operation with Samsung Android and Nokia Symbian phones, duplicating the phone’s screen on the headunit’s monitor. The user can take advantage of MirrorLink to access apps that have been optimized for in-car use, thereby assuring a safe and comfortable driving experience. The apps are grouped into three categories for easy access – “Music”, “Location”, “Phone” for Samsung, and “Call”, “Drive”, “Music” for Nokia. Selecting a category lets the user quickly access specific apps for music playback, car navigation and maps, as well as hands-free telephone communication.

JVC KW-NSX700

JVC “App Link Mode” for iPod/iPhone

In addition to Android compatibility, KW-NSX700 further expands in-car entertainment by supporting iOS with extended app compatibility for full control (Type-A) and simple audio control (Type-B). Also, enjoy digital audio/video from your iPod, iPhone, or USB devices with full-speed 1A USB port providing playback and charging. iPod out allows you quick and easy control through enlarged iPod/iPhone screen on the headunit.

JVC KW-NSX700


























General Features:

  • JVC KW-NSX700 In-Dash Receiver
  • Built-in Bluetooth
  • Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio
  • MirrorLink system allows control over applications and data saved on your compatible smartphone
  • GPS Navigation with Apple iPhone and MotionX GPS Drive app from App Store

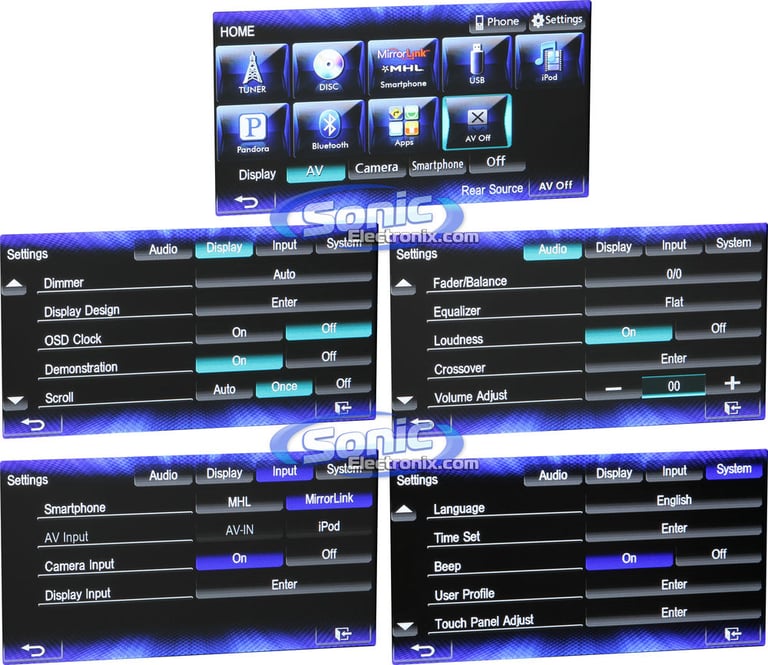

  • Full-color 7" LCD touchscreen display with intuitive software and gesture controls
  • 2-way iPod control allows control from the iPod or the stereo
  • Variable Color Illumination button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 20 watts x 4 channels
  • CD/DVD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Manufacturer Warranty

Playback and Audio Features:

  • DVD/DVD-R/RW/DivX/AVI, CD/CD-R/RW, AAC/MPEG/WAV/MP3/WMA Playback
  • iHeartRADIO application for smartphone supports playback of over 750 radio stations locally and worldwide
  • Playback of region #1 DVD discs
  • 18FM/6AM presets
  • Electronic Shock Protection (ESP)
  • Pro EQ 3-band parametric equalizer with 8 selectable tone curves (7 Preset, 1 User)
  • 24-bit DAC enhances MP3/WMA playback
  • App Link Mode for iPod and iPhone allows audio and video from supported apps
  • Dual zone capability allows playback of separate sources to the front and rear of the vehicle
  • High-Pass and Low-Pass crossovers

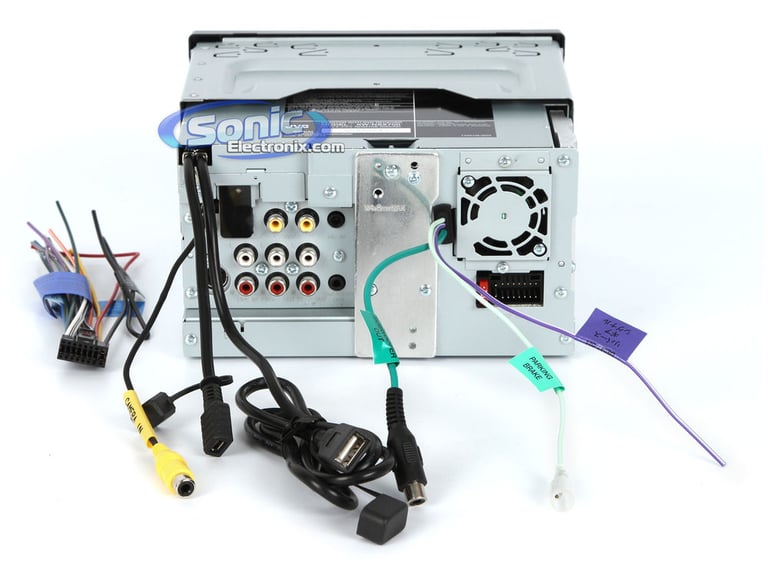

Inputs and Outputs:

  • 3 Sets of 4V preamp outputs (front, rear and mono subwoofer)
  • Rear RCA Video and 3.5mm Audio Outputs
  • Rear RCA Audio/Video Input
  • Rear USB Input

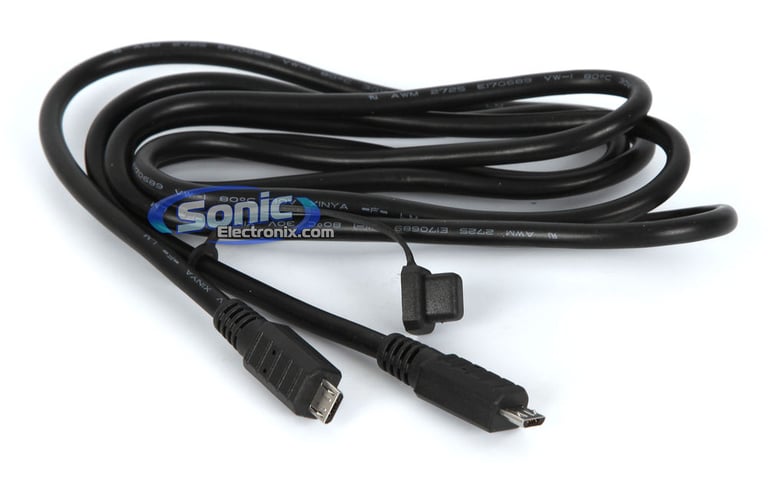

  • Rear micro-USB Input: Used for connecting compatible Android and Nokia phones for use with MirrorLink technology

Expandability Options:

Bluetooth Features:

  • Bluetooth version 2.1 +EDR certified
  • Supports SMS message notifications and A2DP audio streaming
  • Supports Siri digital assistant control with connected Apple iPhone device
  • Additional Bluetooth Profiles Supported:
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones

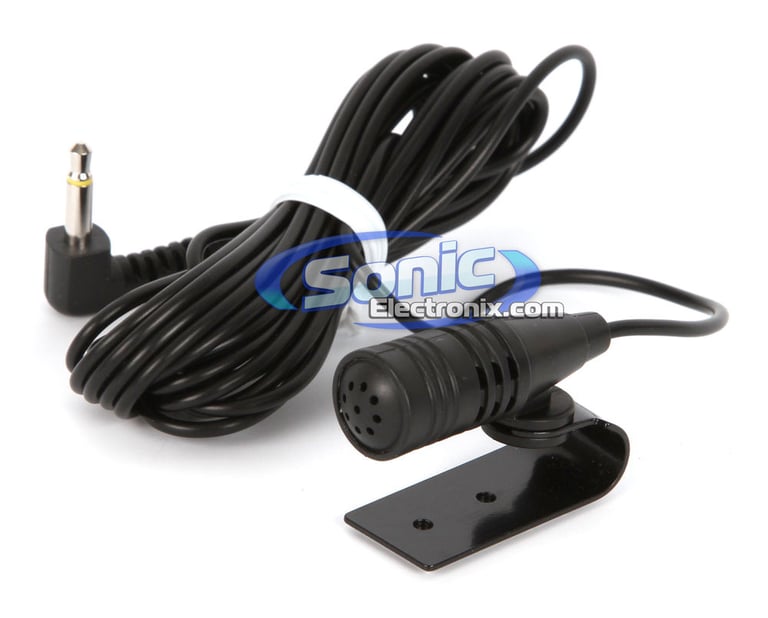

  • Includes an external wired microphone for clear, distortion-free talking

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
No
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
3-band parametric equalizer
Display Type
TFT-LCD Display
Touchscreen
Yes
Display Adjustment
Brightness
Expandability Features
Inputs
Auxiliary (Rear)
Backup Camera
Outputs
Composite Video (RCA)
3.5mm MiniJack Audio
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KWNSX700-RB

Weight:

8.00lbs

Internal SKU:

LS-kwnsx700-RB

Internal Product ID:

81595
