AudioControl LC6i

	NVX XLOC66X	Audiocontrol LC6i
Price	$129.99	$149.99
Load Selection Switch
Variable Remote Turn-on
Ground Isolation Switch
9.5 Volt RCA Outputs
12-volt turn-on lead output
Low-Pass Filter & Bass Boost
Remote Bass Knob Included
Led Clip Indicator

For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".

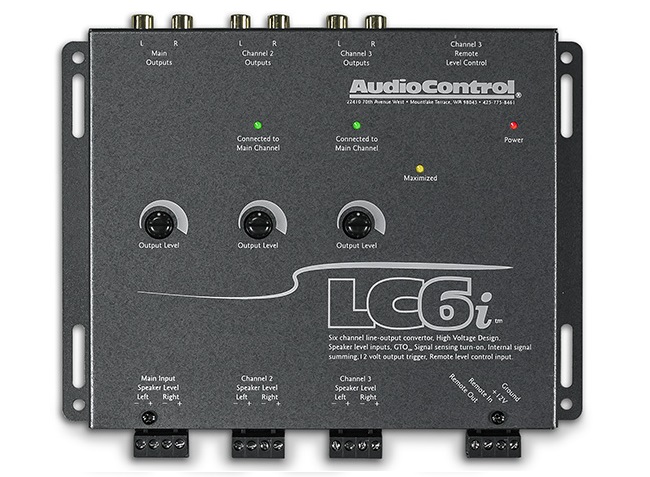

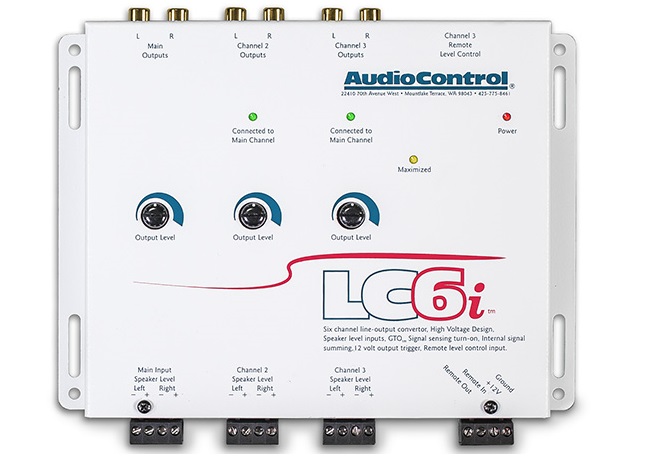

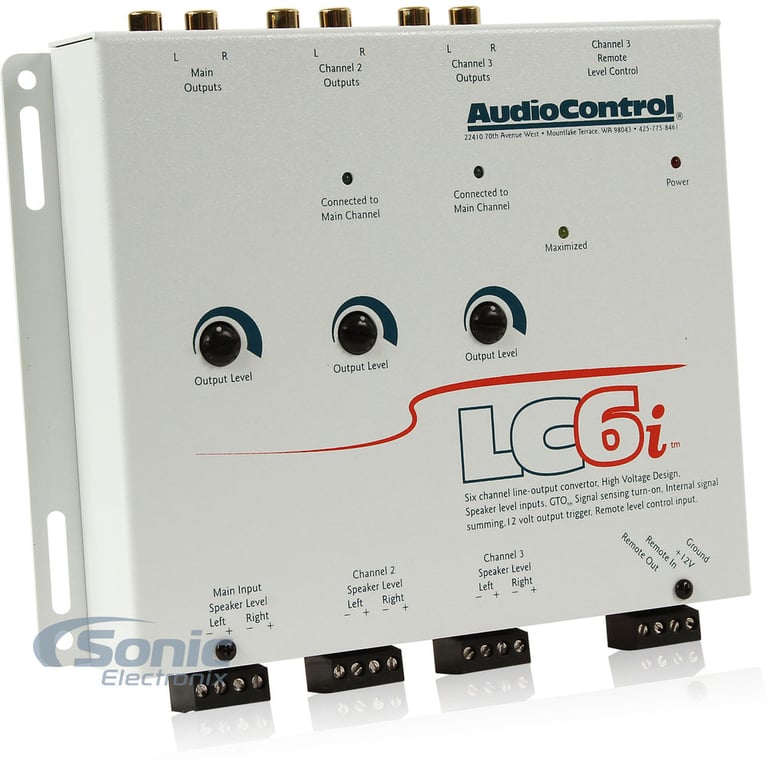

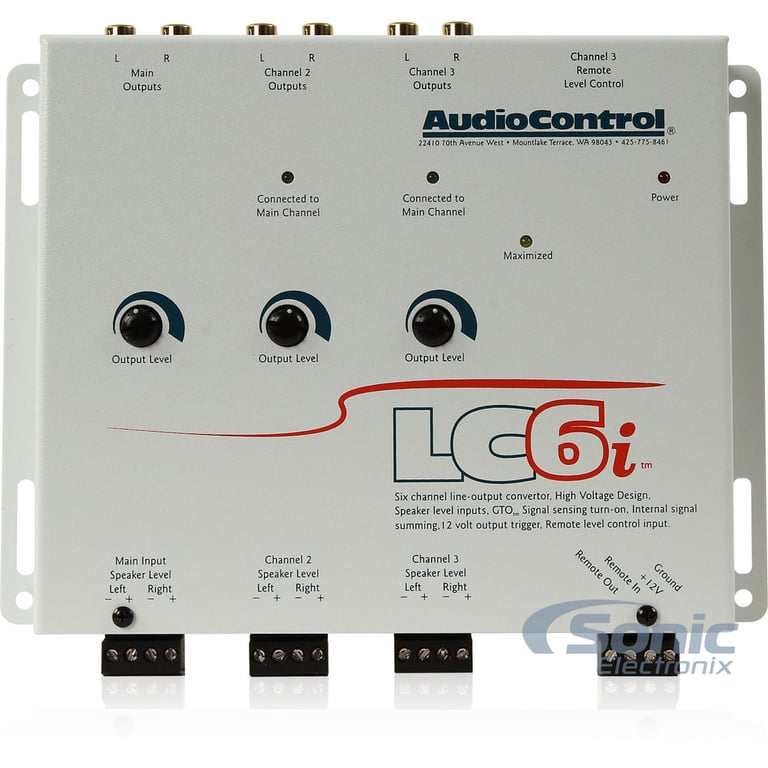

AudioControl continues to simplify OEM integration with the new LC6i Six Channel Line Output Converter with internal summing. The LC6i is built on the same technology as its predecessor, the LC6. The LC6i converts speaker level inputs from a factory radio or factory amplifier into high-quality pre-amp signals. The addition of internal summing capabilities and improved GTO signal-sense turn-on make the LC6i the perfect way to solve your OEM headaches.

The LC6i allows for the addition of aftermarket processors and amplifiers while maintaining use of the factory volume and steering wheel controls. Internal signal summing and AudioControl's new GTO™ signal-sense turn-on make the LC6i a perfect OEM interface for a performance audio system.

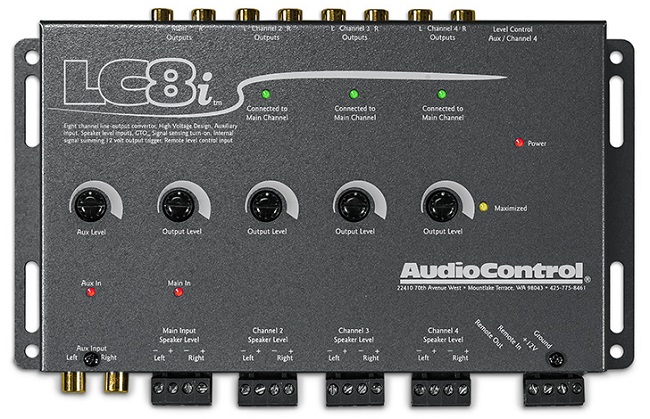

The LC6i follows in the steps of the rampantly successful LC8 Eight Channel Line Output Converter, offering all of the same features for 6 channel systems at a reduced price. The LC6i accepts speaker level signals, both crossed-over and full range, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be overcome by summing them together, internally, to provide a full-range preamp signal.

The LC6i provides the type of clean pre-amp signals installers are familiar with. Those who desire custom control over the sound can easily add one of AudioControl's many crossovers or equalizers which offer unlimited system design flexibility, clearly different than traditional OEM interfaces.

Key Features:

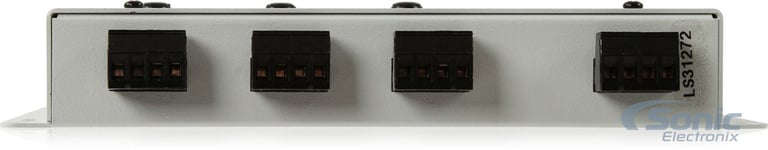

Speaker-Level Inputs:

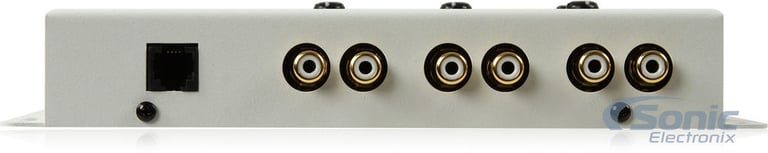

If you are like many people who enjoy the look and features of your factory-installed source unit but feel your system overall is lacking power and bass, we have good news. The LC6i has high-impedance speakerlevel inputs that allow it to accept amplified signals from all known factory-installed source units (even Bose) and output a high-quality pre-amp signal via standard RCA connectors. This will allow you to add better-quality aftermarket amplifiers, processors and speakers while keeping the convenience features of your factory-installed source unit. Unlike inexpensive speaker-level and line-output converters, the LC6i offers the highest sound quality and can handle the full signal strength of a 400-watt amplifier.

GTO™ Signal-Sensing Inputs:

Most factory-installed source units lack the features that make it easy to upgrade with really good-sounding, performance aftermarket products. One of those key features is a 12-volt trigger that will turn on devices like the LC6i and your external amplifiers. Therefore, we have equipped your LC6i with our unique GTO™ (Great Turn On) signal-sensing inputs. Once the GTO input of your LC6i detects a speaker-level signal on the Main Inputs, it powers up. When the speaker-level signal goes away, your LC6i will automatically turn-off. Optionally, your LC6i is also equipped with a standard 12-volt trigger (Remote In) that will allow you to turn on your LC6i in the traditional manner.

12-Volt Output Trigger:

Since you will be using an external amplifier(s) and processor in your system, you will need the ability to "trigger" or turn-on these devices (a romantic dinner won't quite work here). Your LC6i has a high-current 12-volt output (labeled Remote Out) that will provide a trigger to these remote devices, when the LC6i is powered up. Please note that this output is not to be used as the main power for these devices.

Internal Channel Summing:

The LC6i has the unique ability to internally sum together multiple (4 or 6) input channels from the factory source unit into 2 channels. This is particularly handy when using the LC6i with a factory system that has multiple, actively crossed-over signals being sent from the OEM source unit or amplifier(s). For example, in some vehicles there is an actively crossed-over tweeter, midrange, and woofer all in the front of the vehicle. The LC6i lets you take all of those signals and sum them together to get a high-quality, full-range, pre-amp signal without the use of any additional cables or hardware.

AutoMode Inputs:

Sometimes in life (and car audio) we need more outputs than inputs. Therefore we have equipped your LC6i with AutoMode inputs that take the Channel 2 signal and automatically feeds it to the Channel 3 outputs, provided there is no signal present on the Channel 3 inputs. This means your LC6i will accept two input channels and give you four output channels. Or it can accept four input channels and give you six output channels.

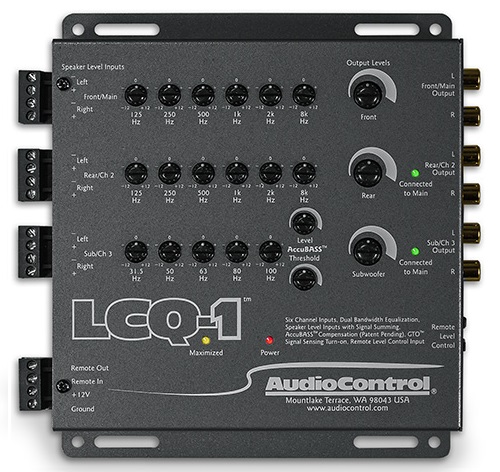

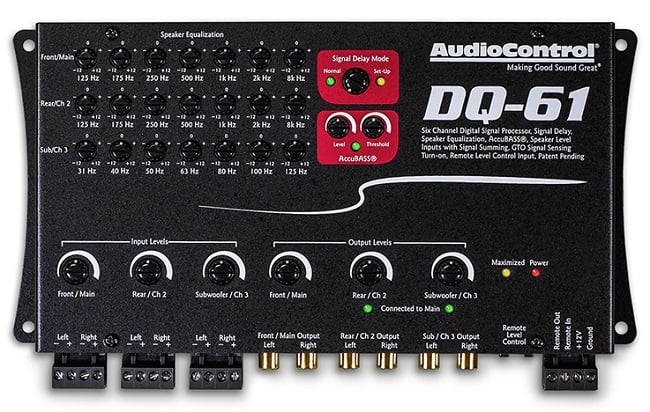

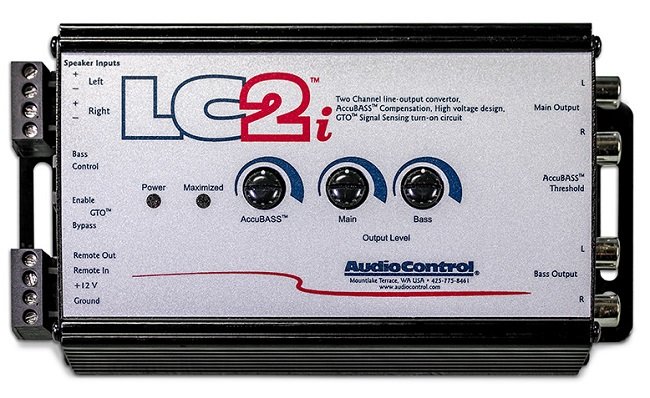

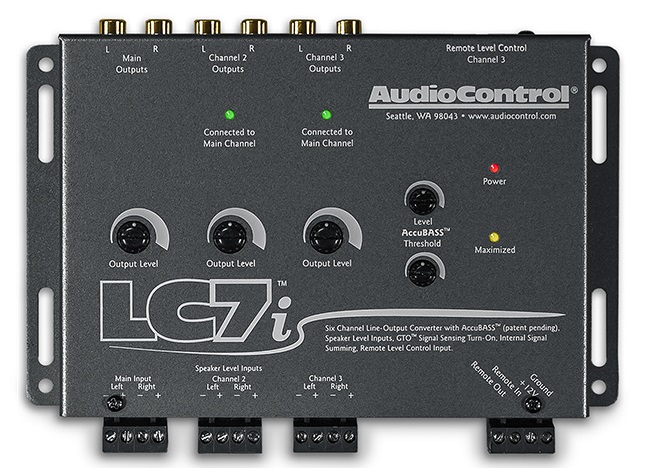

	AudioControl LC2i	AudioControl LC6i	AudioControl LC7i	AudioControl LC8i	AudioControl LCQ-1	AudioControl DQ-61
Your Price	$99.99	$149.99	$189.99	$249.99	$299.99	$399.99
Line Out Converter	2 Channel	6 Channel	6 Channel	8 Channel	6 Channel	6 Channel
High Level Inputs
GTO™
Channel Summing
AccuBASS™
Remote Included
Auxiliary Input
Equalizer
Signal Delay
Input Level Control
