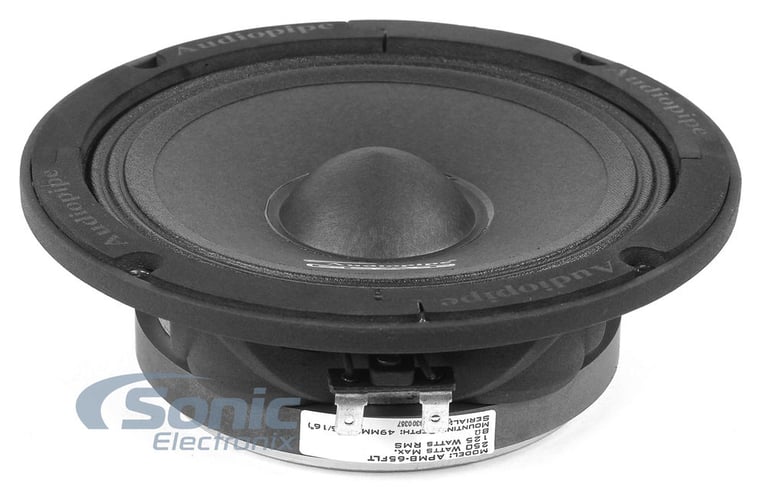

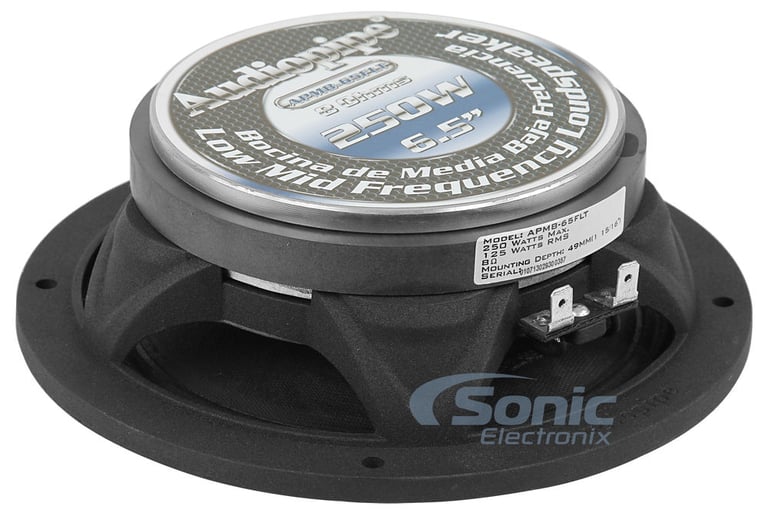

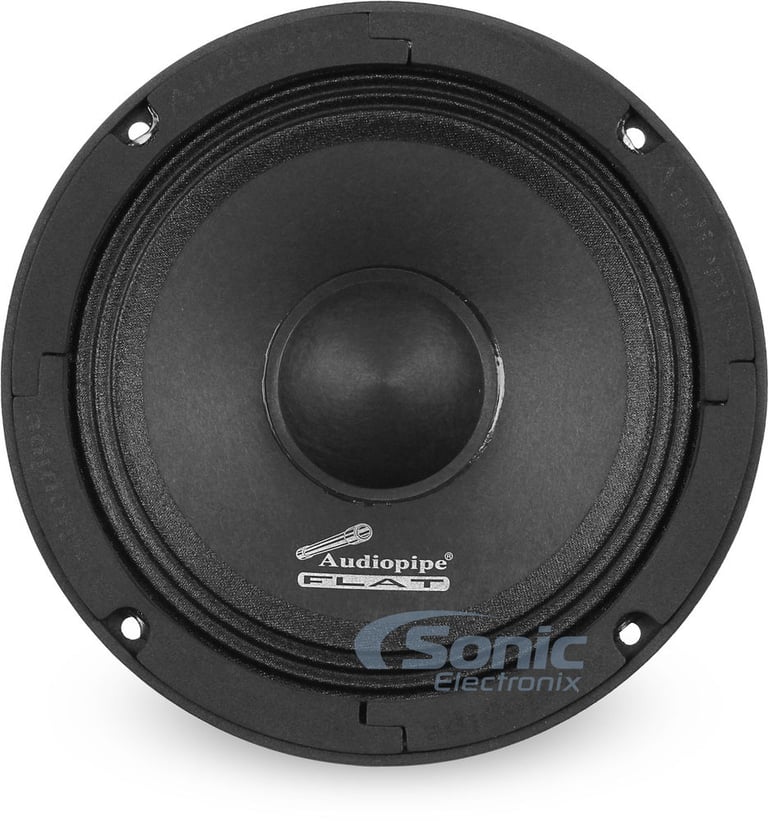

Audiopipe APMB-65FLT

250W 6.5" Flat Mount APMB Series Midrange Driver

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 1-15/16"
• 18 Oz. Magnet
• Flat Housing Design
• Sensitivity: 94dB

Learn more about the apmb65flt

We apologize

This item has been discontinued


Loading...
Stage3 427F main

JBL Stage3 427F (STAGE3427FAM)

300W Peak (60W RMS) 4" Stage3 Series 2-Way Coaxial 3-ohm Car Speakers

3
-22.23%

$69.95

List price $89.95

Limited time!
Stage3 627 main

JBL Stage3 627 (Stage3627AM)

270W Peak (90W RMS) 6.5" Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-22.74%

$84.95

List price $109.95

Product Highlights


• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 1-15/16"
• 18 Oz. Magnet
• Flat Housing Design
• Sensitivity: 94dB

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Classic Sound Dust Cap Sound Quality and Protection

Utilizing the classic dust cap design, the Flat speaker retains the original shape and form of a loudspeaker while providing the overall most impressive and best sounding of all speaker types. The high quality paper dust cap also keeps the internal components of your speaker free of dust and other sound diminishing particles, ensuring your sound will stay in peak form.

Compact Size for Compact Locations Compact Size Ideal for Small Locations

When faced with limited space for your speaker installation, it's important to not waste it. With a mounting depth of just under 2", the APMB Flat speaker is perfect for these applications. These flat speakers are designed to fit in tight spaces (such as motorcycle saddlebags) without sacrificing power or sound quality.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's Flat speakers feature a light weight yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.


General Features:

  • 6.5" APMB Series Flat Mount Midrange Driver
  • Power Handling:
    • Peak: 250 watts
    • RMS: 125 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • High quality paper cone
  • Corrugated surround
  • Flat housing design keeps mounting depth to a minimum
  • Classic dust cap design to protect the internal speaker components
  • Heavy duty 18 oz. magnet
  • Durable 1.5" TIL voice coil
  • 8 ohm impedance
  • Frequency Response: 80-9,000 Hz
  • Top-mount Depth: 1-15/16"
  • Mounting Diameter: 5-7/8"
  • Sensitivity: 94dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 132 Hz.
  • RE (DC Resistance): 6.3 ohm
  • Le (Voice Coil Inductance): 0.22 mH
  • QMS (Mechanical Q Value): 2.5
  • QES (Electrical Q Value): 0.89
  • QTS (Total Speaker Q Value): 0.65
  • VAS (Equivalent Compliance): 2.3 L (0.08 cu ft.)
  • Xmax (One-Way Linear Excursion): 0.25mm (0.01")
  • F3 (for Sealed Enclosure):
    • 0.3 cu ft.: 144 Hz
    • 0.61 cu ft.: 138 Hz
  • F3 (for Vented Enclosure):
    • 0.4 cu ft.: 126 Hz

Priced Per Speaker
