Audiopipe APMB-65FLT Open Box Complete

250W 6.5" Flat Mount APMB Series Midrange Driver

Audiopipe
Shop all Audiopipe
highlight-star-icon

• Item Condition: Open Box Compete
• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 1-15/16"
• 18 Oz. Magnet
• Flat Housing Design
• Sensitivity: 94dB

Learn more about the ls-apmb65flt-obc6

We apologize

This item has been discontinued

Description


Audiopipe brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

General Features:

  • 6.5" APMB Series Flat Mount Midrange Driver
  • Power Handling:
    • Peak: 250 watts
    • RMS: 125 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • High quality paper cone
  • Corrugated surround
  • Flat housing design keeps mounting depth to a minimum
  • Classic dust cap design to protect the internal speaker components
  • Heavy duty 18 oz. magnet
  • Durable 1.5" TIL voice coil
  • 8 ohm impedance
  • Frequency Response: 80-9,000 Hz
  • Top-mount Depth: 1-15/16"
  • Mounting Diameter: 5-7/8"
  • Sensitivity: 94dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 132 Hz.
  • RE (DC Resistance): 6.3 ohm
  • Le (Voice Coil Inductance): 0.22 mH
  • QMS (Mechanical Q Value): 2.5
  • QES (Electrical Q Value): 0.89
  • QTS (Total Speaker Q Value): 0.65
  • VAS (Equivalent Compliance): 2.3 L (0.08 cu ft.)
  • Xmax (One-Way Linear Excursion): 0.25mm (0.01")

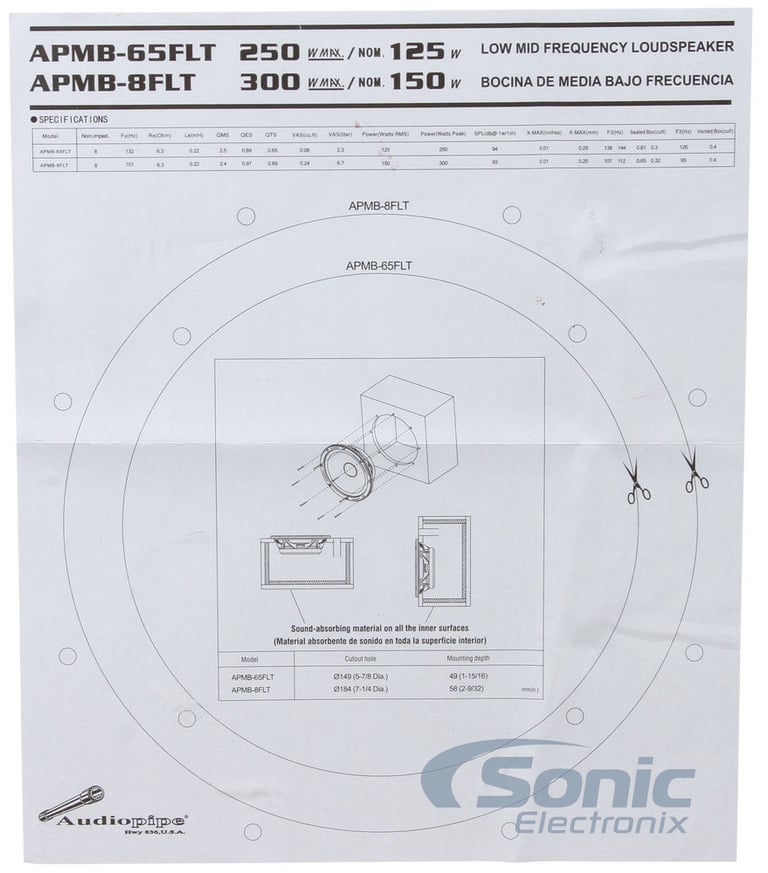

  • F3 (for Sealed Enclosure):
    • 0.3 cu ft.: 144 Hz
    • 0.61 cu ft.: 138 Hz
  • F3 (for Vented Enclosure):
    • 0.4 cu ft.: 126 Hz

Priced Per Speaker

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Speaker Size
6-1/2"
Design
Mid-range
Woofer Composition
Paper
Woofer Surround
Corrugated
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Sensitivity
94 dB
Frequency Response
80 - 9000 Hz
Impedance (Per Voice Coil)
8 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-15/16"
Cutout Dimensions
5-7/8"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-65FLT Open Box Complete-2

Weight:

4.20lbs

Internal SKU:

ls-apmb65flt-obc6

Internal Product ID:

129529
