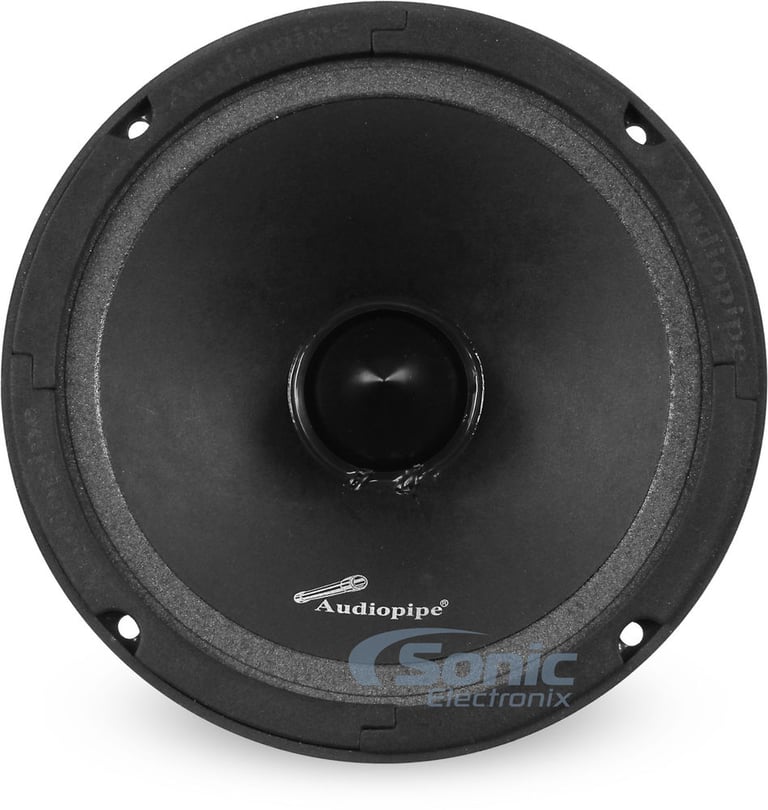

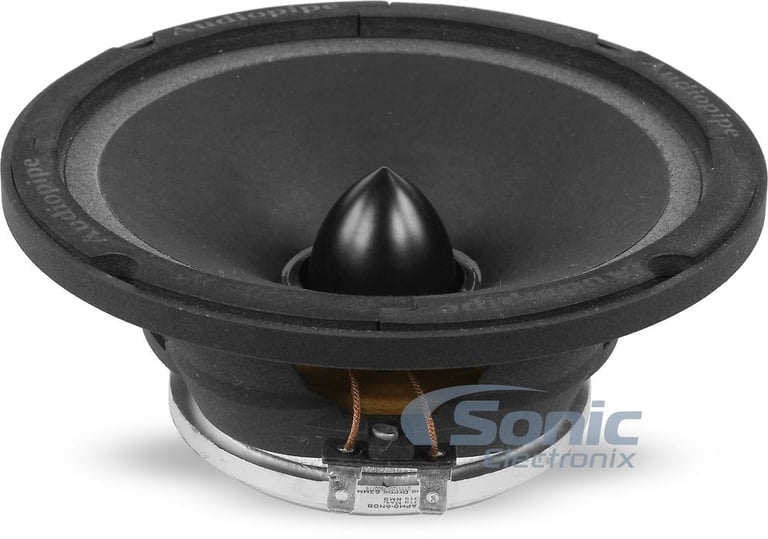

Audiopipe APMB-6NDB

250W 6" APMB Series Midrange Driver

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 2.48"
• 8.45 Oz. Neodymium Magnet
• Loudspeaker Design
• Sensitivity: 96dB
• Bullet Dust Cap

Learn more about the apmb6ndb

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-7400 main

Metra 82-7400

Speaker Adapter for select 2000-2024 vehicles from Nissan, Audi, Mazda

5
-10.00%

$26.99

List price $29.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

RKFR6 main

Stinger Roadkill RKFR6

FAST Foam Speaker Enhancer System Kit for 6" and 6.5" Drivers 3pc

26
-27.62%

$20.99

List price $29.00

Stadium 62F main

JBL Stadium 62F

510W Peak (170W RMS) 6.5" Stadium Series 2-way Coaxial 3-ohm Speakers

3
-17.24%

$239.95

List price $289.95

JBL SHOCK WAVE 150W65 (JBLSPKSW150W65)

600W Peak (300W RMS) 6.5" Shock Wave Series 4-ohm Midrange Speakers

5
-7.70%

$119.95

List price $129.95

Product Highlights


• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 2.48"
• 8.45 Oz. Neodymium Magnet
• Loudspeaker Design
• Sensitivity: 96dB
• Bullet Dust Cap

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 8SND speaker with an incorporated phase plug to provide high quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 8SND speakers feature a light weight yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.


General Features:

  • 6" APMB Series Midrange Driver
  • Power Handling:
    • Peak: 250 watts
    • RMS: 125 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • High quality paper cone
  • Corrugated surround
  • Bullet dust cap ensures high quality high frequency sound
  • Powerful 8.5 oz. neodymium magnet
  • Durable 1.5" TIL voice coil
  • 8 ohm impedance
  • Frequency Response: 100-8,000 Hz
  • Top-mount Depth: 2-1/2"
  • Mounting Diameter: 5-13/16"
  • Sensitivity: 96dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 133 Hz
  • RE (DC Resistance): 5.6 ohm
  • Le (Voice Coil Inductance): 0.13 mH
  • QMS (Mechanical Q Value): 3.4
  • QES (Electrical Q Value): 0.46
  • QTS (Total Speaker Q Value): 0.4
  • VAS (Equivalent Compliance): 4.3 L (0.15 cu ft.)
  • Xmax (One-Way Linear Excursion): 2mm (0.08")
  • F3 (for Sealed Enclosure):
    • 0.26 cu ft.: 148 Hz
    • 0.5 cu ft.: 140 Hz
  • F3 (for Vented Enclosure):
    • 0.29 cu ft.: 125 Hz

Priced Per Speaker


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

PH654 small

Cerwin-Vega PH654

• 300 watts Peak Each, 150 watts RMS Each
• Polymide Horn Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101 dB

(2)

$189.99

List price $227.99

CVP8 small

Cerwin-Vega CVP8 (Sold Individually)

• 350 watts Peak, 170 watts RMS
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$49.99

List price $59.99

PRO-X12MBASS small

DS18 PRO-X12MBASS (Sold individually)

• 1000 watts Peak Each, 500 watts RMS Each
• Paper cone material
• Impedance: 8 ohm
• Sensitivity: 96 dB

$131.95

List price $131.95

PRO-X6.4BMPK small

DS18 PRO-X6.4BMPK

• 500 watts Peak Each, 250 watts RMS Each
• 1" Aluminum Bullet super tweeters with ferrite magnets
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(4)

$139.95

List price $139.95

10MB800FT small

PRV Audio 10MB800FT

• 1600 watts Peak Each, 800 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 8 ohm
• Sensitivity: 99 dB

$129.91

List price $162.39

VPRO65 small

NVX VPRO65 (Sold Individually)

• 450 watts Peak Each, 225 watts RMS Each
• 1" Aluminum Bullet tweeter
• Competition Grade Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(4)

$74.99

List price $82.99

EPICPRO8X small

AudioControl EPICPRO8X

• 350 watts Peak Each, 250 watts RMS Each
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99.2 dB

$129.00

List price $129.00

PRO-HY8.4B small

DS18 PRO-HY8.4B (Sold Individually)

• 500 watts Peak Each, 250 watts RMS Each
• IP55 water-resistant cone
• 1" Titanium Horn tweeter
• Water-Resistant Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(1)

$131.95

List price $131.95

CVMPCL6.5 small

Cerwin Vega CVMPCL6.5 (Sold Individually)

• 200 watts Peak Each, 100 watts RMS Each
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93.2 dB

(9)

$99.99

List price $119.99

APM67AC Pro small

Deaf Bonce Apocalypse AP-M67AC PRO (M67AC PRO)

• 600 watts Peak Each, 300 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(1)

$209.90

List price $229.99

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Speaker Size
6"
Design
Mid-range
Woofer Composition
Paper
Woofer Surround
Corrugated
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Sensitivity
96 dB
Frequency Response
100 - 8000 Hz
Impedance (Per Voice Coil)
8 ohm
Top-Mount Depth (Mounting Depth)
3.07"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-6NDB

Weight:

3.20lbs

Internal SKU:

apmb6ndb

Internal Product ID:

81706
