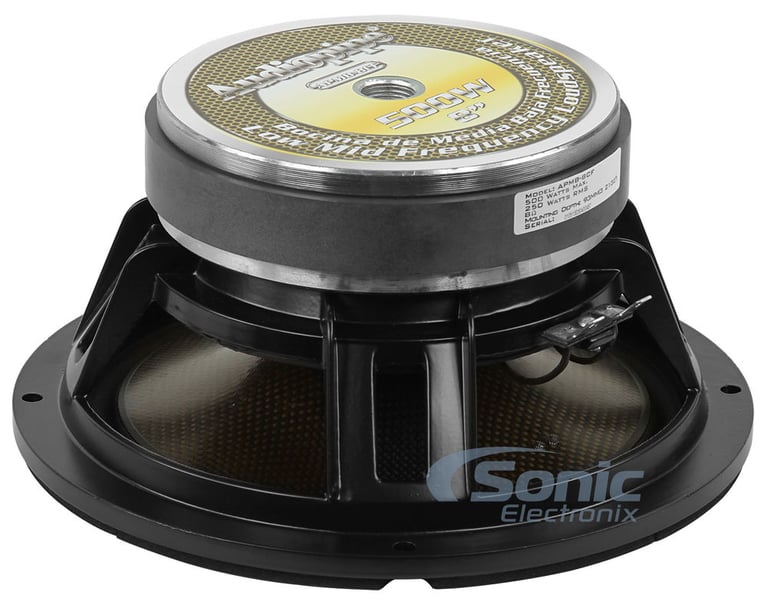

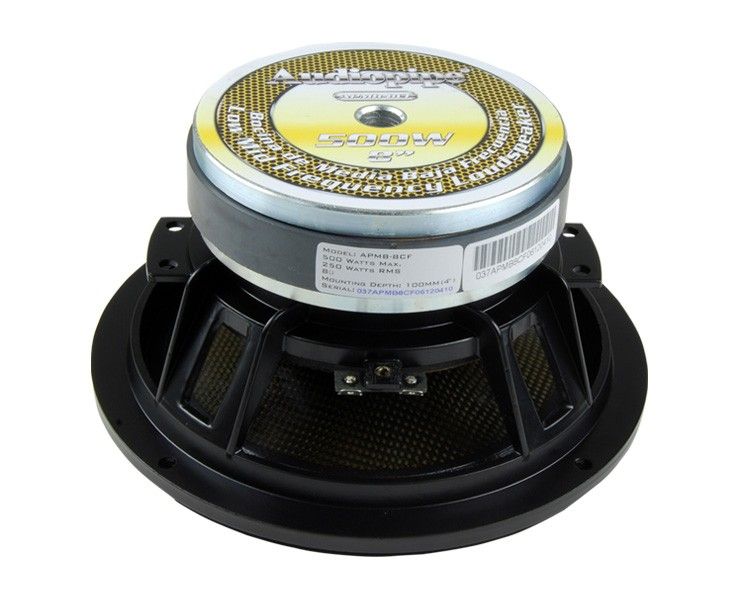

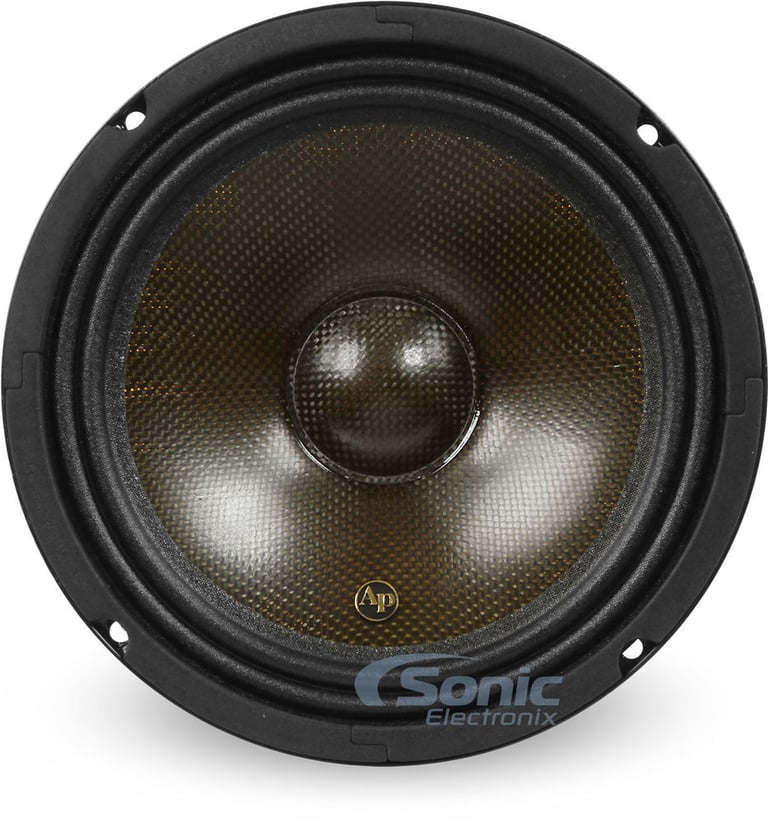

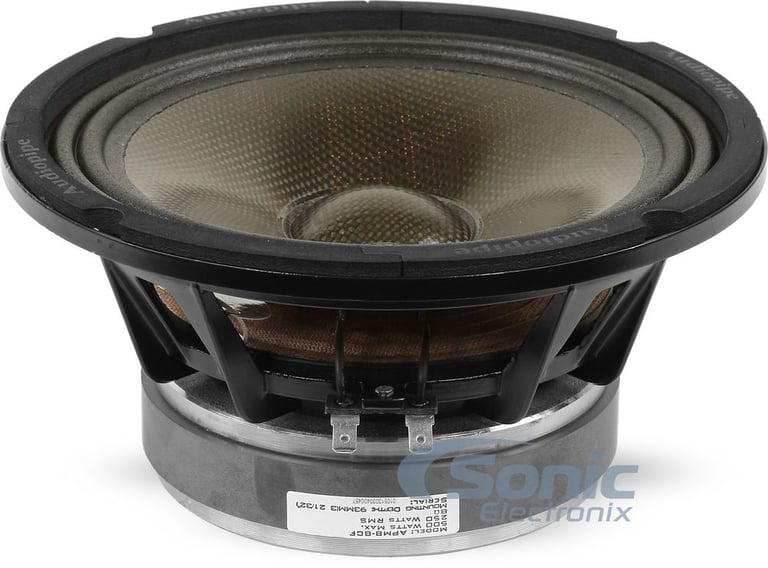

Audiopipe APMB-8CF

500W 8" APMB Series Indoor/Outdoor Midrange Driver

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 500W • RMS Power: 250W
• Low Mid Frequency
• Mounting Depth: 3-21/32"
• 38 Oz. Magnet
• Carbon Fiber Cone
• Sensitivity: 92.6dB

Learn more about the apmb8cf

We apologize

This item has been discontinued


Loading...
HO6 main

PAC HO6

Install a New Car Stereo and Retain the Factory Antenna in select 2003-2016 vehicles from Honda, Mazda, Acura

-70.83%

$7.00

List price $24.00

99-7516B main

Metra 99-7516B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2007-2015 CX-9 (Matte Black))

-50.89%

$27.99

List price $56.99

MA03B main

Scosche MA03B Wiring Harness

Install a new car stereo in select 2001-2018 vehicles from Mazda

26
51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Product Highlights


• Peak Power: 500W • RMS Power: 250W
• Low Mid Frequency
• Mounting Depth: 3-21/32"
• 38 Oz. Magnet
• Carbon Fiber Cone
• Sensitivity: 92.6dB

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Survive the Elements Durable Carbon Fiber Cone for Outdoor Use

Audiopipe want's you to be able to use your car's sound system in any kind of environment, and the 8CF Indoor/Outdoor speakers are perfect for showing your system off at the beach, park or any other outdoor setting. The lightweight, durable carbon fiber cones are designed for linear movement and to prevent cone fluctuation for the highest quality sound possible.

Classic Sound Dust Cap Sound Quality and Protection

Utilizing the classic dust cap design, the 8CF speaker retains the original shape and form of a loudspeaker while providing the overall most impressive and best sounding of all speaker types. The durable carbon fiber dust cap also keeps the internal components of your speaker free of dust and other sound diminishing particles, ensuring your sound will stay in peak form.


General Features:

  • 8" APMB Series Midrange Driver
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Carbon fiber cone allows you to open up your car and play music outdoors
    • Ideal for use at the beach, park or any other outdoor gathering
  • Corrugated surround
  • Classic dust cap design to protect the internal speaker components
  • Heavy duty 38 oz. magnet
  • Durable 1.5" KSV voice coil
  • 8 ohm impedance
  • Frequency Response: 60-15,000 Hz
  • Top-mount Depth: 3-21/32"
  • Mounting Diameter: 7-1/4"
  • Sensitivity: 92.6dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

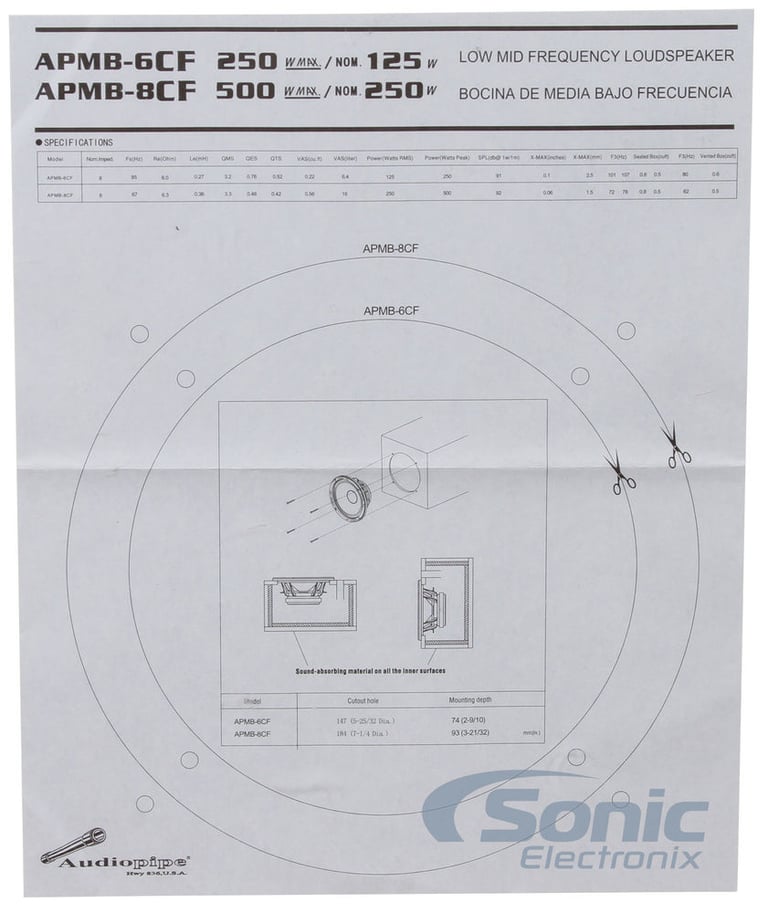

Specifications:

  • FS (Free Air Resonance): 67 Hz.
  • RE (DC Resistance): 6.3 ohm
  • Le (Voice Coil Inductance): 0.36 mH
  • QMS (Mechanical Q Value): 3.3
  • QES (Electrical Q Value): 0.48
  • QTS (Total Speaker Q Value): 0.42
  • VAS (Equivalent Compliance): 16 L (0.56 cu ft.)
  • Xmax (One-Way Linear Excursion): 1.5mm (0.06")
  • F3 (for Sealed Enclosure):
    • 0.5 cu ft.: 78 Hz
    • 0.8 cu ft.: 72 Hz
  • F3 (for Vented Enclosure):
    • 0.6 cu ft.: 62 Hz

Priced Per Speaker
