Audiopipe APMB-8SND

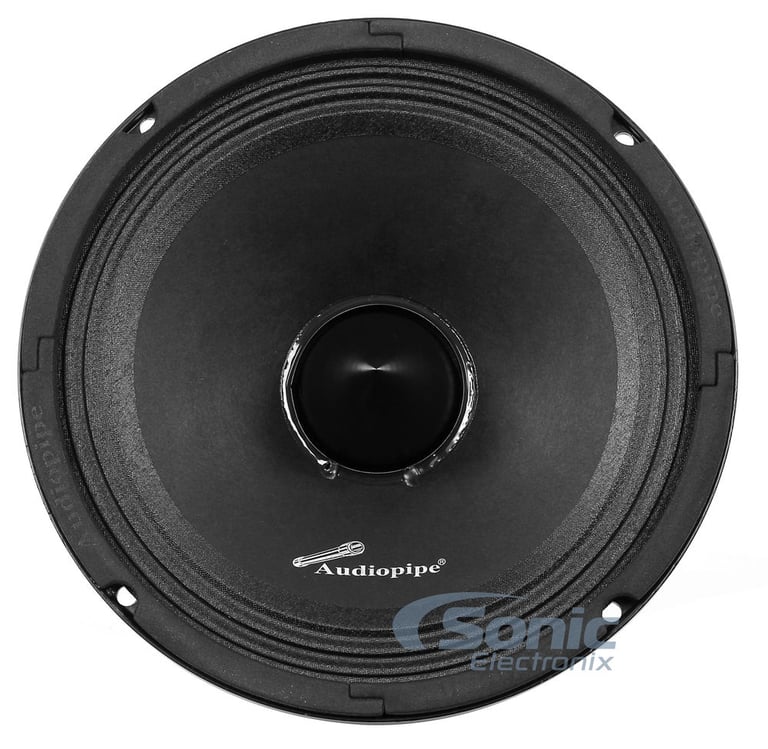

500W 8" APMB Series Midrange Driver w/ Neodymium Magnet

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 500W • RMS Power: 250W
• Low Mid Frequency
• Mounting Depth: 3-1/4"
• 5.5 Oz. Neodynium Magnet
• Die-Cast Aluminum Basket

Learn more about the apmb8snd

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

DMH-WT8000NEX main

Pioneer DMH-WT8000NEX

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, Alexa and Dolby Atmos Feature (SiriusXM and iDataLink Maestro Ready)

-18.75%

$1,299.99

List price $1600.00

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

4

$158.00

List price $159.99

Product Highlights


• Peak Power: 500W • RMS Power: 250W
• Low Mid Frequency
• Mounting Depth: 3-1/4"
• 5.5 Oz. Neodynium Magnet
• Die-Cast Aluminum Basket

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 8SND speaker with an incorporated phase plug to provide high quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Smaller Magnet, Same Strength Compact, Lightweight Neodymium Magnet

When faced with limited space for your speaker installation, a speaker with neodymium magnets can be invaluable. Neodymium magnets take up significantly less space (and are significantly lighter in weight) than a conventional magnet without sacrificing strength. A high quality aluminum heat sink ensures your speaker won't overheat during use.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 8SND speakers feature a light weight yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.


General Features:

  • 8" APMB Series Midrange Driver
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • High quality paper cone
  • Corrugated surround

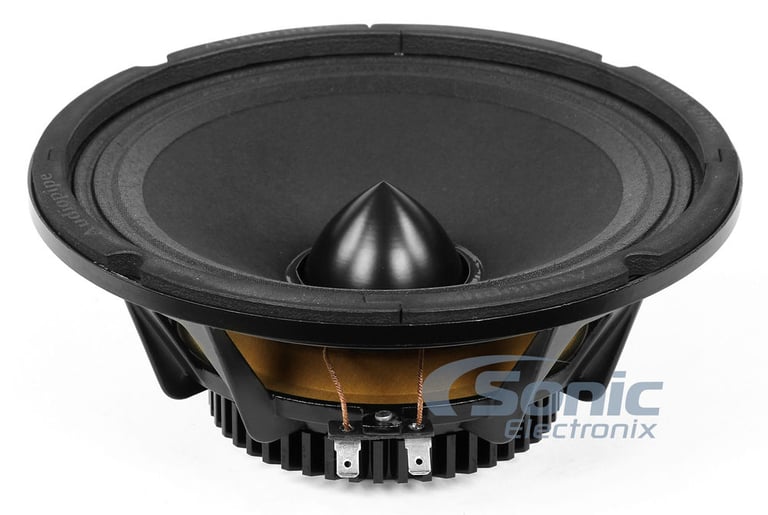

  • Bullet dust cap ensures high quality high frequency sound

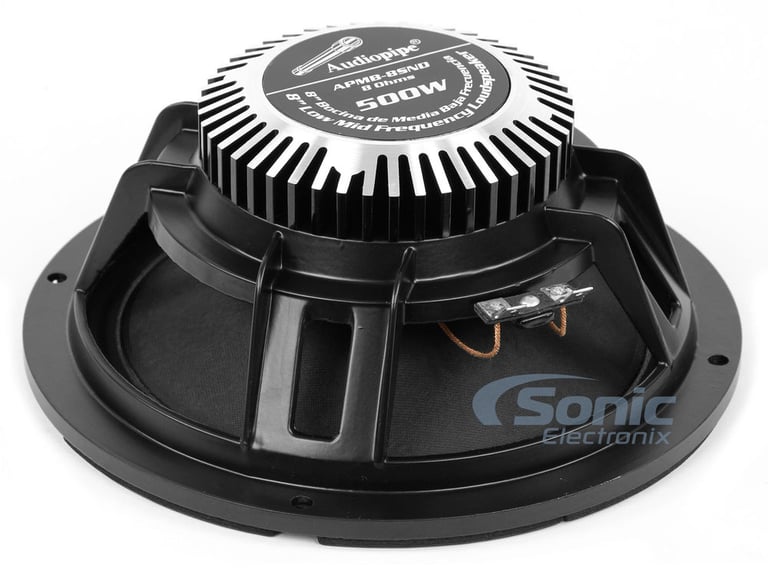

  • Die-cast lightweight aluminum basket
  • Powerful 5.5 oz. neodymium magnet
  • Durable 2" TIL voice coil
  • 8 ohm impedance
  • Frequency Response: 66-6,000 Hz
  • Top-mount Depth: 3-1/4"
  • Mounting Diameter: 7-1/4"
  • Sensitivity: 95dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 85 Hz
  • RE (DC Resistance): 6.3 ohm
  • Le (Voice Coil Inductance): 0.36 mH
  • QMS (Mechanical Q Value): 6.5
  • QES (Electrical Q Value): 0.38
  • QTS (Total Speaker Q Value): 0.36
  • VAS (Equivalent Compliance): 9.3 L (0.32 cu ft.)
  • Xmax (One-Way Linear Excursion): 1mm (0.04")
  • F3 (for Sealed Enclosure):
    • 0.3 cu ft.: 96 Hz
    • 0.61 cu ft.: 90 Hz
  • F3 (for Vented Enclosure):
    • 0.39 cu ft.: 79 Hz

Priced Per Speaker
