See all parts that fit your 2010 Ranger

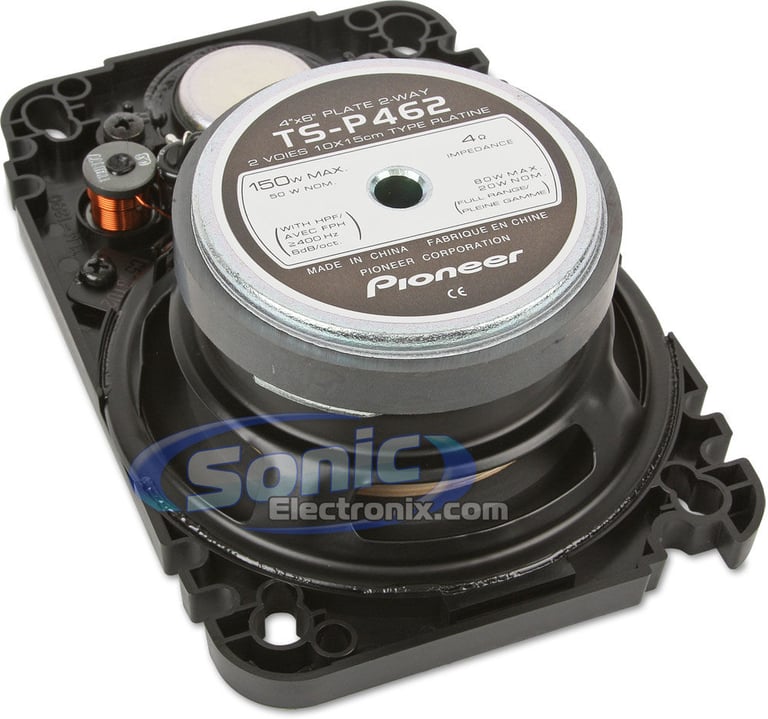

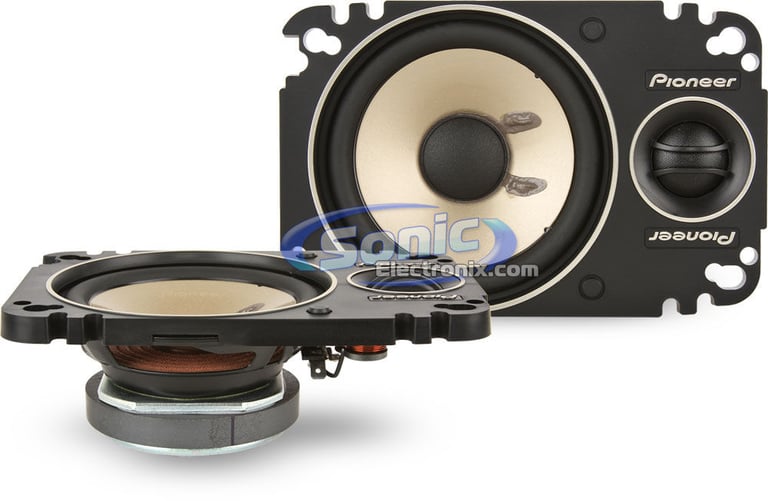

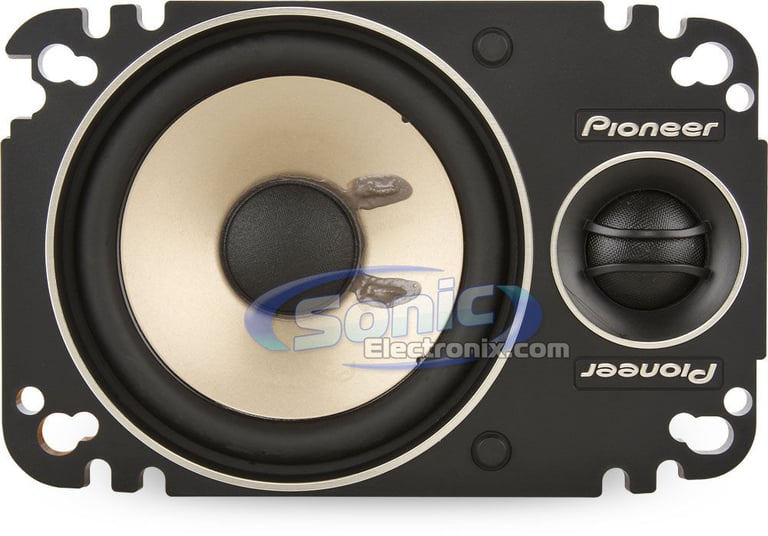

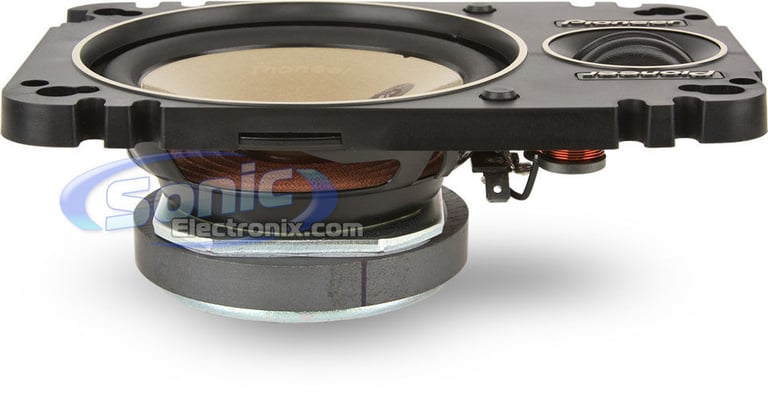

Pioneer TS-P462

4" x 6" 2-way Plate Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

4" x 6" 2-way Component Plate speakers • 150W Max / 50W RMS power handling • foamed IMPP Rigilite composite gold cone • rubber surround • 1" aromatic polyamide soft dome tweeter • built-in crossovers

Learn more about the tsp462

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

99-5802 main

Metra 99-5802 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

3
-46.17%

$13.99

List price $25.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

FD1330B main

Scosche FD1330B / FD1330 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

50
-15.14%

$10.99

List price $12.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

Description


Pioneer brand icon

Authorized dealer

  • 4" x 6" 2-way Component Plate Speakers
  • Power Handling:
    • Peak: 300 watts per pair / 150 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Foamed IMPP Rigilite™ composite cone woofer
  • Butyl rubber surround
  • 1" Aromatic polyamide soft dome tweeter with magnetic fluid
  • Ultra slim neodymium tweeter magnet
  • Latex damper for enhanced linear bass response
  • Built-in passive crossover
  • 4 ohm impedance
  • High energy strontium magnet structure
  • Top-mount depth: 1-3/4"
  • 1-year SonicElectronix.com warranty

Priced Per Pair


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00


Best selling similar products

H46 small

Cerwin-Vega H46

• 150 watts Peak Each, 50 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 83 dB

$79.99

List price $95.99

T46 small

Earthquake Sound T46

• 300 watts Peak Each
• 1" Mylar Dome Tweeters
• Low Mass Poly-Injection cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(1)

$79.99

List price $99.00

NSP46 small

NVX NSP46

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 1.81"

(34)

$49.99

List price $59.99

46CSC464 small

Kicker CSC46 (46CSC464)

• 150 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(15)

$59.96

List price $84.99

KFC-4675C small

Kenwood KFC-4675C

• 60 watts Peak Each, 20 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(16)

$77.00

List price $128.00

Stage3 6427 small

JBL Stage3 6427 (STAGE36427AM)

• 175 watts Peak Each, 35 watts RMS Each
• Edge Driven Dome tweeters
• Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

(1)

$89.95

List price $109.95

DB462 small

Polk Audio DB462 (DB 462)

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(7)

$90.00

List price $99.99

P1462 small

Rockford Fosgate Punch P1 P1462

• 70 watts Peak Each, 35 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(37)

$109.99

List price $109.99

43DSC460 small

Kicker DSC460 (43DSC4604)

• 120 watts Peak Each, 30 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(8)

$64.99

List price $74.99

H746 small

Cerwin-Vega H746

• 275 watts Peak Each, 40 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

(9)

$59.99

List price $59.99

Specifications & Details


Speaker Specifications
Speaker Size
4" x 6"
Design
2-way Plate
Tweeter Design
Soft Dome
Tweeter Composition
Polymide
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
150 watts
RMS Power Handling
50 watts
Sensitivity
89 dB
Frequency Response
45 - 32,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-3/4"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-P462

Weight:

3.00lbs

Internal SKU:

tsp462

Internal Product ID:

819
