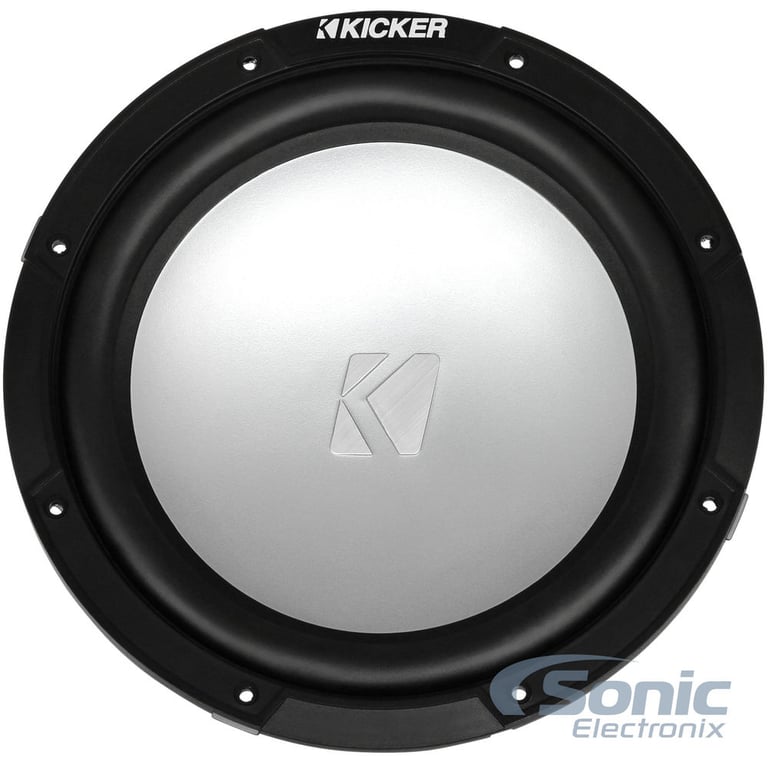

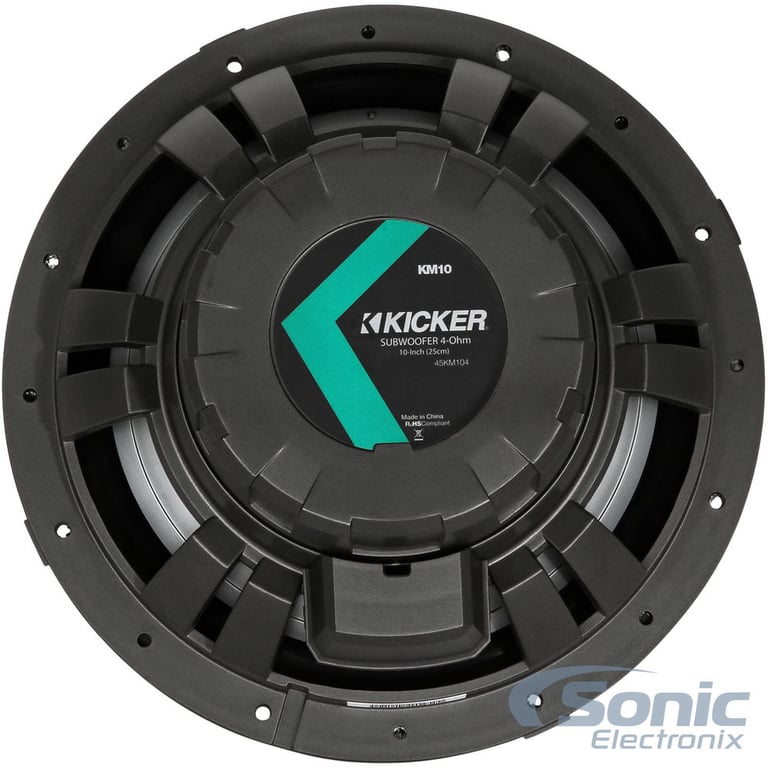

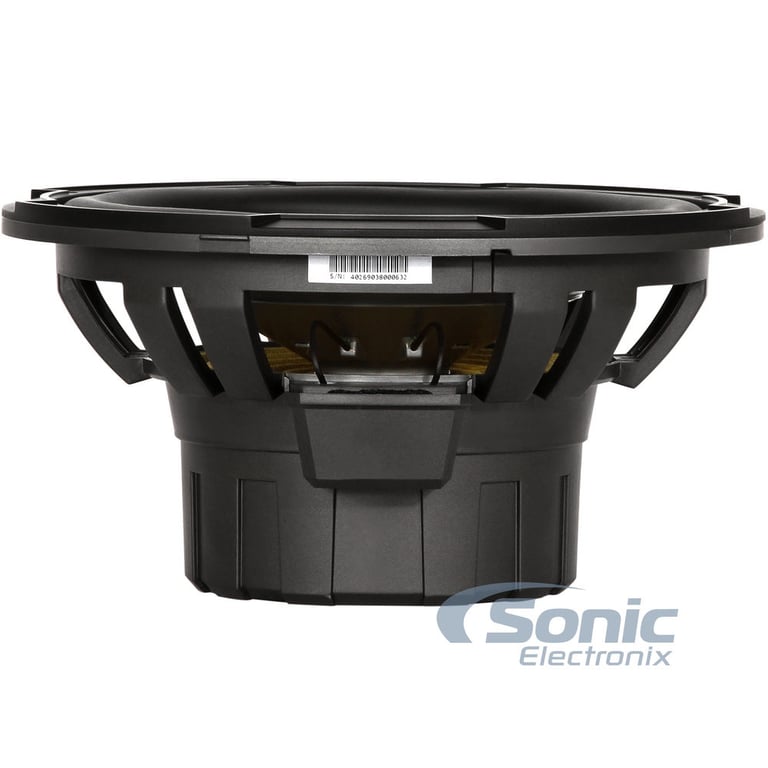

Kicker KM10

10" 4 ohm Marine Subwoofer (06KM10)

Kicker
Shop all Kicker
highlight-star-icon

150 Watts RMS • 300 Watts Max • Water-Resistant • Sensitivity: 86.5dB • Frequency Response: 50Hz - 200Hz • Stainless Steel Hardware

Learn more about the 06km10

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

09km10 thumbnail

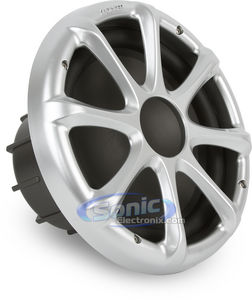

Kicker KM10 (09KM10)

OUR PRICE: $99.95

View item

Loading...
Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Description


Kicker brand icon

Authorized dealer

Complete your boat audio system with some high-quality bottom end from KICKER. The KM10 Marine Subwoofer gives you 10 inches of bulletproof bass on deck, with the option of really rockin’ the boat with a crank of the volume knob – on the lake or the seas!

The KM10 hammers in either a sealed or vented box (150 watts RMS power handling), while remaining extremely durable in any outdoor climate. The sub’s sealed motor, cone, and locking terminal cover keep it splash- and spray-resistant. The terminal cover itself provides strain relief, insulation, corrosion protection, and aids in ignition protection.

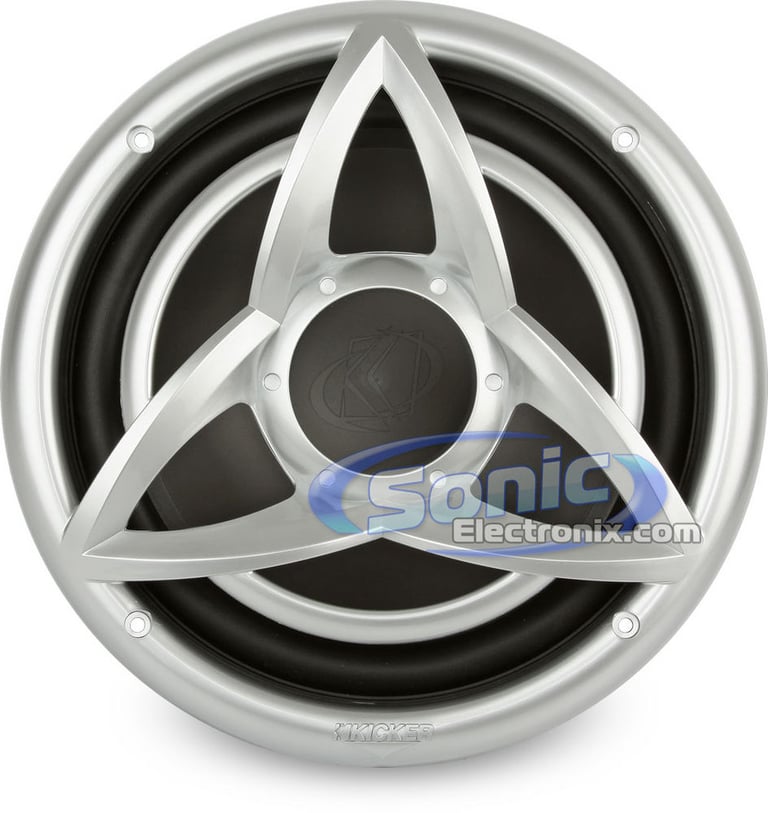

The injection-molded cone, Santoprene™ surround, basket, and grille are UV-treated to also combat the marine environment. A water-resistant, bolt-thru grille further protects the woofer. All hardware is forged from corrosion-proof, 316L stainless-steel. The KM10 is engineered with the highest level of magnetic shielding available, minimizing compass and gauge deviation in your dash. It meets or exceeds industry standards for environmental humidity and corrosion and for material degradation due to UV exposure.

Key Features:

  • 10" Marine Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts

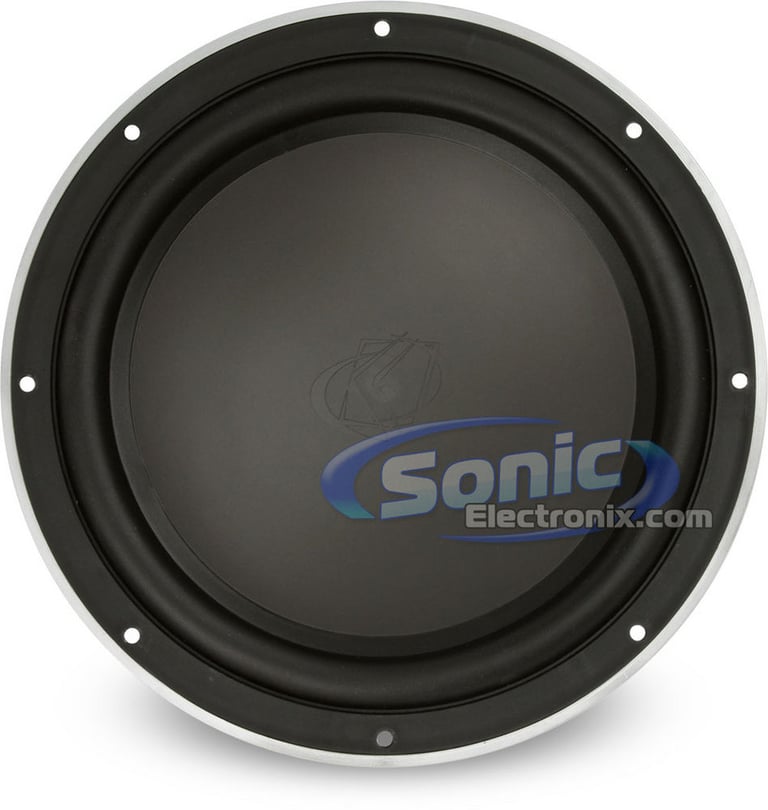

  • Co-molded Solokon cone woofer

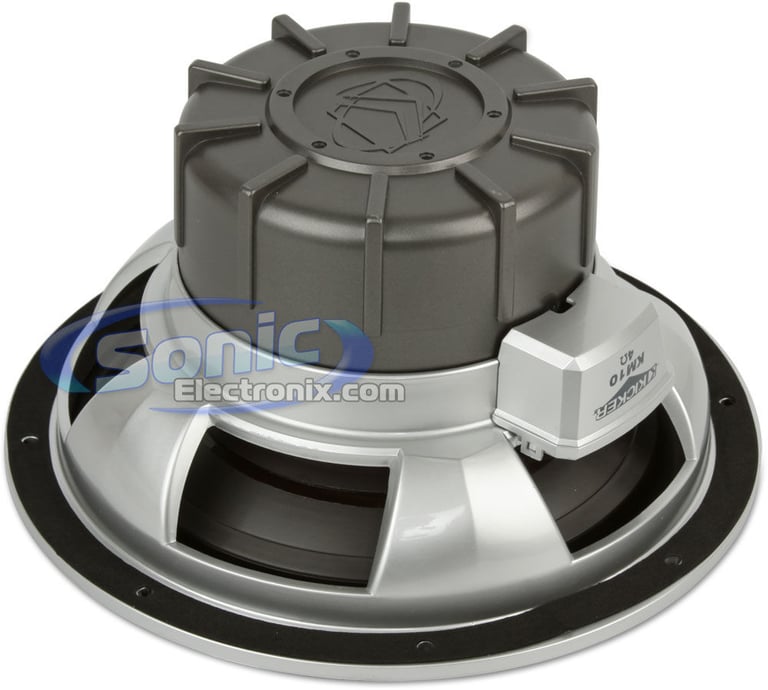

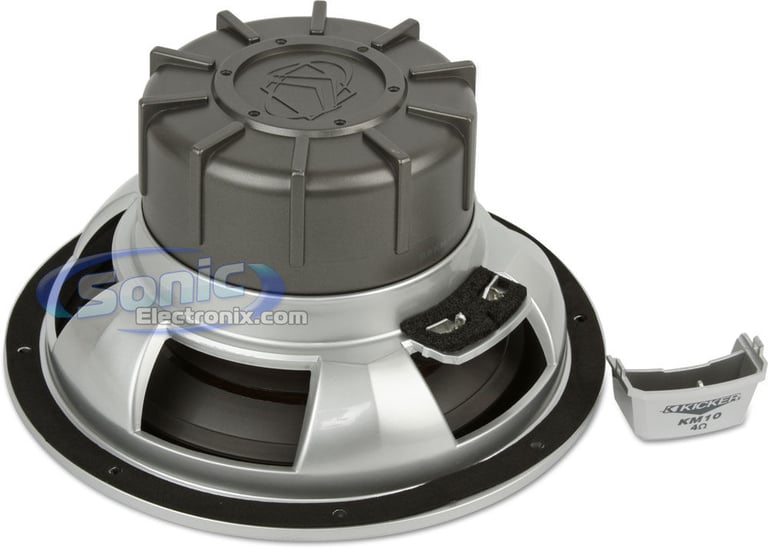

  • Polycarbonate basket
  • Sealed speaker connections with locking cover
  • UV Treated
  • Polyimide Kapton voice coil former with Nomex reinforcement
  • Frequency response: 20-200 Hz
  • Sensitivity: 87 dB
  • 1-year Manufacturer's warranty

Product history:

Kicker 09KM10 thumbnail
(newest, current model)
Kicker KM10 thumbnail
(previous model, replaced by Kicker KM10 (09KM10))
Kicker 03KM10 thumbnail
(previous model, replaced by Kicker KM10)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker KM10 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker KM10 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker KM10 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kicker KM10 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$124.49

List price $449.95

RM110D2B small

Rockford Fosgate Prime R1 RM110D2B

• Peak Power: 400 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.4"
• Sensitivity: 88.5 dB

(2)

$189.99

List price $189.99

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

MV104W small

NVX MV104W

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Sports white grille included
• Polypropylene cone material
• Rubber surround material
• Mount depth: 4.78"
• Sensitivity: 86 dB

$159.99

List price $249.99

M6-8IB-S-GwGw-i-4 small

JL Audio M6-8IB-S-GwGw-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.8 dB

(1)

$399.99

List price $399.99

M6-8IB-S-GmTi-i-4 small

JL Audio M6-8IB-S-GmTi-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.7 dB

$429.99

List price $429.99

M3-10IB-C-Gw-4 small

JL Audio M3-10IB-C-Gw-4

• RMS Power: 175 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 87.23 dB

(3)

$329.99

List price $329.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 500 Hz
Sensitivity
86.5 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Surround
Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
2.4 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5- 1/4"
Cutout Diameter
9- 5/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KM10

Weight:

14.00lbs

Internal SKU:

06km10

Internal Product ID:

8192

Customer Ratings & Reviews


Kicker KM10 thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Great sound

Bought 2 and installed in my boat great sound hitts hard

By Pezo on October 21, 2010

3 found this helpful


Absolute Amazing

Best subs i have every bought for my boat ... i have to in my Crownline 262LS and they make one heak of a boom ... makes everyone look and well worth the money ... i would recomend this subs to anyone who wants to impress and make look all the other boaters.... very easy to put in if you know what you are doing other wise spend the money to have someone who is trained to put boat speakers in .... i have them powered by a kicker ZX250.2 and they sounds great get them well worth the time and money ... will pay of it the end.... A++++

By Cody on November 3, 2008

3 found this helpful


Kicker KM10

I installed the Kicker in a sealed pvc tube on my boat. Im pushing it with a JL Audio and it sounds awesome. Would recommend this product.

By Hewy on March 15, 2010

2 found this helpful


great product

This is a great product, used it all summer, no problems, sounds great, definitely recommend!

By fickle on December 5, 2010

1 found this helpful


KM10

Build an outdoor sub and popped two KM10s in there.

GREAT and tight bass! Make sure you use good material and adhere to the recommended volume (The KM10 doesn't need much)

Overall, very happy with it, if I go bigger, I would definitely look at the KM12

By Nickname on November 15, 2010

1 found this helpful


Great Product!

I would definitely recommend this product, especially from this seller. It looks great and sounds AWESOME. It really gave our boat, not only sound, but a great accent. Thanks again.

By EKU93 on October 5, 2010

1 found this helpful
