  6. DC Audio LS-M2LV210D2-OBC

See all parts that fit your 2012 LR2

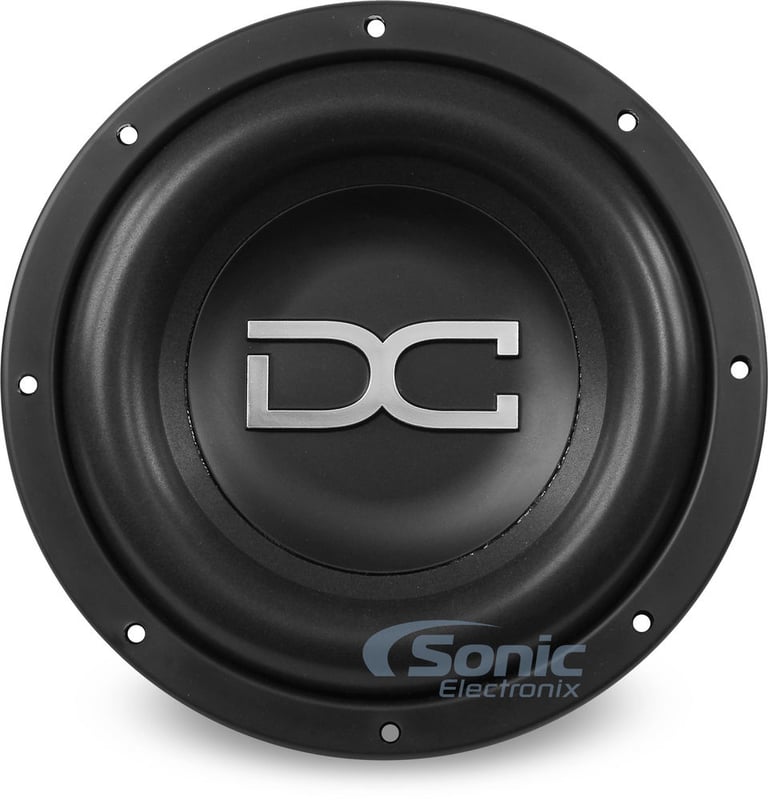

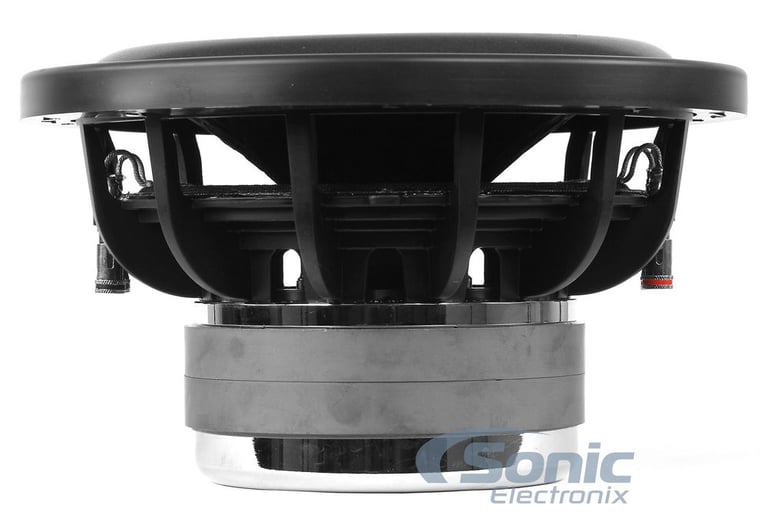

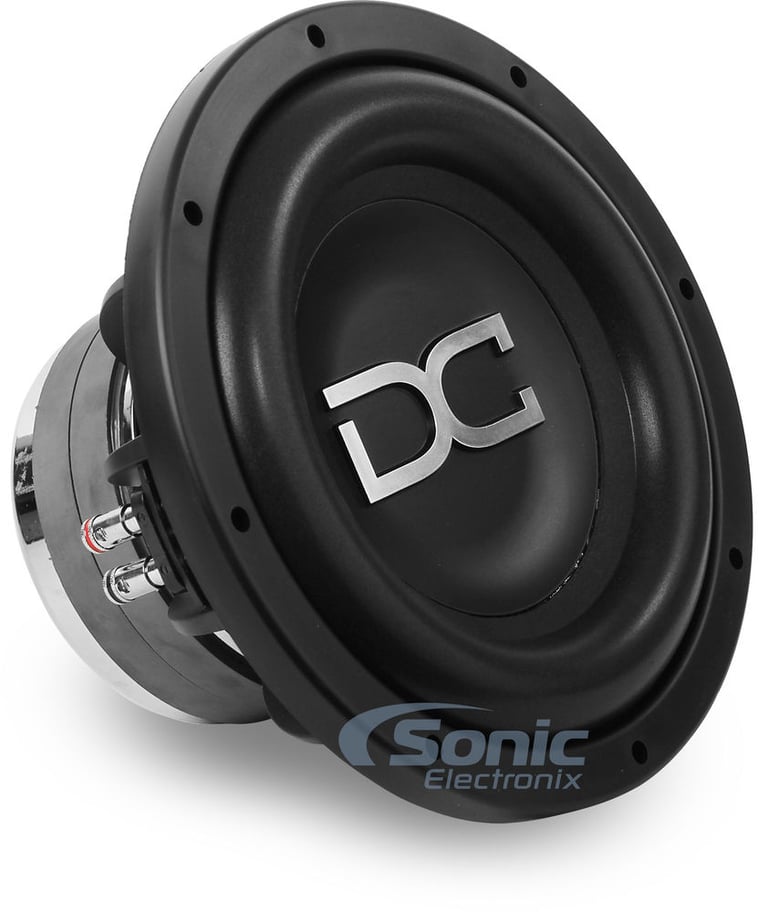

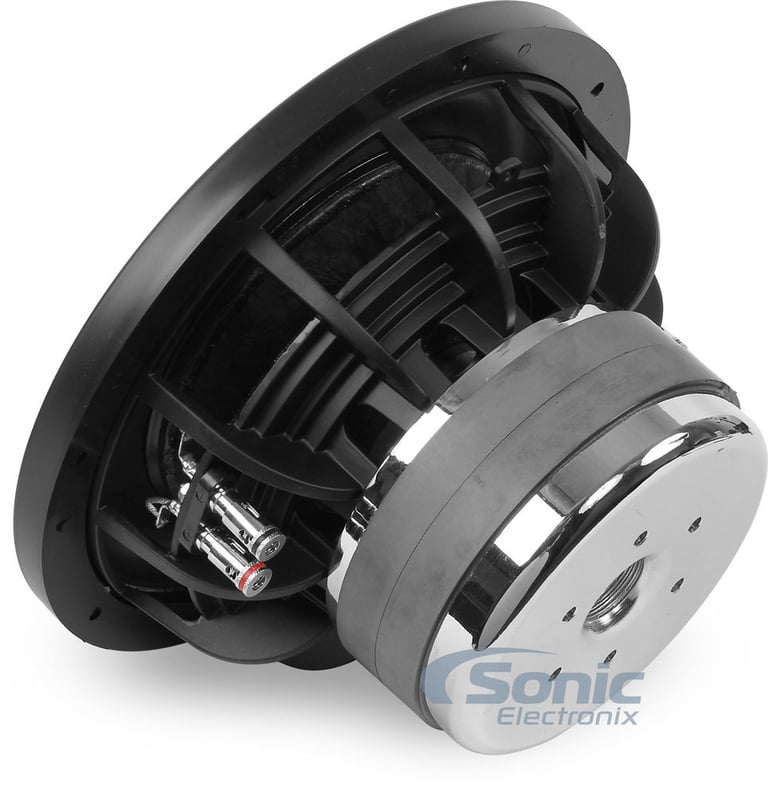

DC Audio Level 2 10D2 (M2LV210D2) OPEN BOX COMPLETE

600W RMS 10" Level 2 Series Dual 2 ohm Car Subwoofer

1
DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

Never been Used, Box is Ripped
• Peak Power: 1200W
• RMS Power: 600W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the LS-m2lv210d2-OBCra223445

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

Never been Used, Box is Ripped
• Peak Power: 1200W
• RMS Power: 600W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description

DC Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Open Box Complete

  • Never been Used, Box is Ripped

      • General Features:

      • 10" Dual 2 ohm Level 2 Series Subwoofer
      • Power Handling:
        • Peak: 1200 watts
        • RMS: 600 watts
      • Extremely rigid non-pressed paper cone assembly
      • Multilayered polymer wide roll foam surround
      • Polypropylene dust cover with embossed DC logo
      • 8" OD flat linear roll spider
        • Extra heavy duty interwoven tinsel lead wire sewn to spider
      • 2.5" high temperature copper voice coil
      • Rubber mounting gasket

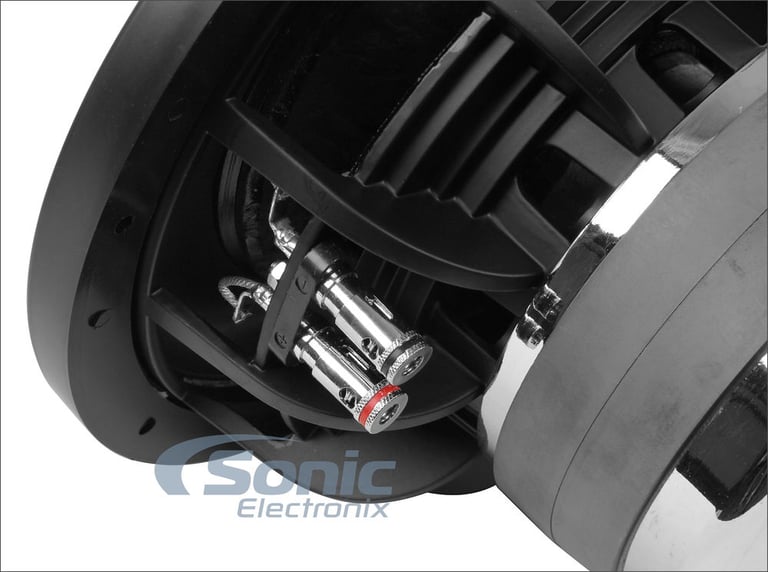

      • Chrome spring loaded push terminals
      • FEA analyzed and optimized motor assembly
        • Fully CNC machined
      • Top-mount depth: 5.5"
      • Mounting Hole Diameter: 9.35"
      • Authorized Internet Dealer
      • 1-year Manufacturer's Warranty

      Level 2 10" T/S Parameters:

      • Electrical Q Value (Qes): 0.592
      • Mechanical Q Value (Qms): 8.96
      • Total Speaker Q Value (Qts): .555
      • Free Air Resonance (Fs): 35.6 Hz
      • Equivalent Compliance (Vas): 13.89 liters
      • One-Way, Linear Excursion (Xmax): 22 mm
      • Efficiency (Ref SPL @ 1W): 82.1 dB (82.6dB @ 2.83V)
      • Effective Piston Area (Sd): 324 cm²
      • DC Resistance (Re): 7.20 ohm
      • Nominal Impedance (Znom): Dual 2 ohm
      • Force Factor (Bl): 24
      • Mechanical Compliance (Cms): .095 mm/N
      • Mechanical Mass (Mms): 210 g
      • Voice Coil Inductance (Le): 7 mH
      • Suggested Sealed Enclosure: .5³ ft
      • Suggested Ported Enclose: 1.0³ ft

      For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

    Subwoofer Wiring Guide

    Wiring Guide to Wire 1 DC Audio Level 2 10D2 (M2LV210D2) OPEN BOX COMPLETE Subwoofer

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 DC Audio Level 2 10D2 (M2LV210D2) OPEN BOX COMPLETE Subwoofers

    Mono Amp

    2 Channel Amp

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 DC Audio Level 2 10D2 (M2LV210D2) OPEN BOX COMPLETE Subwoofers

    Mono Amp

    Mono Amp - Option 1

    4 Channel Amp

    Wiring Guide to Wire 4 DC Audio Level 2 10D2 (M2LV210D2) OPEN BOX COMPLETE Subwoofers

    2 Channel Amp

    4 Channel Amp

    Specifications & Details

    Subwoofer Specifications
    Series
    Level 2 Series
    Subwoofer Size
    10"
    Peak Power Handling
    1200 watts
    RMS Power Handling
    600 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    2 ohm
    Voice Coil Diameter
    2.5"
    Sensitivity
    82.1 dB
    Xmax (millimeters)
    22 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Non-Pressed Paper
    Woofer Surround
    Poly-Foam
    Magnet Structure
    Double Stacked
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Optimum Sealed Box Volume
    0.5 cubic feet
    Optimum Ported Box Volume
    1 cubic feet
    Top-Mount Depth (Mounting Depth)
    5.5"
    Cutout Diameter
    9.35"
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    35.6 Hz
    Equivalent Compliance (Vas)
    13.89 liters
    Total Speaker Q Value (Qts)
    .555
    Electrical Q Value (Qes)
    .592
    Electrical Resistance of Voice Coil (Re)
    7.20 ohm
    Mechanical Q Value (Qms)
    8.96
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details

    Manufacturer:

    DC Audio

    Model Number:

    LS-M2LV210D2-OBC

    Weight:

    21.20lbs

    Internal SKU:

    LS-m2lv210d2-OBCra223445

    Internal Product ID:

    97914
