Name: Planet Audio RXD2400 R/B
Brand: Planet Audio
SKU: LS-rxd2400-RB
Price: 299.99 USD
Availability: Discontinued

by Planet Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

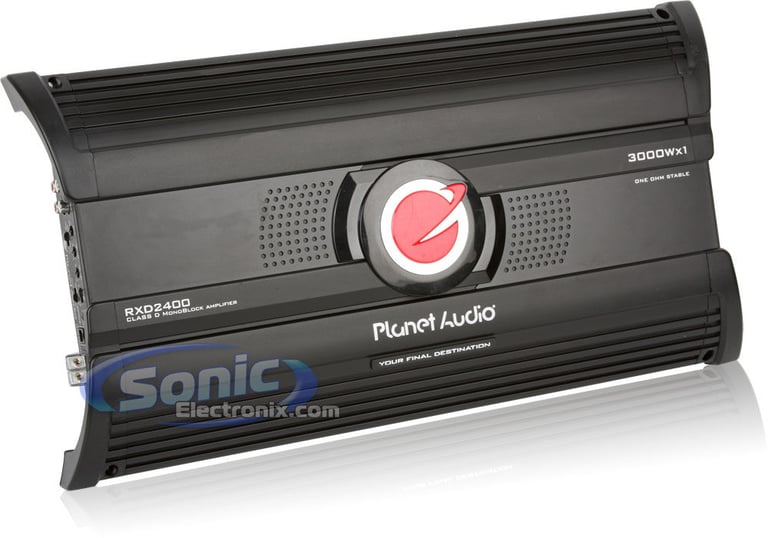

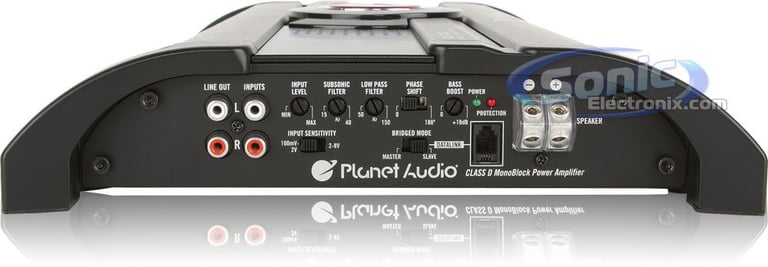

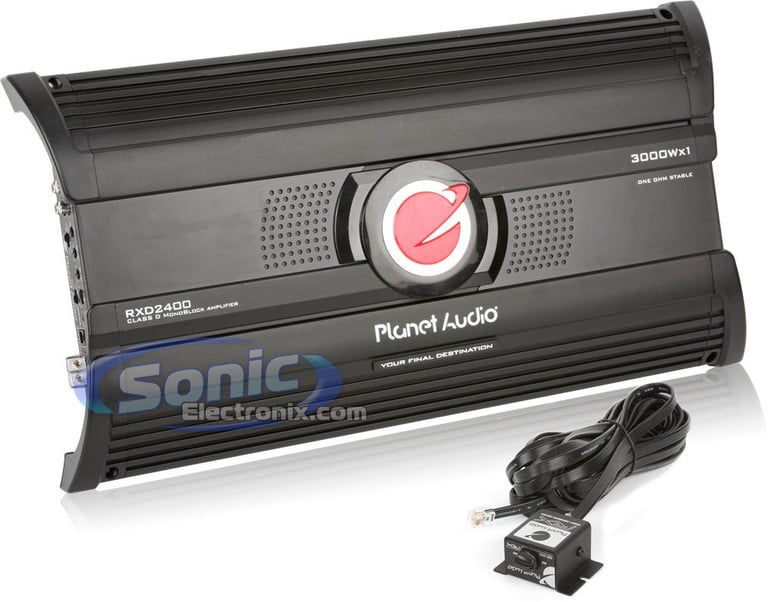

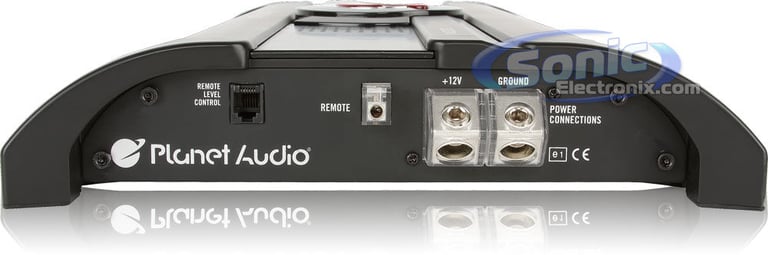

Planet Audio RXD2400 R/B Image 1 — Planet Audio RXD2400 R/B

Planet Audio RXD2400 R/B Image 2 — Planet Audio RXD2400 R/B

Planet Audio RXD2400 R/B Image 3 — Planet Audio RXD2400 R/B

Planet Audio RXD2400 R/B Image 4 — Planet Audio RXD2400 R/B

Planet Audio RXD2400 R/B Image 5 — Planet Audio RXD2400 R/B

Planet Audio RXD2400 R/B Image 6 — Planet Audio RXD2400 R/B

Product videos

Product highlights

RX Series Mono-Block Class D Car Amplifier • 1000W x 1 Chan. @ 4 Ohm • 1600W x 1 Chan. @ 2 Ohm • 2400W x 1 Chan. @ 1 Ohm • 0-18 dB Bass Boost • Protection Circuitry • Low-Pass and Subsonic Filter • LED Indicators

Learn more about the LS-rxd2400-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

RX Series Single-Channel Class D Car Amplifier
RMS Power Rating:

4 ohm: 1000 watts x 1 chan.
2 ohm: 1600 watts x 1 chan.
1 ohm: 2400 watts x 1 chan.

Max power output: 3000 watts x 1 chan.
MOSFET PWM (Pulse Width Modulated) power supply

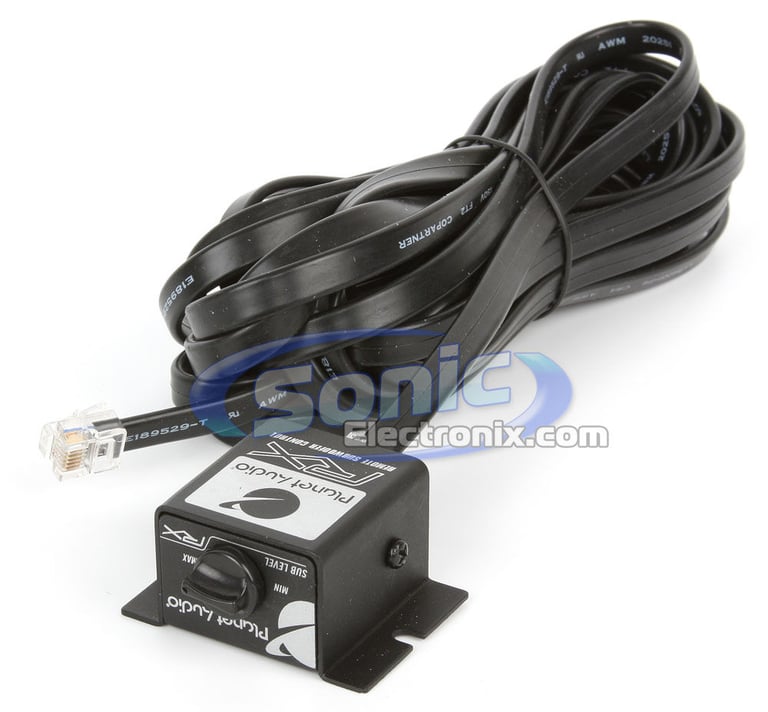

Wired remote bass level control included
LED power and protection indicators
Tuned Bass EQ (0-18 dB bass boost)
One ohm stable mono operation
Single channel operation
Soft turn-on circuit
1 Set of preamp RCA outputs
Thermal, overload, and speaker short protection
Input voltage sensitivity selector
Heavy duty aluminum alloy heatsink for optimal heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (50-150 Hz, 24 dB/octave)
Subsonic Filter (15-40 Hz, 24 dB/octave)
Frequency response: 20-150 Hz
Dimensions: 20-7/8"L x 11"W x 2-5/8"H
0/1-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

1000 watts x 1 channel

RMS Power @ 2 ohms

1600 watts x 1 channel

RMS Power @ 1 ohm

2400 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3000 watts

Total RMS Power Output

2400 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
