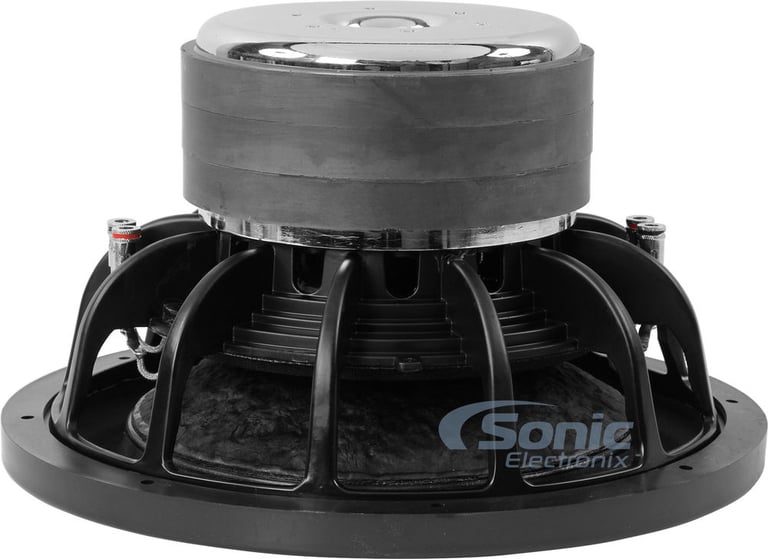

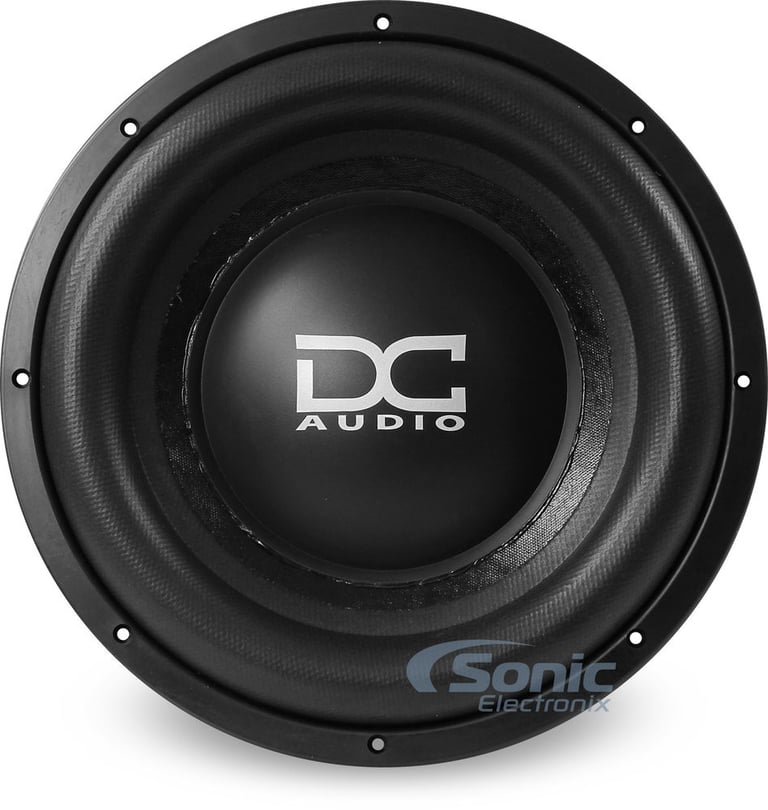

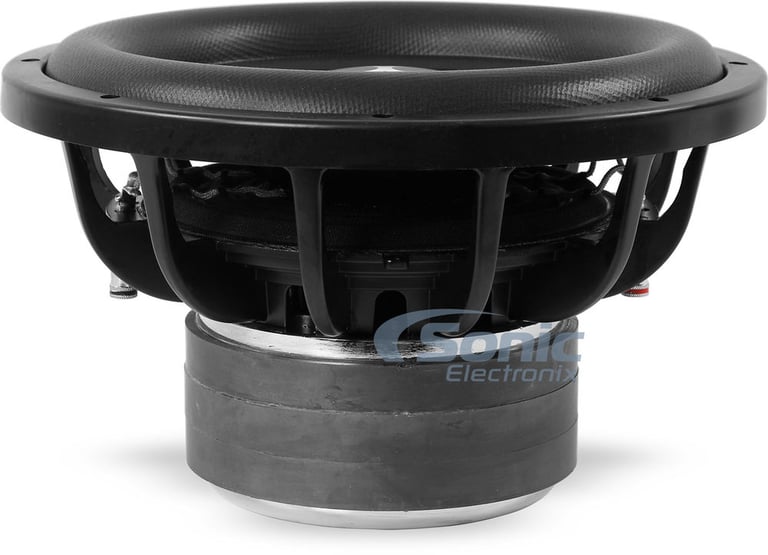

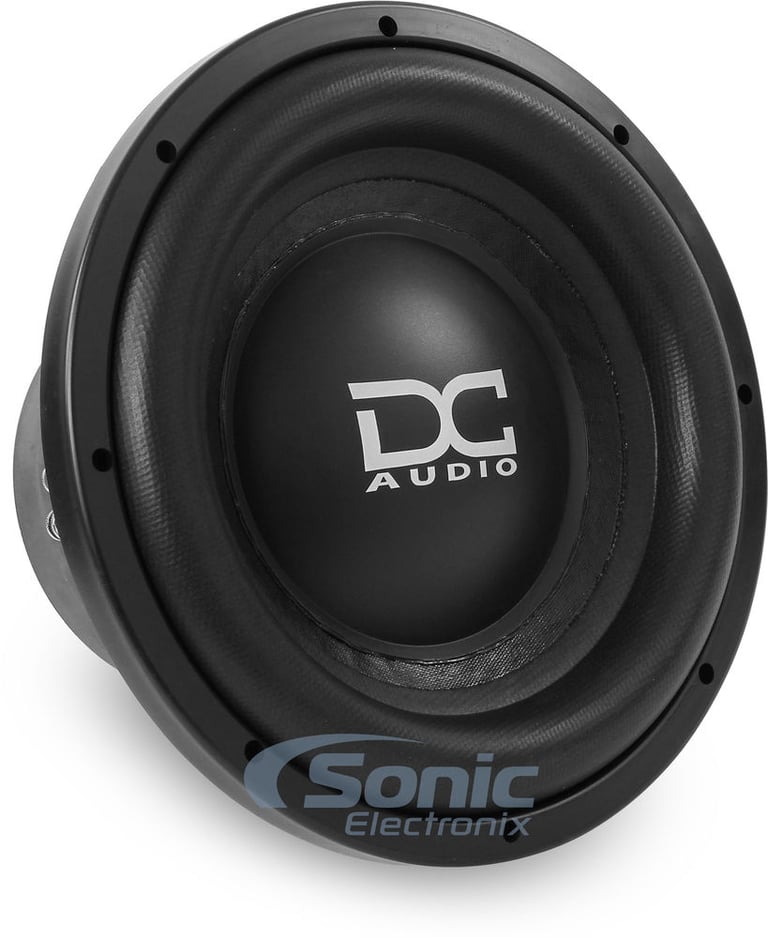

DC Audio Level 3 12 m2.1 D1

1800W Peak 12" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV312D1

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1800W
• RMS Power: 900W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv312d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m3lv312d1 thumbnail

DC Audio Level 3 12M3D1 (M3LV312D1)

OUR PRICE: $324.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4

Product Highlights


• Peak Power: 1800W
• RMS Power: 900W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 1 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket

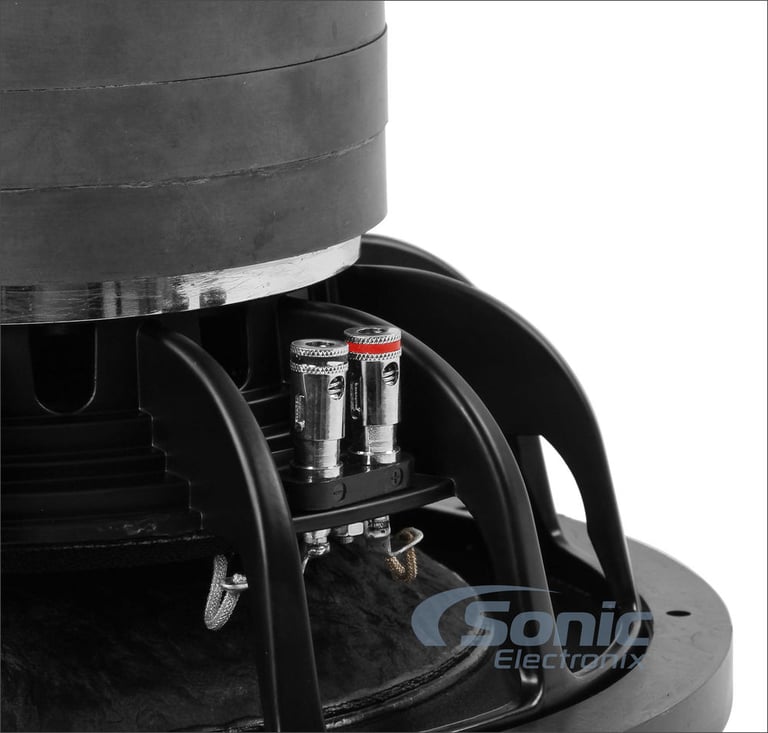

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.75"
  • Mounting Hole Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 12" T/S Parameters:

  • Electrical Q Value (Qes): 0.617
  • Mechanical Q Value (Qms): 8.33
  • Total Speaker Q Value (Qts): .574
  • Free Air Resonance (Fs): 35.4 Hz
  • Equivalent Compliance (Vas): 28.99 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 85 dB (88.5dB @ 2.83V)
  • Effective Piston Area (Sd): 481 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 1 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 225 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: 1.00 ft³
  • Suggested Ported Enclose: 1.25 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M3LV312D1 thumbnail
(newest, current model)
DC Audio M2LV312D1 thumbnail
(previous model, replaced by DC Audio Level 3 12M3D1 (M3LV312D1))

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Level 3 Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Voice Coil Diameter
3"
Sensitivity
85 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6.75"
Cutout Diameter
11.00"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35.4 Hz
Equivalent Compliance (Vas)
28.99 liters
Total Speaker Q Value (Qts)
.574
Electrical Q Value (Qes)
.617
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.33
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV312D1

Weight:

27.00lbs

Internal SKU:

m2lv312d1

Internal Product ID:

88152
