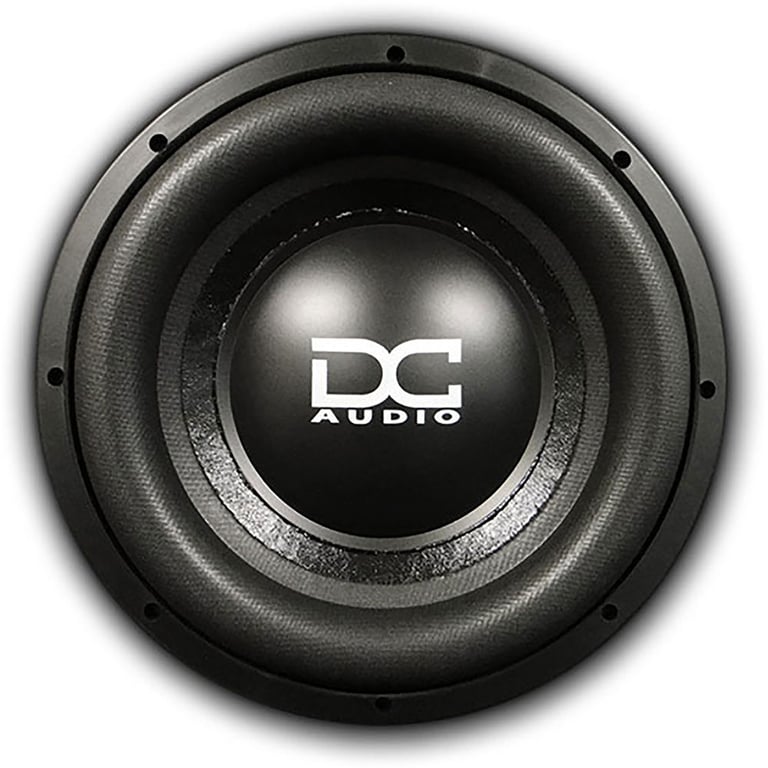

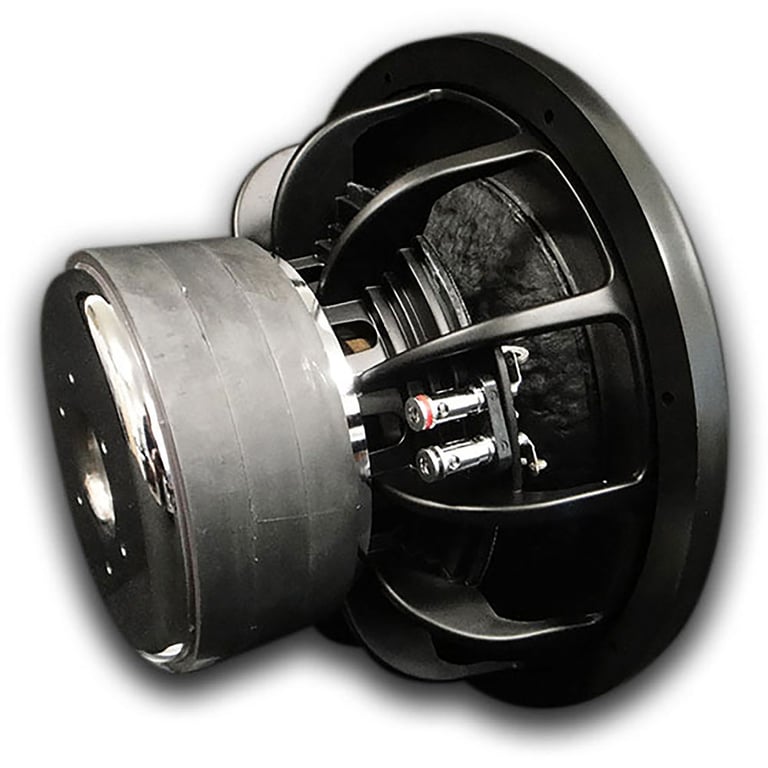

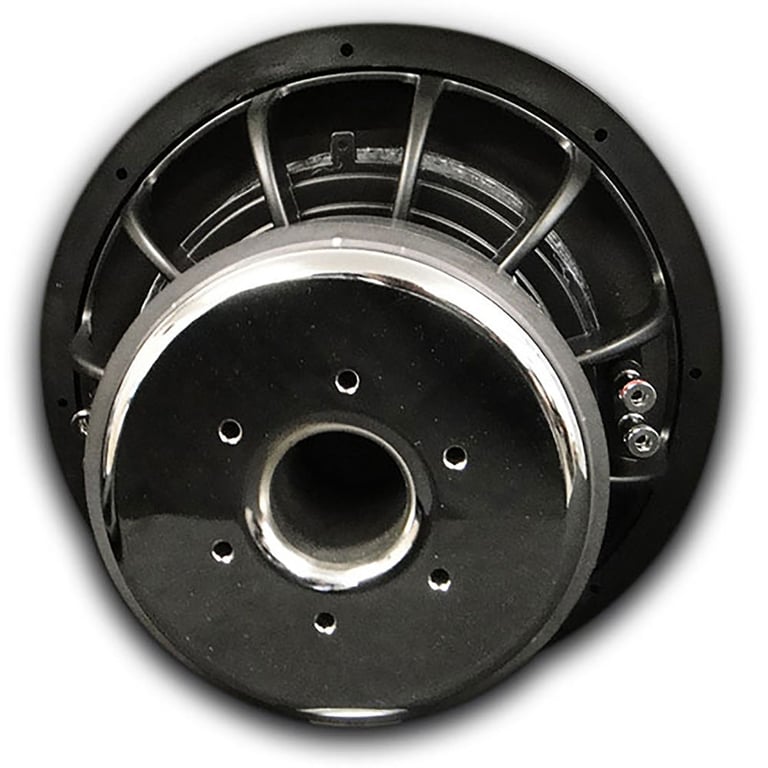

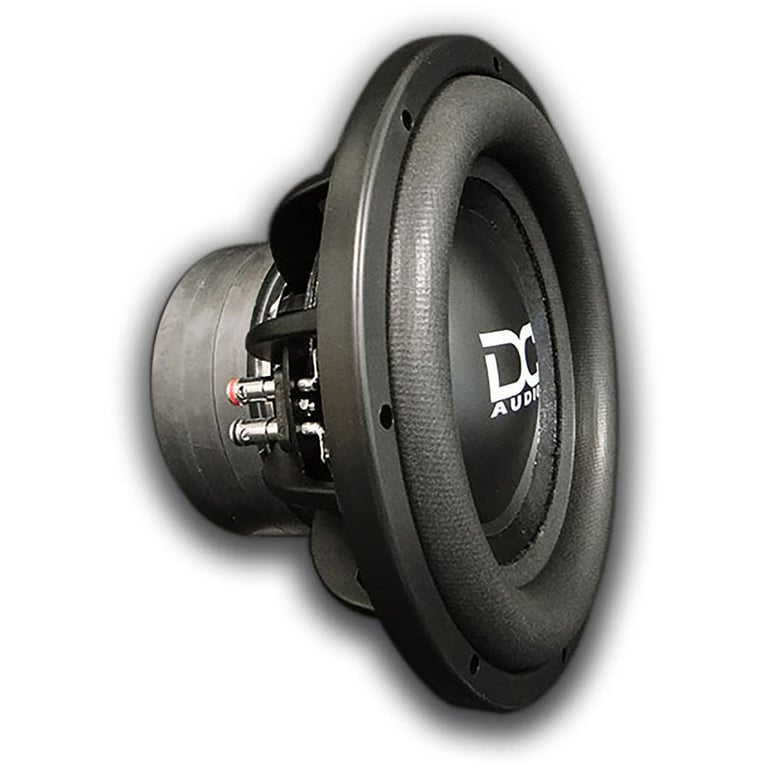

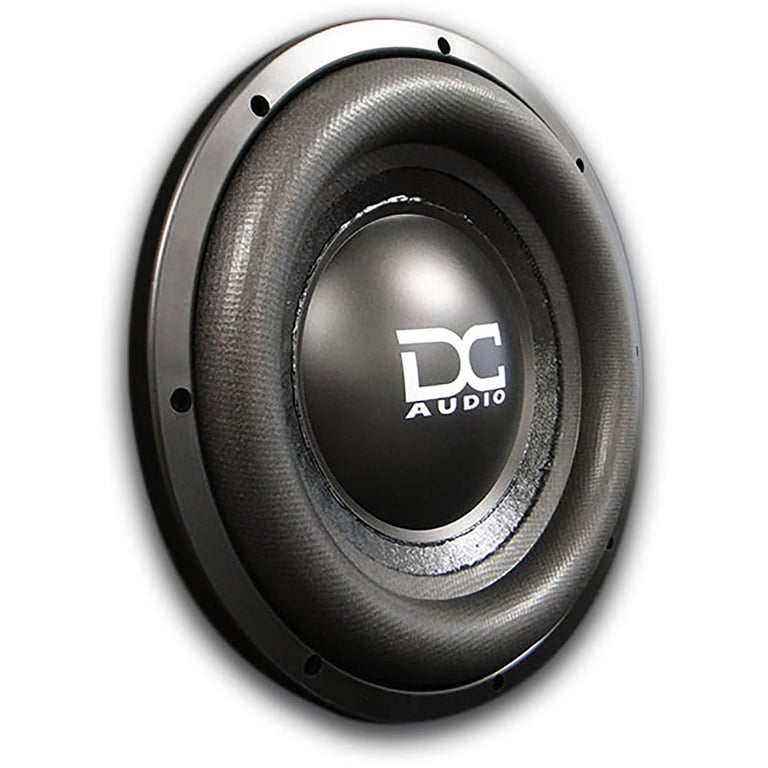

DC Audio Level 3 15 m2.1 D1

1800W Peak 15" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV315D1

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1800W
• RMS Power: 900W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv315d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

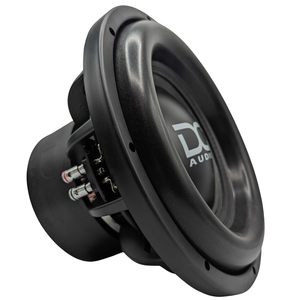

m4lv315d1 thumbnail

DC Audio M4 LV315D1

OUR PRICE: $329.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

AXDI-FD1 main

Axxess AXDI-FD1

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2006-2022 vehicles from Ford, Lincoln, Mercury

-10.46%

$136.99

List price $152.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Limited time!
KW-M590BT main

JVC KW-M590BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto

1
-32.58%

$269.00

List price $399.00

Limited time!
DDX5707S main

Kenwood DDX5707S

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

5
-31.21%

$399.00

List price $580.00

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

PRO-X8.4BM main

DS18 PRO-X8.4BM (Sold Individually)

550W Peak (275W RMS) 8” PRO-X Series 4-ohm Mid-Range Loudspeaker

1
Limited time!

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

Product Highlights


• Peak Power: 1800W
• RMS Power: 900W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 15" Dual 1 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket
  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 8"
  • Mounting Hole Diameter: 14"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 15" T/S Parameters:

  • Electrical Q Value (Qes): 0.706
  • Mechanical Q Value (Qms): 8.18
  • Total Speaker Q Value (Qts): .65
  • Free Air Resonance (Fs): 30.9 Hz
  • Equivalent Compliance (Vas): 84.88 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 87.3 dB (90.8dB @ 2.83V)
  • Effective Piston Area (Sd): 823 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 1 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 295 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: 2.00 ft³
  • Suggested Ported Enclose: 3.00 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M4 LV315D1 thumbnail
(newest, current model)
DC Audio M3 LV3 15 D1 thumbnail
(previous model, replaced by DC Audio M4 LV315D1)
DC Audio M2LV315D1 thumbnail
(previous model, replaced by DC Audio Level 3 15M3D1 (M3LV315D1))

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(17)

$309.99

List price $339.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
Level 3 Series
Subwoofer Size
15"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Voice Coil Diameter
3"
Sensitivity
87.3 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.00 cubic feet
Optimum Ported Box Volume
3.00 cubic feet
Top-Mount Depth (Mounting Depth)
8"
Cutout Diameter
14"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.9 Hz
Equivalent Compliance (Vas)
84.88 liters
Total Speaker Q Value (Qts)
.65
Electrical Q Value (Qes)
.706
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.18
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV315D1

Weight:

28.00lbs

Internal SKU:

m2lv315d1

Internal Product ID:

88155

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 3 15 m2.1 D1 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


2TRUCK12-GRAY small

2TRUCK12 Subwoofer Enclosure

Dual 12" Angled Truck or Hatchback Box (Gray)

(4)

$29.99

List price $99.99

Y-250CPX (4060053) small

Thrustmaster Y-250CPX (4060053)

Wired Gaming Headset for PC, PlayStation 3, PS4, Xbox 360

$89.00

List price $89.99

No picture

NESA Vision BCC02-BRACKET

Bracket needed for Installation

$14.99

List price $24.99

HS124D small

Cerwin Vega HS124D

1200W Peak (250W RMS) 12" HED Series Dual 4-ohm Shallow Subwoofer

(1)

$109.99

List price $131.99

CK-FDRT small

Metra CK-FDRT (CKFDRT)

Ford Factory Removal Keys, Formally Know as 86-5618

(4)

$9.99

List price $29.99

RRK-EU7 small

Xscorpion RRK-EU7

Set of Two Head Unit Removal Keys for Most Audi, Volkswagen & Other European Vehicles

(2)

$1.99

List price $4.99

GW0.50BK small

Xscorpion GW0.50BK

50 Ft Spool of 1/0 Gauge Expert Link OFC Power/Ground Cable

(2)

$139.99

List price $209.99

1T10-0.7-GRAY small

Sonic Sub Box: 1T10-0.7 (Gray)

Single 10" Angled Universal Truck MDF Enclosure

(8)

$29.99

List price $49.99

ST 1 8-BLACK small

Ground Shaker ST 1 8-BLACK

8” Single Sealed Single Cab Truck Subwoofer Box

(4)

$34.95

List price $59.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Expedition

1985 Dodge Mini Ram

1978 Ford Thunderbird

2005 Ford Thunderbird

1965 Ford Thunderbird

2002 BMW M5

1981 Audi 5000

1978 Dodge B Series

1975 Ford Thunderbird

1995 Cadillac DeVille

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
