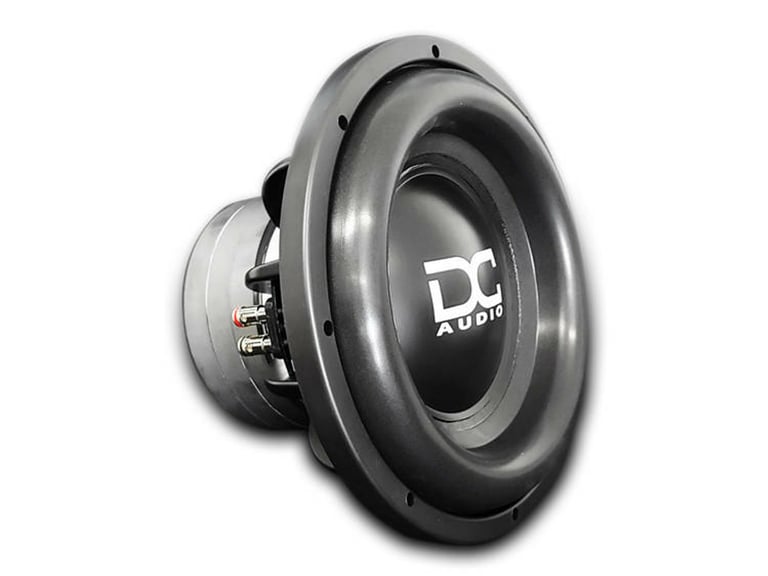

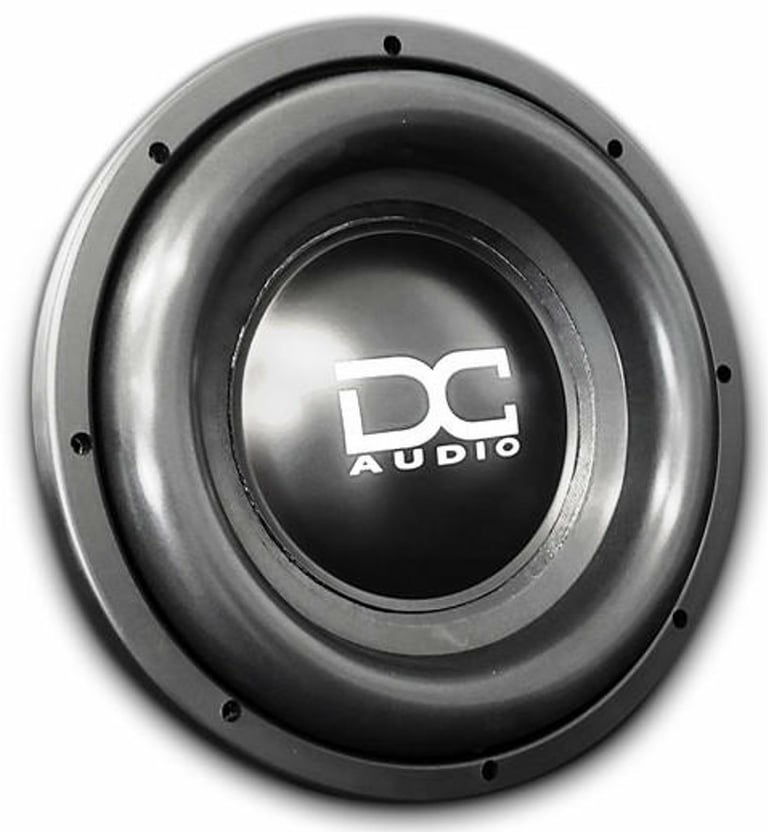

DC Audio Level 3 15M3D1 (M3LV315D1)

2000W Peak (1000W RMS) 15" Level 3 Series M3 Version Dual 1-ohm Subwoofer

DC Audio
Shop all DC Audio
highlight-star-icon

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 1 ohm
• Non-Pressed Paper Cone
• Multi-layered Polymer Foam Surround
• Mount depth: 8.0"
• Sensitivity: 85.93 dB

Learn more about the m3lv315d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m4lv315d1 thumbnail

DC Audio M4 LV315D1

OUR PRICE: $329.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

AXLOC-TY3 main

Axxess AXLOC-TY3

2-Channel 110W Line Output Converter with Gain Controller for select 2018-2025 vehicles from Toyota with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

SWRTY-61C main

Crux SWRTY-61C

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2016-2025 vehicles from Toyota with Factory Amplified Systems

2
-35.71%

$112.05

List price $174.30

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
TOYK952GB main

American International TOYK952GB Dash Kit

Single DIN or Double DIN Stereo Dash Kit for select 2017-2025 vehicles from Toyota (Gloss Black)

1
-50.86%

$28.99

List price $59.00

99-8270HG main

Metra 99-8270HG Dash Kit

Install a New Single DIN 2" or L Shaped Double DIN 4" Car Stereo in select 2020-2023 Corolla

-43.30%

$54.99

List price $96.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Description


DC Audio brand icon

Authorized dealer


DC Audio Level 3 15M3D1

The level 3 sub is the ultimate daily driver sub. It puts out the low lows with lots of output designed for sealed or ported enclosures. It now comes with a 2.5mm Aluminum Shorting ring (demodulation ring) to help reduce inductance in the motor. This can help with power compression. It also acts as a internal heatsink by pulling heat from the windings into the aluminum ring and the direct to coil venting cycles air across the coil wingings and aluminum shorting ring at the same time cooling them simultaneously.

The Level 3 sub is a triple stacked FEA optimized motor wrapped in a DC Embossed magnet boot, chrome top plate and T yoke. The deep gap offers more X-max for a total of 22.5mm. This sub also comes with dual upgraded progressive spiders, cone, surround, 3" voice coil, cast basket, push terminals, and upgraded sewn down lead wire. We give the Level 3 a power rating of 1000w RMS/2000w peak.


Product Details:

  • 15" Dual 1 ohm Level 3 Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Extremel rigid Non-Pressed Paper Cone
  • Multi-layered Polymer Foam Surround
  • 3" High Temperature Aluminum Voice coil with black anodized former
  • 23 mm Xmax

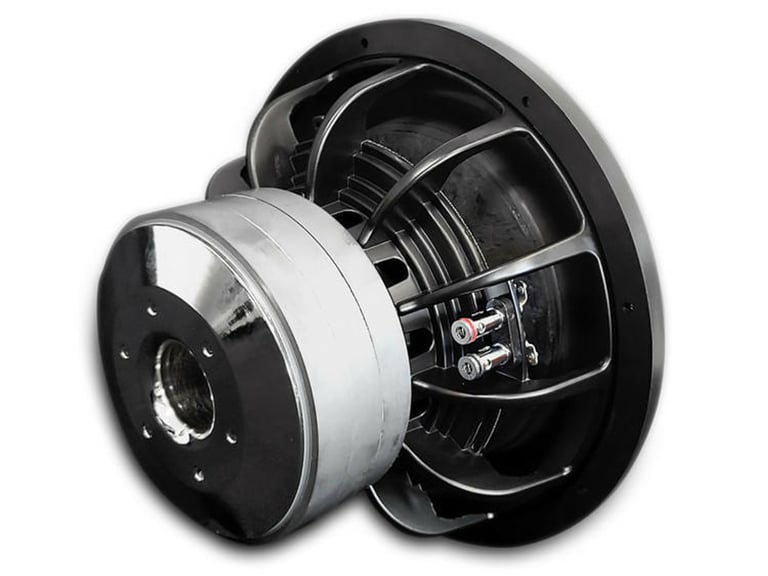

  • Triple Stacked Ferrite magnet motor structure
  • Polypropylene dust cover with DC logo
  • Dual 8" OD semi cup progressive roll spider
  • Extra heavy duty interweaved tinsel lead wire sewn to spider

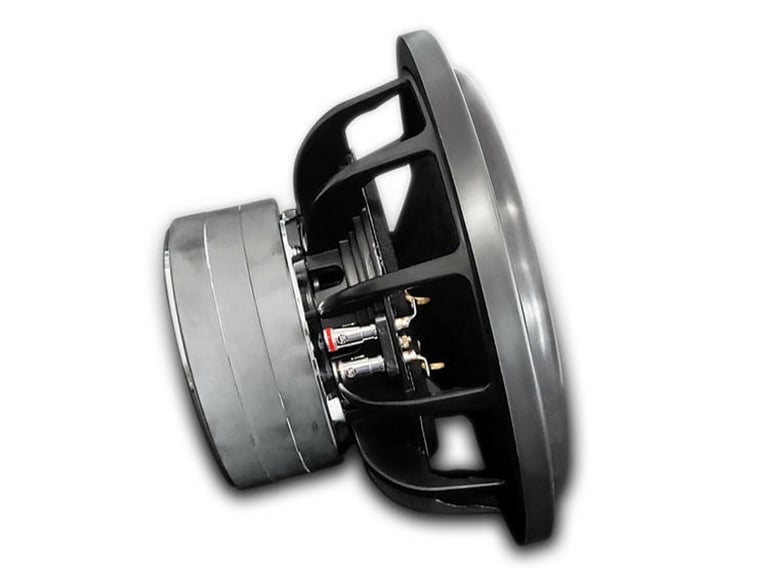

  • Cast aluminum black frame with no invert mount
  • FEA analyzed and optimized motor assembly and Fully CNC machined
  • Rubber mounting gasket
  • Chrome spring loaded push terminals
  • Rubber magnet cover with DC and LV3 embossed logos
  • 2.5mm aluminum shorting ring
  • Resonance Frequency (Fs): 36.79 Hz
  • Sensitivity: 85.93 dB
  • Recommended sealed box volume: 2.0 cubic feet
  • Recommended ported box volume: 3.0 cubic feet
  • Top-mount depth: 8.0"
  • Cutout diameter: 14.0"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

DC Audio M4 LV315D1 thumbnail
(newest, current model)
DC Audio M3 LV3 15 D1 thumbnail
(previous model, replaced by DC Audio M4 LV315D1)
DC Audio M2LV315D1 thumbnail
(previous model, replaced by DC Audio Level 3 15M3D1 (M3LV315D1))

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(17)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
Level 3 Series
Subwoofer Size
15"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
3"
Sensitivity
85.93 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Multi-layered Polymer Foam
Magnet Structure
Triple Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Sealed Box Volume
2.0 cubic feet
Optimum Ported Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
8.0"
Cutout Diameter
14.0"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36.79 Hz
Equivalent Compliance (Vas)
55.12 liters
Total Speaker Q Value (Qts)
0.938
Electrical Q Value (Qes)
1.048
Electrical Resistance of Voice Coil (Re)
4.5 ohm
Mechanical Q Value (Qms)
8.93
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M3 LV3 15 D1

Weight:

28.00lbs

Internal SKU:

m3lv315d1

Internal Product ID:

196477

Customer Ratings & Reviews


DC Audio Level 3 15M3D1 (M3LV315D1) thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


YSW152 main

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99


DMX958XR_XCAMLP small

Kenwood eXcelon DMX958XR with License Plate Camera

6.8" Double DIN Digital Multimedia Shallow Chasis Stereo with Apple CarPlay and Android Auto with High-resolution Rearview Backup Camera

(54)

$948.99

List price $1259.99

DMHWC6600NEX_XCAMLP small

Pioneer DMH-WC6600NEX with License Plate Camera

9" HD Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto(Requires Metra 109-UN02 + accessories at checkout) with High-resolution Rearview Backup Camera

(51)

$1149.98

List price $1259.99

09IK150W small

Kicker iK150W (White 09iK150W)

iPhone/iPod Dock, Digital Stereo System with AM/FM Clock Radio (iK150-W, 09iK150-W)

$119.95

List price $179.95

AXDSPL-BM1 small

Axxess AXDSPL-BM1 Digital signal processor and T-harness

Allows you to add a DSP and amp to the factory system in select 2006-2025 vehicles from BMW, MINI

$299.99

List price $431.00

FRP25KTI_XKIT04 small

DS18 FRP-2.5K/TI w/ NVX XKIT04

2500W RMS Class D FRP Series Monoblock Car Amplifier with Bass Remote w/ Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit

(86)

$552.93

List price $678.97

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1981 Dodge B250

1986 Jeep J20

2006 Kia Optima

1965 Ford Thunderbird

1999 Saturn SL2

1973 Ford Thunderbird

2014 BMW X3

2003 Chevrolet Cavalier

1986 Ford EXP

2020 Lexus IS350

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
