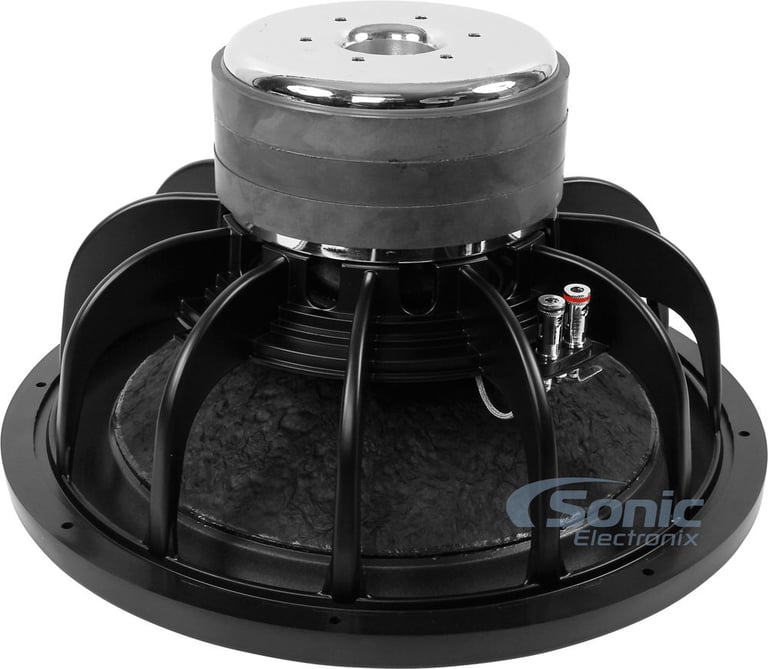

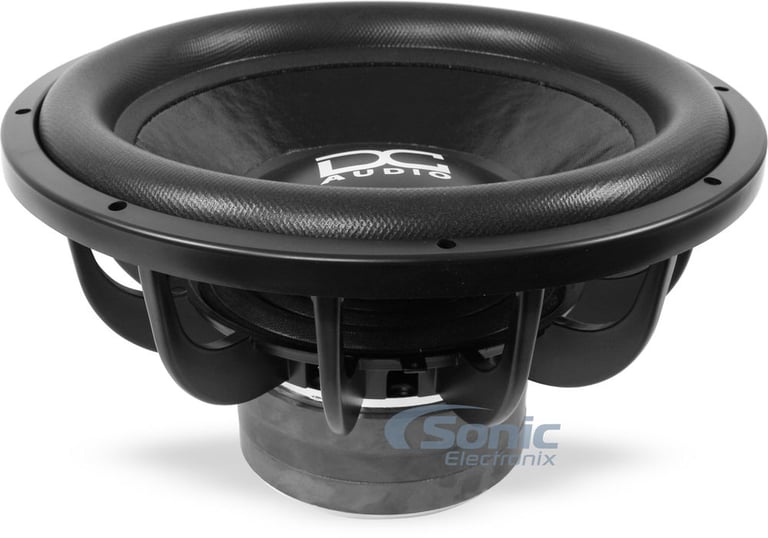

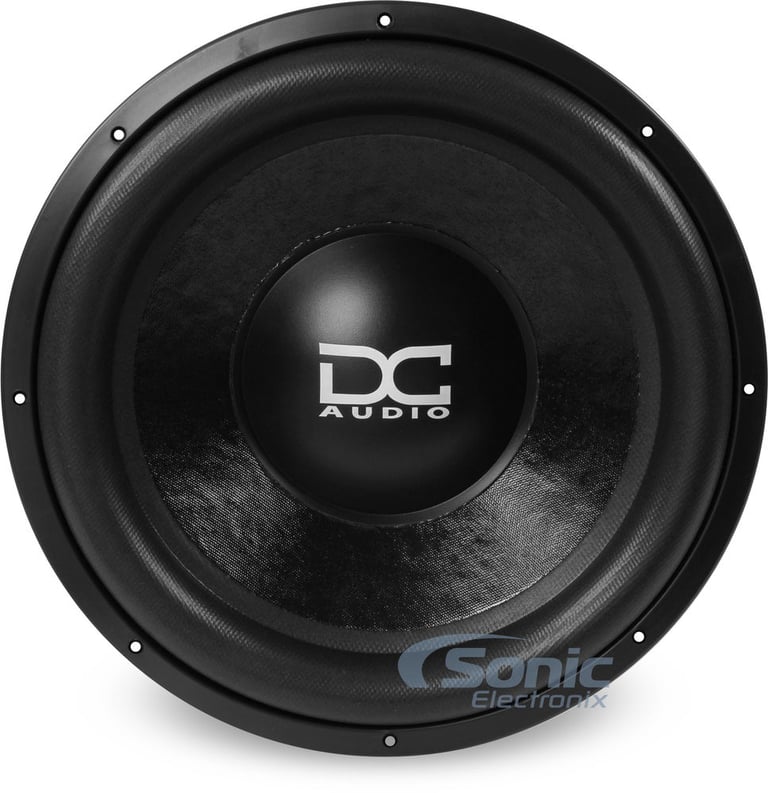

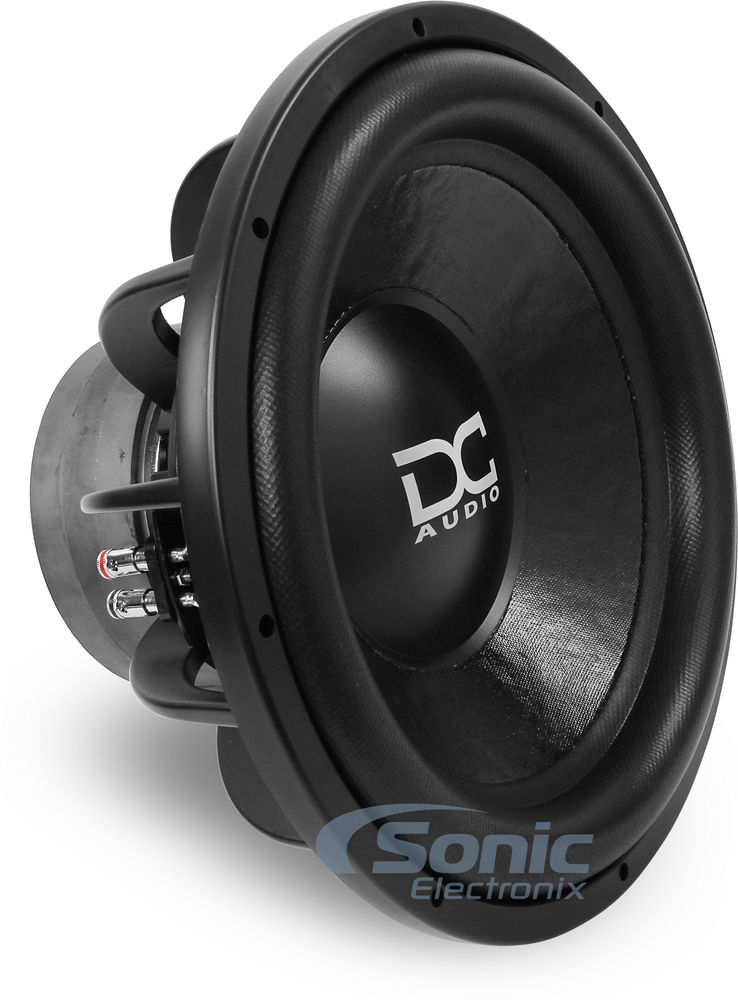

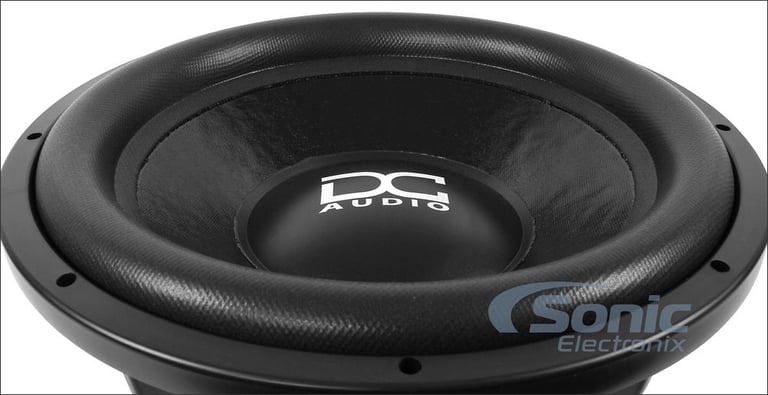

DC Audio Level 3 15 m2.1 D4

1800W Peak 15" Level 3 Series m2.1 Version Dual 4-Ohm Car Subwoofer - M2LV315D4

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1800W
• RMS Power: 900W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv315d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4

Product Highlights


• Peak Power: 1800W
• RMS Power: 900W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 15" Dual 4 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket
  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 8"
  • Mounting Hole Diameter: 14"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 15" T/S Parameters:

  • Electrical Q Value (Qes): 0.706
  • Mechanical Q Value (Qms): 8.18
  • Total Speaker Q Value (Qts): .65
  • Free Air Resonance (Fs): 30.9 Hz
  • Equivalent Compliance (Vas): 84.88 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 87.3 dB (90.8dB @ 2.83V)
  • Effective Piston Area (Sd): 823 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 295 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: 2.00 ft³
  • Suggested Ported Enclose: 3.00 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 3 15 m2.1 D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 3 15 m2.1 D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 3 15 m2.1 D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 3 15 m2.1 D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

Specifications & Details


Subwoofer Specifications
Series
Level 3 Series
Subwoofer Size
15"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
87.3 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.00 cubic feet
Optimum Ported Box Volume
3.00 cubic feet
Top-Mount Depth (Mounting Depth)
8"
Cutout Diameter
14"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.9 Hz
Equivalent Compliance (Vas)
84.88 liters
Total Speaker Q Value (Qts)
.65
Electrical Q Value (Qes)
.706
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.18
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV315D4

Weight:

28.00lbs

Internal SKU:

m2lv315d4

Internal Product ID:

88157
