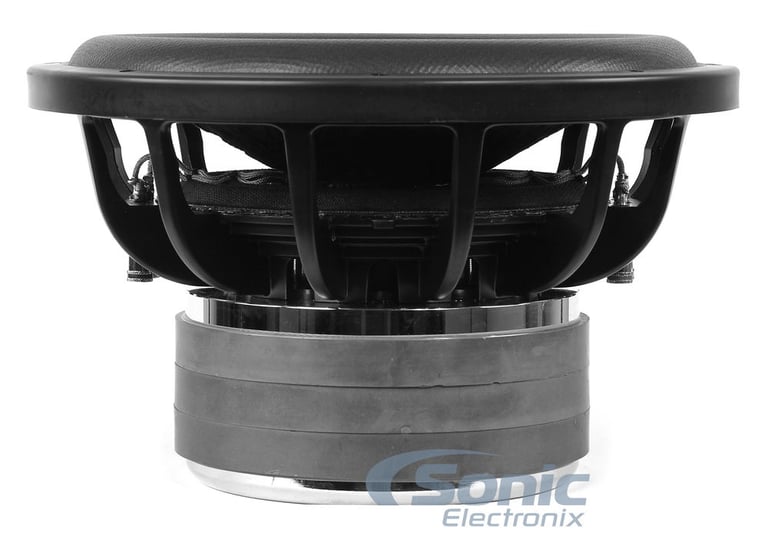

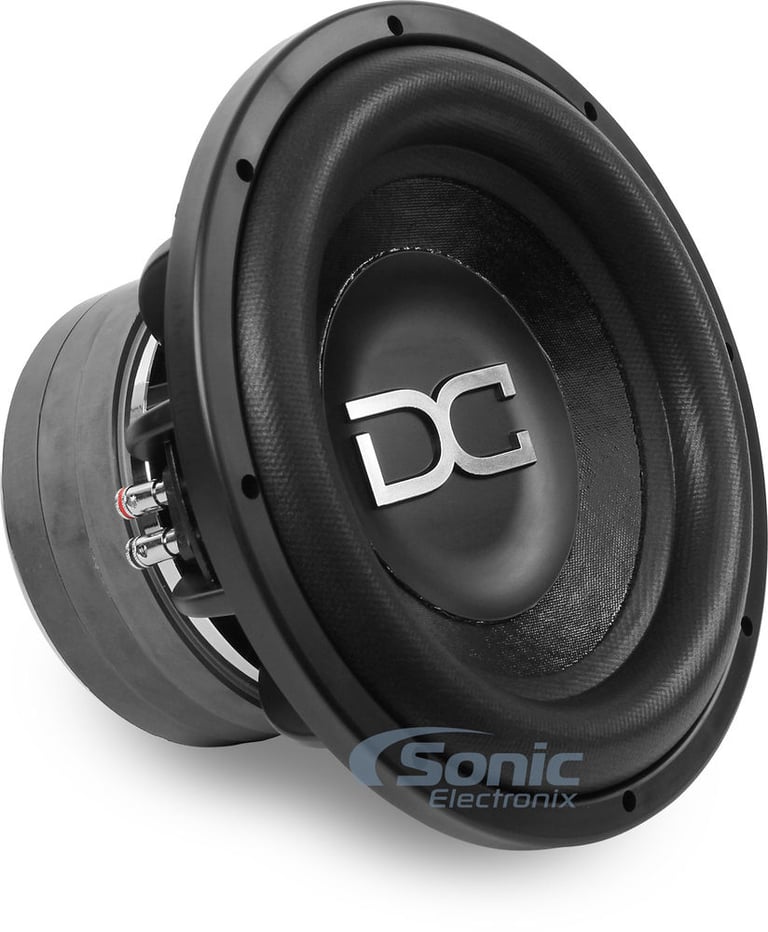

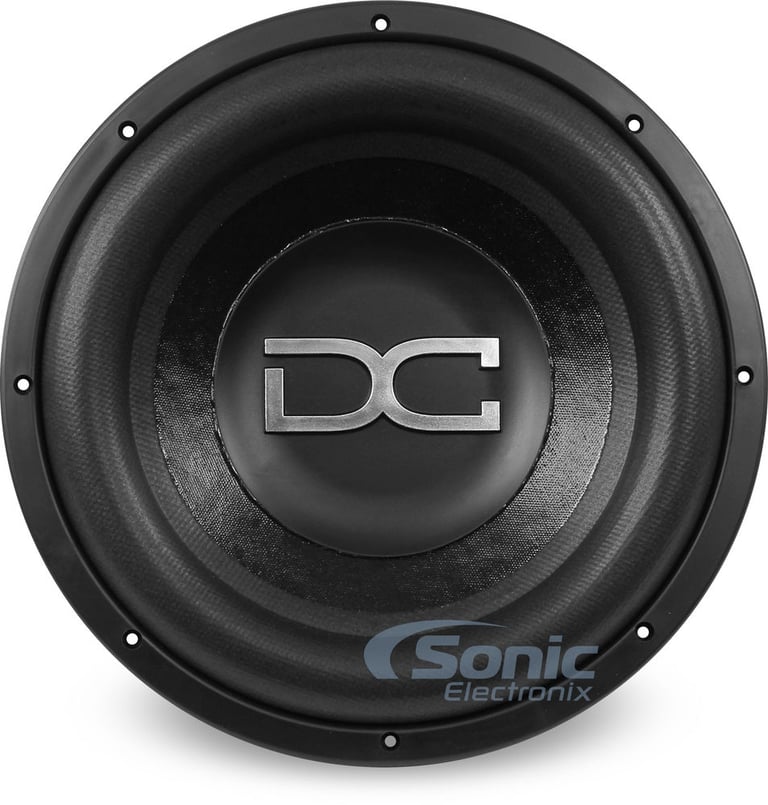

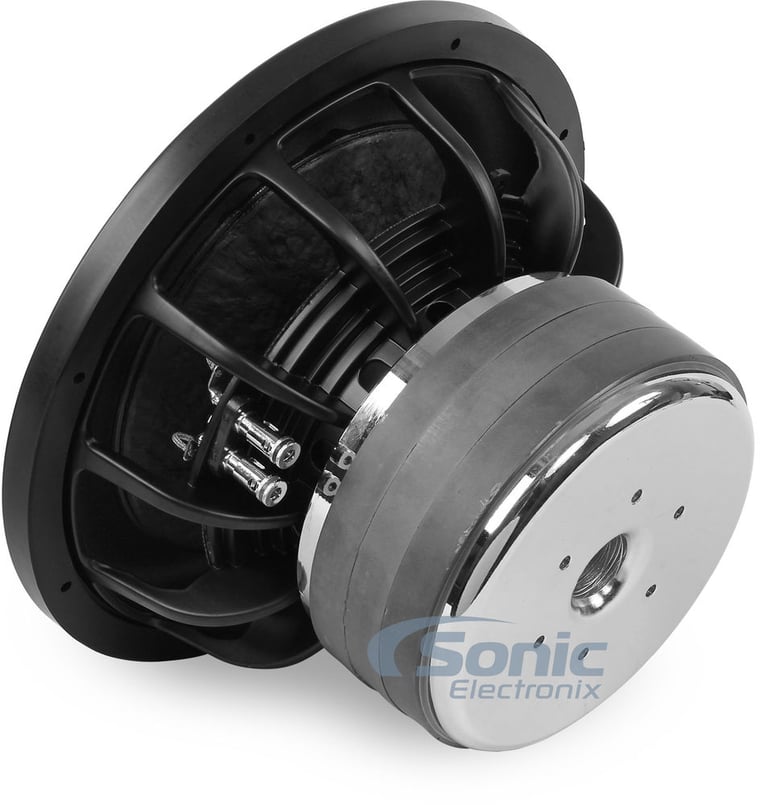

DC Audio Level 4 12 m2.1 D1

2800W Peak 12" Dual 1-Ohm Car Subwoofer - M2LV412D1

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 2800W
• RMS Power: 1400W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv412d1

We apologize

This item has been discontinued


Loading...
H746 main

Cerwin-Vega H746

550W Peak (80W RMS) 4x6" HED Series 2-Way Coaxial 4-ohm Speakers

9

Product Highlights


• Peak Power: 2800W
• RMS Power: 1400W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 1 ohm Level 4 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 2800 watts
    • RMS: 1400 watts
  • Recommended power range: 1000 - 1400 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Triple 8" OD flat linear roll spider
  • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature Edge wound aluminum voice coil
  • Rubber mounting gasket

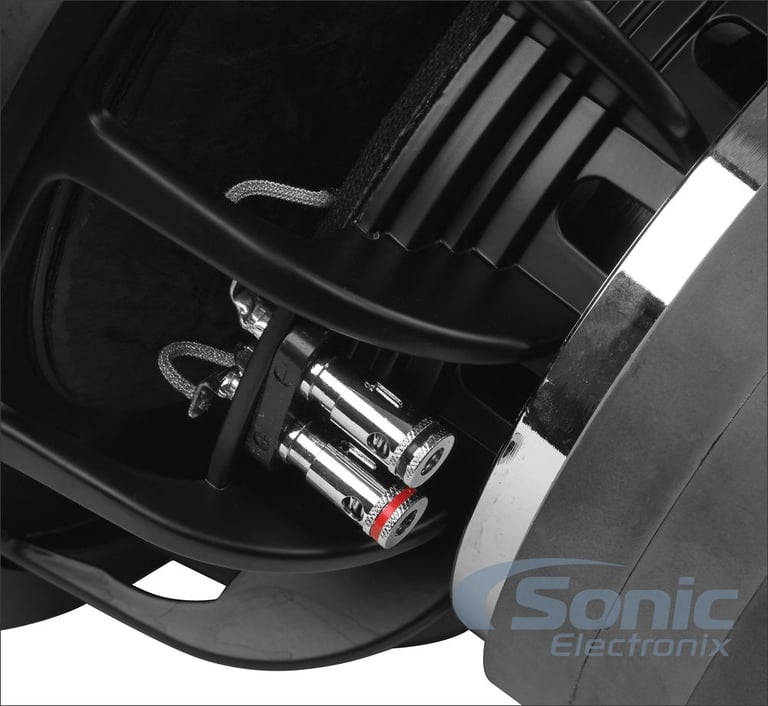

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.75"
  • Mounting Hole Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 4 12" T/S Parameters:

  • Electrical Q Value (Qes): 0.52
  • Mechanical Q Value (Qms): 8.24
  • Total Speaker Q Value (Qts): .489
  • Free Air Resonance (Fs): 37.9 Hz
  • Equivalent Compliance (Vas): 27.38 liters
  • One-Way, Linear Excursion (Xmax): 23.5 mm
  • Efficiency (Ref SPL @ 1W): 86.4dB
  • Effective Piston Area (Sd): 481 cm²
  • DC Resistance (Re): 3.82 ohm
  • Nominal Impedance (Znom): Dual 1 ohm
  • Force Factor (Bl): 19.18
  • Mechanical Compliance (Cms): .085 mm/N
  • Mechanical Mass (Mms): 207.53 g
  • Voice Coil Inductance (Le): 3.78 mH
  • Suggested Sealed Enclosure: 1.00 ft³
  • Suggested Ported Enclose: 1.50 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

H46 main

Cerwin-Vega H46

300W Peak (100W RMS) 4x6" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

T46 main

Earthquake Sound T46

600W Peak 4x6” TNT Series 2-Way Coaxial 4-ohm Car Speakers

1
-19.20%

$79.99

List price $99.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Level 4 Series
Subwoofer Size
12"
Peak Power Handling
2800 watts
RMS Power Handling
1400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Voice Coil Diameter
3"
Sensitivity
86.4 dB
Xmax (millimeters)
23.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
6.75"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
37.9 Hz
Equivalent Compliance (Vas)
27.38 liters
Total Speaker Q Value (Qts)
.489
Electrical Q Value (Qes)
.52
Electrical Resistance of Voice Coil (Re)
3.82 ohm
Mechanical Q Value (Qms)
8.24
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV412D1

Weight:

34.60lbs

Internal SKU:

m2lv412d1

Internal Product ID:

88163

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 4 12 m2.1 D1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

Slamming

I had one of these prior and then I decided to upgrade to 2 of them. These things sound amazing and loud. They seriously get low and hit hard. I have had them all the way down to 25 hz and they flex like crazy. I will always run dc from now on they have a life time customer with me.

By SMRFTRD on November 24, 2014

23 found this helpful


Great Speaker

This is a great subwoofer. I took the time to slowly breakin this woofer and I was not sure until day 5 it Really opened up the sound. DC Audio has great subs

By Jon on August 8, 2020 Checkmark Icon Verified purchase


Made in the USA!

First off I want to say I am in no way affiliated with sonic, or anybody that works there, in other words I gain nothing from lying to anyone. I myself always wondered if these reviews where just employees hyping products, or actual customers like myself well now I know they are true testimonials from actual users. Now on to the product, 2 lvl 4 12's. They came fast like a few days and packaged perfect zero damage in transit which is awesome considering it's shipped a long ways. Once I had the subs I had cherrymancustom build me a truly beautiful custom enclosure so I could get the most from my lvl 4's. And man do the get low and move some serious wind. Now if all you want is sq these are not for you but they do sound ok don't get me wrong but these are spl subs and that's where they truly shine. On just a DC audio 2k which is 800 watts short of the lvl4's recommended rms im doing a 149db in a chevy Cruze. I would have put more on them but I can't get a high output alt so I didn't want to fry factory Alts. If you can feed these at least a 1k a piece and can support the electrical upgrades to run them you can't go wrong with DC. Also if you want to upgrade or switch out systems you can recone these as well as upgrade. I plan to later on upgrade these to XL's and run 2 DC 2k's when ever I switch rides.

By Tammy on March 22, 2017 Checkmark Icon Verified purchase
