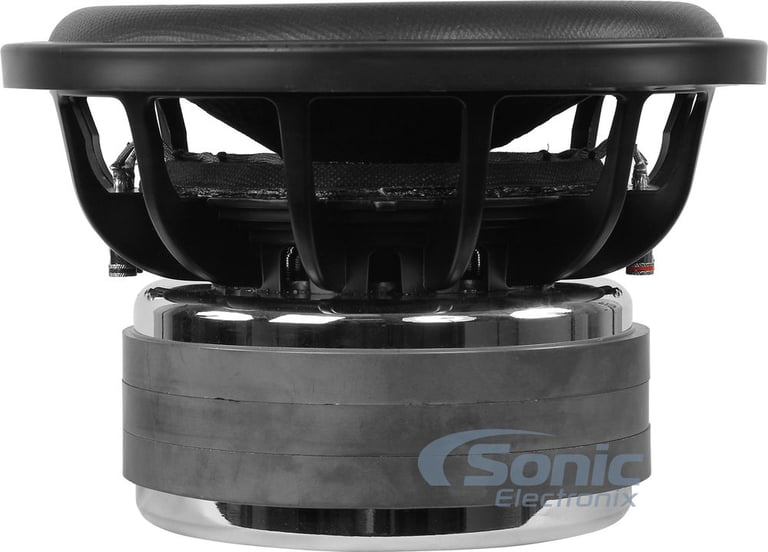

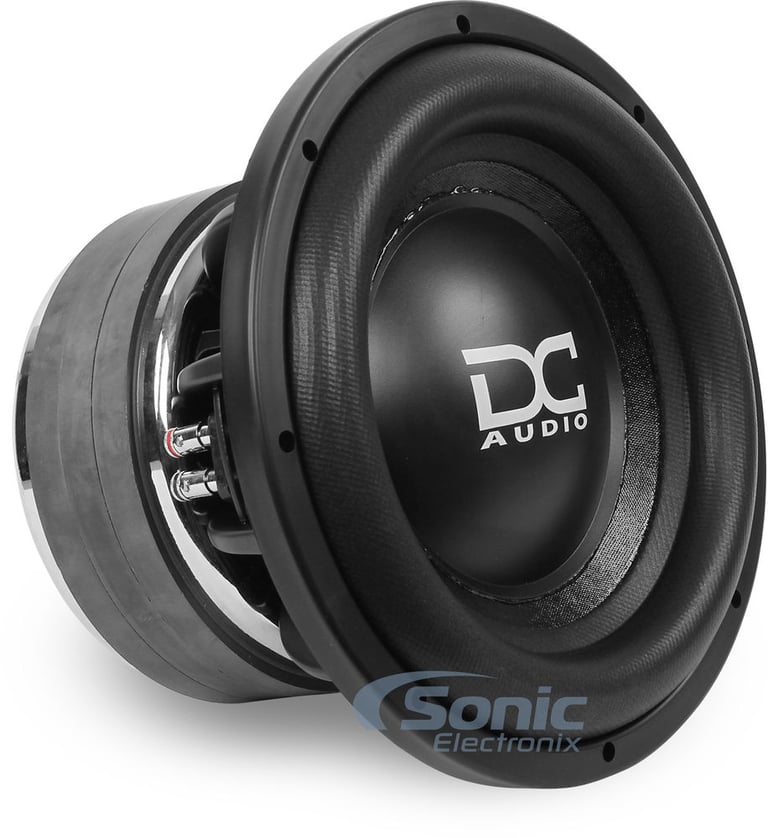

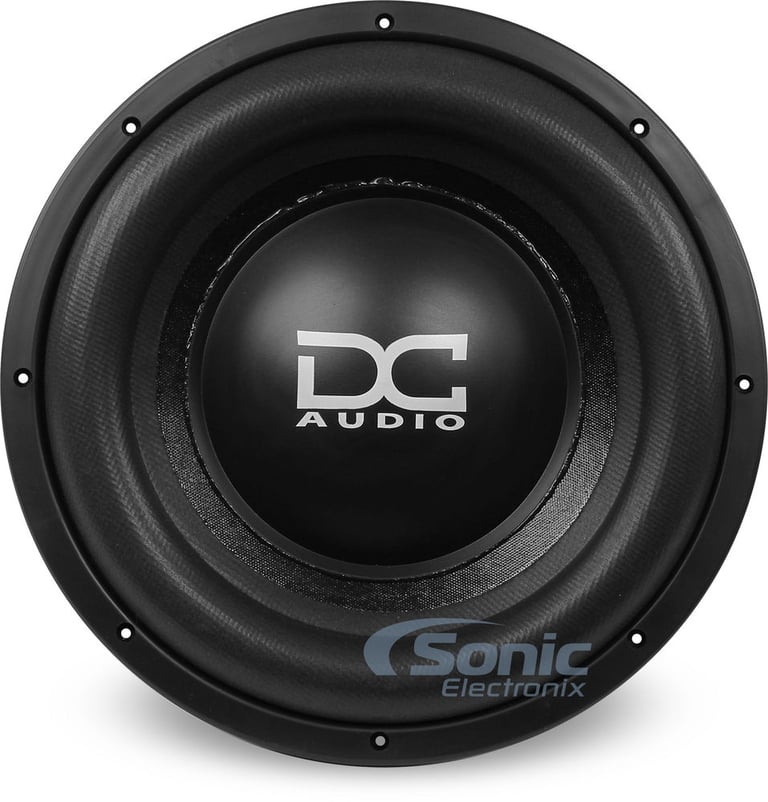

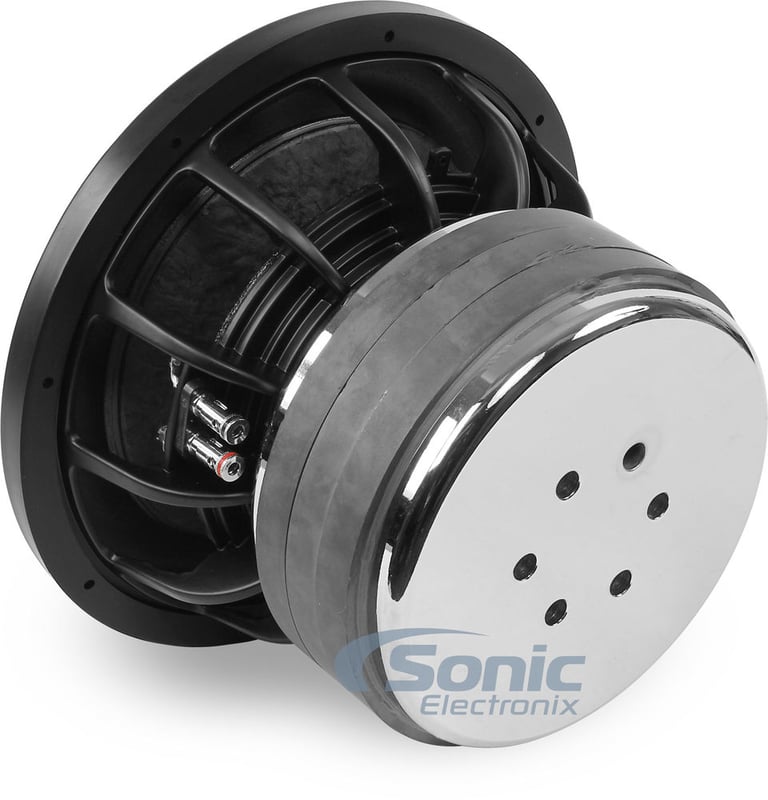

DC Audio XL12 m2.1 D1

4400W Peak 12" XL Series m2.1 Version Dual 1-Ohm High SPL Car Subwoofer with 3.0" Voice Coils - M2XL12D1

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 4400W
• RMS Power: 2200W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2xl12d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m4xl12d1 thumbnail

DC Audio XL12 M4 D1 (M4XL12D1)

OUR PRICE: $700.00

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• Peak Power: 4400W
• RMS Power: 2200W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 1 ohm XL Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 4400 watts
    • RMS: 2200 watts
  • Recommended power range: 1600 - 2200 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Quad 8" OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Rubber mounting gasket

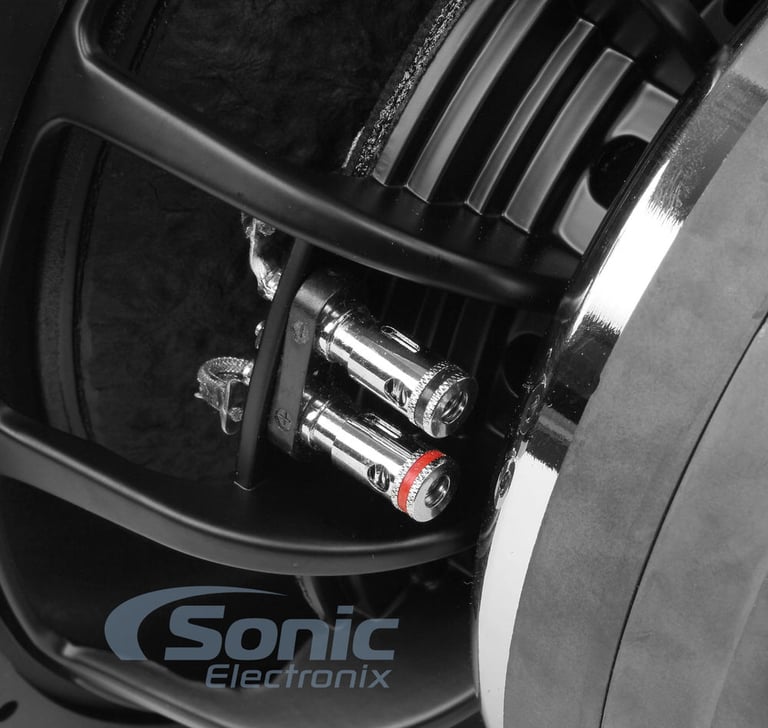

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 7"
  • Sensitivity: 87.5dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 XL 12" T/S Parameters:

  • Electrical Q Value (Qes): .403
  • Mechanical Q Value (Qms): 12.92
  • Total Speaker Q Value (Qts): .391
  • Free Air Resonance (Fs): 38.5
  • Equivalent Compliance (Vas): 25.77 liters
  • One-Way, Linear Excursion (Xmax): 26mm
  • Efficiency (Ref SPL @ 1W): 87.5dB
  • Effective Piston Area (Sd): 494 cm²
  • DC Resistance (Re): 3.98
  • Nominal Impedance (Znom): Dual 1 ohm
  • Force Factor (Bl): 22.73
  • Mechanical Compliance (Cms): .08 mm/N
  • Mechanical Mass (Mms): 213.7g
  • Voice Coil Inductance (Le): 5.2 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 1.50 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M4XL12D1 thumbnail
(newest, current model)
DC Audio M2XL12D1 thumbnail
(previous model, replaced by DC Audio XL12 M4 D1 (M4XL12D1))

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
XL Series
Subwoofer Size
12"
Peak Power Handling
4400 watts
RMS Power Handling
2200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Sensitivity
87.5 dB
Xmax (millimeters)
26 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
7.00"
Cutout Diameter
11.00"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
38.5 Hz
Equivalent Compliance (Vas)
25.77 liters
Total Speaker Q Value (Qts)
.391
Electrical Q Value (Qes)
.403
Electrical Resistance of Voice Coil (Re)
3.98 ohm
Mechanical Q Value (Qms)
12.92
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2XL12D1

Weight:

51.80lbs

Internal SKU:

m2xl12d1

Internal Product ID:
