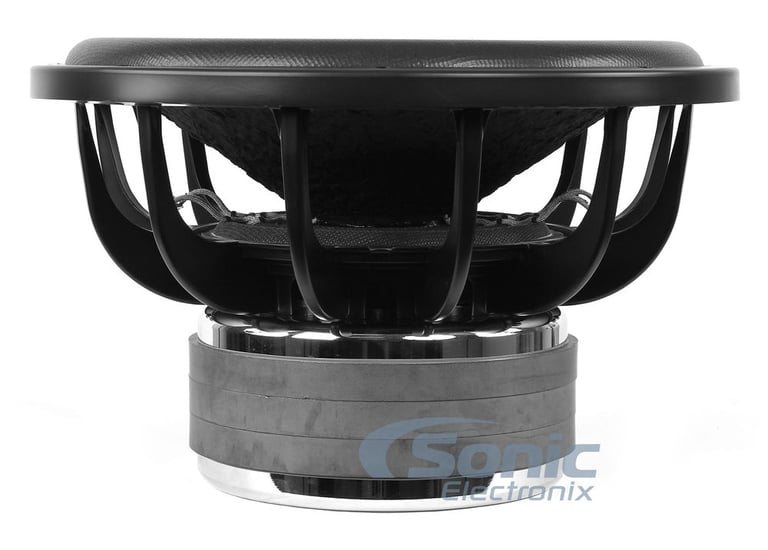

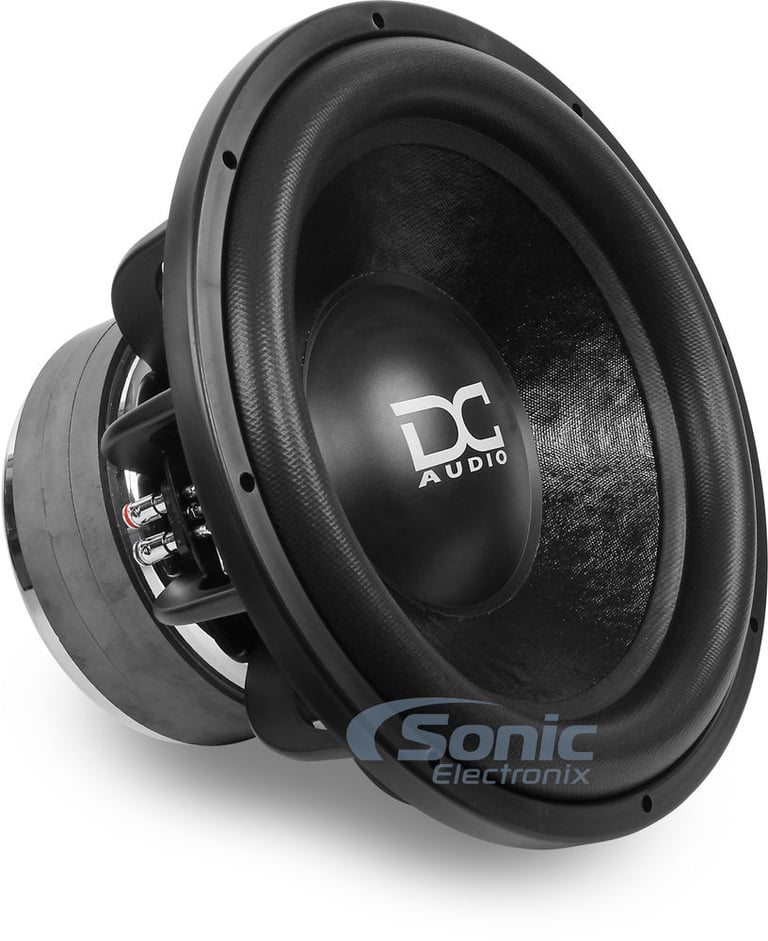

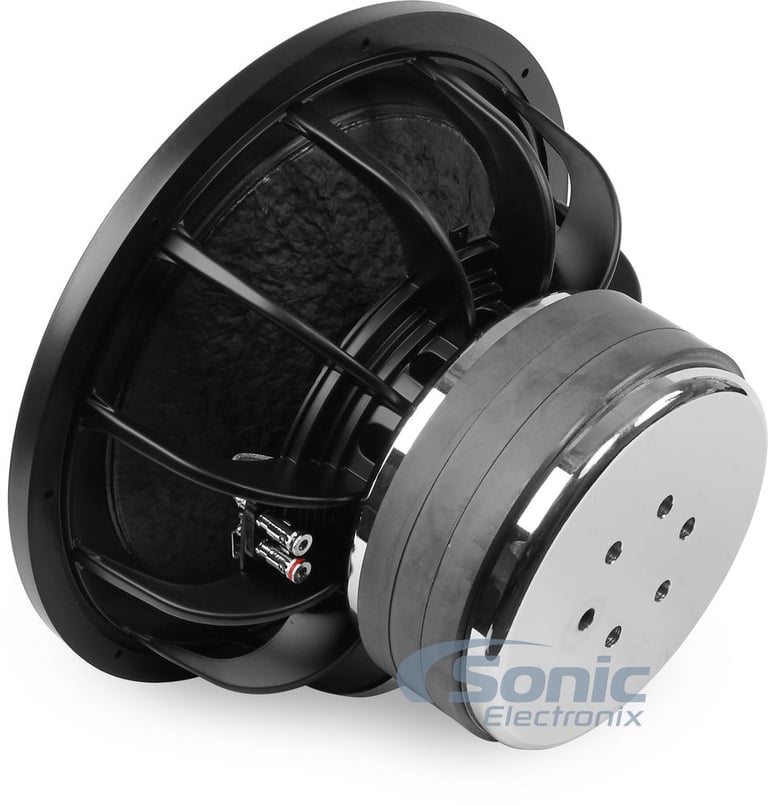

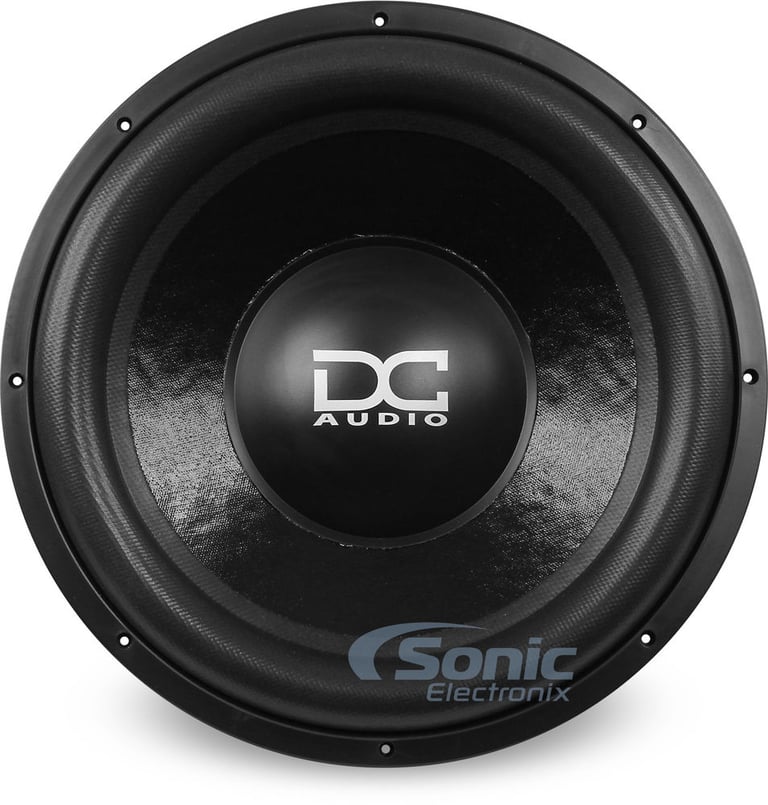

DC Audio XL15 m2.1 D1

4400W Peak 15" XL Series m2.1 Version Dual 1-Ohm High SPL Car Subwoofer with 3.0" Voice Coils - M2XL15D1

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 4400W
• RMS Power: 2200W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2xl15d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m4xl15d1 thumbnail

DC Audio XL15 M4 D1 (M4XL15D1)

OUR PRICE: $794.99

View item

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

GM40B main

Scosche GM40B Wiring Harness

Install a new car stereo in select 2004-2021 vehicles from GMC, Chevrolet, Pontiac

1
KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8
MPR2121 main

Jensen MPR2121

Single DIN Digital Multimedia Receiver with Bluetooth

2
CLUB 644F main

JBL CLUB 644F (JBLSPKCB644F)

240W Peak (80W RMS) 4x6" Club Series 2 Way Coaxial 3-ohms Speakers

-23.09%

$99.95

List price $129.95

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• Peak Power: 4400W
• RMS Power: 2200W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 15" Dual 1 ohm XL Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 4400 watts
    • RMS: 2200 watts
  • Recommended power range: 1600 - 2200 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Quad 8" OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Rubber mounting gasket

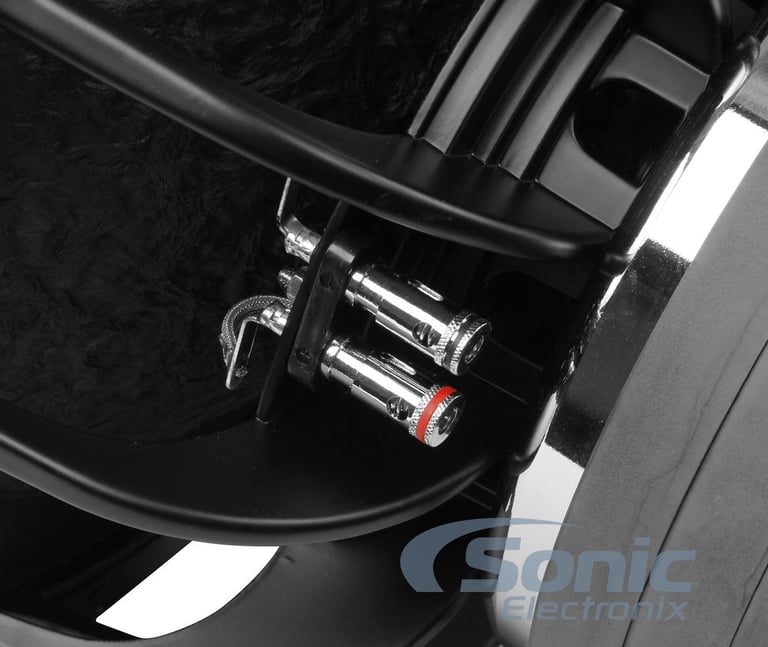

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 8.25"
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 XL 15" T/S Parameters:

  • Electrical Q Value (Qes): .516
  • Mechanical Q Value (Qms): 16.55
  • Total Speaker Q Value (Qts): .5
  • Free Air Resonance (Fs): 34.3
  • Equivalent Compliance (Vas): 66.02 liters
  • One-Way, Linear Excursion (Xmax): 26mm
  • Efficiency (Ref SPL @ 1W): 89dB
  • Effective Piston Area (Sd): 791 cm²
  • DC Resistance (Re): 3.98
  • Nominal Impedance (Znom): Dual 1 ohm
  • Force Factor (Bl): 22.73
  • Mechanical Compliance (Cms): .07 mm/N
  • Mechanical Mass (Mms): 306.7g
  • Voice Coil Inductance (Le): 5.2 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 3.0 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article
