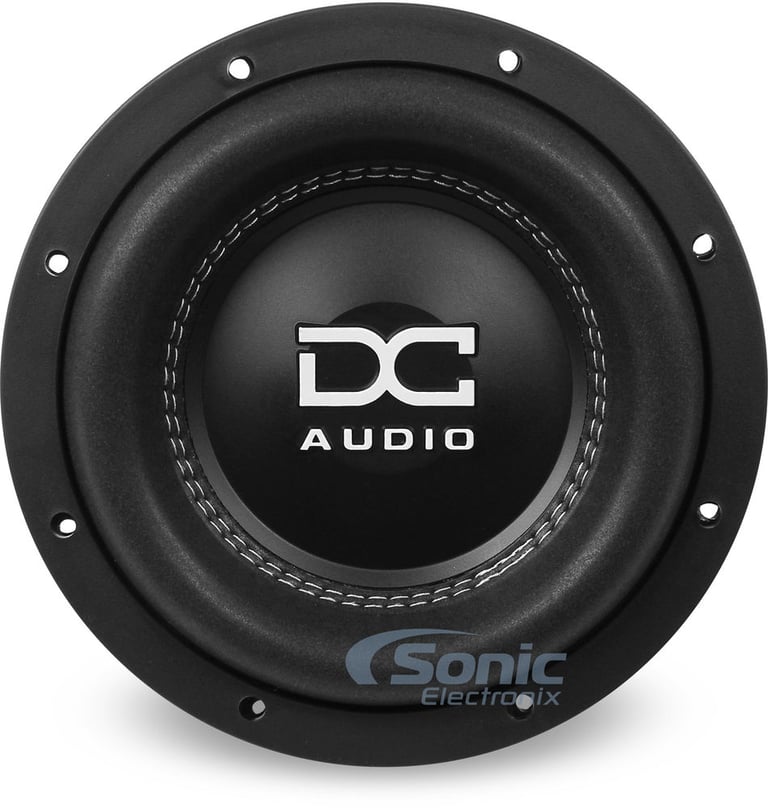

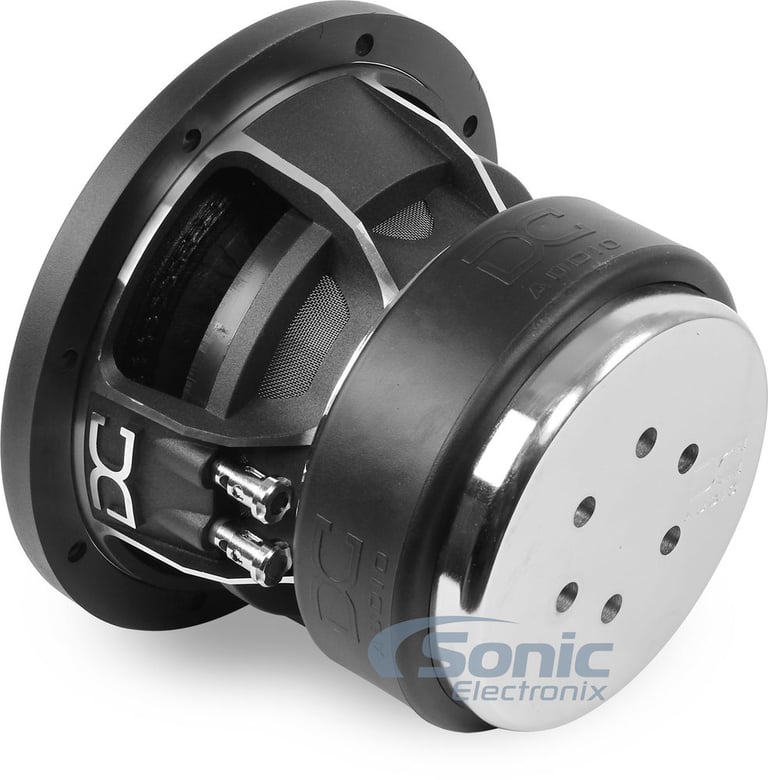

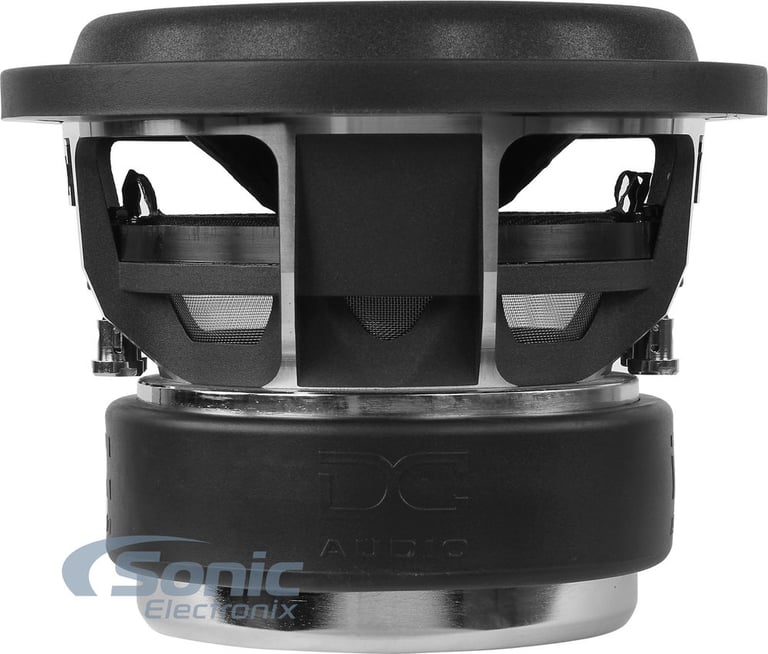

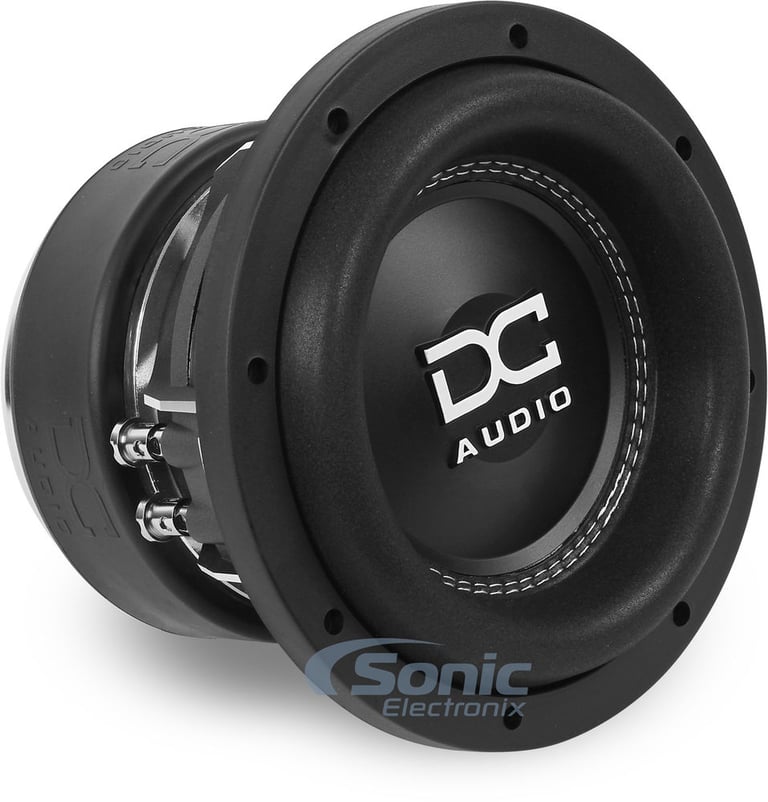

DC Audio M3 8 D4 (8m3 D4)

1200W Peak 8" m3 8-Series Dual 4-Ohm Car Subwoofer -

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 600W
• Dual 4 ohm Voice Coil
• Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m38d4

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

HKSB110 main

American International HKSB110

6.5" or 6.75" Speaker Mounting Adapters for select 2006-2021 vehicles from Hyundai, Kia

11
-51.31%

$18.99

List price $39.00

KAAB main

Scosche KAAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

11
-10.96%

$6.99

List price $7.85

72-7300 main

Metra 72-7300

Install New Speakers in select 1998-2021 vehicles from Hyundai, Kia, Toyota

8
-33.36%

$9.99

List price $14.99

82-3016 main

Metra 82-3016

Speaker Adapters to Mount Tweeter without Adapter or Modification for select 1990-2024 vehicles from Dodge, Subaru, Ram

1
-52.02%

$11.99

List price $24.99

70-7304 main

Metra 70-7304 Wiring Harness

Install a New Car Stereo in select 2010-2021 vehicles from Kia, Hyundai

14
-42.44%

$18.99

List price $32.99

40-KI10 main

Metra 40-KI10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

1
-41.20%

$9.99

List price $16.99

BE-KIAOPTG3-VSW104 main

NVX BE-KIAOPTG3-VSW102 BOOST Box

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2011-2015 Kia Optima

1
-45.69%

$169.99

List price $312.99

95-7345B main

Metra 95-7345B Dash Kit

Install a new Double-DIN car stereo in select 2011-2013 Optima (Matte Black)

3
-48.50%

$16.99

List price $32.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Product Highlights


• Peak Power: 1200W
• RMS Power: 600W
• Dual 4 ohm Voice Coil
• Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 8" Dual 4 ohm m3 8 Series Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended powr range: 400 - 600 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Bolted down and spaced linear roll spiders

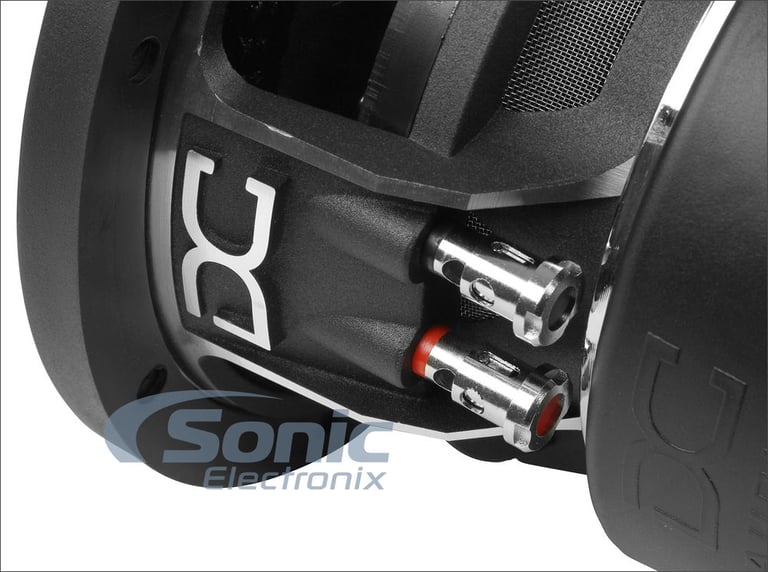

  • Sewn flat heavy duty tinsel lead wire
  • DVC 2" copper voice coil
  • Rubber mounting gasket
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 5.75"
  • Sensitivity: 78.7dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m3-8 8" T/S Parameters:

  • Electrical Q Value (Qes): .66
  • Mechanical Q Value (Qms): 6.68
  • Total Speaker Q Value (Qts): .601
  • Free Air Resonance (Fs): 35.3
  • Equivalent Compliance (Vas): 7.3 liters
  • One-Way, Linear Excursion (Xmax): 18mm
  • Efficiency (Ref SPL @ 1W): 78.7dB
  • Effective Piston Area (Sd): 201.93 cm²
  • DC Resistance (Re): 6.28
  • Nominal Impedance (Znom): Dual 4 ohm
  • Force Factor (Bl): 17.9
  • Mechanical Compliance (Cms): .135 mm/N
  • Mechanical Mass (Mms): 150.66g
  • Voice Coil Inductance (Le): 5 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: .75 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio M3 8 D4 (8m3 D4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio M3 8 D4 (8m3 D4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio M3 8 D4 (8m3 D4) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DC Audio M3 8 D4 (8m3 D4) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
