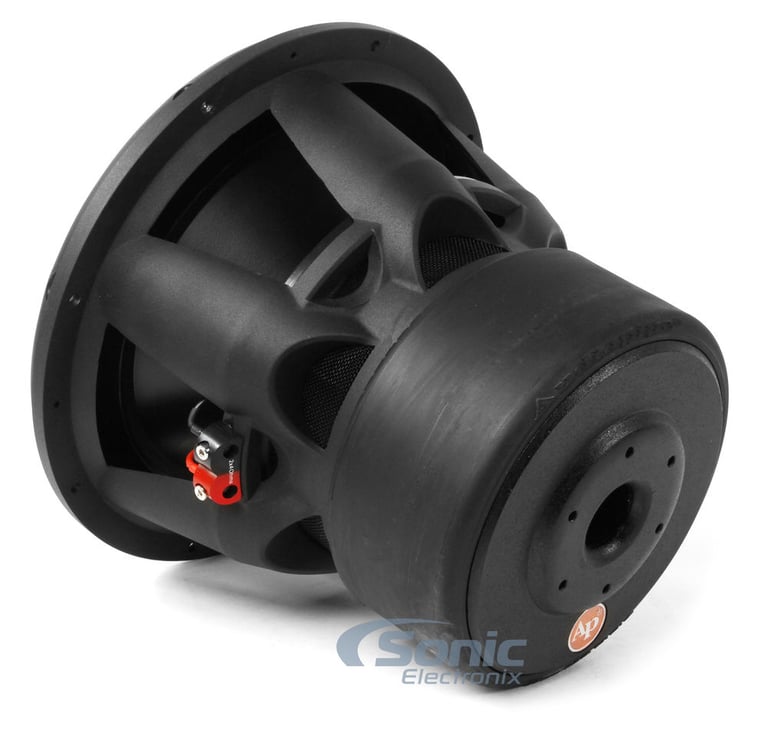

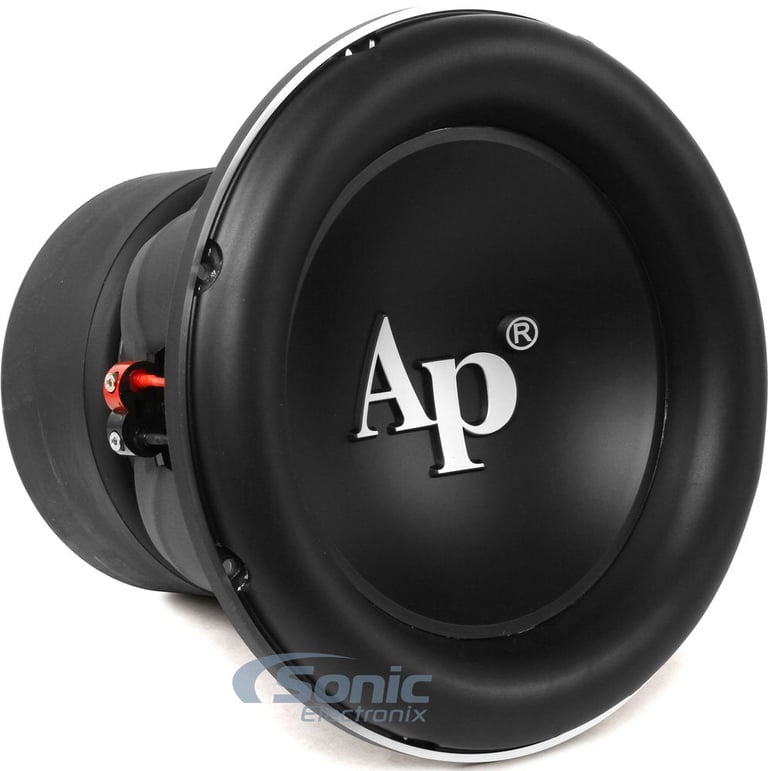

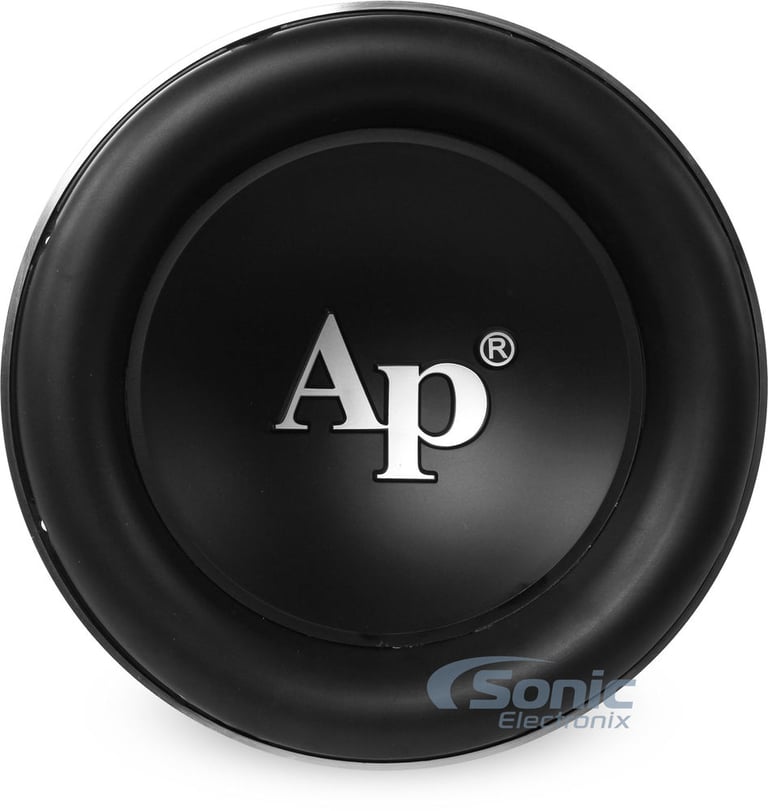

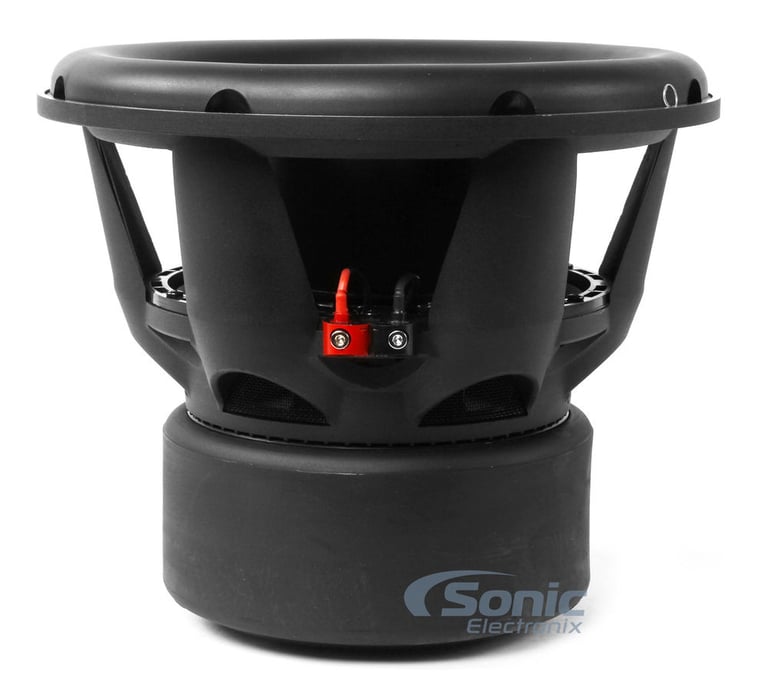

Audiopipe Q-12

2000 Watt Max (1000W RMS) 12" Q-Series Dual 4-Ohm Subwoofer

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 2000W
• RMS Power: 1000W
• Dual Cone Technology
• Butyl Rubber Surround with Edge Extension Technology

Learn more about the q12

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

AXBUCH-TYCAM16V main

Axxess AXBUCH-TYCAM16V

Install a New Car Stereo and Retain Backup Camera in select 2012-2015 vehicles from Toyota, Scion

-11.32%

$46.99

List price $52.99

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
ADS-MIC1 main

iDataLink ADS-MIC1

Factory Microphone Retention Interface Module for select 2010-2024 vehicles from Ford, Subaru, Toyota (Requires ADS-MSR, MRR, or MR2 Module)

1
-20.00%

$79.99

List price $99.99

82-8149 main

Metra 82-8149

6x9" Speaker Adapters for select 2012-2024 vehicles from Lexus, Toyota

8
-50.01%

$18.99

List price $37.99

82-8150 main

Metra 82-8150

6" - 6 3/4" Speaker Adapter for select 2012-2024 Camry Hybrid and Camry and Concept

2
-10.81%

$32.99

List price $36.99

HRN-HRR-TO2 main

iDataLink Maestro HRN-HRR-TO2 Wiring Harness

Install a New Car Stereo in select 2012-2019 vehicles from Toyota (Requires ADS-MRR or ADS-MRR2 Module)

4
-21.30%

$84.99

List price $107.99

SAT69 main

Scosche SAT69

Speaker Adaptors

16
-12.29%

$13.99

List price $15.95

Product Highlights


• Peak Power: 2000W
• RMS Power: 1000W
• Dual Cone Technology
• Butyl Rubber Surround with Edge Extension Technology

Description


Audiopipe brand icon

Authorized dealer

General Features:

  • 12" Dual 4-Ohm Q Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Dual Cone technology
    • Forms a sealed chamber between the big cap and cone body
    • Allows for more controlled linear motion under high power
    • Ensures minimal distortion
  • Butyl rubber surround with Edge Extension technology
    • Provides maximum flexibility under extreme excursion with the advantage of greater cone surface
  • 3" 4 layer voice coil
  • Top-mount depth: 9-1/2"
  • Frequency Response: 15 - 900 Hz
  • Sensitivity: 87dB
  • Quad stacked 250 Oz. magnet increases the magnet field that powers the voice coil
  • Curved pipe vents in the basket allow for improved airflow
    • Permits maximum cooling
    • Mesh vents give added dust protection
  • Patent pending pipe style basket
    • Highly engineered and rigid design
    • Oversized structure makes for a comfortable housing
    • Ensures precise linear motor movement
  • Custom spider ring
    • Combines Audiopipe pipe style terminals with a strong ABS ring
    • Holds the spider securely in place during heavy excursion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiopipe Q-12 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiopipe Q-12 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiopipe Q-12 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiopipe Q-12 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

187
-38.13%

$255.34

List price $412.71

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
15 - 900 Hz
Sensitivity
87 dB
Xmax (millimeters)
50 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Optimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
1.80 cubic feet
Optimum Ported Box Volume
2.00 cubic feet
Top-Mount Depth (Mounting Depth)
9-1/2"
Cutout Diameter
11.00"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25 Hz
Equivalent Compliance (Vas)
81 liters
Total Speaker Q Value (Qts)
0.32
Electrical Q Value (Qes)
0.42
Mechanical Q Value (Qms)
1.33
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q-12

Weight:

43.65lbs

Internal SKU:

q12

Internal Product ID:

89843

Product and How-to Videos


Customer Ratings & Reviews


Audiopipe Q-12 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


TS-W12PRS small

Pioneer Premier TS-W12PRS

12" PRS Premier Reference Series Subwoofer

(1)

$269.99

List price $439.99

TKMM small

Lightning Audio TKMM (LA9600 + B4.65.2TK)

In-Dash CD/MP3 Receiver with Aux and USB Input, Pair of 6-1/2" Speakers, and Wiring Kit

$99.99

List price $199.99

9006-8K-SLIM small

Elite Slim Series 9006-8K-SLIM HID Xenon Headlights

8000K 9006/HB4/9012 Xenon Headamp Bulbs High Intensity Discharge Headlight Kit w/ Slim Ballasts

(24)

$70.74

List price $170.35

No picture

Memphis PRXS1024 (Open Box, Great)

700W Peak (350W RMS) 10" Power Reference Series Selectable 2-or 4-ohm Shallow Car Subwoofer

$125.97

List price $229.95

No picture

Power Acoustik MOFO-124X Open Box Complete

2700W 12" MOFO Series Dual 4 ohm Subwoofer

(1)

$105.99

List price $249.95

SDBT75N small

Lanzar SDBT75N

(New Model = SDBT75NU/SDBT75NR) In-Dash 7" TFT-LCD Touchsreen DVD, CD, MP3 Receiver with Built-in Bluetooth, Remote and Front Aux Input (SDBT-75N)

(1)

$329.99

List price $699.99

4000KR small

iView 4000KR

Karaoke Media Player with CD+G/VCD/DVD/MPEG-4 Playback and USB/SD Card Slot

$59.99

List price $69.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Toyota Camry

2022 Jeep Gladiator

2007 Dodge Sprinter

1982 Jaguar XJ6

2015 Lincoln MKZ

2013 Subaru Outback

1961 Buick Special

1995 Toyota Corolla

2015 Mazda CX-5

2007 Chevrolet Aveo5

Vehicle
Store
Delete

2007 Harley Davidson FXSTSSE2 Screamin Eagle Softail Springer

2000 Harley Davidson FXST Softail Standard

2002 Harley Davidson FLHTCI Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
