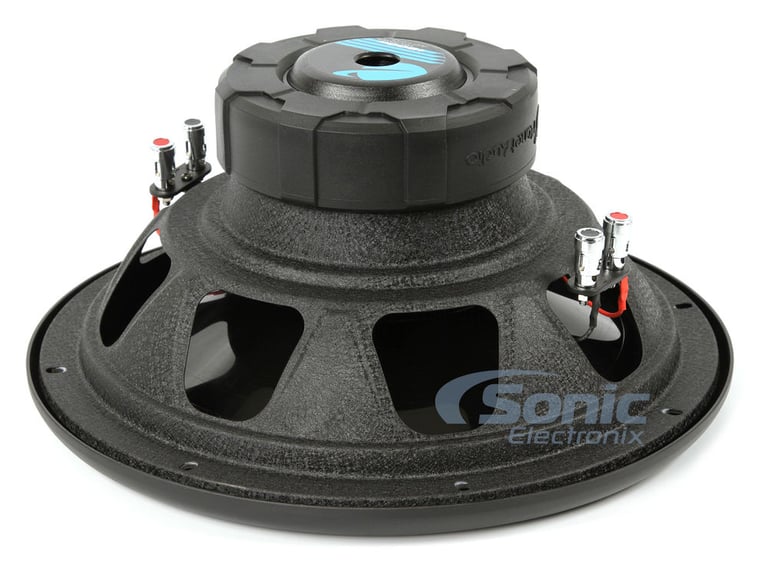

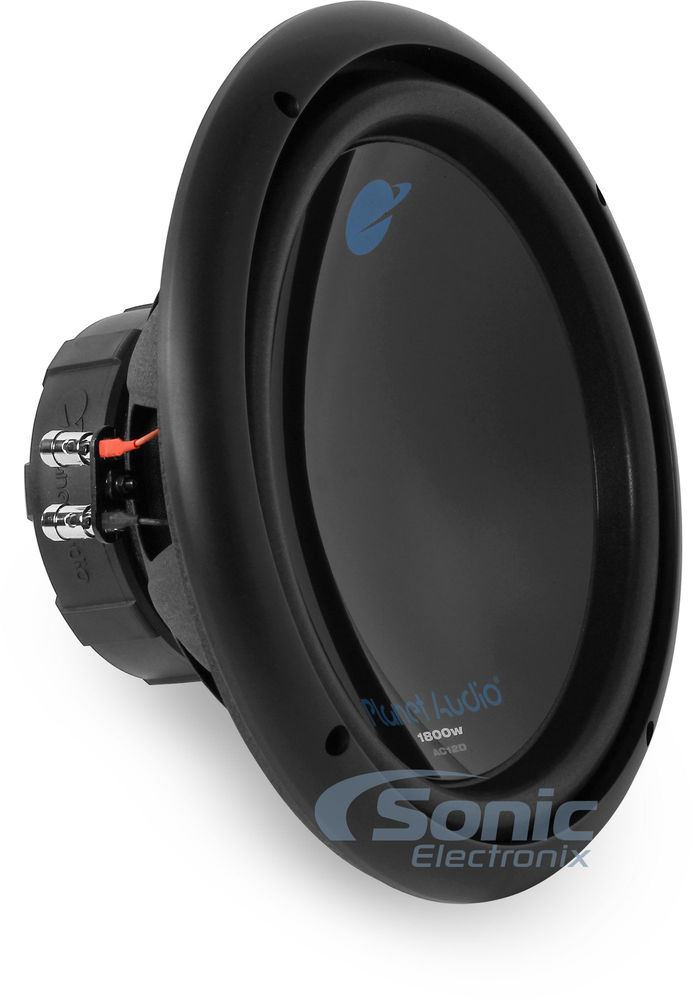

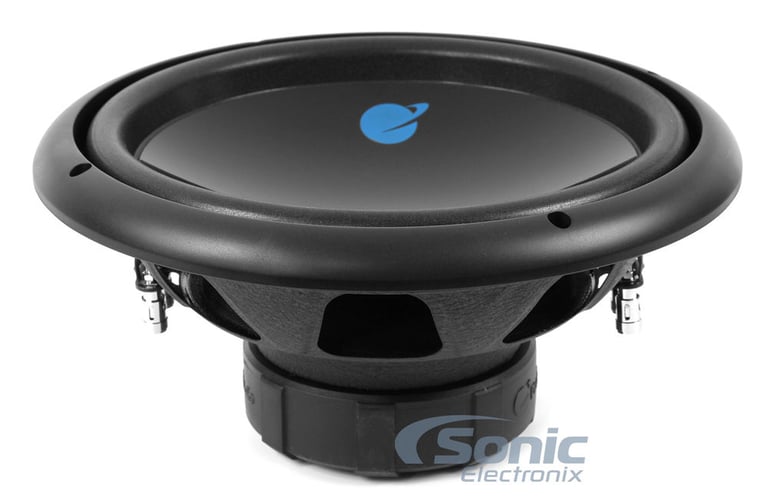

Planet Audio AC12D

1800W Peak (900W rms) 12" Anarchy Series Dual 4-ohm Car Subwoofer

Product videos
highlight-star-icon

• Peak Power: 1800 watts
• RMS Power: 900 watts
• Impedance: Dual 4 ohm
• Injection Molded Polypropylene - IMPP Cone
• Foam Surround
• Mount depth: 5.38"
• Sensitivity: 88 dB

Learn more about the ac12d

We apologize

This item has been discontinued


Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

99-5026 main

Metra 99-5026 Dash Kit

Install a new Single-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury

1
-62.99%

$9.99

List price $26.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

iLX-507 main

Alpine iLX-507

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wireless Android Auto (SiriusXM and iDataLink Maestro Ready)

16
-17.03%

$779.95

List price $940.00

DSK 165.3 main

Hertz DSK 165.3

320W Peak (160W RMS) 6.5" Dieci Series 2-way 4-ohm Component Speaker System

2
-13.05%

$199.99

List price $230.00

Product Highlights


• Peak Power: 1800 watts
• RMS Power: 900 watts
• Impedance: Dual 4 ohm
• Injection Molded Polypropylene - IMPP Cone
• Foam Surround
• Mount depth: 5.38"
• Sensitivity: 88 dB

Description


Planet Audio brand icon

Authorized dealer

Product Details:

  • 12" Dual 4 ohm Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Injection Molded Polypropylene - IMPP cone
  • Foam surround
  • high-temperature voice coil
  • 10 mm Xmax
  • Ferrite magnet motor structure
  • Resonance Frequency (Fs): 32 Hz
  • Sensitivity: 88 dB
  • Recommended sealed box volume: 1.25 cubic feet
  • Recommended ported box volume: 2 cubic feet
  • Top-mount depth: 5.38"
  • Cutout diameter: 11"
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Planet Audio AC12D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Planet Audio AC12D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Planet Audio AC12D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Planet Audio AC12D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Anarchy Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Foam
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
2 cubic feet
Top-Mount Depth (Mounting Depth)
5.38"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32 Hz
Equivalent Compliance (Vas)
2.132 liters
Total Speaker Q Value (Qts)
0.756
Electrical Q Value (Qes)
0.912
Mechanical Q Value (Qms)
4.42
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AC12D

Weight:

12.01lbs

Internal SKU:

ac12d

Internal Product ID:

90011

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio AC12D thumbnail image

5 star
58%
4 star
23%
3 star
6%
2 star
10%
1 star
3%



Durability
3.9
Value
4.6
Features
4
Design
4.7
Usability
4.5

Customer Reviews

Sort by:

Loading...

Hit Hard!!!!!!

I bought 2 of these subs and they hit hard. I have them hooked up to a Planet Audio 1900 watt max mono block amp(1400rms@1ohms/1000rms@2ohms). I'm running the amp and speakers on 2ohms. I don't even have the amp turned up half way. I had them in a Bbox vented box and it blew the box apart. Great buy for the money.

By LDot on September 30, 2014

94 found this helpful


bad

Doesn't do anything near rate rms... only had 500 clean watts going to it and it blew within 24hrs during its low volume break in period..

By d on March 22, 2015

80 found this helpful


So Far So Good for my Planet Audio AC12D

Great sub so far! I Bought this Sub woofer 3 months ago no issues what so ever, still non today. Also, LOL No way this thing will Ever handle 1800 or it's 800 RMS Like it claims. Because I'm running it on a 400 Watt Amplifier & That's almost to much for it with Gain Matched & set correctly. I usually like to deal with Kicker, JL Audio & DD's Subs, but this was something quick and cheap I wanted for a daily driver so far sounds amazing. When you first install it, it's not as loud because "like all sub woofers they go though a Break In period", if you're good with car Audio you'll know what Exactly I'm talking about. Just make sure you set you Gains good with a good Amplifier that has True RMS Rating's marked on it I'm sure you'll be Surprised. I have this Sub in a 2FT Cubic Box in the back of my 90 Ford bronco running off the Left Channel of my Cheapo (VM Audio 1000 Watt Amplifier Class AB RMS is 800) it sounds very good for being 40 bucks. Reason i have it running off one channel and not bridged is because the Sub woofer is 2 Ohms and my Amp is only 4 Ohms Bridged and 2 Ohms per channel. So I had no choice other why's I'd burn up my amp.

By Ryan Wright on October 17, 2014

83 found this helpful


awesome

I bought this speaker because one of my others blew. I'm now gonna buy another. They hit hard!

By bangen on December 1, 2014

75 found this helpful


sounds good

i bought this sub on a very tight budget and wish i would have bought a pair sooner. this sub hits hard and sounds good, one of the better subs I've owned

By Hispanic Mechanic on November 7, 2014

74 found this helpful


Cheap

I purchased this product and installed them. They didn't last no more than 10 minutes. Clearly the sub's are overrated. I put the SPL 3400 mono on them. It was the RMS it said they needed for both. Now I can't use them anymore. I won't recommend these sub's to anyone. Waste of money.

By Jairus on March 15, 2015

65 found this helpful


Great Price! Subs Hit Hard!

These subs hit hard. Can be mounted in a truck box, I have a 2011 Chevy Silverado 1500 Crew Cab with a Boss Amp and they pound, I've had them a couple of months with no issues and running about 500 watts RMS to each of them. They are clean sounding and honestly, hit as hard as the JL w3's I had before. $40 a woofer, great deal, better than paying $150 a woofer.

By Tyron on April 3, 2015

59 found this helpful


decent sub

For the money there is no better designed sub hands down pay attention to the rms rating and you won't be disappointed

By bigphish on May 17, 2015

56 found this helpful


Great subs for great price

These are great subwoofers for a good price, they were my first subs, but definitely wont be my last! Easy to install, and they bump

By Clay on May 3, 2015

56 found this helpful


I'm extremely happy with this product!

I haven't had these for too long but so far I am extremely please with this subwoofer. It was affordable as heck and for the price I couldn't be more happier with the complete setup, just recently bought another car, can't wait to put the other sub in the Genesis!

By AVS on April 7, 2015

56 found this helpful




YCHGRD-T small

TYLT YCHGRD-T

Y-Charge Dual USB Car Charger w/ Cable (Red)

$11.99

List price $24.99

APSM1010 small

SodaStream APSM1010

Jet White Soda Maker Starter Kit w/ CO2 Cylinder

$86.99

List price $163.00

DTS-660W small

Valor DTS-660W

Double DIN 6.5" TFT-LCD Touchscreen Monitor with Built-in Bluetooth Hands-free Interface, DVD, DivX, CD, MP3, Multimedia Player, SD Card Slot, Remote (DTS660W)

(6)

$399.99

List price $849.99

BCPA10RC small

Boss BCPA10RC with Backup Camera

10.1" Single-DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto

(2)

$519.99

List price $629.99

2000003733 small

Coleman 2000003733

Perfectflow Instastart Grill Stove

$98.52

List price $19.99

IFWAR small

Scosche passPORT IFWAR

iPod USB Charging Adapter for Select Car Stereos

(3)

$14.00

List price $24.99

DCM2000 small

Black & Decker DCM2000

12 Cup Coffeemaker with Drip Interruption and Carafe

$22.95

List price $39.95

AW1206T small

Audiobahn AW1206T

12" Flame Q (AW 1206T) Subwoofer

(38)

$139.99

List price $299.99

LC52D78UN small

SHARP LC-52D78UN

52", 120Hz 1080p AQUOS LCD HDTV with Optical Picture Control and Fine Motion Enhanced

$1449.99

List price $1599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Ford Expedition

2006 Mazda 5

1982 Dodge B150

2018 Audi RS5

2000 Jeep Cherokee

2000 Saturn LS

1995 Geo Tracker

1974 Ford Thunderbird

2004 Saab 9-3

2017 GMC Acadia

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
