Pioneer TS-G4645R

200W 4 x 6" 2-Way G-Series Coaxial Car Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

• 200 Watts Max, 100 Watts RMS
• 1-3/16" Piezoelectric Tweeter
• Mounting Depth: 1-7/8"
• 4 x 6" Polypropylene with MICA Cone Woofer
• 4 Ohm Impedance
• Sensitivity: 89dB

Learn more about the tsg4645r

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Pioneer brand icon

Authorized dealer

G-Series Coaxial Car Speakers

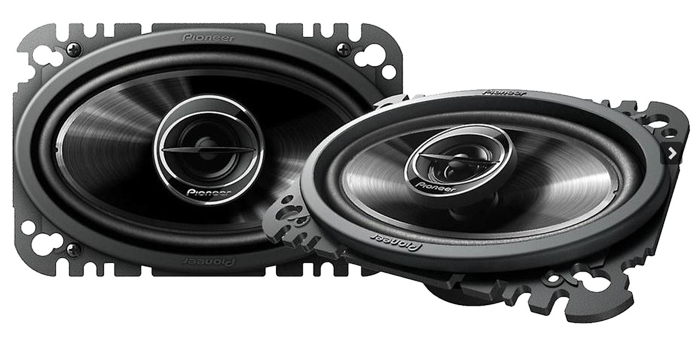

Pioneer TS-G1045R

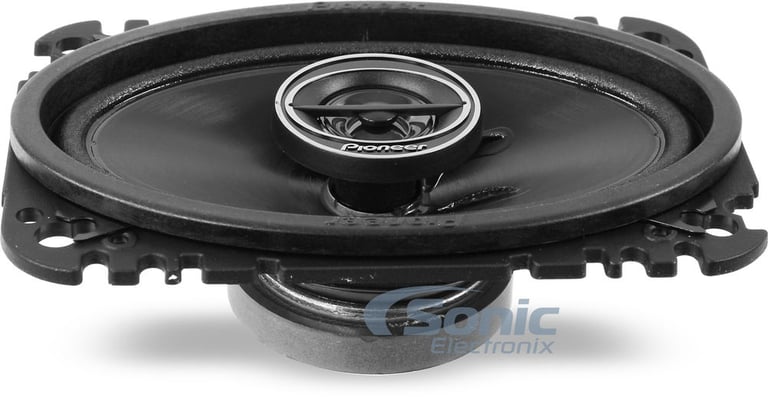

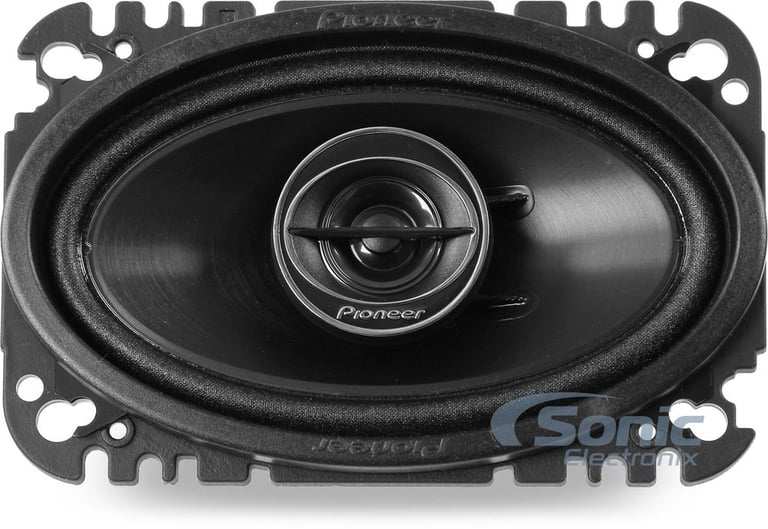

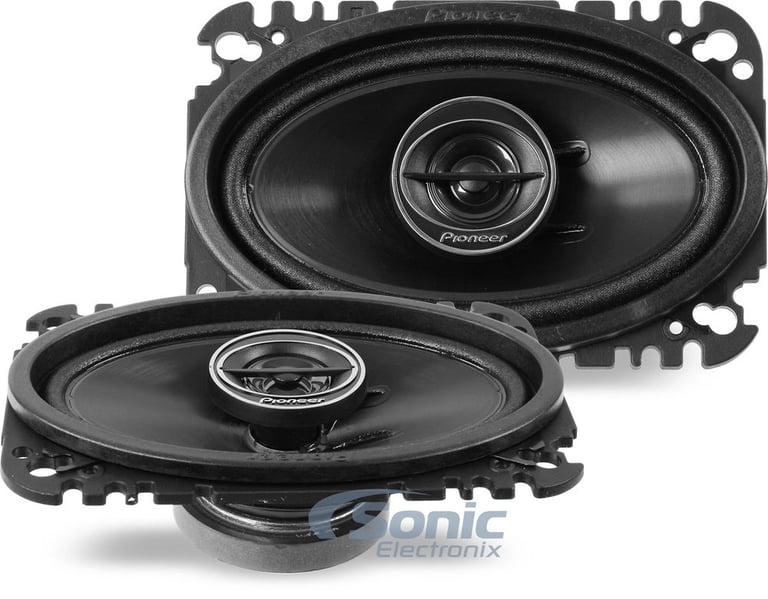

Pioneer's TS-G4645R speakers are excellent choices to replace a bad set of factory 4 x 6" speakers. Their two-way design handles 200 watts max. power (30 watts nominal) and feature Pioneer’s extremely strong and lightweight Injected Molded Polypropylene (IMPP) with MICA composite cone woofer, for improved sensitivity and reduced distortion.

You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the 1-3/16” Piezoelectric tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy install into a wide variety of vehicles. Speaker grilles are not included.




General Features:

  • 4 x 6" G-Series Coaxial Car Speakers
  • Power Handling:
    • Peak: 200 watts per pair / 100 watts each
    • RMS: 60 watts per pair / 30 watts each
  • Polypropylene with MICA Cone Woofer
  • Rubber Coated Cloth speaker surround
  • 1-3/16" Piezoelectric Tweeter

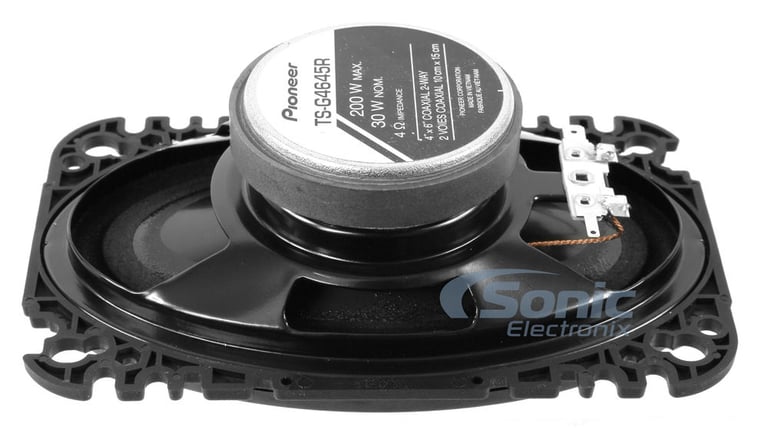

  • Ferrite magnet motor structure
  • 4 ohm impedance
  • Frequency Response: 40-28,000 Hz
  • Top-mount Depth: 1-7/8"
  • Sensitivity: 89dB
  • 1-year Sonic Electronix Warranty

Priced Per Pair

Product history:

Pioneer TS-G4645R thumbnail
(newest, current model)
Pioneer TS-G4644R thumbnail
(previous model, replaced by Pioneer TS-G4645R)

Best selling similar products

T46 small

Earthquake Sound T46

• 300 watts Peak Each
• 1" Mylar Dome Tweeters
• Low Mass Poly-Injection cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(1)

$79.99

List price $99.00

REF467F small

Infinity REF467F (INFSPKRF467FUS)

• 135 watts Peak Each, 45 watts RMS Each
• 1/2" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 92 dB

(2)

$87.95

List price $139.95

THUNDER46 small

MTX Audio THUNDER46

• Peak Each, 40 watts RMS Each
• 1" Silk Soft Dome tweeters
• Polypropylene cone material with concave design
• Impedance: 4 ohm
• Sensitivity: 92 dB

$79.96

List price $99.95

KFC-4675C small

Kenwood KFC-4675C

• 60 watts Peak Each, 20 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(16)

$77.00

List price $128.00

46CSC464 small

Kicker CSC46 (46CSC464)

• 150 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(88)

$59.96

List price $84.99

NSP46 small

NVX NSP46

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 1.81"

(34)

$49.99

List price $59.99

DB462 small

Polk Audio DB462 (DB 462)

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(17)

$90.00

List price $99.99

Stage3 6427 small

JBL Stage3 6427 (STAGE36427AM)

• 175 watts Peak Each, 35 watts RMS Each
• Edge Driven Dome tweeters
• Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

(10)

$89.95

List price $109.95

P1462 small

Rockford Fosgate Punch P1 P1462

• 70 watts Peak Each, 35 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(37)

$109.99

List price $109.99

EXL-SQ4.6 small

DS18 EXL-SQ4.6

• 260 watts Peak Each, 60 watts RMS Each
• 0.8" Mylar Dome tweeters
• Glass Fiber cone material
• Impedance: 3 ohm
• Sensitivity: 87 dB

$89.95

List price $89.95

Specifications & Details


Speaker Specifications
Series
G-Series (TSG)
Priced Per
Pair
Speaker Size
4" x 6"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Size
1-3/16"
Tweeter Composition
PET
Woofer Composition
Injection Molded Polypropylene with Metallic Finish
Woofer Surround
Rubber-Coated Cloth
Peak Power Handling
100 watts
RMS Power Handling
30 watts
Sensitivity
89 dB
Frequency Response
40 - 27,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-7/8"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-G4645R

Weight:

1.90lbs

Internal SKU:

tsg4645r

Internal Product ID:

90495
