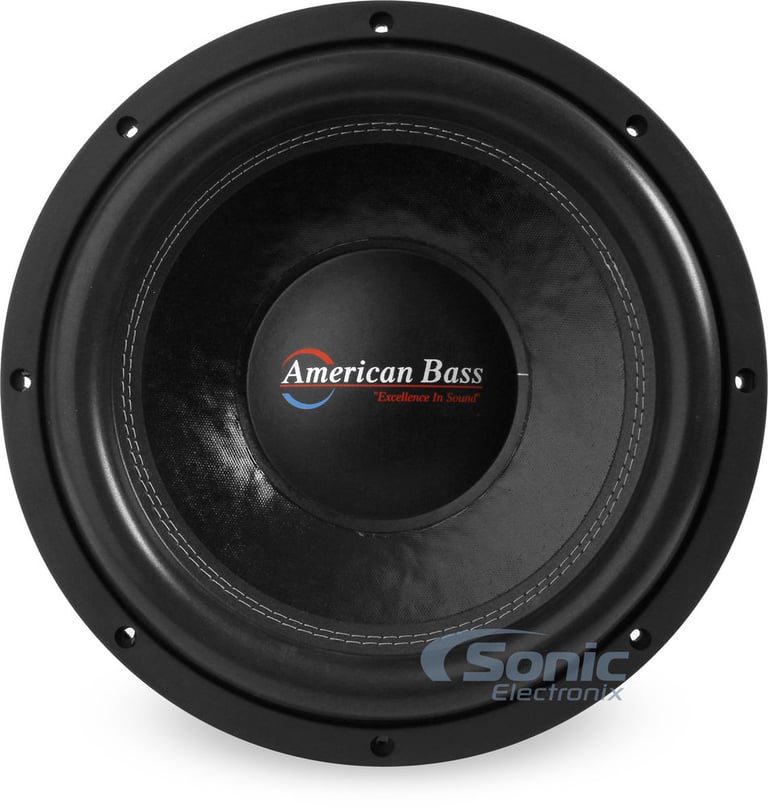

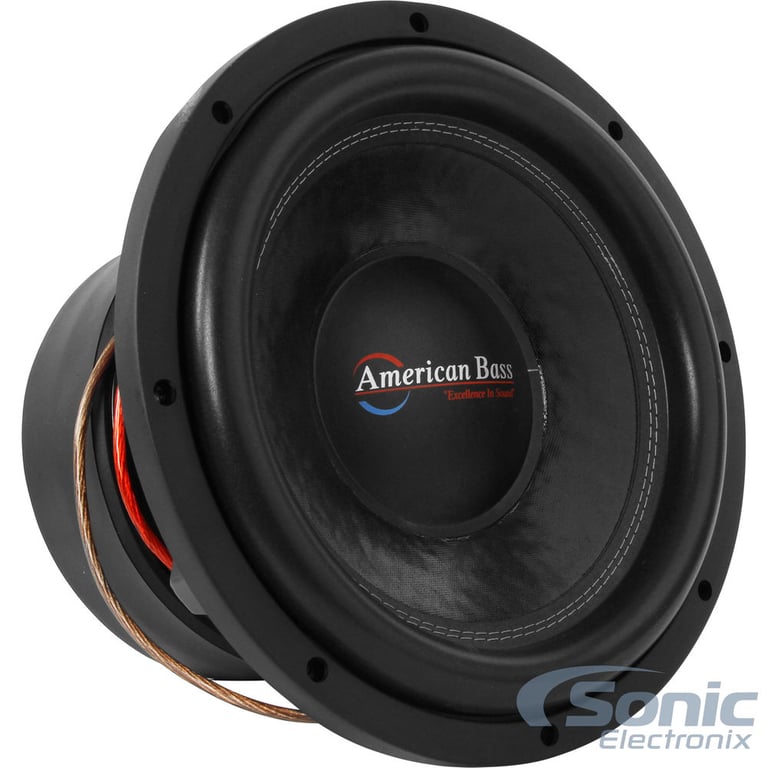

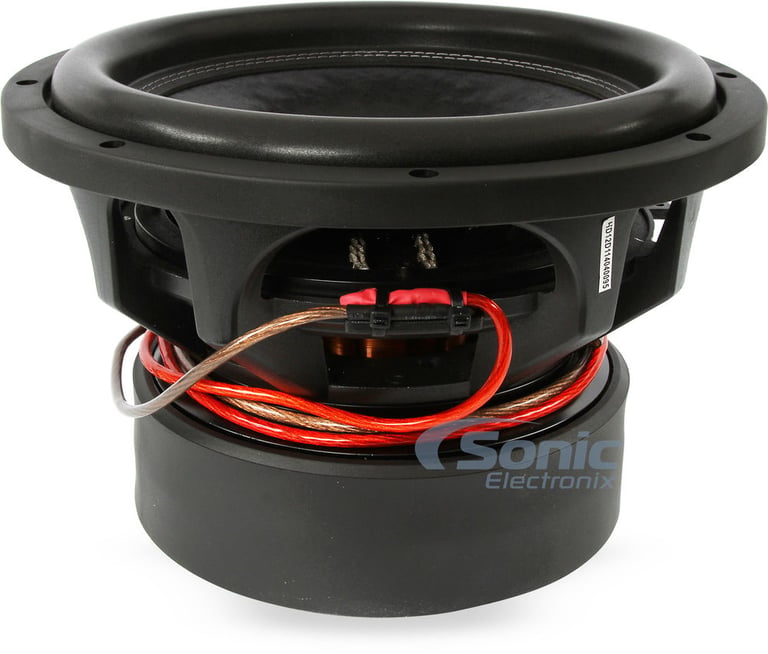

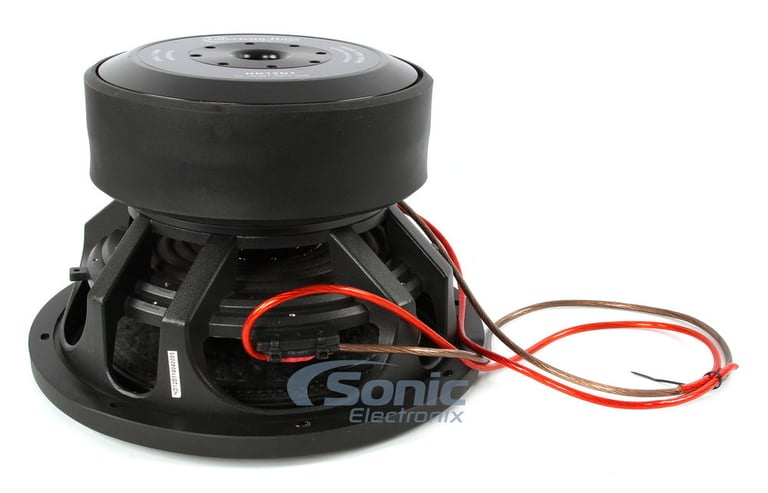

American Bass HD12D1

3000W 12" Dual 1-Ohm HD Series Car Subwoofer

Product videos
highlight-star-icon

• 1500W RMS
• 3000W Max
• Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
• High Density Foam Surround
• Cast Aluminum Basket
• 3" High Temperature Voice Coil
• Triple stacked 300 oz. Magnets

Learn more about the hd12d1

We apologize

This item has been discontinued


Loading...
Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

2
-37.71%

$299.00

List price $480.00

REF607CF main

Infinity REF607CF (INFSPKRF607CFUS)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

3
-12.00%

$219.95

List price $249.95

Product Highlights


• 1500W RMS
• 3000W Max
• Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
• High Density Foam Surround
• Cast Aluminum Basket
• 3" High Temperature Voice Coil
• Triple stacked 300 oz. Magnets

Description


American Bass brand icon

Authorized dealer

General Features:

  • 12" Dual 1-Ohm HD Series Car Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1500 watts
  • Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
  • Nt Multilayer High Density Foam Surround
  • Multi-Pieces Of New Comex Spiders
  • Cast Aluminum Basket
  • Push Terminals
  • 3" High Temperature Voice Coil With Ultra Long Windings
  • Triple stacked 300 oz. Magnets
  • Top-mount depth: 9"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Series
HD Series
Subwoofer Size
12"
Peak Power Handling
3000 watts
RMS Power Handling
1500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Voice Coil Diameter
3"
Frequency Response
15 - 250 Hz
Sensitivity
89.2 dB
Xmax (millimeters)
30 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Kevlar Woven Backed Non Press Paper
Woofer Surround
Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HD12D1

Weight:

52.60lbs

Internal SKU:

hd12d1

Internal Product ID:

90778

Product and How-to Videos


Customer Ratings & Reviews


American Bass HD12D1 thumbnail image

5 star
0%
4 star
0%
3 star
100%
2 star
0%
1 star
0%



Durability
2
Value
4
Features
5
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

Decent product

The voice coils on one came unwound with 10 minutes of playing it. The other one came unwound within 24 hours. The glue that holds the voice coils in place sucks. It's cheap. But for the 10 minutes i had them playing at 1500 watts each, they were amazing.

By Bryan on June 20, 2016 Checkmark Icon Verified purchase

5 found this helpful
