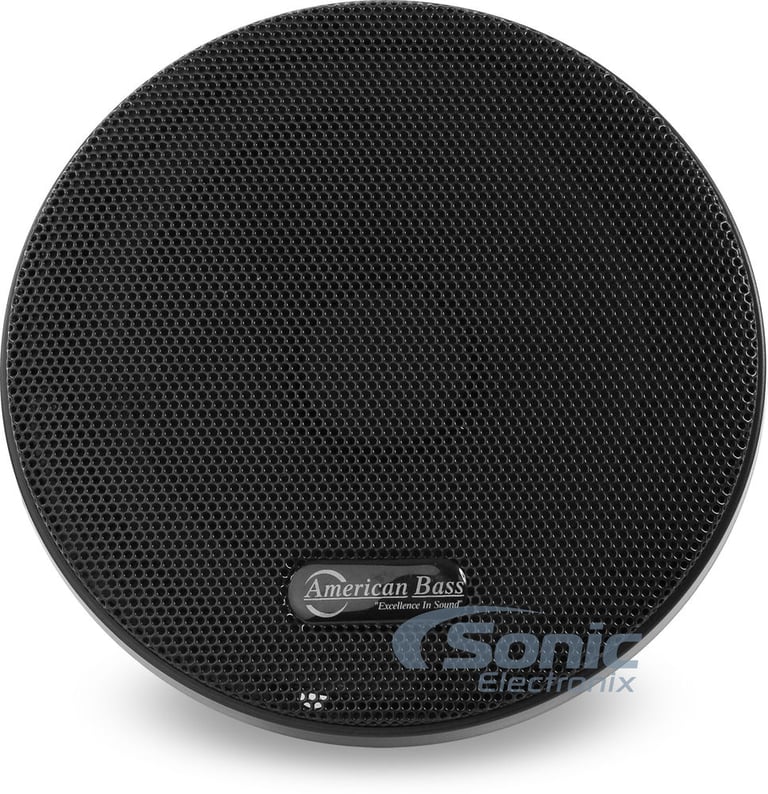

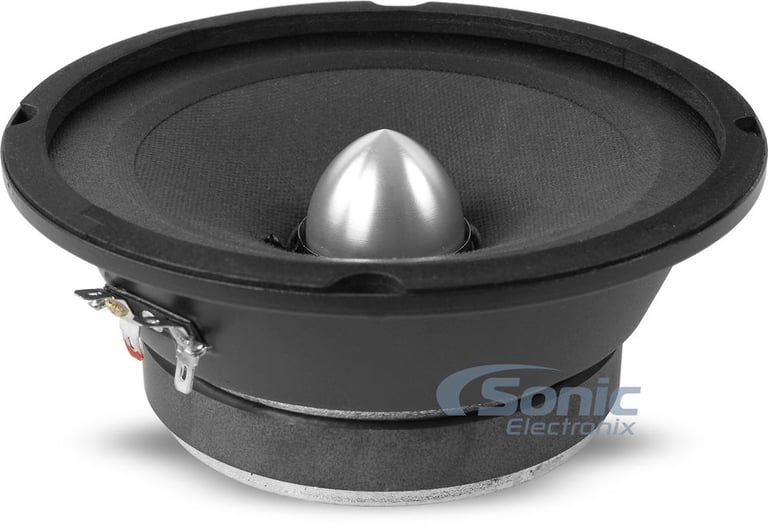

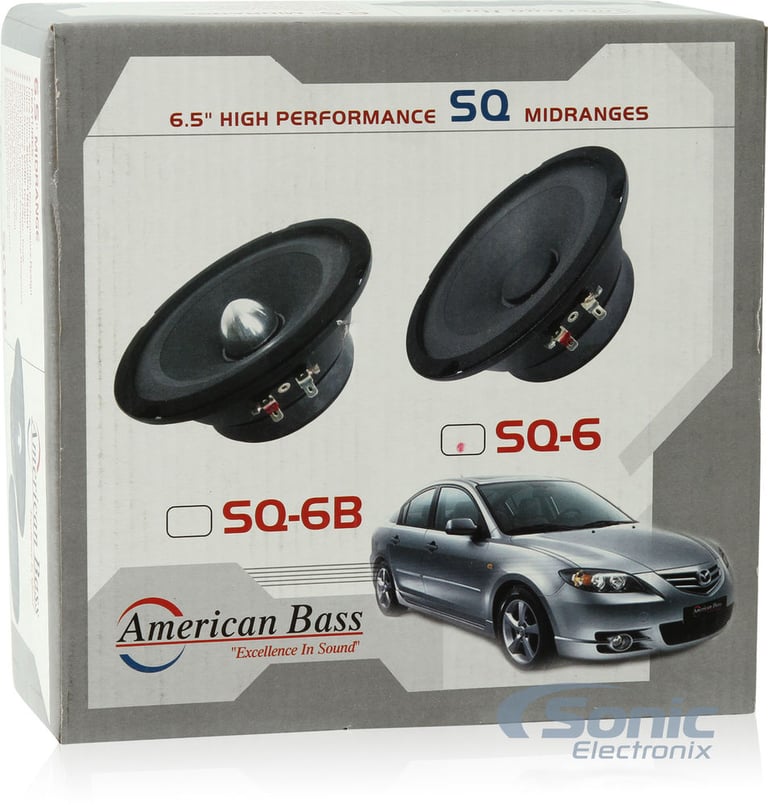

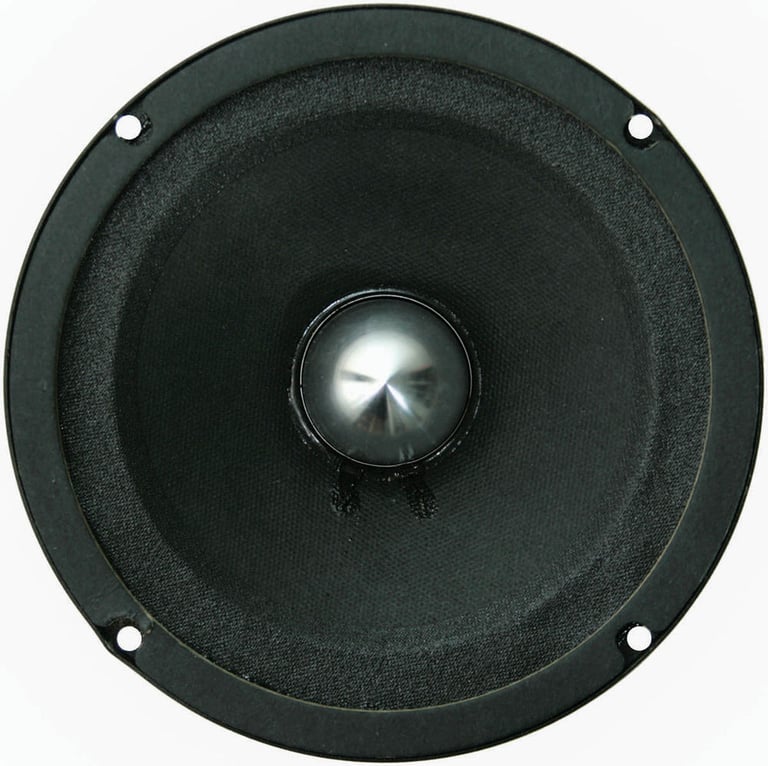

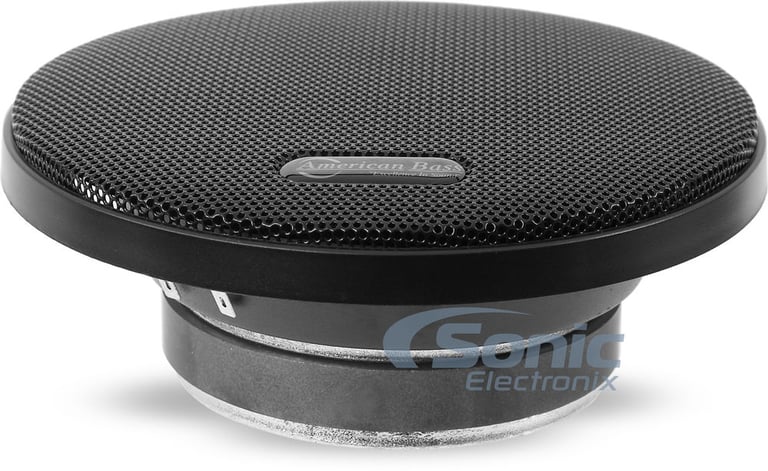

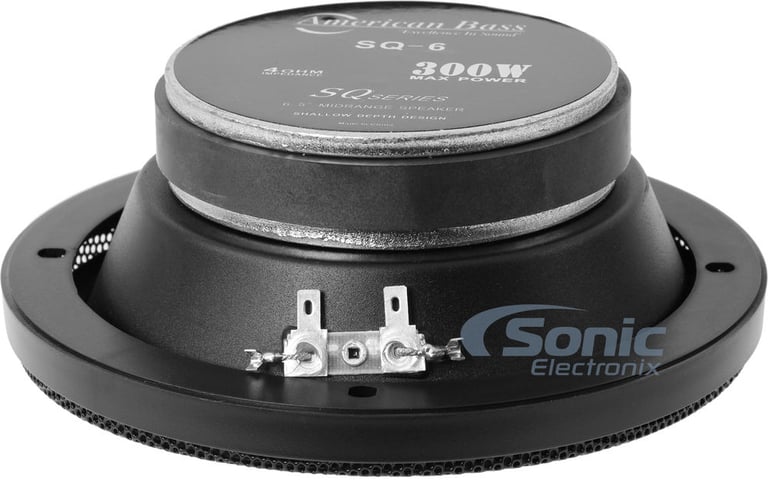

American Bass SQ6B (Sold Individually)

300W Peak (150W RMS) 6.5" SQ Series Midrange 8-ohm Speaker

highlight-star-icon

• 300 watts Peak, 150 watts RMS
• Carbon Fiber Enforced Paper cone
• Impedance: 8 ohm
• Sensitivity: 103.5 dB

Learn more about the sq6b

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
XR-1801P main

Kenwood eXcelon XR-1801P

660W Peak (240W RMS) 7" eXcelon Reference Series 2-Way 3-ohm Component Speaker System (Hi-Res Audio Certified)

-32.26%

$359.00

List price $530.00

Description


American Bass brand icon

Authorized dealer


American Bass SQ6B

AB has developed a new type of highly efficient driver aimed at delivering high levels of clean output from stock speaker locations. The SQ midrange speakers feature performance refinements like vented backplate motors, long fiber cone stock, and Kevlar cone bodies, resulting in a smooth extended frequency range. The low moving mass design, coupled with tight motor tolerance, produces ultra-fast transients and high output to keep up with any subwoofer system.


Product Details:

  • 6-1/2" SQ Series Mid-range Car Speaker
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Carbon Fiber Enforced Paper cone
  • Enhanced Cloth speaker surround
  • Solid aluminum phase plug
  • Closed back stamped steel basket
  • Includes metal mesh grill
  • 1" Voice coil
  • 13 oz. magnet motor structure
  • Top-mount Depth: 2.75"
  • Cutout Dimensions: 5.7"
  • Impedance: 8 ohm
  • Frequency Response: 300 - 10000 Hz
  • Sensitivity: 103.5 dB
  • Authorized Internet Dealer
  • MFR #: SQ6B
  • 1-year Manufacturer's Warranty

  • Priced Per Each Speaker
