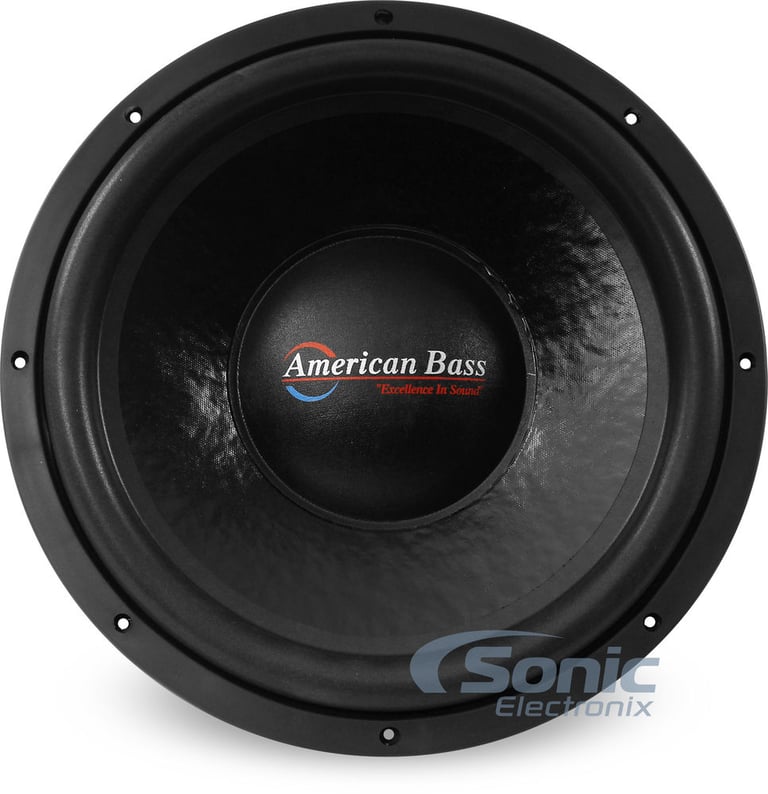

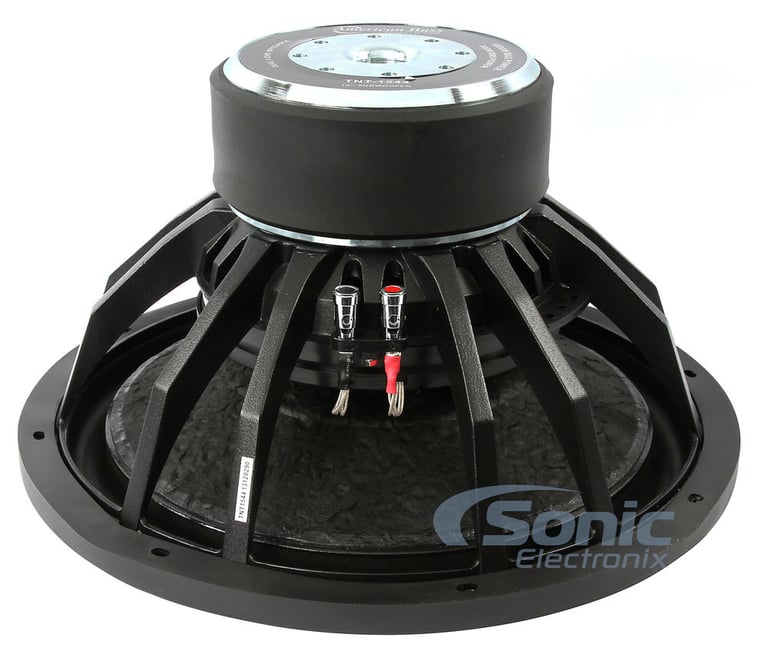

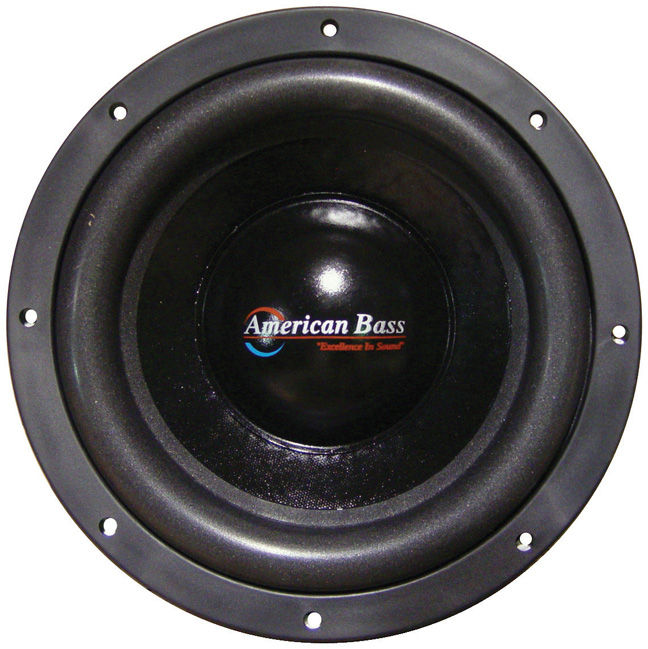

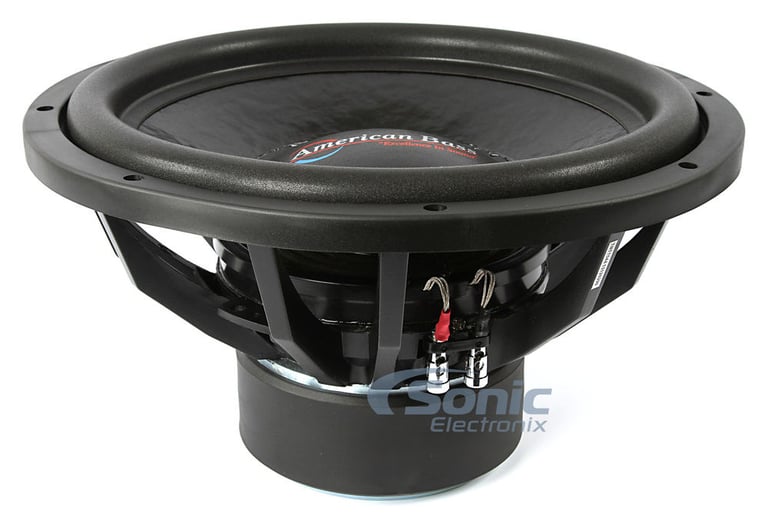

American Bass TNT1544

1600W 15" Dual 4-Ohm TNT Series Car Subwoofer

Product videos
highlight-star-icon

• 800W RMS
• 1600W Max
• Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
• High Density Foam Surround
• Cast Aluminum Basket
• 3" High Temperature Voice Coil
• Double stacked 160 oz. Magnets

Learn more about the tnt1544

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

82-8147 main

Metra 82-8147

6"-6 3/4" Speaker Adapter for select 2002-2024 vehicles from Toyota, Subaru, Lexus

7
-44.45%

$24.99

List price $44.99

82-8154 main

Metra 82-8154

6x9" Speaker Mounting Adapters for select 2012-2019 Avalon and Corolla and Camry

1
-55.18%

$11.65

List price $25.99

95-8244HG main

Metra 95-8244HG Dash Kit

Install a new Double-DIN car stereo in select 2013-2018 Avalon (High Gloss Black)

-42.11%

$32.99

List price $56.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Product Highlights


• 800W RMS
• 1600W Max
• Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
• High Density Foam Surround
• Cast Aluminum Basket
• 3" High Temperature Voice Coil
• Double stacked 160 oz. Magnets

Description


American Bass brand icon

Authorized dealer

General Features:

  • 15" Dual 4-Ohm TNT Series Car Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 800 watts
  • Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
  • Nt Multilayer High Density, Double Stitched Foam Surround
  • Conex Spiders
  • Cast Aluminum Basket
  • Push Terminals
  • 3" High Temperature Voice Coil With Ultra Long Windings
  • Double stacked 160 oz. Magnet
  • Top-mount depth: 7.6"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 American Bass TNT1544 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 American Bass TNT1544 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 American Bass TNT1544 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 American Bass TNT1544 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

Specifications & Details


Subwoofer Specifications
Series
TNT Series
Subwoofer Size
15"
Peak Power Handling
1600 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
92.6 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Kevlar Woven Backed Non Press Paper
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
7.6"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.2 Hz
Equivalent Compliance (Vas)
77.2 liters
Total Speaker Q Value (Qts)
0.549
Electrical Q Value (Qes)
0.633
Mechanical Q Value (Qms)
4.163
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TNT1544

Weight:

31.00lbs

Internal SKU:

tnt1544

Internal Product ID:

90839

Product and How-to Videos


Customer Ratings & Reviews


American Bass TNT1544 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome subwoofer

Sturdy basket, really stiff suspension, thick surround, nice size motor structure, very rigid cone, hit the lows and highs very very well

By Wes on February 16, 2015

33 found this helpful


best deal on site im serious man need atleast 2000 watt 1ohm just to move it in ported box out does my 2 memphis audios 15s alone!!!!!!!!!!!!

put it this way want your window to move with one speaker!!!!!!!!!!!

By dino on March 27, 2015

29 found this helpful


STUPID LOUD

Bought 1 of these and am powering with a Precision Power p1000 (725rms@2ohm but saw a video where it dyno's around 930). Amp is absolutely DINKY!!! But very, very capable!I I built a custom 4 cu. ft ported box that uses a 6" flared precision port fully extended, which tunes to around 29-30 hz. Stinger pure copper wiring kit and cheapo Kenwood x399 (4v preamp outs and 22rmsx4 for $105!!). Car is Dodge Nitro, btw. Box fills almost the entire cargo area.

It is 2 in the morning, i just finished installing all of this stuff, and went out to walmart parking lot to let it rip, so my wife wouldn't divorce me. Gain set to about a quarter, a little dash of boost, LPF around 120, subsonic off.... and i turned on some bass boosted songs i got off of youtube. Particularly Pink Floyd's Comfortably Numb. Turned volume to about 65-70%... and waited for the bass drop.

The bass hit so low, loud, and intense i thought i was going to get a nosebleed. I felt like bass was being farted down my throat. It rivaled my Kove Armageddon 15 I had back in high school. I'm back in the game 12 years later and couldn't be happier. I will continue to purchase American Bass subs in the future. Ridiculous bass, I discovered!!!

By Peepaw on February 23, 2016

18 found this helpful


Amazing Subwoofer

Had one of these moving a little bit of hair in a T line box off a Power Acoustik 1500D.

Sonic doesn't state the airspace but I sent an email and have been told by the company it is 3.5 for a ported box, in case somebody wanted to know. I plan on getting another one day.

By Garrett on October 14, 2015 Checkmark Icon Verified purchase

18 found this helpful


Magnificent subwoofers

Hate I’m doing this review after so many years after these have been discontinued. But these subwoofers HIT. I had a professional installer do my audio for me and his tuning had me falling in love with these subwoofers. These subs have been the best so far just wish they didn’t discontinue them I’d like to get me another pair.

By MacAnthony on June 2, 2024 Checkmark Icon Verified purchase

12 found this helpful




LN19C350 small

Samsung LN19C350 (LN-19C350)

19" 720p LCD Television with Wide Color Enhancer

$299.99

List price $299.99

8W7 small

JL Audio 8W7-3 Open Box

(Open Box) 8" Single 3 ohm W7 Subwoofer 8W7

$199.99

List price $499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 GMC Envoy XL

2014 Toyota Avalon

2006 Mercedes-Benz E-Class

2023 Chevrolet Corvette

1977 Buick Riviera

2022 Mercedes-Benz E-Class

1967 GMC C3500 Pickup

2006 Dodge Durango

2017 Mitsubishi Outlander

1999 Mercedes-Benz E-Class

Vehicle
Store
Delete

2000 Harley Davidson FLSTF/I Fat Boy

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
