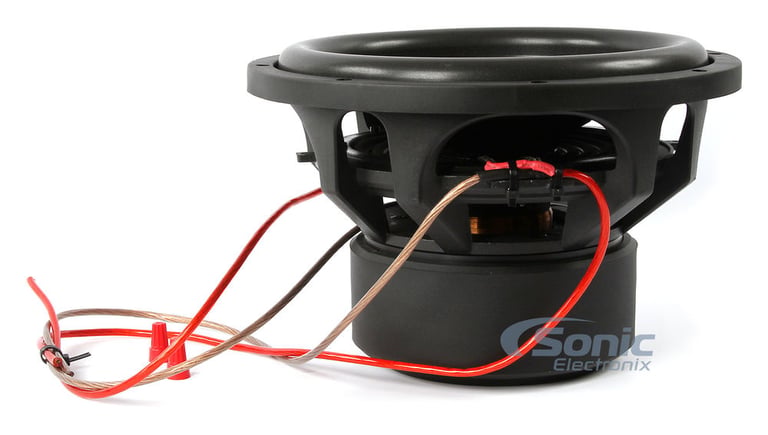

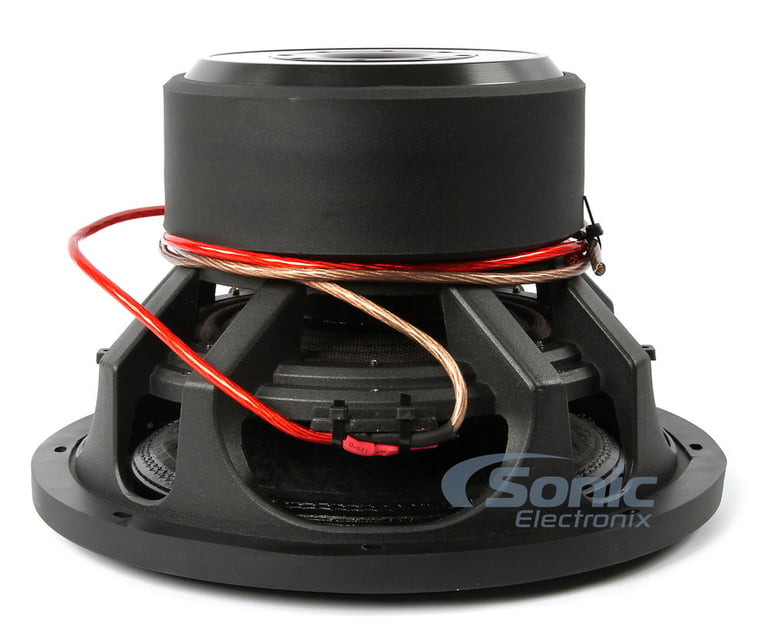

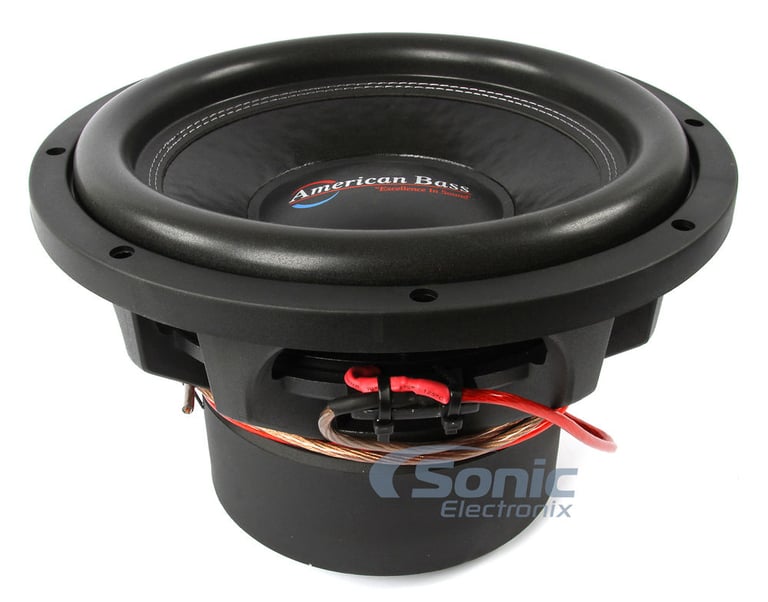

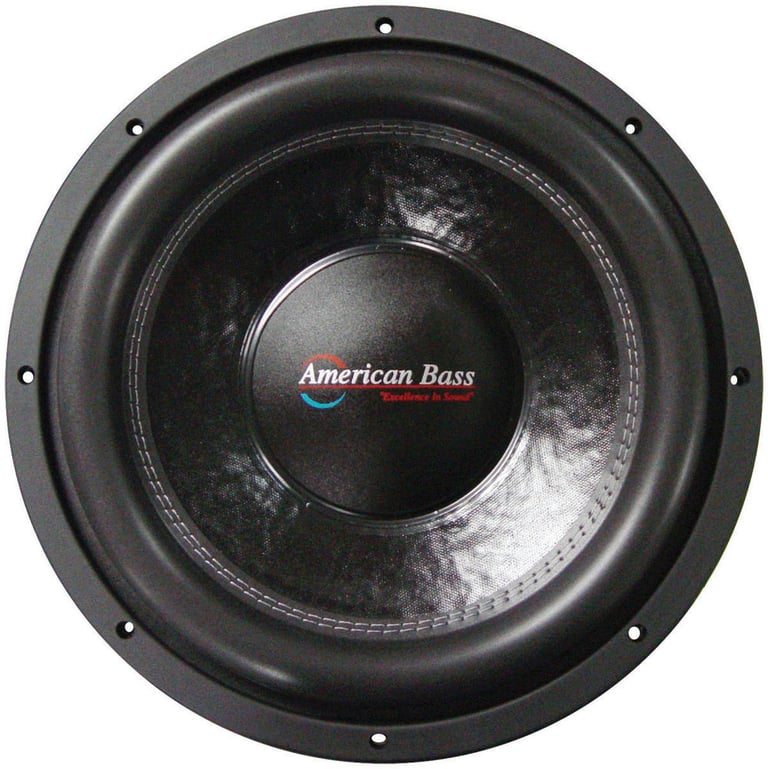

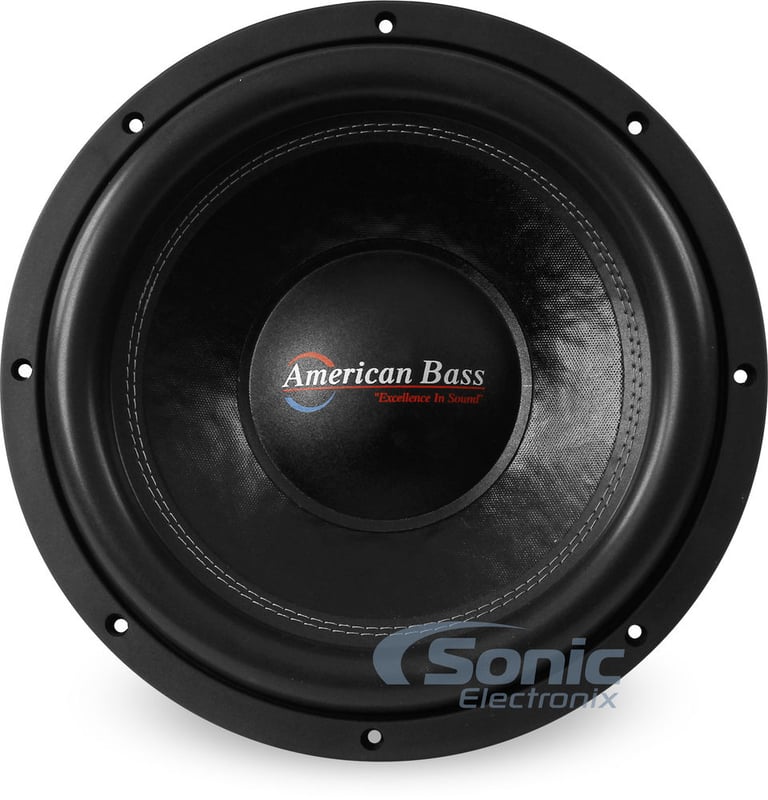

American Bass XFL1244

2000W 12" Dual 4-Ohm XFL Series Car Subwoofer

Product videos
highlight-star-icon

• 1000W RMS
• 2000W Max
• Non-Pressed Paper Cone
• High-roll Foam Surround
• Cast Aluminum Basket
• 3" Voice Coil
• 220 Oz. Magnet Motor Structure

Learn more about the xfl1244

We apologize

This item has been discontinued


Loading...
AXBUCH-GM29 main

Axxess AXBUCH-GM29

Install a New Car Stereo and Retain Backup Camera in select 2006-2017 vehicles from GMC, Chevrolet, Cadillac

1
-16.68%

$9.99

List price $11.99

Product Highlights


• 1000W RMS
• 2000W Max
• Non-Pressed Paper Cone
• High-roll Foam Surround
• Cast Aluminum Basket
• 3" Voice Coil
• 220 Oz. Magnet Motor Structure

Description


American Bass brand icon

Authorized dealer



American Bass XFL Series Subwoofers

The XFL Series accurately reproduces the best possible sound Quality in today's digital music. This specially designed subwoofer executes power and sound that leave the competition far behind. With its rock-solid structure and clean power output, American Bass' reliable XFL subwoofers will make your automobile come alive with power and sound.

General Features:

  • 12" Dual 4-Ohm XFL Series Car Subwoofer
  • Power Handling:
    • Peak: 2,000 watts
    • RMS: 1,000 watts
  • Non-Pressed Paper Cone
  • High-roll Foam Surround
  • Cast Aluminum Basket
  • 3" Voice Coil
  • 220 Oz. Magnet Motor Structure
  • Resonance Frequency (Fs): 31.9
  • Top-mount depth: 7.6"
  • Sensitivity: 89.6 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 American Bass XFL1244 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 American Bass XFL1244 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 American Bass XFL1244 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 American Bass XFL1244 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
XFL Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
15 - 250 Hz
Sensitivity
89.6 dB
Xmax (millimeters)
19 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Triple Stacked
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
7.6"
Cutout Diameter
11.22"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33.6 Hz
Equivalent Compliance (Vas)
31.9 liters
Total Speaker Q Value (Qts)
0.437
Electrical Q Value (Qes)
0.497
Mechanical Q Value (Qms)
3.826
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XFL1244

Weight:

37.20lbs

Internal SKU:

xfl1244

Internal Product ID:

90871
