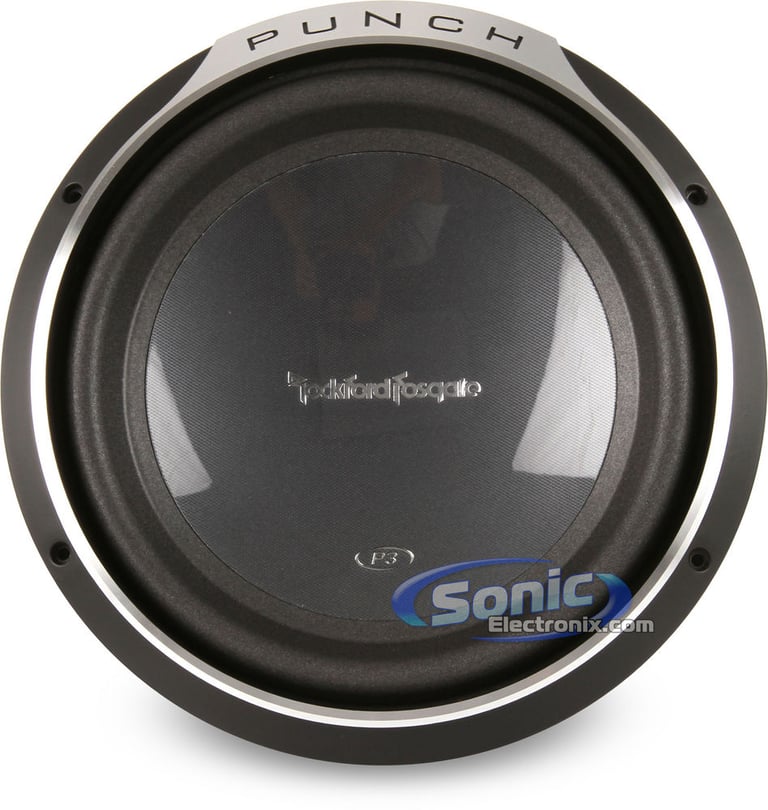

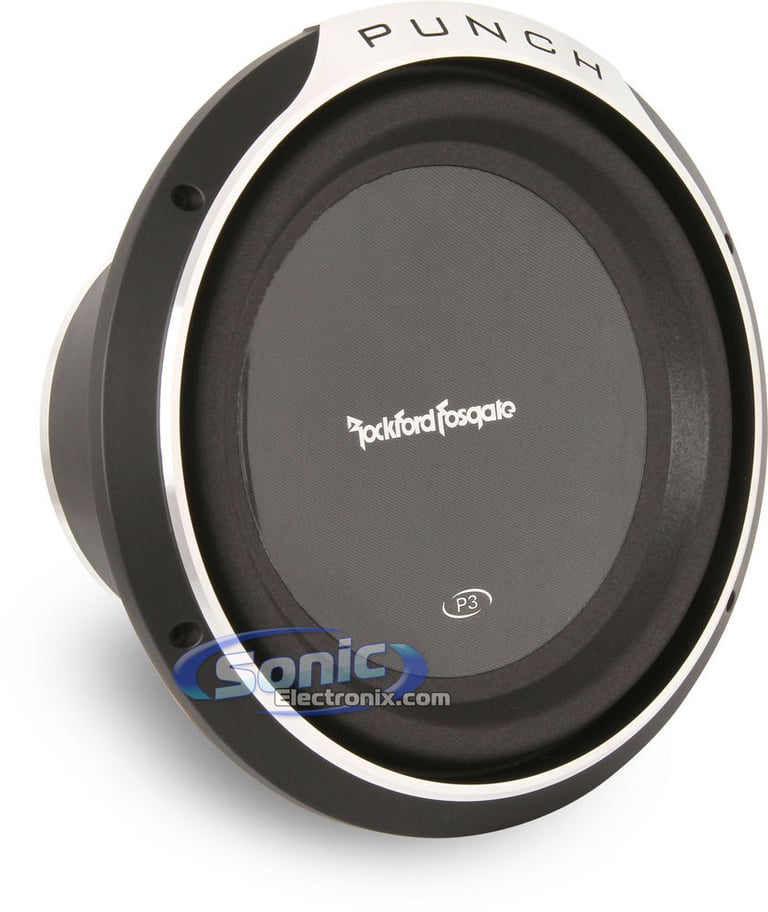

Rockford Fosgate P3D212 (09P3D212)

12" Dual 2 ohm Punch Stage 3 Series Car Subwoofer

Product videos
highlight-star-icon

12" Dual 2 Ohm Punch Stage 3 Subwoofer • 1000W Max • 500W RMS • Kevlar Fiber Cone • Poly-Ether-Ester Surround • 2.5" 4-Layer High-Temp Dual Voice Coil • Double Stacked Ferrite Magnet Structure

Learn more about the 09-p3d212_DiscoSku

We apologize

This item has been discontinued


Loading...
AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

S2-S68 main

Alpine S2-S68

460W Peak (150W RMS) 6x8" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

3
-16.69%

$149.95

List price $180.00

XBAF68 main

NVX XBAF68

Universal 6x8" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

12
-26.68%

$21.99

List price $29.99

Product Highlights


12" Dual 2 Ohm Punch Stage 3 Subwoofer • 1000W Max • 500W RMS • Kevlar Fiber Cone • Poly-Ether-Ester Surround • 2.5" 4-Layer High-Temp Dual Voice Coil • Double Stacked Ferrite Magnet Structure

Description


Rockford Fosgate brand icon

Authorized dealer

It's Called PUNCH For A Reason

The coldest blood runs through the veins of this Rockford Fosgate subwoofer. The 12" dual 2 ohm Punch Stage 3 subwoofer gives the cold shoulder to mercy when it comes to window rattling bass and clarity. The 2.5" dual voice coil receives its power from double stacked ferrite magnets throwing around 1,000 watts of peak power in your face. These energy thirsty Punch stage 3 subwoofers have a simple request; to receive lots of power. Their Kevlar fiber semi-pressed paper cones combine light weight with high strength to dramatically improve performance. Compressed sealed high excursion Poly-ether-ester makes up this woofers surround providing a strong yet elastic connection to the cone. To keep this beast cold blooded, Rockford Fosgate uses anodized aluminum voice coil formers to provide excellent heat dissipation. This punch woofer has stitched tinsel leads that withstand extreme duty cycles, fatigue and high current that is critical to its robust design. This 12" dual 2 ohm Punch Stage 3 subwoofer gives no mercy when it comes to performance, power handling, and construction quality. Just listen, and you will understand why its called a Punch!

General Features:
  • 12" Dual 2 Ohm Rockford Fosgate Punch Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Dual 2 ohm

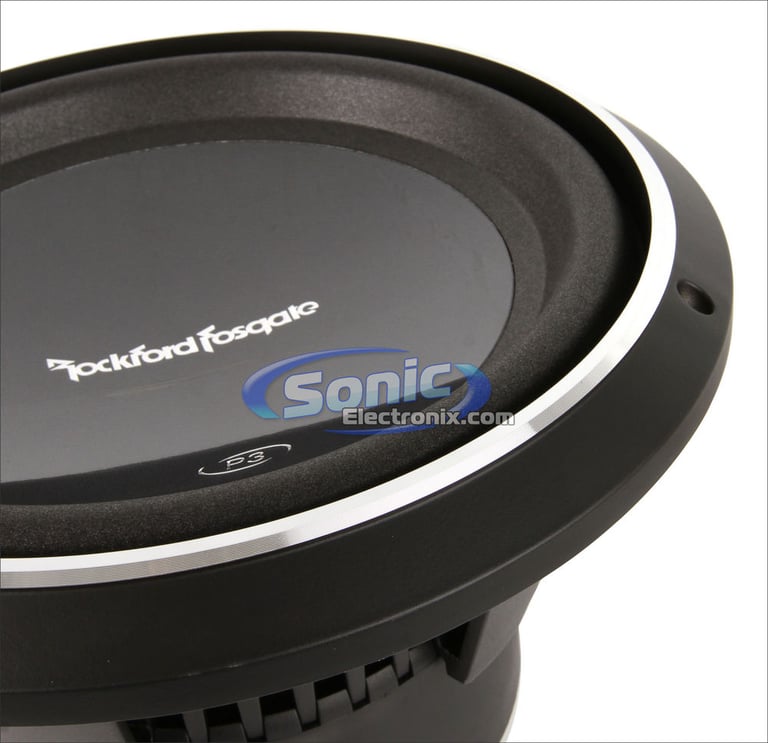

  • Kevlar Fiber reinforced semi-pressed paper cone
  • High excursion Poly-ether-ester surround
  • ABS/Acrylic dustcap assembly
  • Tear and fatigue resistant poly-cotton dual linear spider
  • Embedded 16AWG tinsel leads
  • Venturi-Effect cooling increases air speed across key thermal components of the speakers motor parts to maximize cooling
  • Reverse mountable subwoofer with reversible diamond cut cast aluminum trim ring
  • Tall profile surround allows maximum linear travel without reducing overall piston size
  • Extended pole piece and bumped backplate
  • 2.5" High temp 4-layer voice coil with spun-laced Nomex® reinforced collar
  • Anodized aluminum voice coil former quickly dissipates thermal build-up on the voice coil

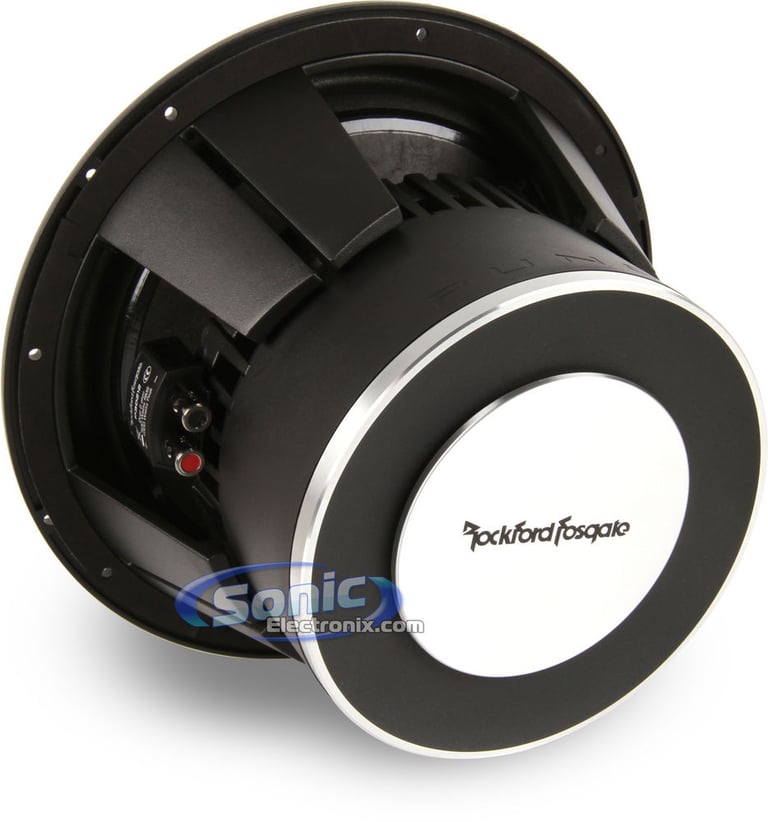

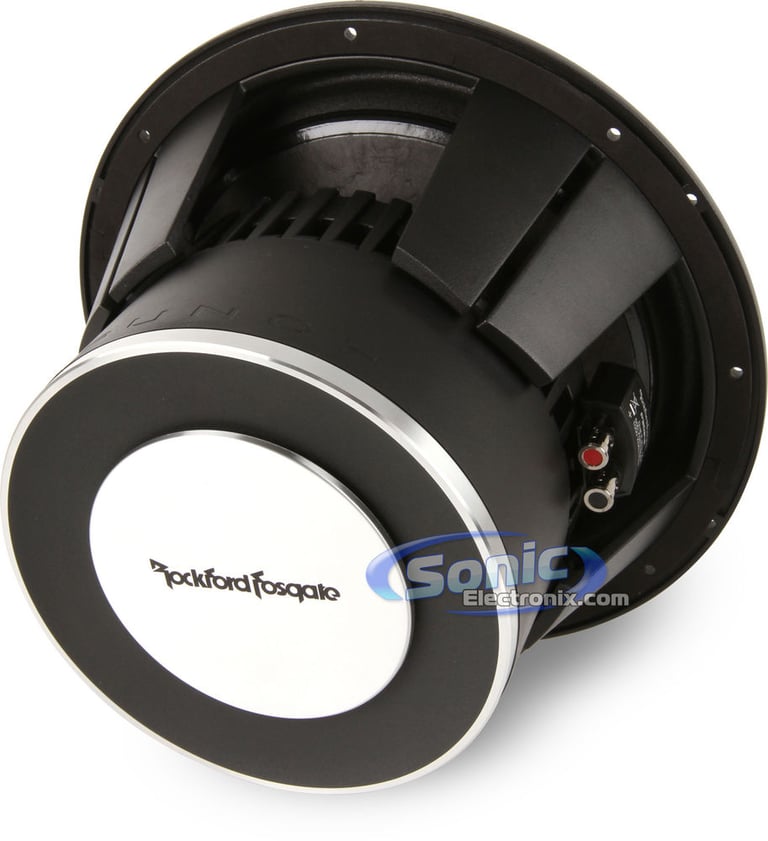

  • 102 oz. double stacked ferrite magnets
  • Protective PVC textured magnet cover
  • Dual 10AWG compression speaker connectors
  • Frequency response: 27-250 Hz
  • Sensitivity: 85 dB
  • CEA-2031 Compliant
  • 1-year Sonic Electronix.com warranty

Product history:

Rockford Fosgate P3D212 thumbnail
(newest, current model)
Rockford Fosgate P312D2 thumbnail
(previous model, replaced by Rockford Fosgate P3D212 (09P3D212))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate P3D212 (09P3D212) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate P3D212 (09P3D212) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate P3D212 (09P3D212) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate P3D212 (09P3D212) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Punch P3 Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
27 - 250 Hz
Sensitivity
84 dB
Xmax (millimeters)
16-3/16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Fiber
Woofer Surround
Poly-Ether-Ester
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.79 cubic feet
Maximum Ported Box Volume
1.79 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P3D212

Weight:

25.00lbs

Internal SKU:

09-p3d212_DiscoSku

Internal Product ID:

9104

Product and How-to Videos
