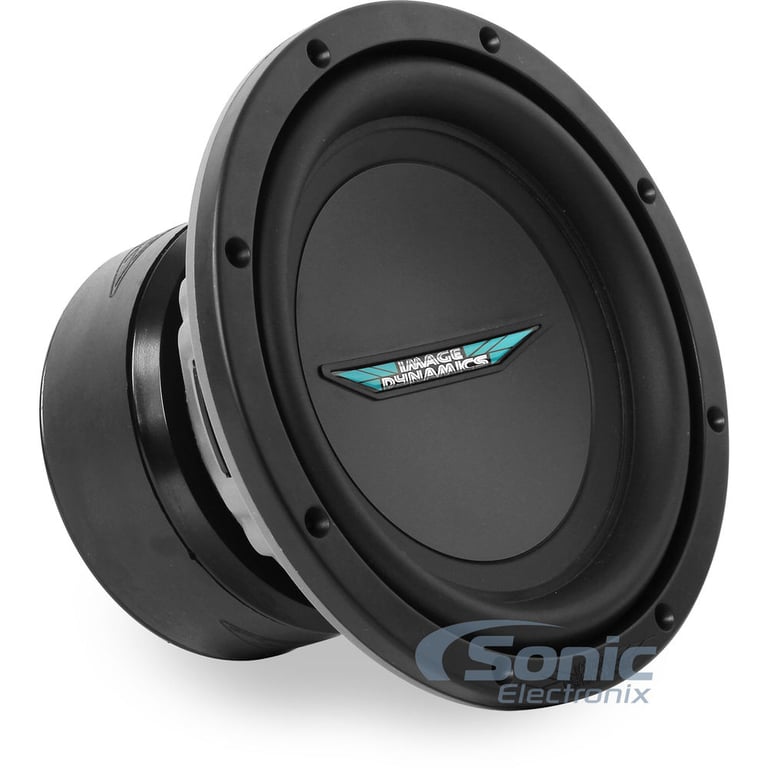

Image Dynamics IDQ8 D2 V.4

250W RMS 8" IDQ V.4 Series Dual 2 ohm Car Subwoofer

Product videos
highlight-star-icon

• RMS Power: 250W
• Mica-Reinforced Cone Woofer
• Parabolic Surround

Learn more about the idq8d2v4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Product Highlights


• RMS Power: 250W
• Mica-Reinforced Cone Woofer
• Parabolic Surround

Description


Image Dynamics brand icon

Authorized dealer

General Features:

  • 8" Dual 2 ohm IDQ V.4 Series Subwoofer
  • Power Handling:
    • RMS: 250 watts
  • Recommend power range: 100 - 250 watts RMS
  • Mica-reinforced polypropylene cone woofer
  • Parabolic roll surround
  • High-temperature aluminum voice coil
  • Top-mount depth: 4.95"
  • Cutout Diameter: 7.26"
  • Sensitivity: 82.6dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Also found as: IDQ8D2V4, IDQ8D2V.4

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDQ8 D2 V.4 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDQ8 D2 V.4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDQ8 D2 V.4 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDQ8 D2 V.4 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

Specifications & Details


Subwoofer Specifications
Series
IDQ V.4 Series
Subwoofer Size
8"
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
82.6 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Parabolic Roll
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.73 cubic feet
Optimum Ported Box Volume
1 cubic feet
Top-Mount Depth (Mounting Depth)
4.95"
Cutout Diameter
7.26"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31.1 Hz
Equivalent Compliance (Vas)
15.20 liters
Total Speaker Q Value (Qts)
.48
Electrical Q Value (Qes)
.66
Electrical Resistance of Voice Coil (Re)
1.85 ohm
Mechanical Q Value (Qms)
1.80
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDQ8 D2 V.4

Weight:

13.00lbs

Internal SKU:

idq8d2v4

Internal Product ID:

91603

Product and How-to Videos


Customer Ratings & Reviews


Image Dynamics IDQ8 D2 V.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.5
Features
5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Absolutely stunning performance.

Running 2 in a vented box .86cf per sub tuned to 35 hz. The performance is down right stunning when you realize it's just 8s. It did take a while to tune, but all around amazing sound quality from a little package.

By Larry on November 1, 2015

13 found this helpful


Great sound quality

It has Fantastic sound and build quality for an 8" subwoofer. I have it in a single cubic foot ported box and it has great sound quality and still plays loud as well. It has plenty of bass for smaller SUVs like my Jeep Patriot. It's quality was quite surprising and impressive. Image dynamics definitely makes a great product.

By B on December 26, 2016
