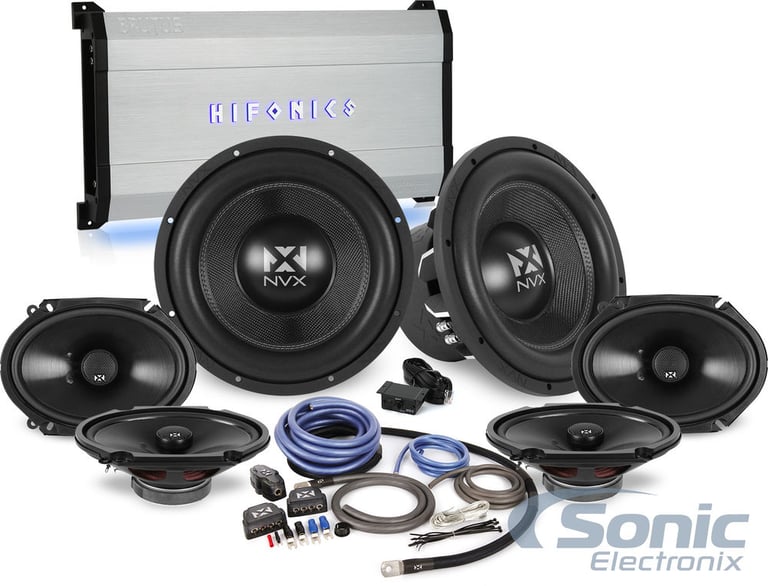

The Ram Shaker Upgrade Kit

General Features:

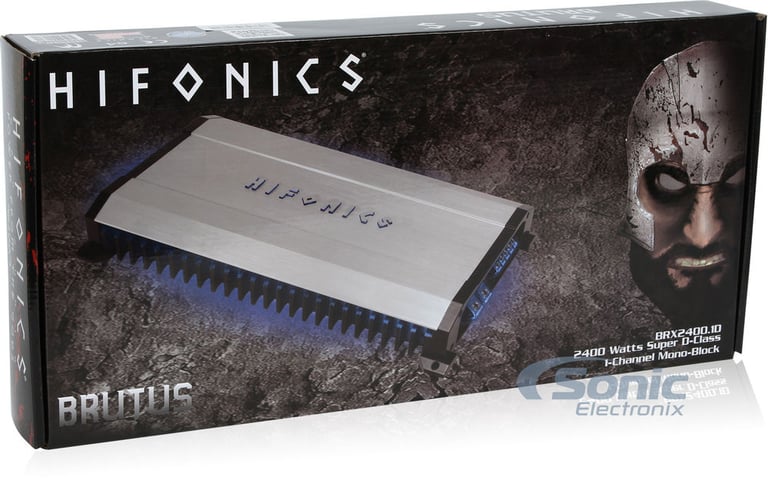

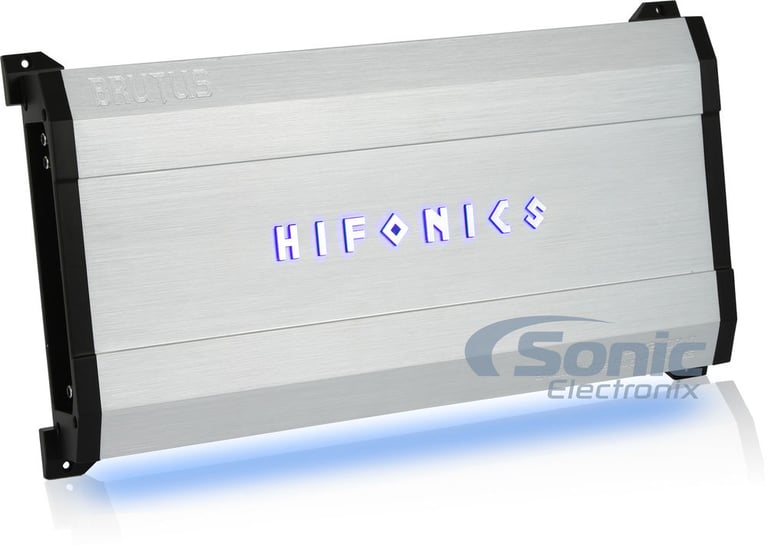

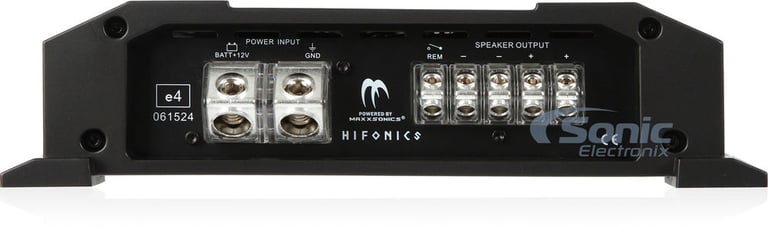

• Brutus Series Monoblock Class NextGen Super-D Car Amplifier
• RMS Power Rating (@ 14.4V):
  • 4 ohm: 850 watts x 1 chan.
  • 2 ohm: 1600 watts x 1 chan.
  • 1 ohm: 2400 watts x 1 chan.
• Ultra-Fi MOSFETS Circuit maximizing power efficiency while improving sound quality

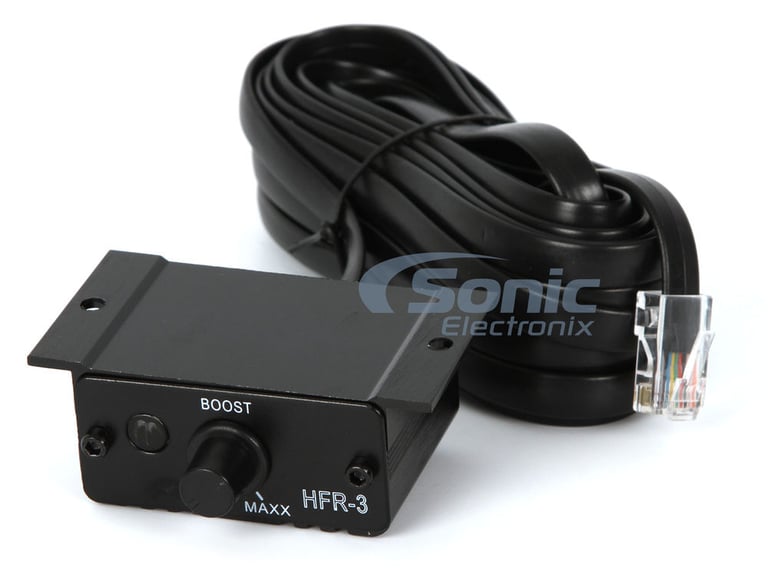

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +10 dB bass boost)
• Built-in system diagnostics
• Mono Channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

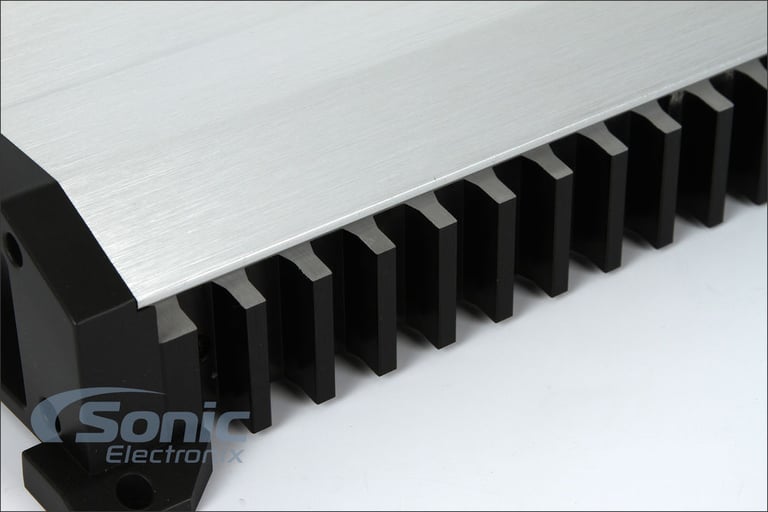

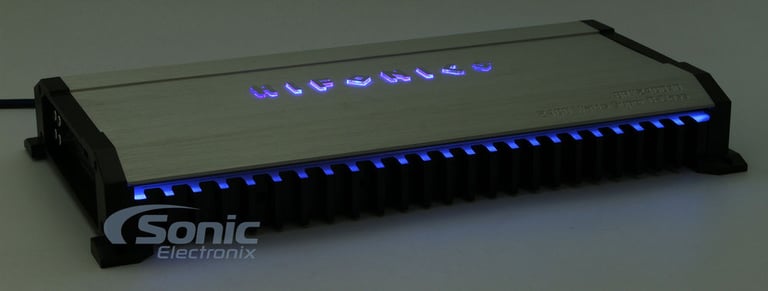

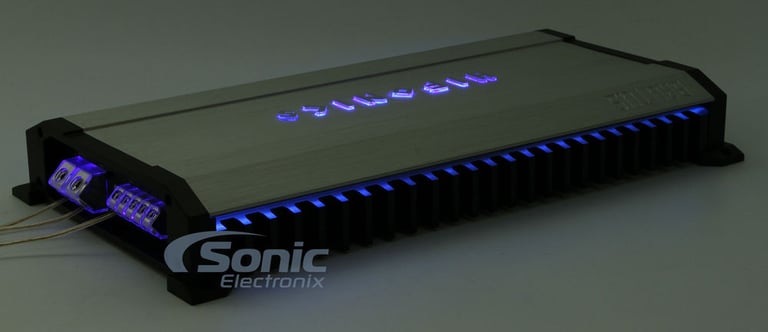

• Heavy duty aluminum alloy heat-sink with illuminated Hifonics logo
• Lighted connectors and blue wash of light from the underside of the heatsink

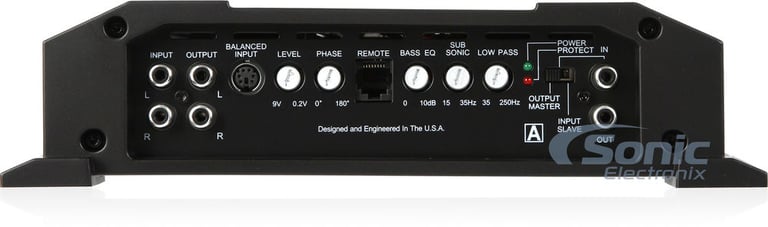

• Input sensitivity:
• Level: 200mV-9V
• Variable low-pass filter (35-250 Hz)
• Variable sub-sonic filter (15-35 Hz)
• Frequency response: 10-250 Hz
• CEA-2006 compliant amplifier
• Dimensions: 18-11/16"L x 10-5/16"W x 2-1/2"H
• 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

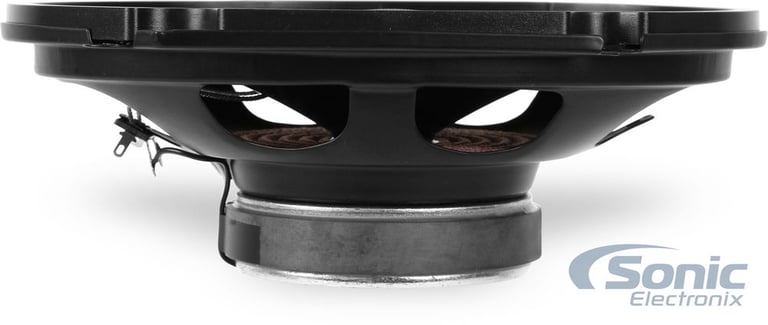

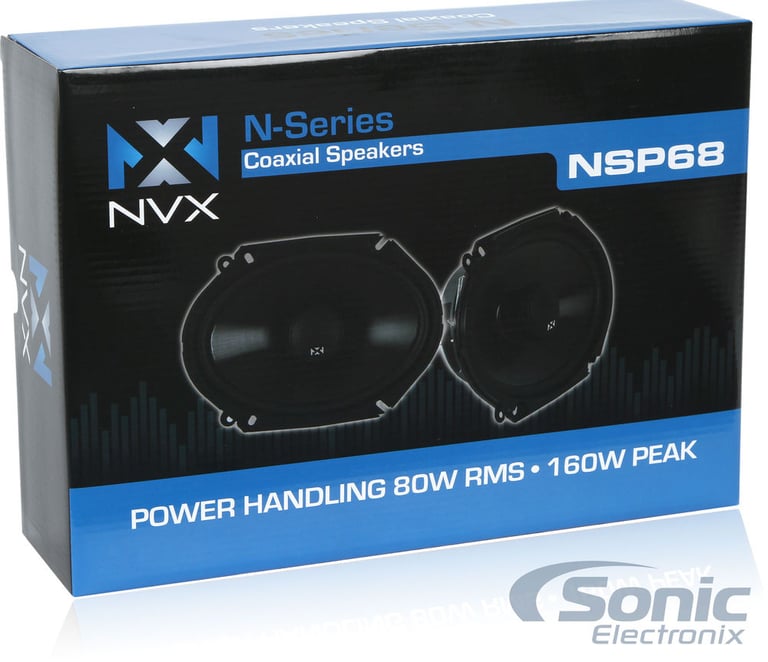

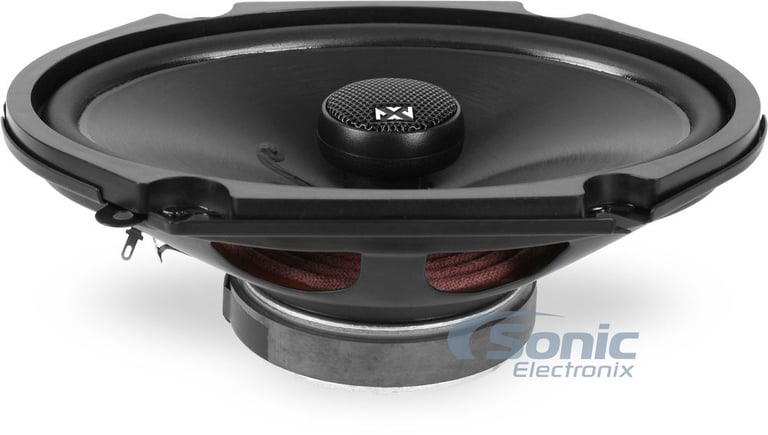

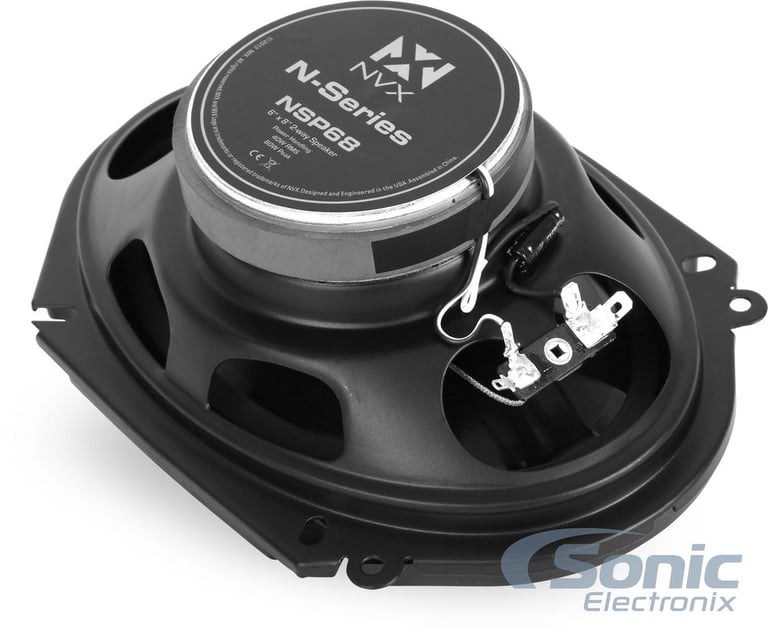

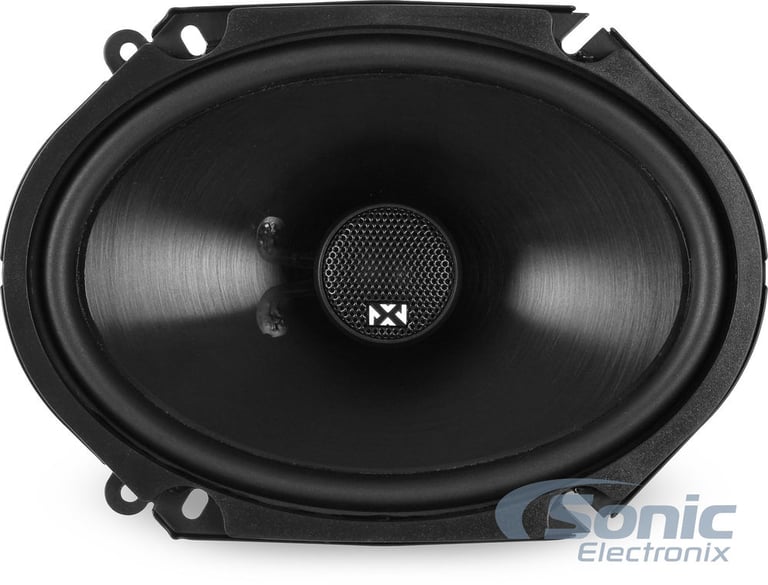

• 6" x 8" N-Series 2-Way Car Speakers
• Power Handling:
• Peak: 320 watts total / 80 watts each
• RMS: 160 watts total / 40 watts each
• Polypropylene cone material is strong, yet lightweight for accurate mid and low tone
• Nitrile Butadiene Rubber Surround supports smooth, linear movement for optimal accuracy

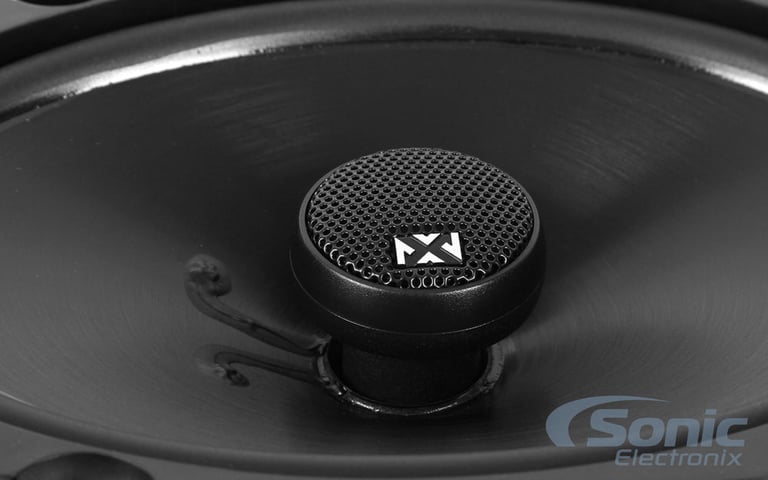

• 20mm Silk Dome Tweeter delivers rich, warm treble with remarkable clarity and definition
• High Temperature KSV Voice Coil provides superior current distribution with effective heat dissipation
• Y30 Ferrite Magnet motor structure maintains control of the driver for tight, crisp sound reproduction
• Stamped Steel Basket Provides a sturdy foundation for a durable and long-lasting speaker
• 4 ohm impedance
• CEA-2031 compliant speakers
• Frequency response: 70-20,000 Hz
• Top-mount depth: 2-5/8"
• Sensitivity: 88dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

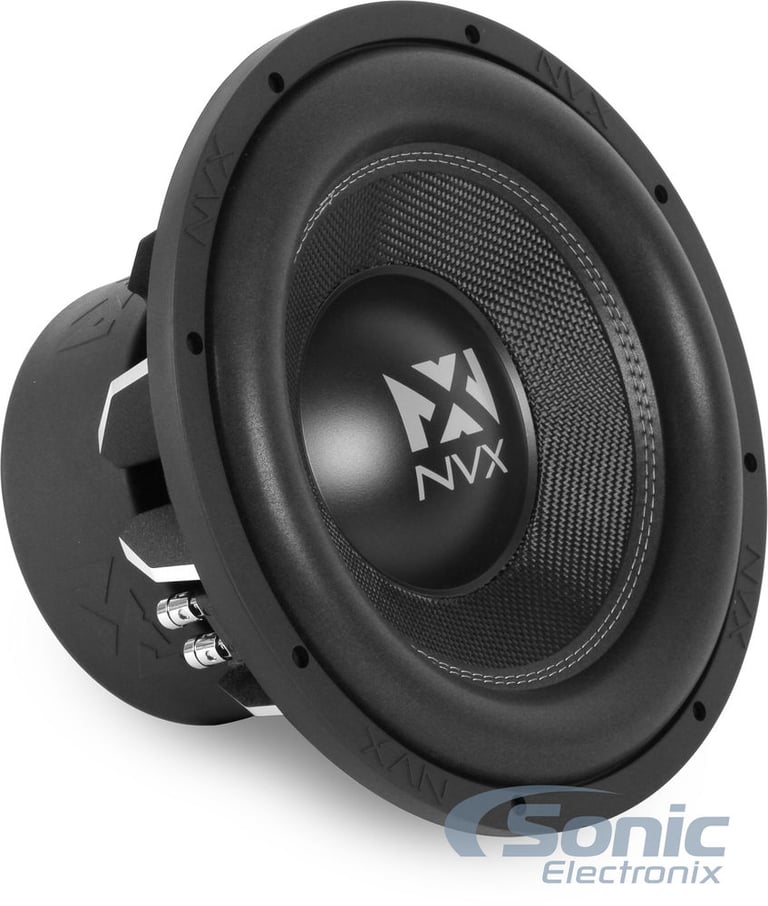

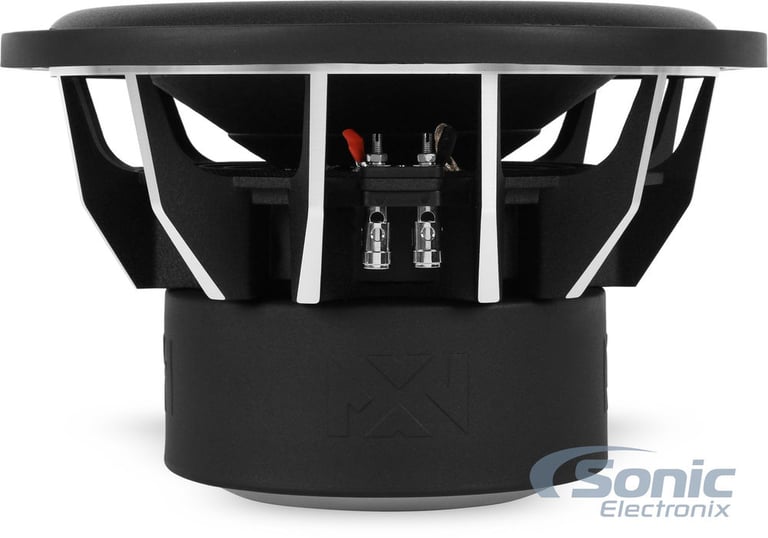

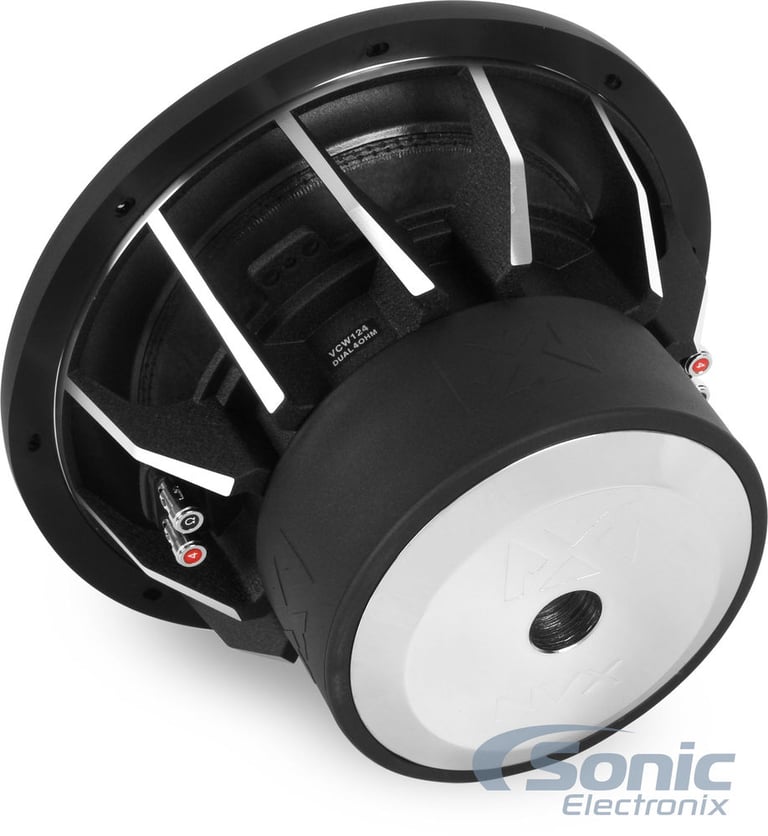

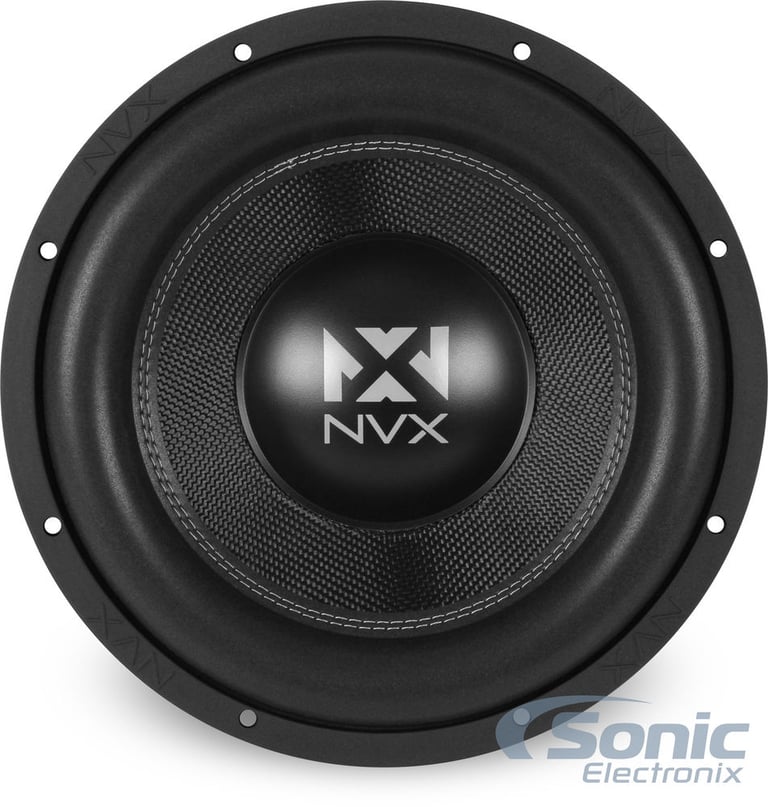

• 12" Dual 4-ohm VC-Series Car Subwoofer
• Power Handling:
• RMS Power Range: 1700-2000 watts total / 850-1000 watts each

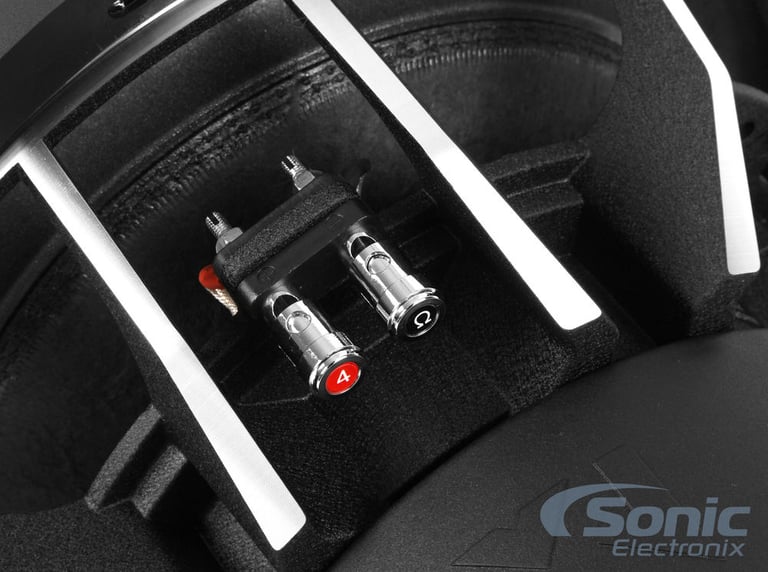

• Impedance: Dual 4 ohm

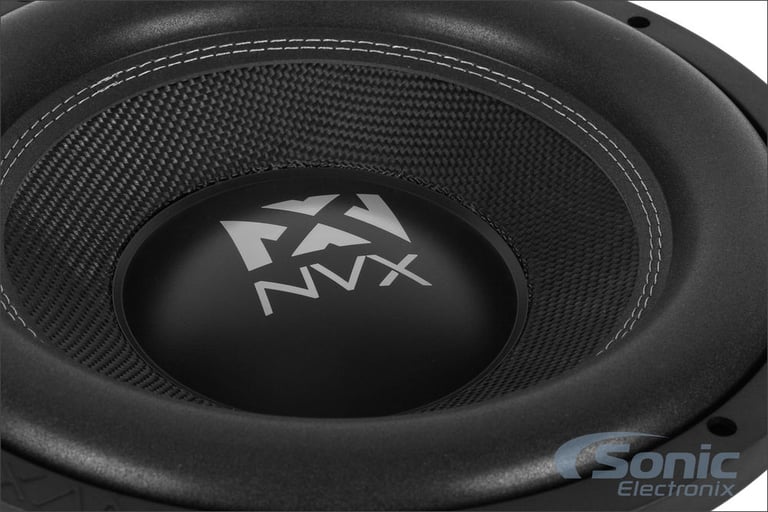

• Woven fiber pressed paper cone
• Custom High Roll foam surround with Nylon stitching
• Die Cast aluminum basket for maximum rigidity
• Dual Poly-Cotton Spiders
• 3" High Temperature Aluminum Voice coil
• 195 oz. Triple stacked High Energy magnet motor structure with protective rubber boot
• Frequency response: 20-220 Hz
• Resonance Frequency (Fs): 23.6 Hz
• Optimal sealed box volume: 0.75 cubic feet tuned at 40 Hz
• Optimal ported box volume: 1.25 cubic feet tuned at 34 Hz
• Top-mount depth: 7"
• Sensitivity: 85dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

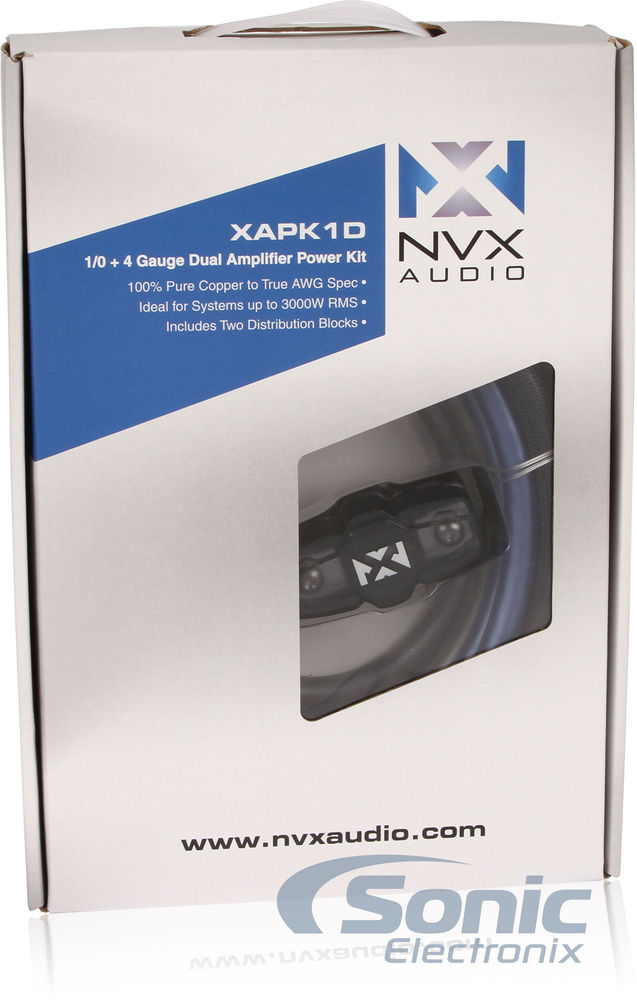

Amplifier Kit Features:

• 1/0 Gauge Dual Amplifier Installation Wiring Kit for 1 or 2 amplifiers
• Designed specifically for car audio systems over 1000 watts
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Brass and satin chrome ANL/Mini-ANL fuse holder offers ideal protection for high powered systems
• Two brass and satin chrome distribution blocks
• Strand Count: 4704
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

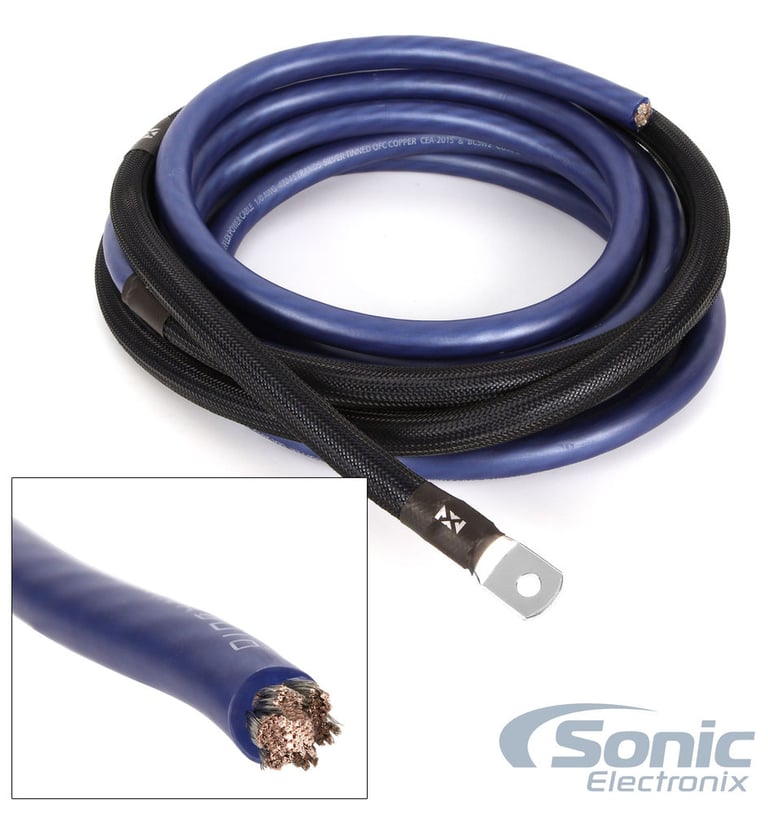

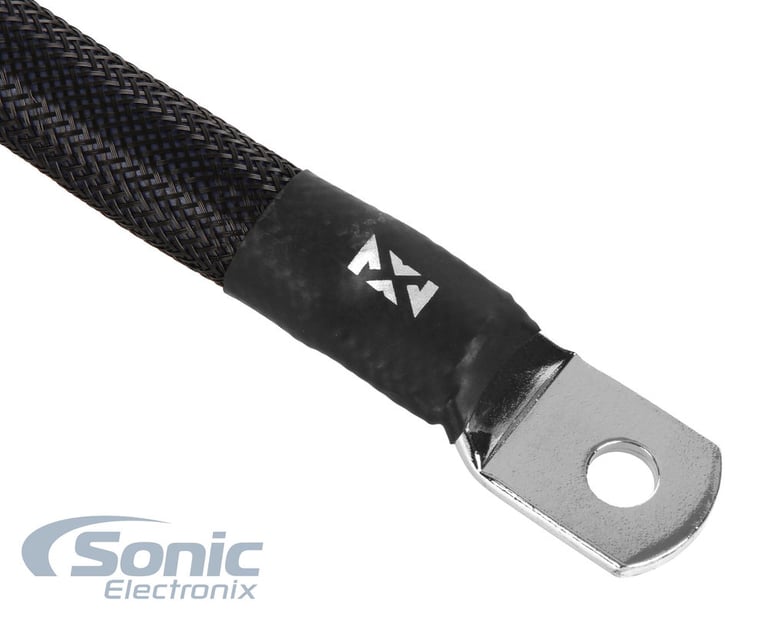

1. 20 ft. (6.1 meters) Frosted Blue 1/0 gauge main power wire with seamless crimp ring terminal

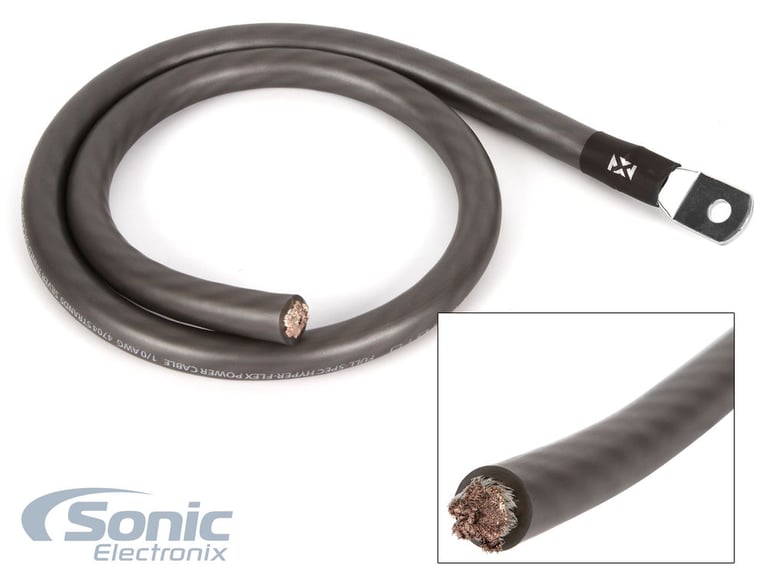

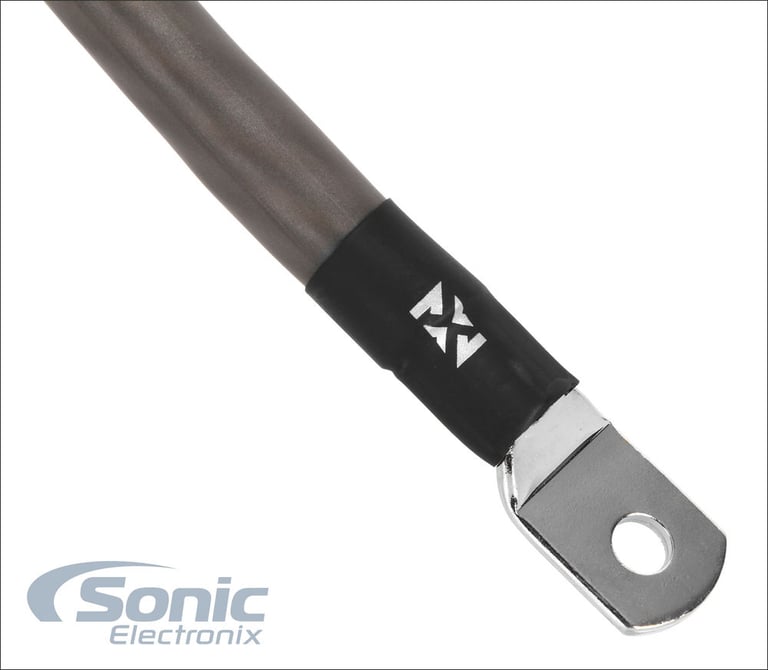

2. 3 ft. (.91 meters) Frosted Gray 1/0 gauge main ground wire with seamless crimp ring terminal

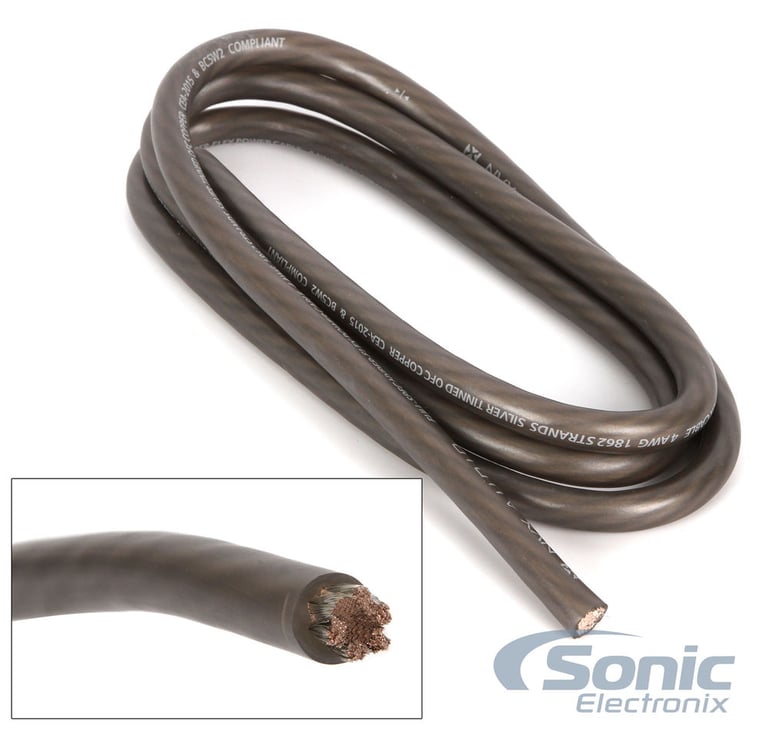

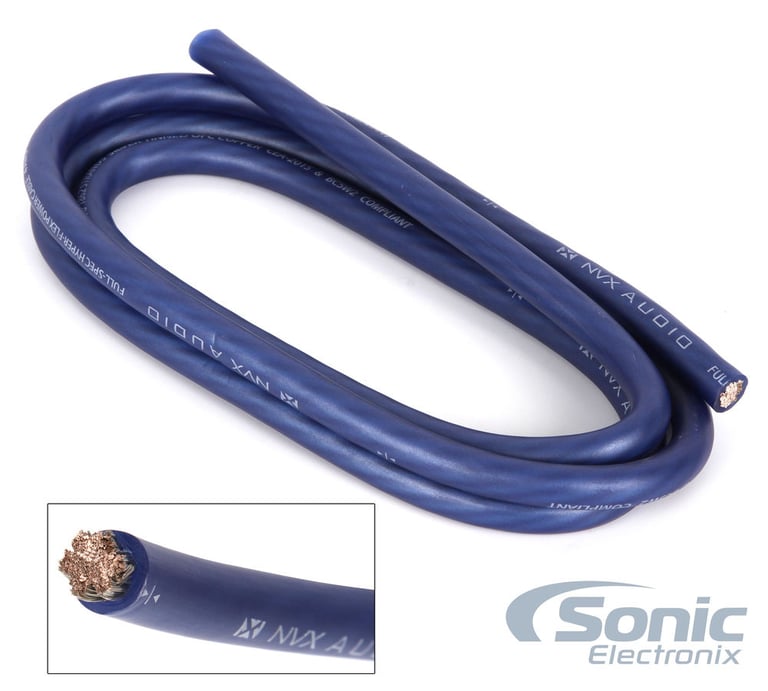

3. 5 ft. (1.52 meters) Frosted Blue 4 gauge secondary power wire
4. 5 ft. (1.52 meters) Frosted Gray 4 gauge secondary ground wire

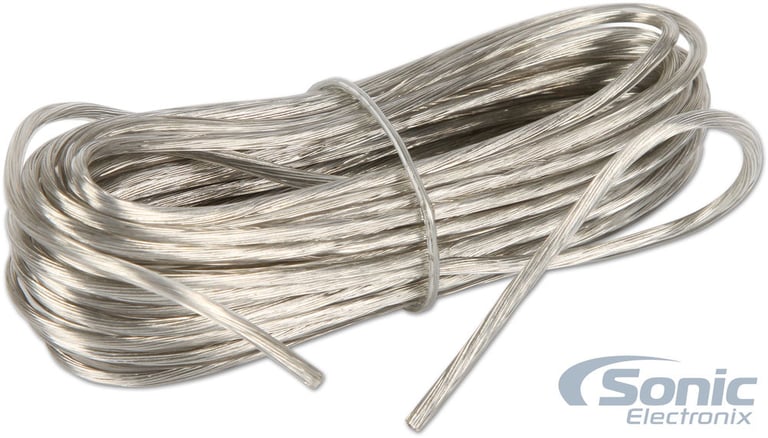

5. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

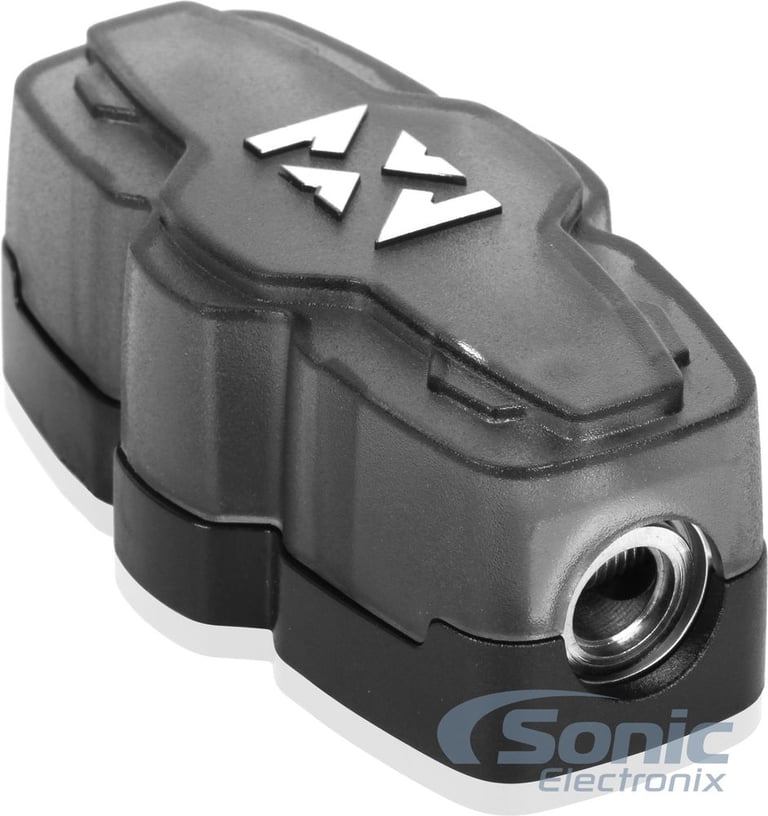

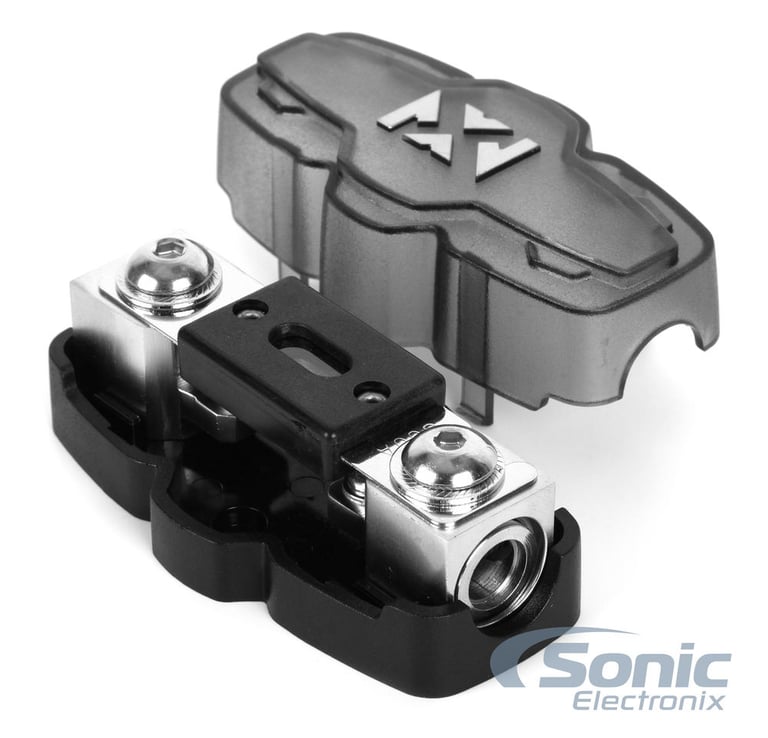

6. One NVX XMANL04 ANL/Mini-ANL fuse holder with 300 amp ANL fuse

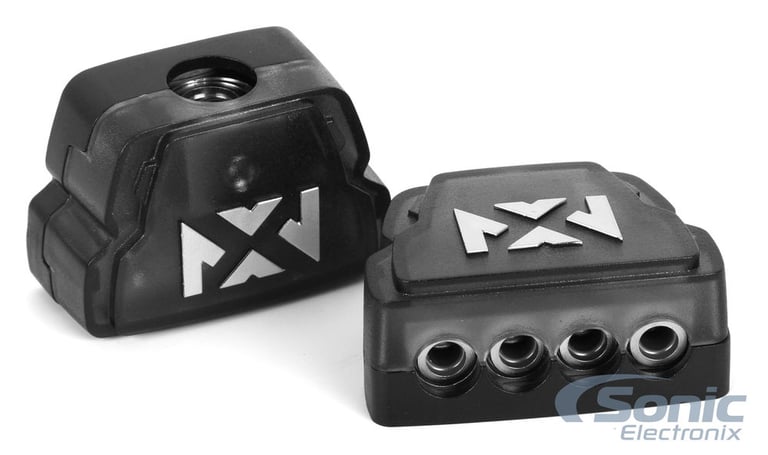

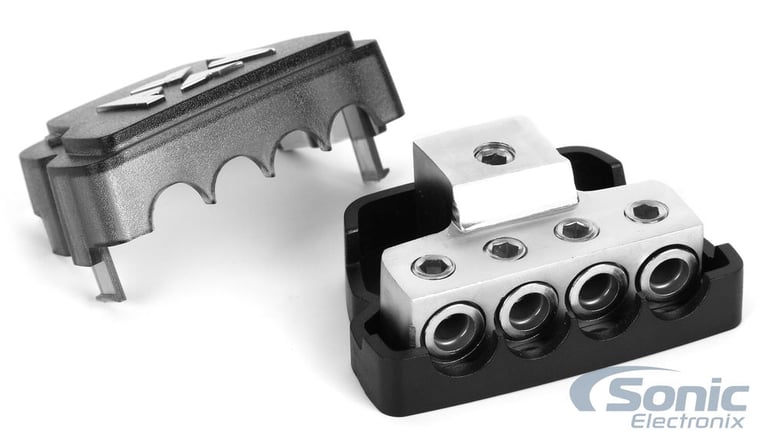

7. Two NVX XDBU4 with 1/0 gauge input, four 4/8 gauge outputs distribution blocks

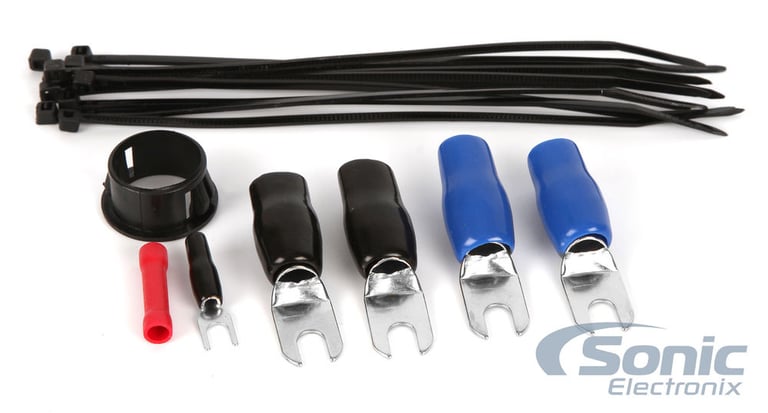

8. One 3/4" black firewall grommet
9. Two black 4 gauge nickel-plated spade terminals
10. Two blue 4 gauge nickel-plated spade terminals
11. One black 18 gauge spade terminal
12. One 18 gauge red butt connector
13. Ten 6" black zip ties
