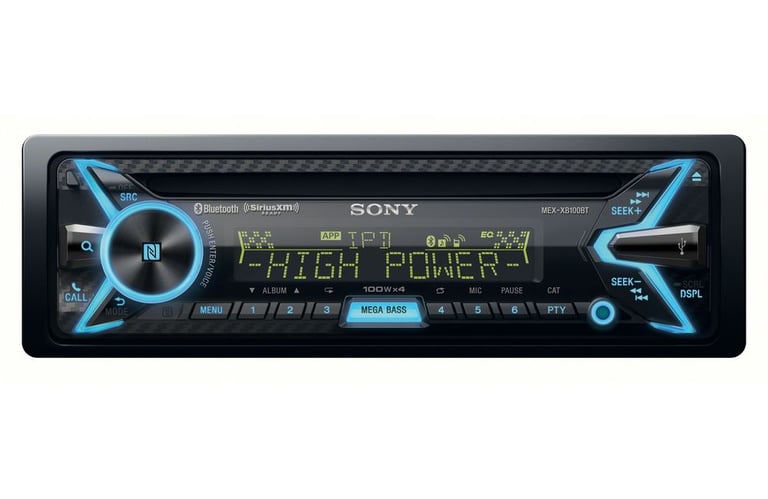

Sony MEX-XB100BT Stereo w/ Built-In 160W Amplifier!

Single DIN Hi-Power Bluetooth In-Dash CD/AM/FM/SiriusXM Ready Car Stereo with 160W RMS (CEA Rated Power) built-in 4-channel Amplifier!

Single DIN Hi-Power Bluetooth In-Dash CD/AM/FM/SiriusXM Ready Car Stereo with 160W RMS (CEA Rated Power) built-in 4-channel Amplifier!

• In-Dash Car Stereo with built-in 4-channel Amplifier
• Built-In Bluetooth with NFC
• Intelligent Mega Bass
• 10-Band Equalizer
• 3 Sets of 5V Preamp Outputs
• 100W x 4 Chan. MAX, 40W x 4 Chan. RMS

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

mexxb120bt thumbnail

Sony MEX-XB120BT

OUR PRICE: $199.99

View item

Authorized dealer

Sony MEX-XB100BT AD-1 Dyno Test
Does It Make Rated Power?

Sony MEX-XB100BT


The Sony MEX-XB100BT eliminates the need of an amplifier thanks to its built-in digital amplifier that delivers an all but unheard of 160 watts to your speakers. The Sony Subwoofer Direct Connect feature allows a rear channel to power a subwoofer, while properly filtering out harmful frequencies. The powerful internal amplifier is supported by two powerful Sony technologies for even better sound: Sony's Digital Sound Enhancement Engine and ClearAudio+™. These features were designed by Sony for the purpose of revitalizing compressed music files for more natural sound quality while also enhancing your system's bass performance and high range sound.

Sony MEX-XB100BT
DEH-X8700BS + GM-A4604
5 Volts (x3) 4 Volts (x3)
10-Bands 5-Bands
120 dB 94/95 dB
Hi-Pass & Lo-Pass
40w x 4 (RMS)
Wiring Kit
$19.54 $49.99
Full Install
~1.5 hours ~4.5 hours
Your Total
$249.53 $299.97


Sony MEX-XB100BT

The Sony MEX-XB100BT comes SiriusXm Satellite Radio ready. With the purchase of the SiriusXM Radio Package you can listen to all of your favorite SiriusXM radio stations. Additional SiriusXm subscription fees may apply.


Sony MEX-XB100BT bluetooth

The Sony MEX-XB100BT's built-in Bluetooth allows you to make hands-free calls and stream your music via A2DP audio streaming. Pairing your device has never been easier thanks to the built-in NFC, just align compatible devices and NFC logos to activate pairing. No more wires cluttering up your dash to listen to your music, or uncomfortable Bluetooth headsets required. Life just became a little easier.


Sony MEX-XB100BT Pandora

The Sony MEX-XB100BT allows the user to control Pandora Internet Radio directly for the headunit. Now you can listen to your favorite Pandora stations anytime you want using Pandora Station Creation with your Android, Blackberry or iPhone device.


Sony MEX-XB100BT Apple

If you have an Apple device such as an iPhone or iPod the Sony MEX-XB100BT has you covered. When connected to the headunit you can use to make calls and play music. You have Siri Eyes Free Control which allows for easy hands free control of your paired iPhone.


Sony MEX-XB100BT

The Sony MEX-XB100BT allows the use of Universal Steering Wheel Controllers. The user can program the aftermarket steering wheel controller to work with their vehicles steering wheel controls. This allows you to spend more time looking at the road.










General Features:

  • Sony MEX-XB100BT In-Dash Receiver with built-in 4-channel Amplifier
  • CEA-2006 compliant Class-D amplifier
  • Power Output:
    • Peak 4 ohms: 100 watts x 4 channels
    • RMS (CEA) 4 ohms: 40 watts x 4 channels
  • With this unique stereo by Sony, you can power your front and rear door speakers using the built-in amp!
  • Subwoofer Direct Connect - with this feature you ONE rear channel to generate 60 watts RMS to power a subwoofer!
    • Be sure to connect a 4- 8 ohm subwoofer to either of the rear speaker leads. Do not connect a speaker to the other rear speaker lead.
  • One-touch Bluetooth phone pairing for audio streaming using new NFC technology!
    • Use NFC to pair your phone or other device simply by touching the device to the stereo (android)
    • Stream audio with ease and precision clarity
  • USB Bluetooth Pairing for iPhone (iOS 5.0+)

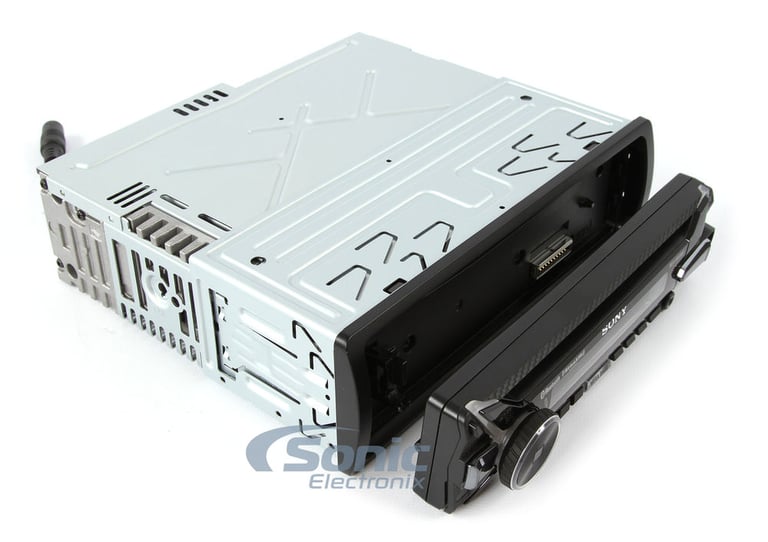

  • Detachable face plate

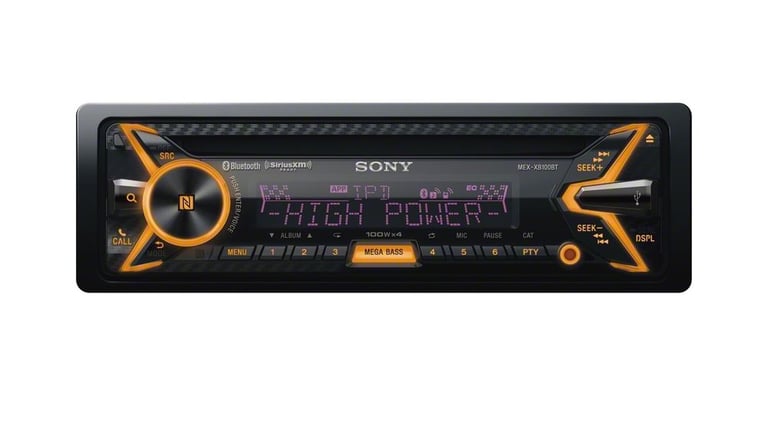

  • Variable color illumination
    • Dynamic 2 zone color illuminator
    • Sound and color synchronization
  • SongPal and Siri Control
  • USB provides 1.5 Amps of charging power

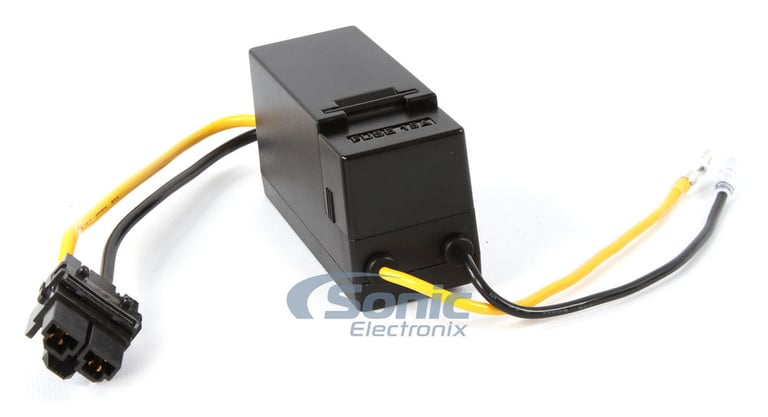

  • Wiring harness includes a compact power module
    • Delivers twice the amount of power that conventional receiver amps can
    • Compact design allows it to tuck in the dash behind the receiver
    • Sony recommends a direct to battery constant power connection for optimal performance
    • 10 - 16 Gauge OFC Power/Ground Wiring Recommended
  • Signal-to-Noise Ratio: 120 dB
  • Frequency Response: 10 - 20,000 Hz
  • Wow and Flutter : Below measurable limit
  • Remote control included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • AAV (Advanced Auto Mode) adjusts the level of all playback sources to the optimum level

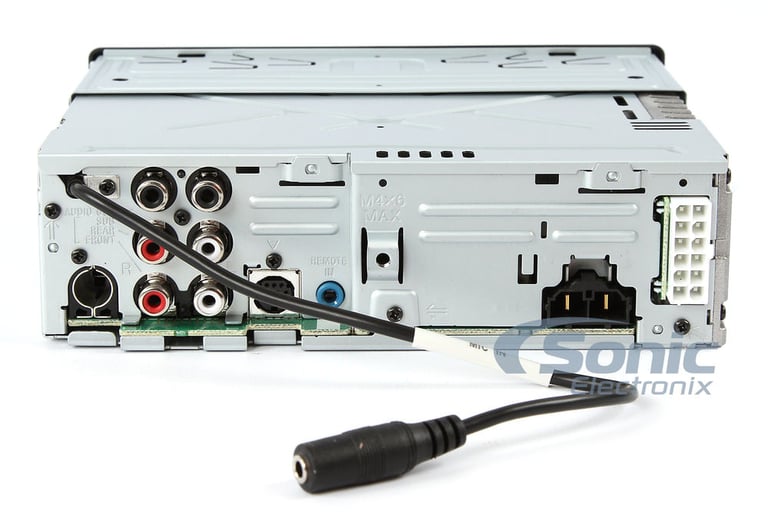

  • 3 Sets of 5V preamp outputs (front, rear and subwoofer)
  • Preout Impedance : 220 ohms
  • RDS AM/FM tuner with 18FM/12AM presets
  • iPod and iPhone Ready: Standard USB-to-iPod Cable and USB-to-Lightning Cable compatible
  • Music playback for Android devices
  • Works with Pandora
  • SongPal App system control
    • Allows you to use your smartphone or tablet as a system remote
    • Adjusts system sound and display settings, select available music sources and hear SMS, Twitter, Facebook and Calendar notifications
    • Reply to text messages with your voice via supported voice recognition
  • Quick-BroZer search function provides quick and easy music access
    • Search by artist, album, genre, song or playlist to quickly find the song you're looking for
    • Jump Mode allows you to skim through a category in 10% increments
  • DSEE and ClearAudio+™ provide outstanding sound quality
    • Digital Sound Enhancement Engine (DSEE):
      • Revitalizes and extends the audio frequencies typically lost during the compression process of audio files
      • Ensures natural sound quality
    • ClearAudio+™ renders incredibly vibrant sound with enhanced bass and crystal clear highs
      • Not available when using EQ10 or Mega Bass functions
  • 10-band equalizer EQ with +/- 6 dB adjustmen
    • 32 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4 kHz, 8 kHz and 16 kHz
  • Intelligent Mega Bass functionality
  • Digital Signal Processing features:
    • ClearAudio+
    • Time Alignment
    • DSEE
    • AAV
    • Digital High and Low Pass Filters
    • RBE
  • Front USB Input w/ Sliding Door Cover
  • 24-bit Digital to Analog Converter
  • Subwoofer direct connection
  • 3.5mm Front Audio Auxiliary Input
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Supports A2DP audio streaming
  • Works with most Bluetooth enabled cell phones
  • Includes a external wired microphone for clear, convenient talking
  • NFC pairing for Android & USB Pairing for iPhone

Expandability Options:

Recommended Configurations, Sony MEX-XB100BT+

  • Four Speakers Setup

    • Two Pair (4) of Sony XS-FB1630 6-1/2" 3-Way FB Series Coaxial Car Speakers
    • Two Pair (4) of Sony XS-FB1330 5-1/4" 3-Way FB Series Coaxial Car Speakers
    • Two Pair (4) of Sony XS-FB6930 6"x9" 3-Way FB Series Coaxial Car Speakers
    • Any Two + Two Combination From Above Selection
  • Two Speakers + Subwoofer Setup

  • Full Range Amplified Setup

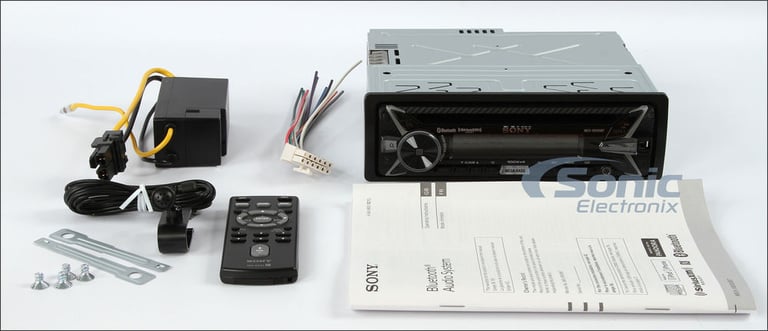

What's in the Box?

Sony MEX-XB100BT What's in the Box?

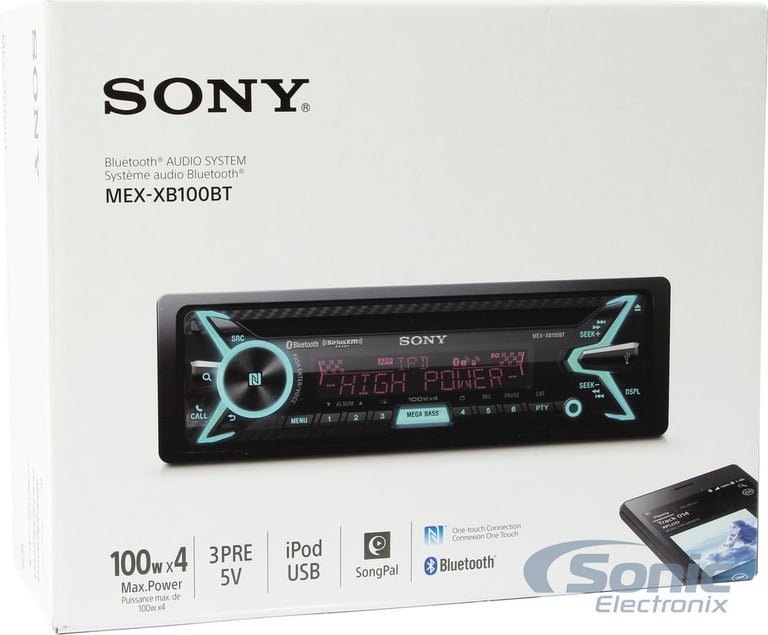

  1. Sony MEX-XB100BT Receiver

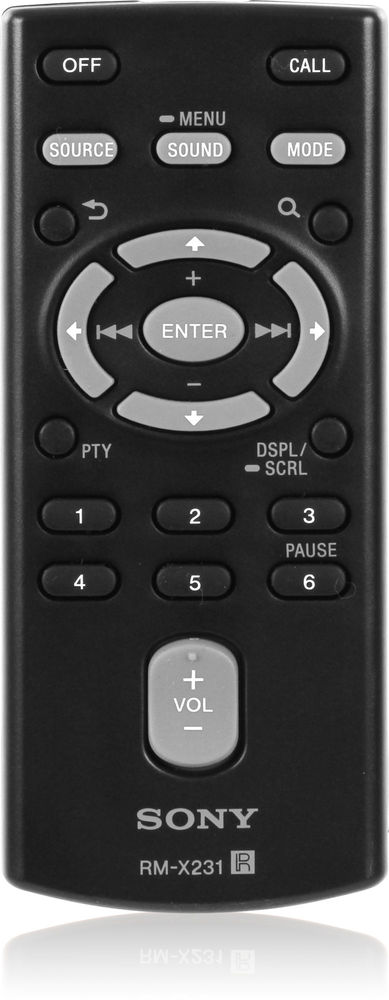

  2. Wireless Remote

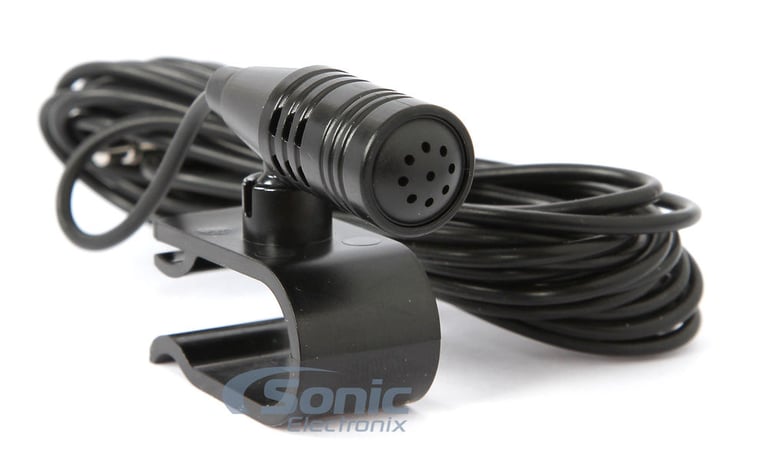

  3. External Microphone

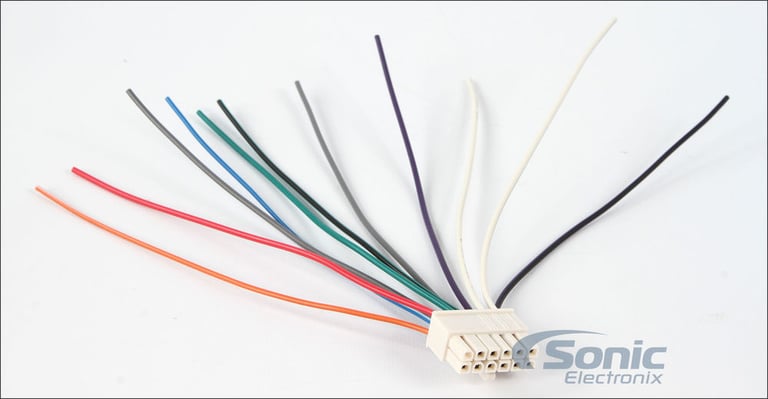

  4. Wiring Harness
  5. Power Module

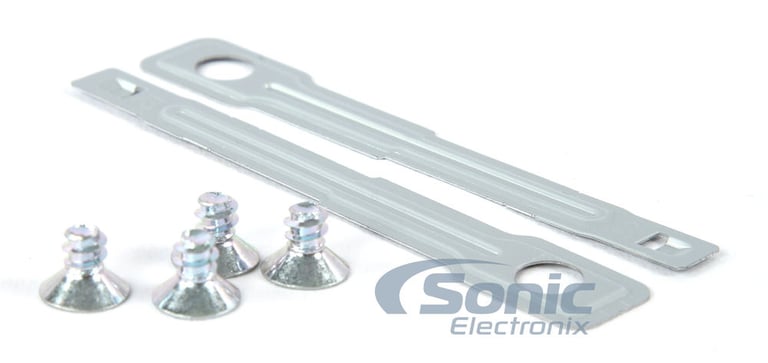

  6. Brackets
  7. User Guide

MEX-XB100BT Resources:

Check out the Sony MEX-XB100BT Owner's Manual

Bluetooth Microphone Connection Procedure, ensure you have your microphone connected properly

AAV (Advanced Auto Volume), getting lower volume between sources? Read why.

What Else Does Sony Offer?

Check out the 2015 Sony Catalog to see what else is new from Sony in 2015

¹"70 watts" is based on preliminary testing and is not a guarantee. Individual results may vary.

Note from Sony: You may need to download the latest firmware for this unit. To download the latest firmware update - Click here

Product history:

Sony MEX-XB120BT thumbnail
(newest, current model)
Sony MEX-XB100BT thumbnail
(previous model, replaced by Sony MEX-XB120BT)
Key features
Key features
In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Remote Control
Peak Power Output
100 watts x 4 channels
RMS Power Output
40 watts x 4 channels
Preamp RCA Outputs
6-channel (3 pairs)
Preamp Voltage
5 volts
Built-In Equalizer
Display Type
LCD Text Display
Display Color
Variable Colors
CD Signal-to-Noise
120 dB
Playback Features
AM/FM Tuner
FM Presets
AM Presets
Radio Data System (RDS)
CD-R/RW Playback
MP3 Playback
WMA Playback
Video playback
Video in-motion bypass
Audio / Video Inputs
USB Input
Number of Front USB Inputs
Additional Audio/Video Inputs
Front 3.5mm Audio Input
Expandability Features
Compatible Smartphones
iPhone (iOS)
Satellite Radio
SiriusXM Ready (Accessory sold separately)
HD Radio
Bluetooth Connectivity
Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included])
A2DP Music Streaming
Steering Wheel Control Compatible
Universal (Accessory required and sold separately)
  • PAC SWI-CP5: PAC ControlPRO Universal Steering Wheel Control Interface
  • Axxess ASWC-1: Axxess ASWC-1 Universal Steering Wheel Control Interface
Maestro Compatible
Rear View Camera Input
Smartphone Integration
iPhone/iPod Features
Audio Playback
Siri Control
Pandora Control
iPod Audio Integration
Yes (via iPod USB Cable or Accessory Cable Below)
Android Features
Pandora Control
Audio Playback
Android Audio Integration
Yes (via Bluetooth Connection)
What is in the box?
Product and accessories
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
