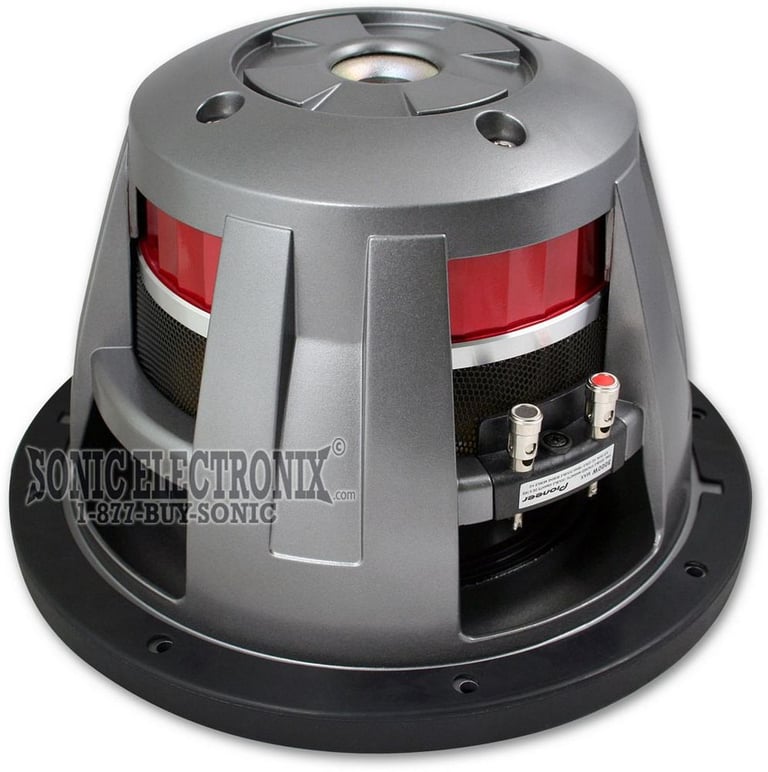

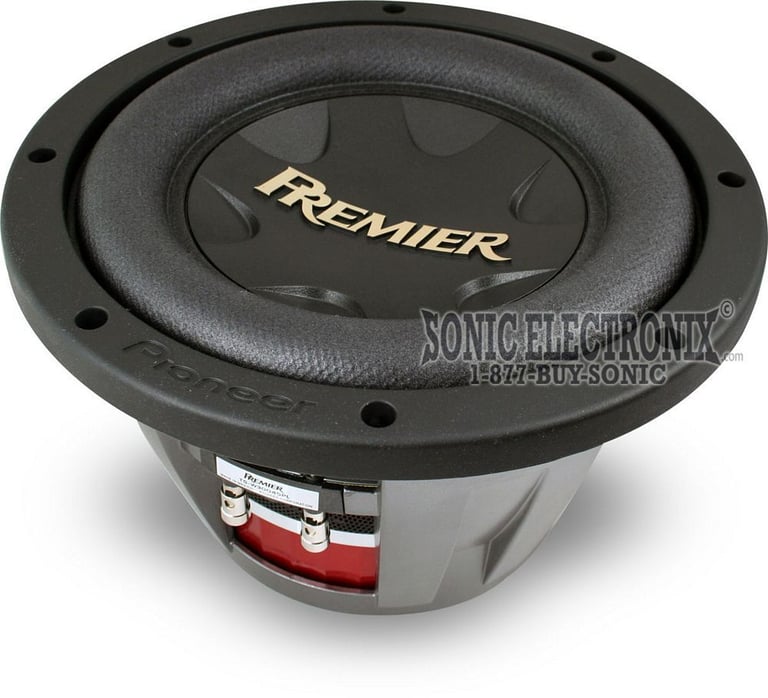

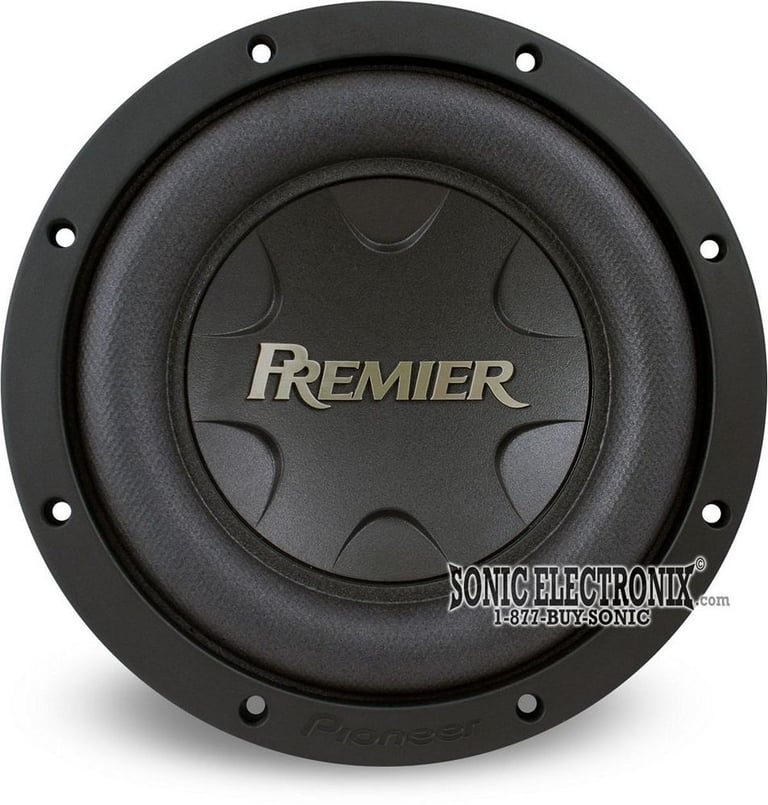

Pioneer Premier TS-W3002SPL

12" Dual 2 ohms SPL Competition Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" subwoofer with dual 2-ohm voice coils • 3000 watts max power handling • 1000 watts RMS power handling • Wide-Roll 3-Layer Fiber Radial Surround • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement

Learn more about the tsw3002spl

We apologize

This item has been discontinued


Loading...
UBE-GMC-ACA-G2 main

NVX Empty BOOST Box - 2017-2023 GMC Acadia and Acadia Limited - UBE-GMC-ACA-G2

For select 2017-2023 Acadia and Acadia Limited - Single 10" Empty BOOST Sealed Enclosure

-16.67%

$229.99

List price $275.99

AD-CR1 main

Raptor AD-CR1 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2002-2025 vehicles from Ford, Chevrolet, GMC

9
-14.31%

$5.99

List price $6.99

99-3310B main

Metra 99-3310B Dash Kit

Install a new Single-DIN car stereo in select 2013-2017 vehicles from Buick, Chevrolet, GMC (Matte Black)

-11.63%

$37.99

List price $42.99

CAR10TC main

Jensen CAR10TC

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth and Wireless Apple CarPlay and Android Autio

-11.91%

$369.99

List price $419.99

Product Highlights


12" subwoofer with dual 2-ohm voice coils • 3000 watts max power handling • 1000 watts RMS power handling • Wide-Roll 3-Layer Fiber Radial Surround • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement

Description


Pioneer brand icon

Authorized dealer

  • 12" subwoofer with dual 2-ohm voice coils
  • Wide-Roll 3-Layer Fiber Radial Surround
  • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement
  • Aluminum Heat Sink that cools the voice coil structure
  • Titanium Voice Coil Bobbin
  • Ceramic-Coated Voice Coil Wire which allows it to handle extreme heat
  • Double-Stack Magnet with Double-Stack Top Plate
  • Cast Aluminum Basket is a one-piece aluminum basket assembly holds the motor assembly, cone, and magnet structure securely in place. The advantages of this design: reduced internal stress, superior damping, and increased magnetic efficiency.
  • frequency response: 18 Hz - 700 Hz
  • RMS power handling: 1000 watts
  • peak power handling: 3000 watts
  • sensitivity: 89 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-W3002SPL Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer Premier TS-W3002SPL Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-W3002SPL Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-W3002SPL Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
3000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
18 - 700 Hz
Sensitivity
89 dB
Xmax (millimeters)
10.9 mm
Woofer Composition
Interlaced Carbon Fiber/Glass Fiber Reinforced
Woofer Surround
Wide-Roll, 3-Layer Fiber Woven Aramid Radial with Honeycomb Cloth
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
7.3"
Cutout Diameter
11"

Item Details


Manufacturer:

Model Number:

TS-W3002SPL

Weight:

29.00lbs

Internal SKU:

tsw3002spl

Internal Product ID:

9267
