See all parts that fit your 2011 Crown Victoria

JL Audio 12TW1-4 - New (Damaged Packaging, Product A+)

300W 12" TW1 (Thin-Line) Series Single 4-ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• Mounting depth: 4.62 "
• Precision-built in USA at JL Audio’s Miramar, Florida factory
• Injection molded, mica-filled polypropylene cone
• Rubber Surround
• Cast Alloy Basket
• DMA-optimized motor design
• Very small sealed enclosure volume requirements

Learn more about the LS-12tw14-OB

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - New, Damaged Packaging:

The product is brand new with only the packaging not being in perfect condition. This occurs sometimes because our warehouse teared the box or it was slightly damaged during shipment to our warehouse.

Product Features:

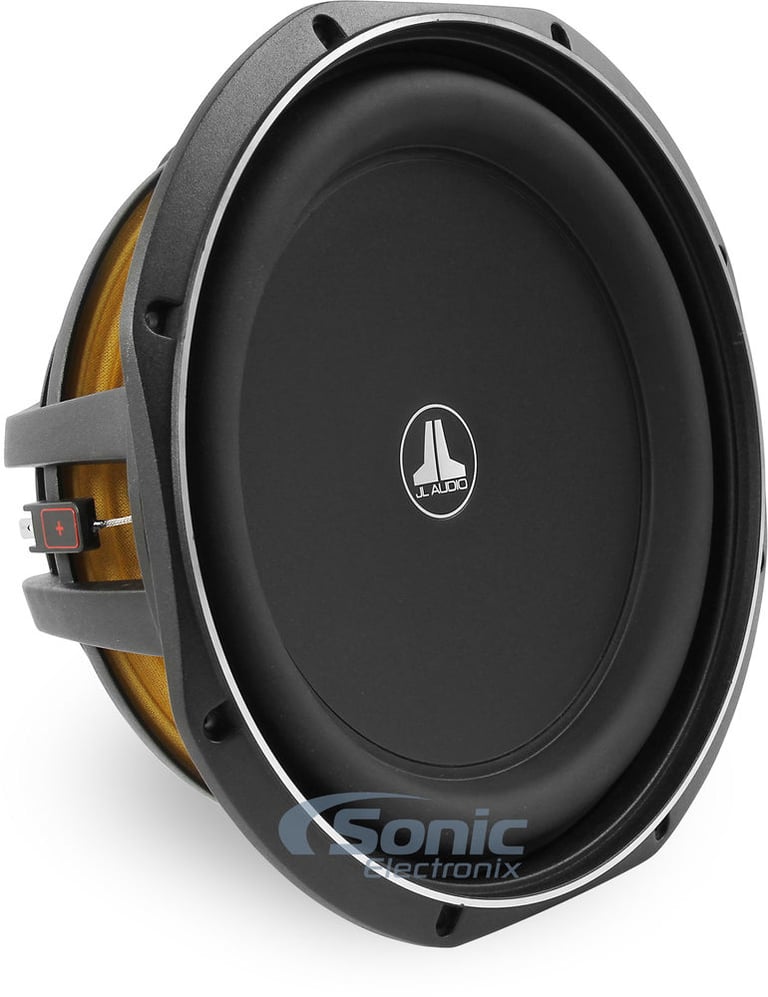

  • 12" TW1 (Thin-Line) Series Shallow Mount Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Recommended Power Range: 75 - 300 watts
  • Impedance: Single 4-Ohm
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • No pole vent: permits mounting close to rear wall of enclosure.
  • Ultra-compact sealed enclosure volume requirements
  • Long linear excursion capability
  • DMA-optimized motor designs
  • Engineered Lead-Wire System
  • Patented “concentric tube” architecture
  • Patented “floating cone attach method” technology

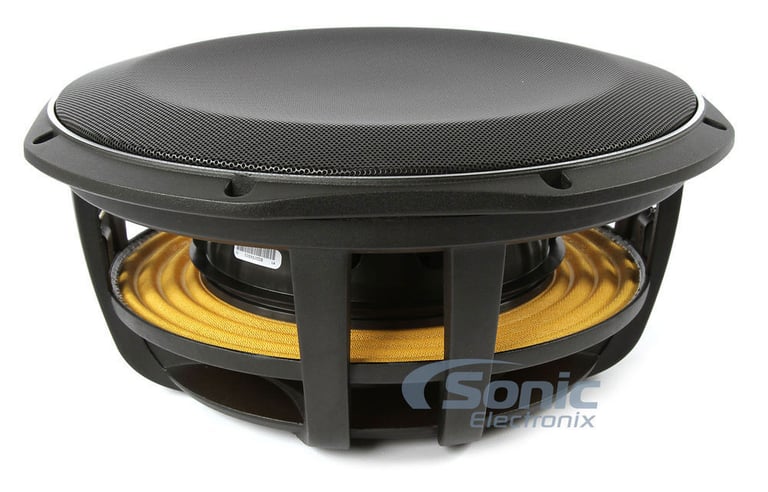

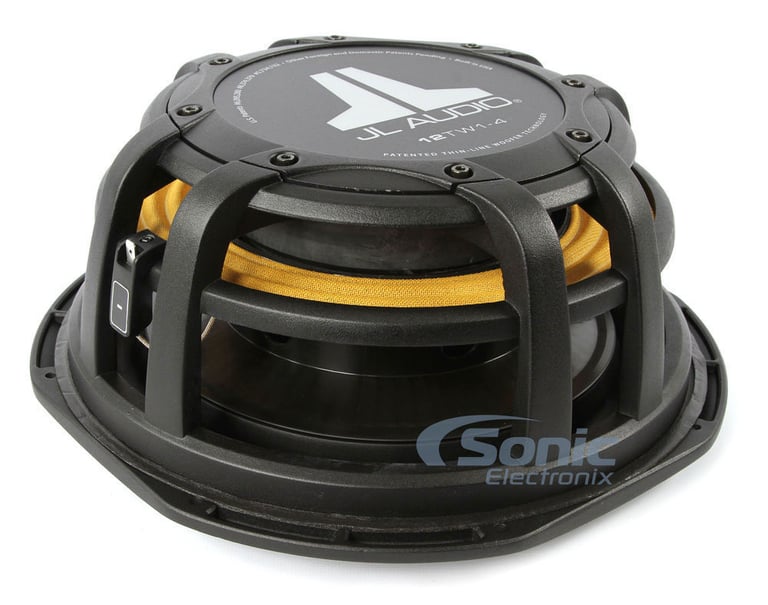

  • Cast alloy frame with flat edges for tight driver grouping

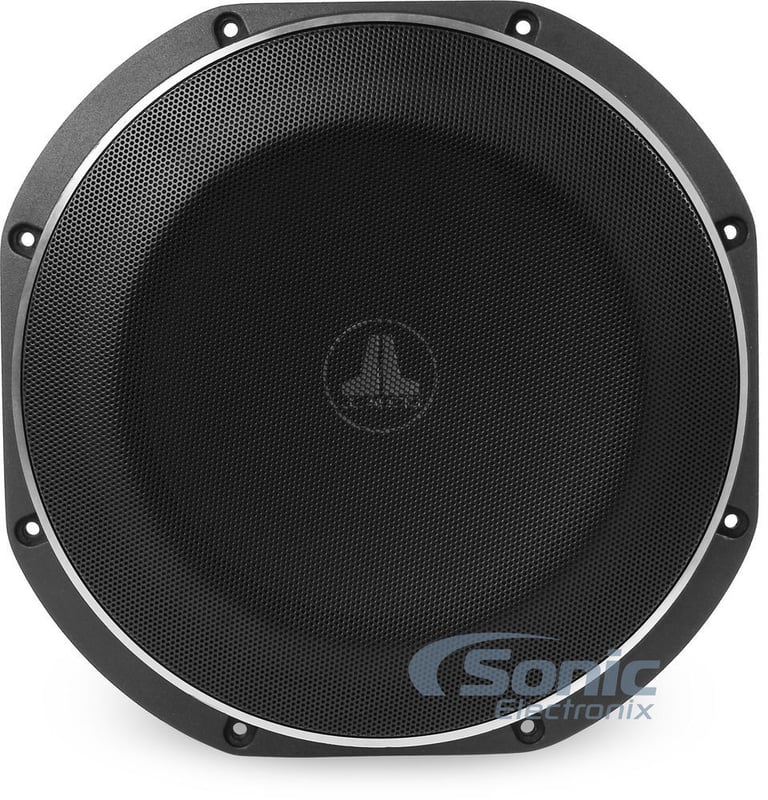

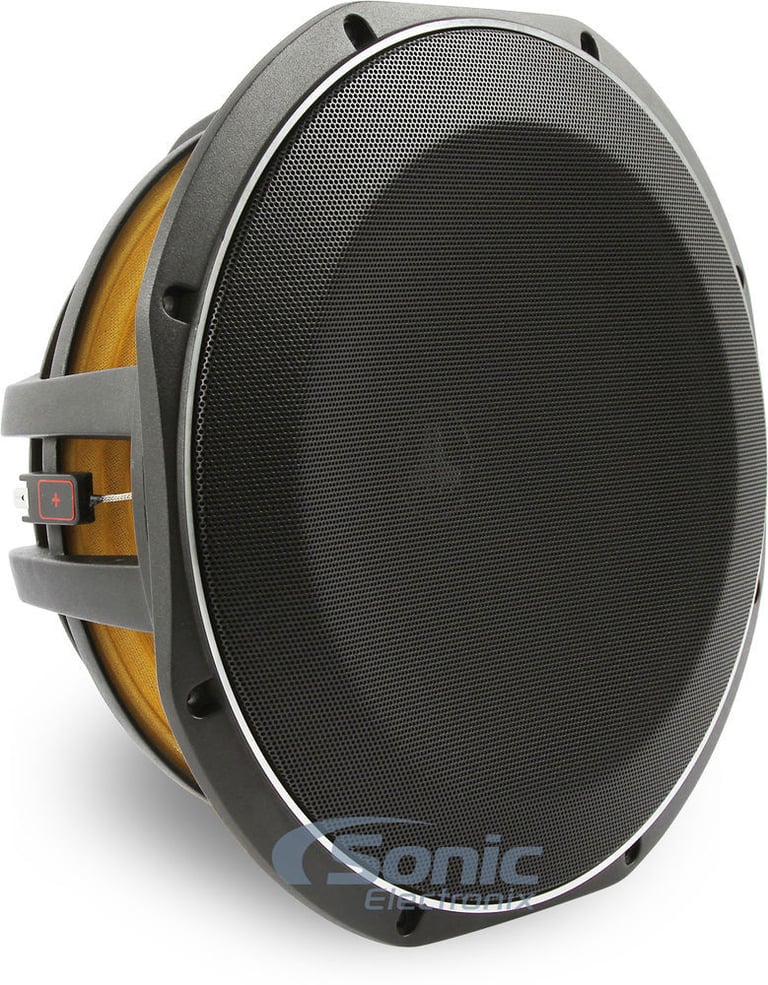

  • Steel mesh grille included with each driver
  • Precision-built in USA at JL Audio’s Miramar, Florida factory

  •
  • Mounting depth: 4.62 "
  • Cutout dimensions: 11.0625 "
  • Free Air Resonance (Fs): 32.35 Hz
  • Sensitivity: 85.15 dB
  • Xmax: 10.0 mm
  • Equivalent Compliance (Vas): 33.67 L
  • Frequency response: ~24 ~ 200 Hz
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the JL Audio 12TW1 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 12TW1-4 - New (Damaged Packaging, Product A+) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 12TW1-4 - New (Damaged Packaging, Product A+) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 12TW1-4 - New (Damaged Packaging, Product A+) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 12TW1-4 - New (Damaged Packaging, Product A+) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
TW1 Series
Subwoofer Size
12"
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
24 - 200 Hz
Sensitivity
85.15 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.65 cubic feet
Optimum Ported Box Volume
1.125 cubic feet
Top-Mount Depth (Mounting Depth)
4.62"
Cutout Diameter
11.0625"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.35 Hz
Equivalent Compliance (Vas)
33.67 liters
Total Speaker Q Value (Qts)
0.529
Electrical Q Value (Qes)
0.555
Electrical Resistance of Voice Coil (Re)
3.514 ohm
Mechanical Q Value (Qms)
11.066
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

12TW1-4

Weight:

17.90lbs

Internal SKU:

LS-12tw14-OB

Internal Product ID:

117523
