Name: Pioneer GM-A5602 OPEN BOX COMPLETE
Brand: Pioneer
SKU: LS-gma5602-OBCra227056
Price: 89.99 USD
Availability: Discontinued

by Pioneer

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Pioneer GM-A5602 OPEN BOX COMPLETE Image 1 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 2 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 3 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 4 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 5 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 6 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 7 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 8 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 9 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 10 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 11 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE Image 12 — Pioneer GM-A5602 OPEN BOX COMPLETE

Pioneer GM-A5602 OPEN BOX COMPLETE-video

Product videos

Product highlights

Opened, previously installed, used, and wires cut
• RMS: 150W x 2 @ 4 ohm, 225W x 2 @ 2 ohm, 450W x 1 @ 4 ohm
• Total Peak Power: 900W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Learn more about the LS-gma5602-OBCra227056

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

REFURBISHED VERSION AVAILABLE

For a limited time only, we have a great deal on the Factory Refurbished version from Pioneer! Click here to save!

Item Condition: Open Box Complete

Opened, previously installed, used, and wires cut

General Features:

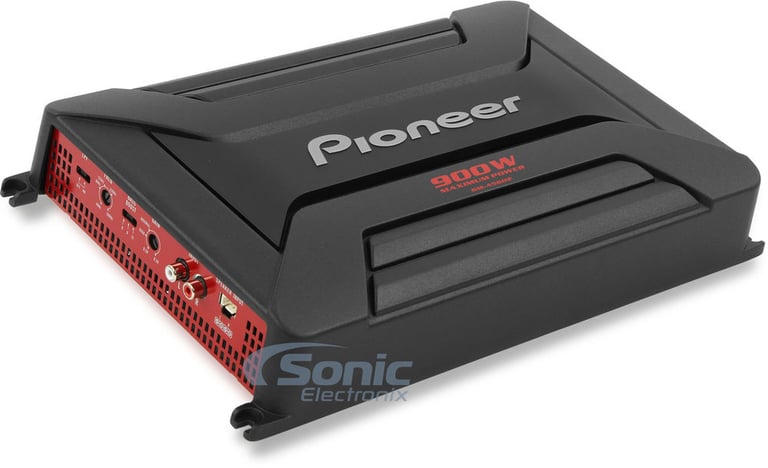

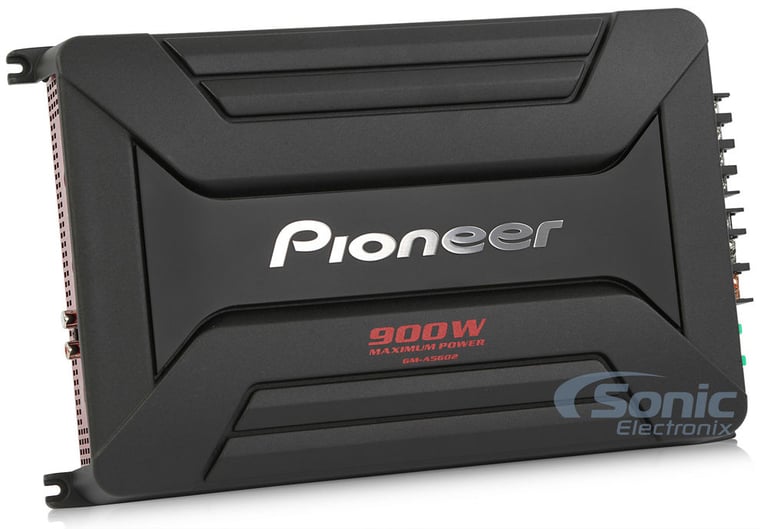

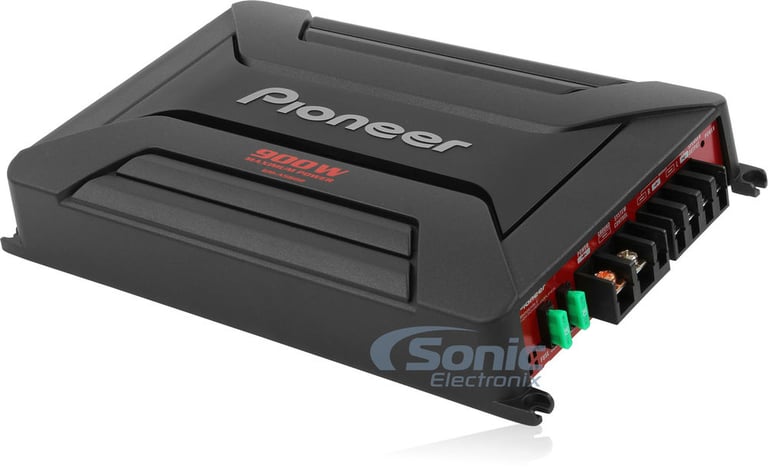

GM Series 2-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 150 watts x 2 chan.
2 ohm: 225 watts x 2 chan.
Bridged, 4 ohm: 450 watts x 1 chan.

Max power output: 900 watts x 1 chan.

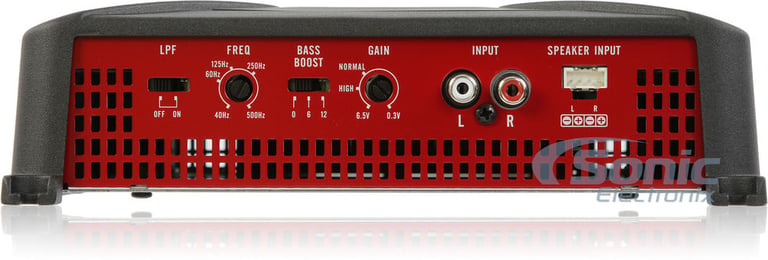

Switchable Bass Boost (0/+6/+12 dB bass boost at 50 Hz)
2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Variable low-pass filter (40-500 Hz, 12 dB/octave)
CEA-2006 compliant amplifier

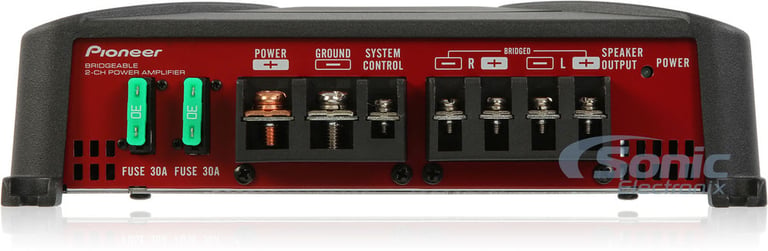

4 gauge power and ground wiring is required for installation

Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H
1-year Sonic Electronix Warranty

Product history:

	Pioneer GM-A5602 OPEN BOX COMPLETE (newest, current model)
	Pioneer GM-5500T (previous model, replaced by Pioneer GM-A5602 OPEN BOX COMPLETE)
	Pioneer GM-5400T (previous model, replaced by Pioneer GM-5500T)
	Pioneer GM-5300T (previous model, replaced by Pioneer GM-5400T)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 2 channel

RMS Power @ 2 ohms

225 watts x 2 channel

Bridged RMS Power

450 watts x 1 channel

Amplifier Specifications

Series

GM Series

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

900 watts

Total RMS Power Output

450 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

30A x 2

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
