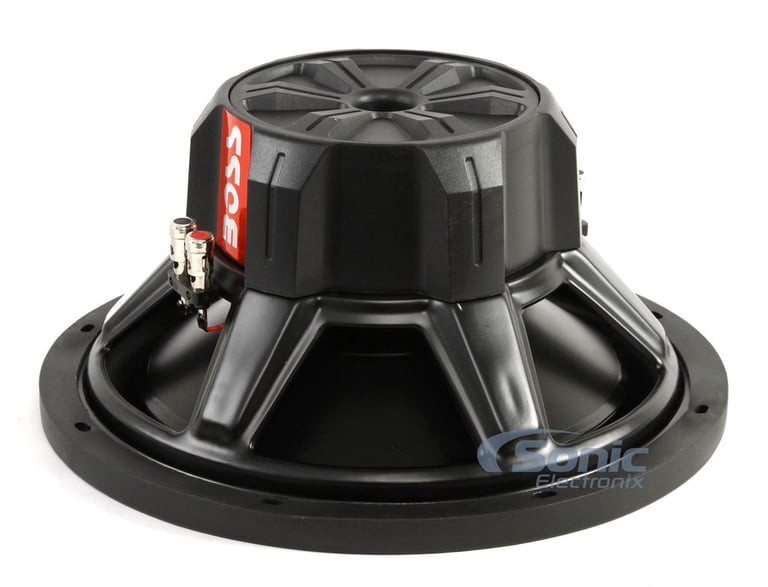

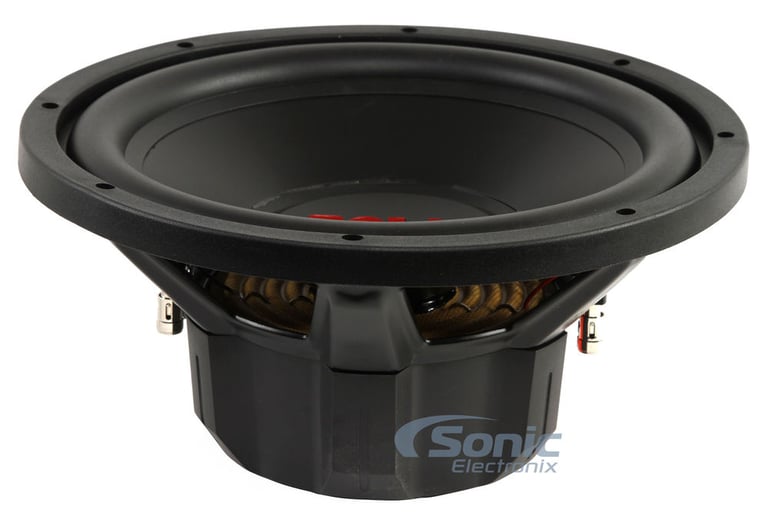

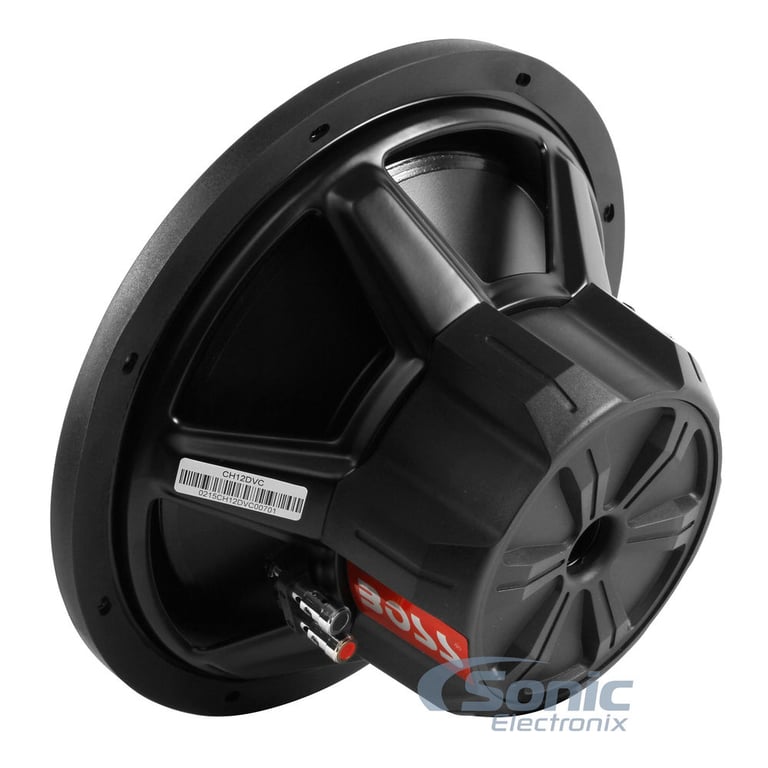

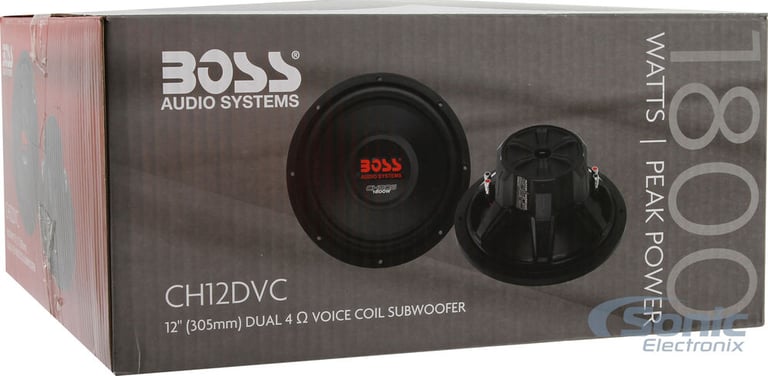

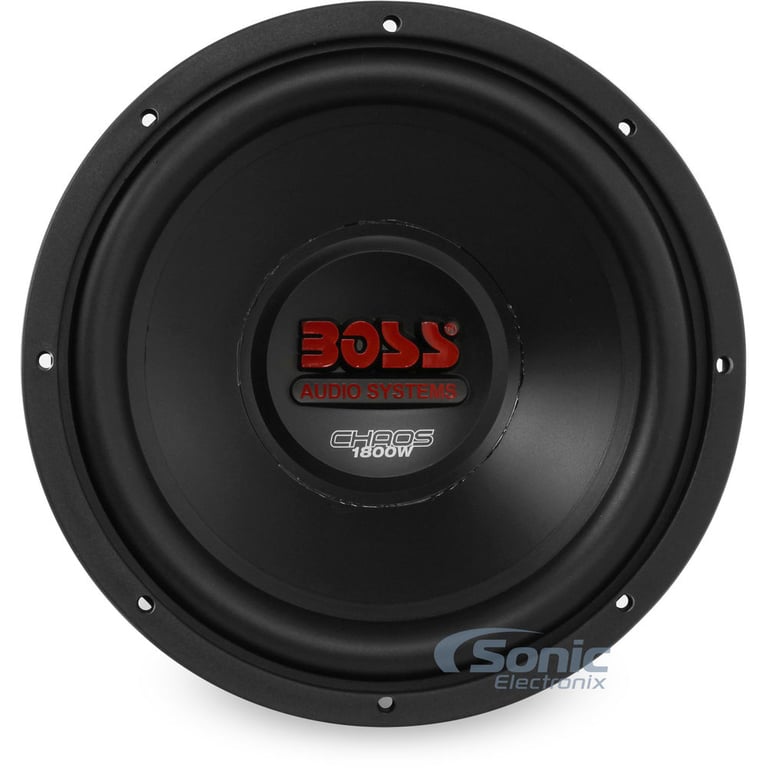

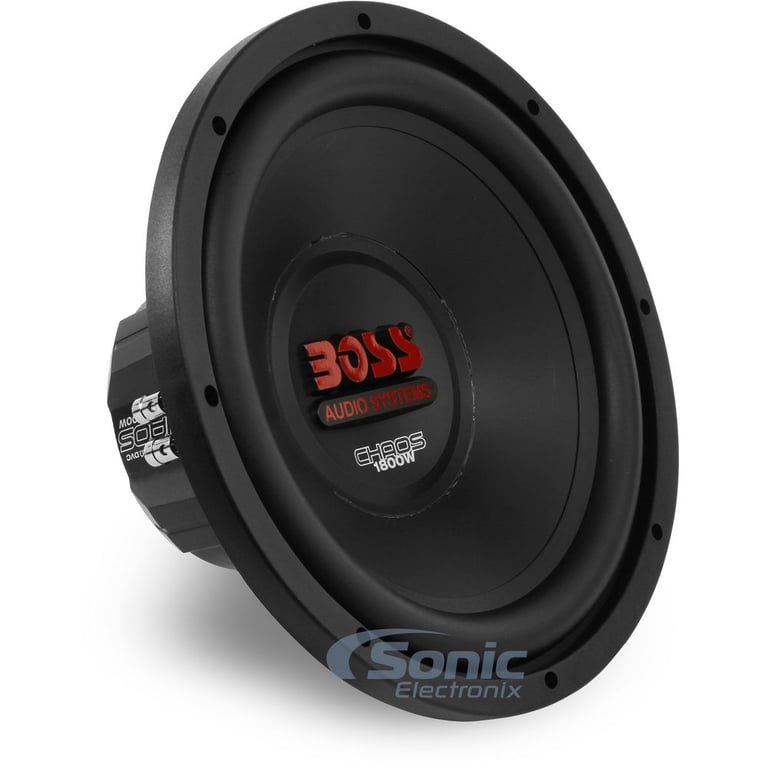

Boss CH12DVC

1800W 12" Chaos Series Dual 4-Ohm Car Subwoofer

Boss
Shop all Boss
Product videos
highlight-star-icon

• 900W RMS
• 1800W Max
• Polypropylene Cone
• Butyl Rubber Surround
• Stamped Steel Basket
• Spring Loaded Terminals for easy Connection
• Single Stacked Magnet
• Top-mount depth: 5.32"

Learn more about the ch12dvc

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

MDAB main

Scosche MDAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

21
-21.90%

$6.99

List price $8.95

GMK262 main

American International GMK262

Single DIN or Double DIN Stereo Dash Kit for select 1996-2005 DeVille and Seville and Eldorado

-72.24%

$14.99

List price $54.00

DMH-342EX main

Pioneer DMH-342EX

6.8" Double DIN Touchscreen Digital Media Receiver with Bluetooth and Amazon Alexa

6
-14.29%

$300.00

List price $350.00

ZS653 main

Hifonics ZS653

600W Peak (100W RMS) 6.5" Zeus Series 3-way 4-ohm Coaxial Car Speakers

14
ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

XED525C main

Cerwin-Vega XED525C

500W Peak (60W RMS) 5.25” XED Series 2-Way 4-ohm Component Speaker System

8
-16.67%

$59.99

List price $71.99

BRS69 main

Boss BRS69 (Sold Individually)

120W Peak (60W RMS) 6x9" BRS Series Dual Cone 4-ohm Replacement Speaker

3
-18.61%

$34.99

List price $42.99

DMH-341EX main

Pioneer DMH-341EX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Amazon Alexa

14
-31.43%

$240.00

List price $350.00

Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

Product Highlights


• 900W RMS
• 1800W Max
• Polypropylene Cone
• Butyl Rubber Surround
• Stamped Steel Basket
• Spring Loaded Terminals for easy Connection
• Single Stacked Magnet
• Top-mount depth: 5.32"

Description


Boss brand icon

Authorized dealer

General Features:

  • 12" Dual 4-Ohm Chaos Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 950 watts
  • Polypropylene Cone
  • Butyl Rubber Surround
  • Stamped Steel Basket
  • Spring Loaded Terminals for easy connection
  • Single Stacked Magnet
  • Reccomended Sealed Enclosure: 1.2 CuFt Sealed
  • Reccomended Ported Enclosure: 1.7 CuFt Ported enclosure
  • Resonance Frequency (Fs): 36 Hz
  • Top-mount depth: 5.32"
  • Sensitivity: 86 dB
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 2 years Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Boss CH12DVC Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Boss CH12DVC Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Boss CH12DVC Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Boss CH12DVC Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Chaos Epic Series
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 250 Hz
Sensitivity
86 dB
Xmax (millimeters)
16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.2 cubic feet
Optimum Ported Box Volume
1.7 cubic feet
Top-Mount Depth (Mounting Depth)
5.32"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36 Hz
Equivalent Compliance (Vas)
1.42 liters
Total Speaker Q Value (Qts)
0.61
Electrical Q Value (Qes)
0.74
Mechanical Q Value (Qms)
3.4
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CH12DVC

Weight:

9.80lbs

Internal SKU:

ch12dvc

Internal Product ID:

93830
