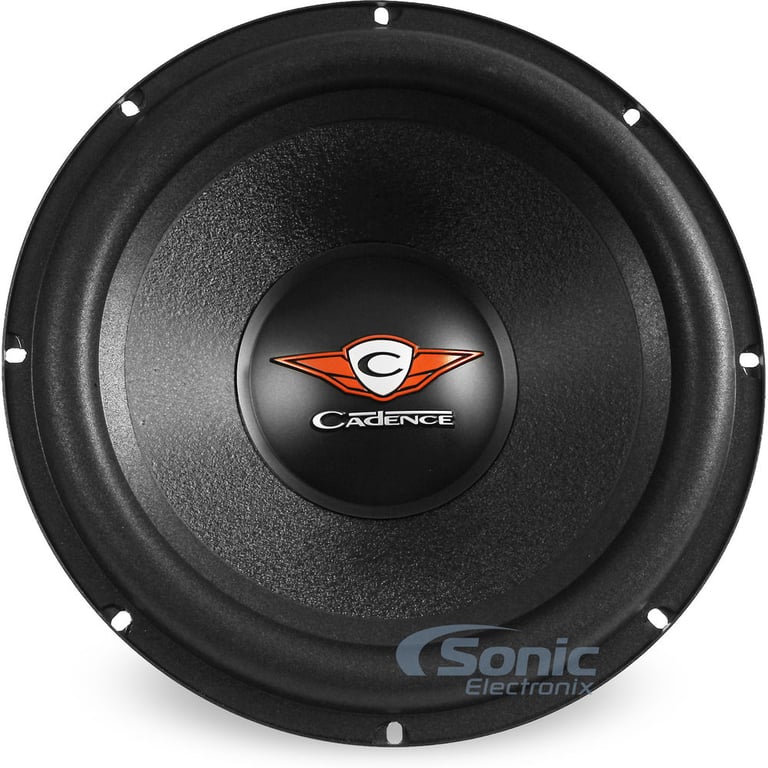

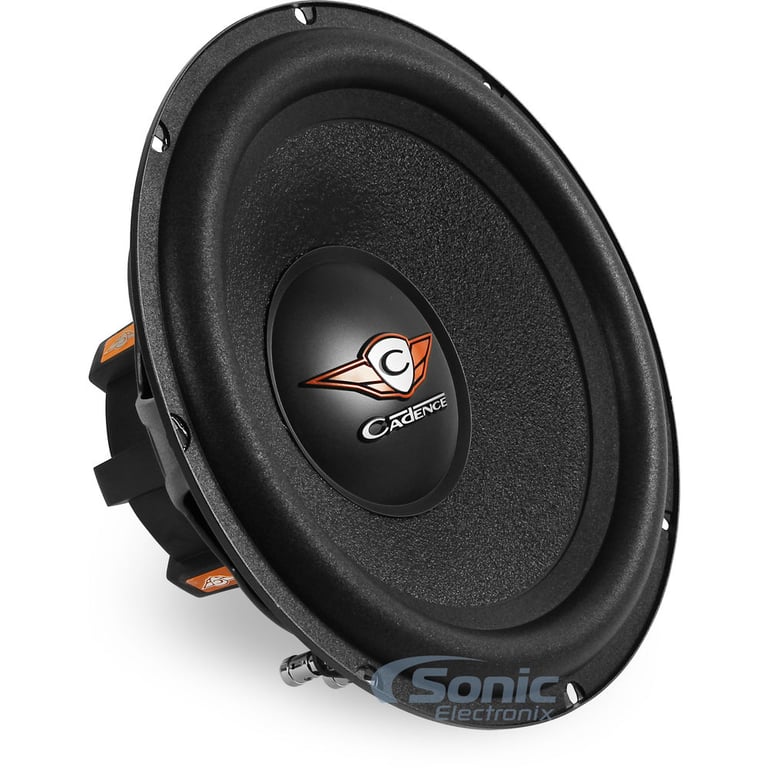

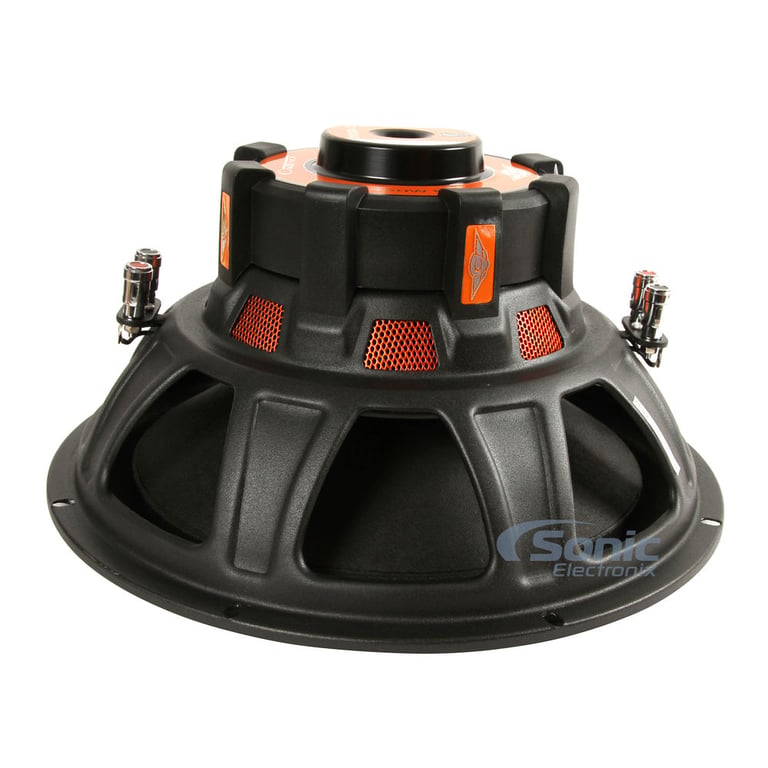

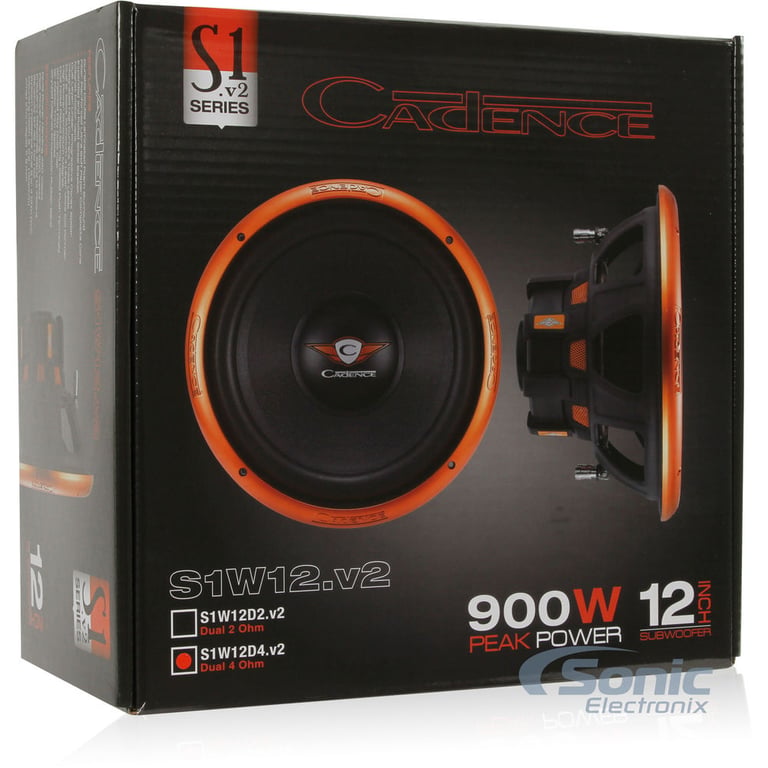

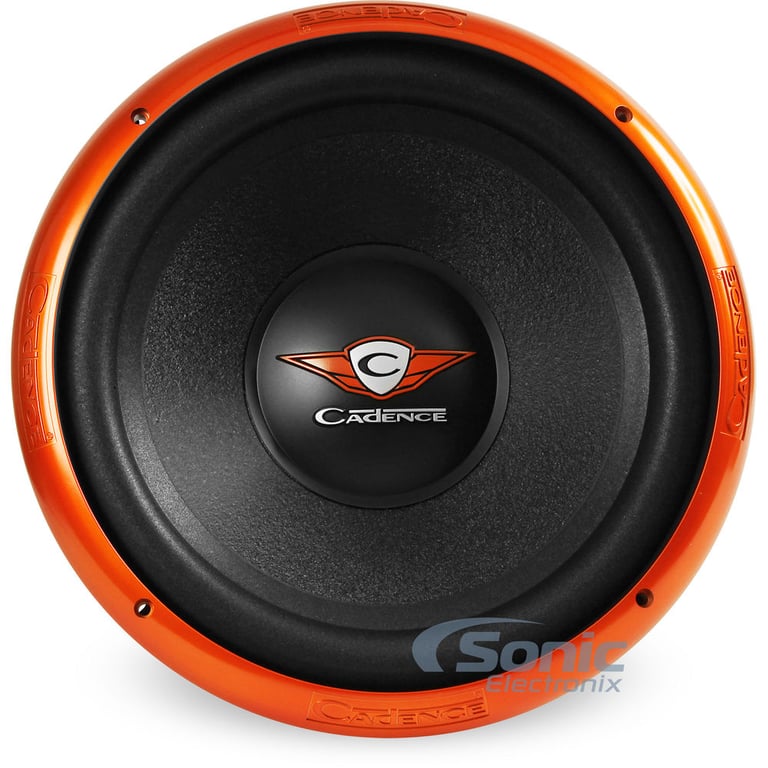

Cadence S1W12D4.v2

900W 12" S1 Series Dual 4 ohm Car Subwoofer

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• 450W RMS
• 900W Max
• Pressed Paper Pulp Cone
• Double Laminated Foam Surround
• Expanded and Rolled Steel Basket
• Magnet Motor Heatsink with Heat Pump Cooling Technology
• Black Aluminum 4 Layer Voice Coil

Learn more about the s1w12d4v2

We apologize

This item has been discontinued


Loading...
72-7300 main

Metra 72-7300

Install New Speakers in select 1998-2021 vehicles from Hyundai, Kia, Toyota

8
-33.36%

$9.99

List price $14.99

HKSB110 main

American International HKSB110

6.5" or 6.75" Speaker Mounting Adapters for select 2006-2021 vehicles from Hyundai, Kia

11
-51.31%

$18.99

List price $39.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

DDX57S main

Kenwood DDX57S

6.75" Double DIN Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

5
-31.21%

$399.00

List price $580.00

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Product Highlights


• 450W RMS
• 900W Max
• Pressed Paper Pulp Cone
• Double Laminated Foam Surround
• Expanded and Rolled Steel Basket
• Magnet Motor Heatsink with Heat Pump Cooling Technology
• Black Aluminum 4 Layer Voice Coil

Description


Cadence brand icon

Authorized dealer


General Features:

  • 12" Dual 4-Ohm S1 Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 450 watts
  • Recommended Power Range: 100 - 450 watts RMS
  • Pressed Paper Pulp Cone
  • Double Laminated Foam Surround for High Speed Bass Response
  • Expanded and Rolled Steel Basket
  • Magnet Motor Heatsink with Heat Pump Cooling Technology
  • Aero Style Overized Magnet Motor Vent
  • Linear Progressive Conex Spiders
  • Integrated High-Current Tinsel Leads
  • Black Aluminum 4 Layer Voice Coil
  • Ultra Saturated, High “BL” Magnetic Motor Gap
  • One Piece Extended Pole Technology
  • Oversize Double Laminated Stitched Surround
  • Dual Nickel Plated Spring Loaded Push Terminals
  • Fiber Reinforced Ultra-Stiff Paper Composite Cone
  • 3-D Injected Poly Dustcap
  • Stylized Protective Rubber Magnet Boot Cover
  • Molded Plastic Trim Gasket
  • Top-mount depth: 6.02"
  • Cutout Diameter: 11.34"
  • Frequency Response: 28 - 750 Hz
  • Magnet Weight: 41 oz
  • Sensitivity: 87 dB
  • Xmax: 11.5 mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the Cadence S1W12D4.v2 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cadence S1W12D4.v2 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cadence S1W12D4.v2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cadence S1W12D4.v2 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cadence S1W12D4.v2 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

L7S122 small

Kicker L7S122 (44L7S122)

• Peak Power: 1500 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 6 13/16"
• Sensitivity: 86.90 dB

(7)

$379.99

List price $409.99

Specifications & Details


Subwoofer Specifications
Series
S1 Series
Subwoofer Size
12"
Peak Power Handling
900 watts
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
28 - 750 Hz
Sensitivity
87 dB
Xmax (millimeters)
11.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.88 cubic feet
Optimum Sealed Box Volume
1.10 cubic feet
Maximum Sealed Box Volume
Infinite Baffle
Minimum Ported Box Volume
1.20 cubic feet
Optimum Ported Box Volume
1.80 cubic feet
Top-Mount Depth (Mounting Depth)
6.02"
Cutout Diameter
11.34"
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
84.8386 liters
Total Speaker Q Value (Qts)
0.521
Electrical Q Value (Qes)
0.581
Mechanical Q Value (Qms)
5.065
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S1W12D4.v2

Weight:

10.00lbs

Internal SKU:

s1w12d4v2

Internal Product ID:

94081

Product and How-to Videos


Customer Ratings & Reviews


Cadence S1W12D4.v2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Cadence S1W12D4.v2

These speakers are made for power! I have 2600 watts backing them and they beat hard and sound amazing..highly recommended product

By Nathanb_28 on September 16, 2015

4 found this helpful




AXDSPL-CH3 small

Axxess AXDSPL-CH3

DSP Package with AXDSP-L and T-Harness for Select select 2011-2023 Charger and Journey and 300 Vehicles

$359.99

List price $411.99

No picture

MTX Audio TNP212D2 Terminator Dual Subwoofer Package + Amplifier (Open Box)

1200 Watt Max Dual 12" Terminator Series Loaded Subwoofer Bass System with Amplifier and Bass Knob Included

(156)

$369.95

List price $399.95

M600-4D small

Rockford Fosgate M600-4D

600W RMS 4-Channel Full Range Class D Marine Amplifier

(8)

$449.99

List price $599.95

TS-A6983R small

Pioneer TS-A6983R

6" x 9" 4-way A-Series Speakers

(13)

$58.95

List price $159.99

KAC-9106D_MS-10SD4 Slim small

Kenwood Shallow Mount Bass Package

10" SLIM Series Subwoofer + 500W RMS Monoblock Performance Series Amplifier

(38)

$438.96

List price $629.95

CM12D4 small

Cadence CM12D4 (CM 12D4)

600W Max (300W RMS) 12" CM Series Dual 4 ohm Car Subwoofer

$79.95

List price $126.88

BG-1600.4 small

Hifonics BG-1600.4

1600W BRUTUS Gamma Series 4-Channel Car Audio Amplifier

(1)

$169.99

List price $299.99

LN40C550 small

Samsung LN40C550 (LN-40C550)

40" Full HD 1080p LCD Television with ConnectShare Movie and Swivel Stand

$759.99

List price $849.99

2-R2SD4-12_PBR500X1_RFK8i small

500W Rockford Fosgate Ultra-Compact Dual 12" Subwoofer Bass Package

(2) R2SD4-12 12" Shallow Mount Subwoofer + PBR500X1 Punch Series Compact Monoblock Amplifier + Rockford Fosgate Wiring Kit

(36)

$669.96

List price $899.96

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Kia Sportage

2007 Ford Freestar

1997 Dodge Ram 2500 Van

1990 Ford Bronco II

1987 Audi Coupe

2007 Suzuki SX4

2024 Porsche Macan

2017 Ford Escape

2017 Audi A4 Quattro

2007 Dodge Durango

Vehicle
Store
Delete

2002 Harley Davidson FXD Dyna Super Glide

2004 Harley Davidson FXSTD/I Softail Deuce

1998 Harley Davidson FXD Dyna Super Glide

2022 Harley Davidson FLTRX Road Glide

Vehicle
Store
Delete

2022 Can-Am Defender MAX HD9

2024 Polaris General XP 1000 Ultimate

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
