Rockford Fosgate PM210S4

500W 10" Punch M2 Series Single 4-ohm Marine Subwoofer - White

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• 250W RMS
• 500W Max
• 100% UV stable Centrex® injection molded plastic parts
• UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Ultra-flexible fully insulated silicone lead wire
• Linear, high excursion matched motor magnetics and suspension design

Learn more about the pm210s4

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Product Highlights


• 250W RMS
• 500W Max
• 100% UV stable Centrex® injection molded plastic parts
• UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Ultra-flexible fully insulated silicone lead wire
• Linear, high excursion matched motor magnetics and suspension design

Description


Rockford Fosgate brand icon

Authorized dealer

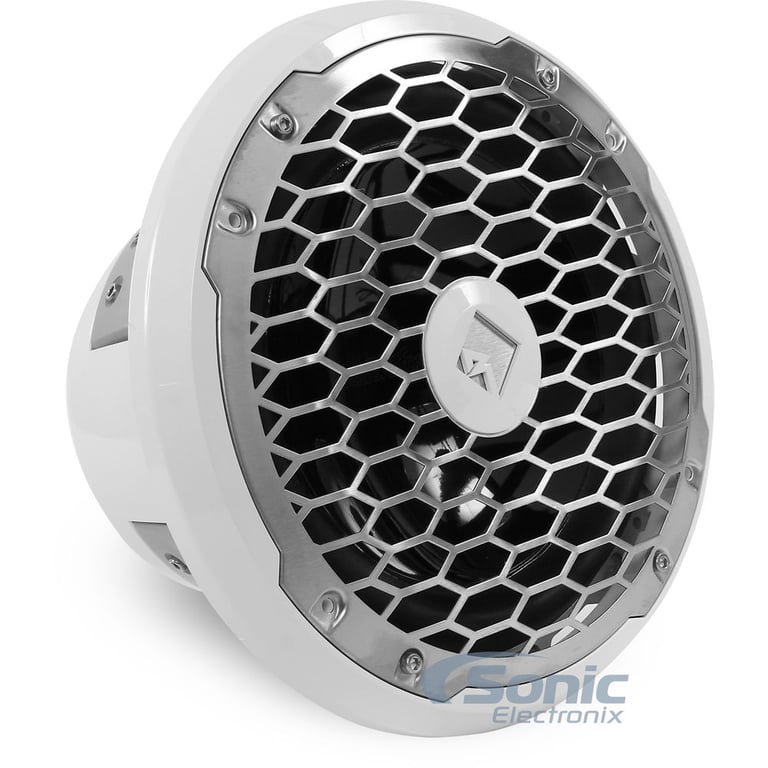

Rockford Fosgate 10" Punch M2 Subwoofer


P2 Marine Subwoofer


Element Ready

The Punch M2 marine subwoofer series are purpose-built for marine watercraft or powersports applications. They set the bar with flexible enclosure options and high power handling so you can enjoy your setup in even the most demanding of environments. With a UV and Salt-Fog resistant TPE surround and 100% UV stable Centrex injection molded plastic parts, you can rest assured that the driver will be defended from the elements for many years to come. These subwoofers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware - including the provided grille.




Exceeding the Standard

The Rockford Fosgate following is a unique one, they push their gear to the extreme and expect nothing less than top quality performance. This is why Rockford Fosgate makes sure to take extra measures in the pursuit to exceed the expectations of all of us. This includes making sure that the Power handling on this drivers conform to CEA-2031 industry standards and that the drivers are Klippel Verified - all in order to deliver the best possible subwoofer to the Rockford Fosgate faithful.





General Features:













  • 10" Single 4-ohm Punch M2 Marine Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended Power Range: 200 - 300 watts RMS
  • CEA-2031 Compliant Subwoofer
  • Klippel Verified Subwoofer
  • Meets or exceeds ASTM test standards for Marine/Outdoor use
  • 100% UV stable Centrex injection molded plastic parts
  • UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround

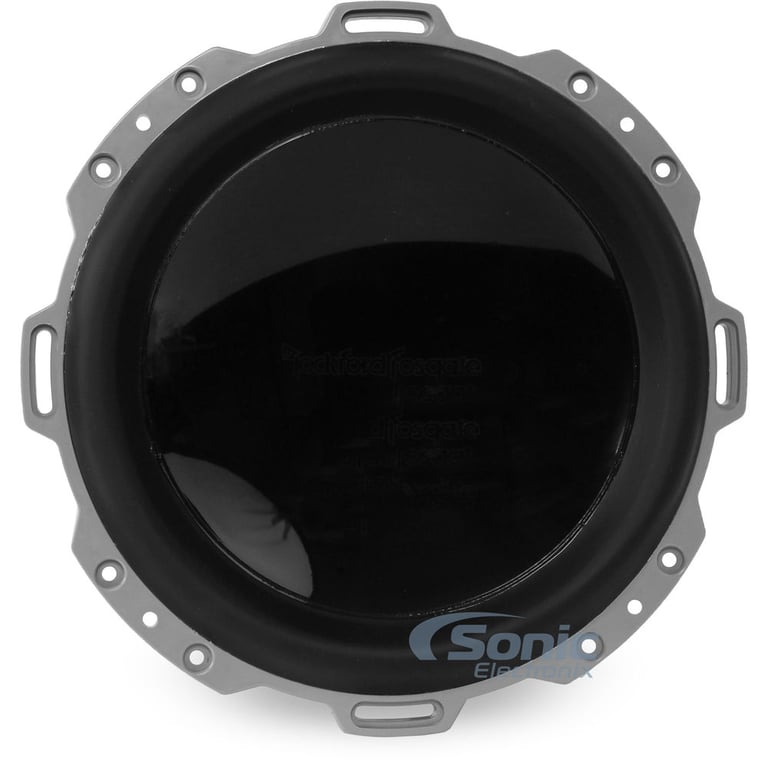

  • Injection molded mineral filled polypropylene cone body with UV inhibitors

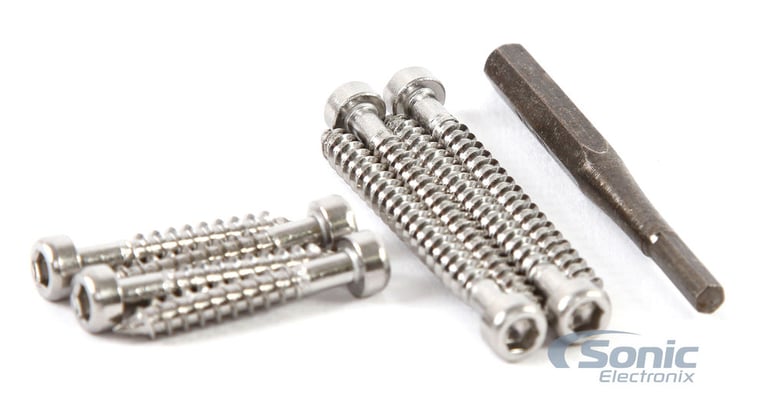

  • 18 gauge corrosion resistant removable Stainless Steel grille cover insert
  • Ultra-flexible fully insulated silicone lead wire
  • 2.0" 4-layer aluminum voice coil diameter
  • Proprietary corrosion resistant spring loaded push terminals
  • Moisture, tear and fatigue resistant Aramid fiber spider
  • Linear, high excursion matched motor magnetics and suspension design
  • VAST Surround, provides up to a 25% more cone area
  • Protected against Dust, UV, Water, Corrosion
  • Dual 8 AWG compression speaker terminals

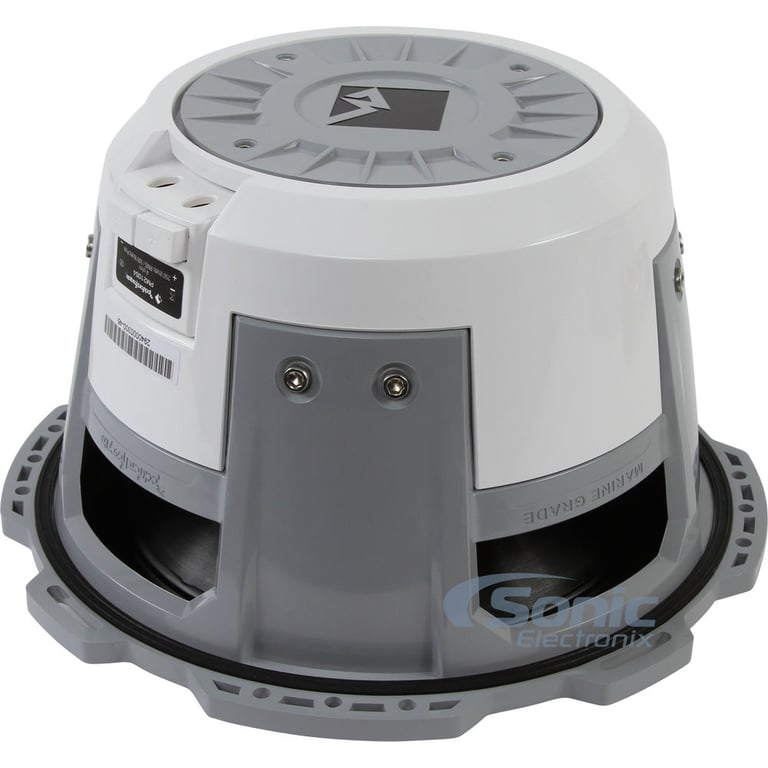

  • FlexFit slot mounted frame pattern basket
  • Anodized aluminum voice coil former
  • Internal magnetic shielding
  • User-removable trim ring/grille

  •
  • Top-mount depth: 5.50"
  • Cutout Diameter: 9.00"
  • Frequency Response: 35 - 250 Hz
  • Sensitivity: 86.0 dB
  • Xmax: 10 mm
  • Resonance Frequency (Fs): 45.0 Hz
  • Optimum Sealed Enclosure: 0.75 ft² (21.24L)
  • Optimum Vented Enclosure: 1.25 ft² (35.40L)
  • Also Optimized for Infinite Baffle (Free Air) Applications
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the Rockford Fosgate PM210S4 Owner's Manual

Product history:

Rockford Fosgate PM210S4 thumbnail
(newest, current model)
Rockford Fosgate M210S4 thumbnail
(previous model, replaced by Rockford Fosgate PM210S4)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate PM210S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate PM210S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate PM210S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate PM210S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

M6-8IB-S-GwGw-4 small

JL Audio M6-8IB-S-GwGw-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5.07"
• Sensitivity: 86.8 dB

$349.99

List price $349.99

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$149.95

List price $449.95

XM1041WL small

Kenwood eXcelon XM1041WL

• Peak Power: 1300 watts
• RMS Power: 300 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5-1/2"
• Sensitivity: 84 dB

$199.00

List price $580.00

PSW10.4D small

DS18 PSW10.4D

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Water Resistance Paper Cone
• Rubber Surround
• Mount depth: 3"
• Sensitivity: 84 dB

(1)

$179.95

List price $179.95

DB 1242 DVC small

Polk Audio DB 1242 DVC (DB1242DVC)

• Peak Power: 1110 watts
• RMS Power: 375 watts
• Impedance: Dual 4 ohm
• Polypropylene cone
• Santoprene Rubber surround
• Mount depth: 4.34"
• Sensitivity: 86 dB

(4)

$130.00

List price $149.99

M6-8IB-S-GmTi-i-4 small

JL Audio M6-8IB-S-GmTi-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.7 dB

$429.99

List price $429.99

M6-8IB-S-GwGw-i-4 small

JL Audio M6-8IB-S-GwGw-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.8 dB

(1)

$399.99

List price $399.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
500 watts
RMS Power Handling
25 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
35 - 250 Hz
Sensitivity
86.0 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Thermo-Plastic Elastomer
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5.50"
Cutout Diameter
9.00"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PM210S4

Weight:

10.00lbs

Internal SKU:

pm210s4

Internal Product ID:

94323
